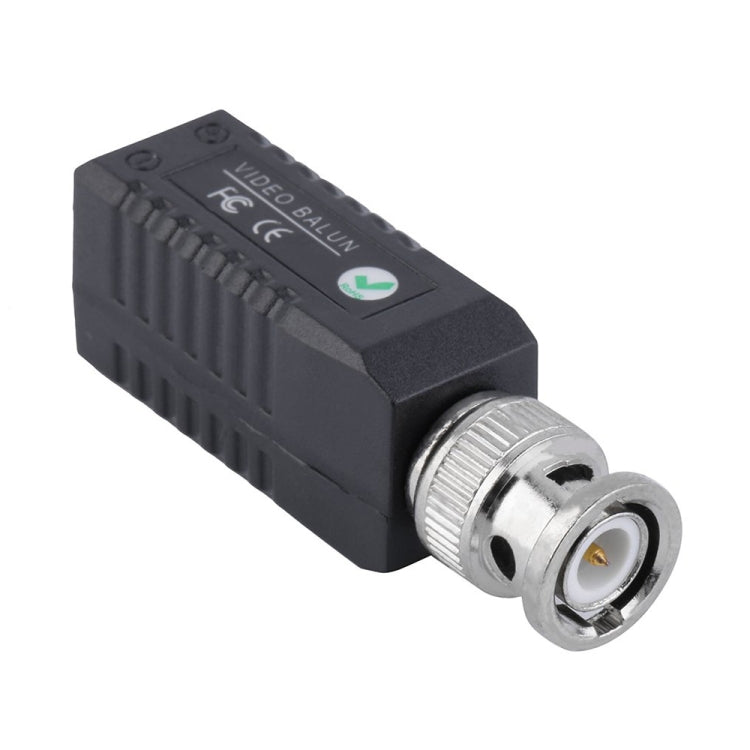

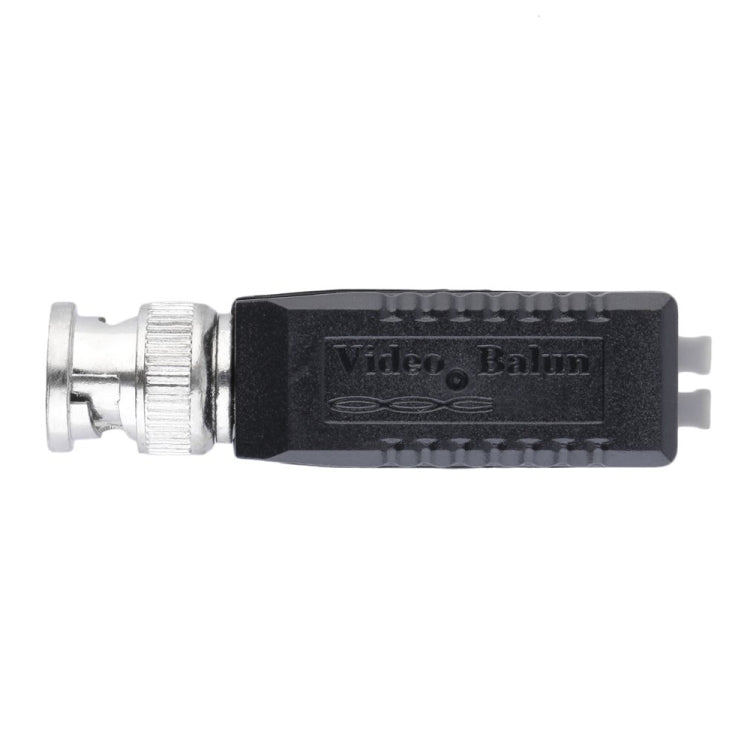

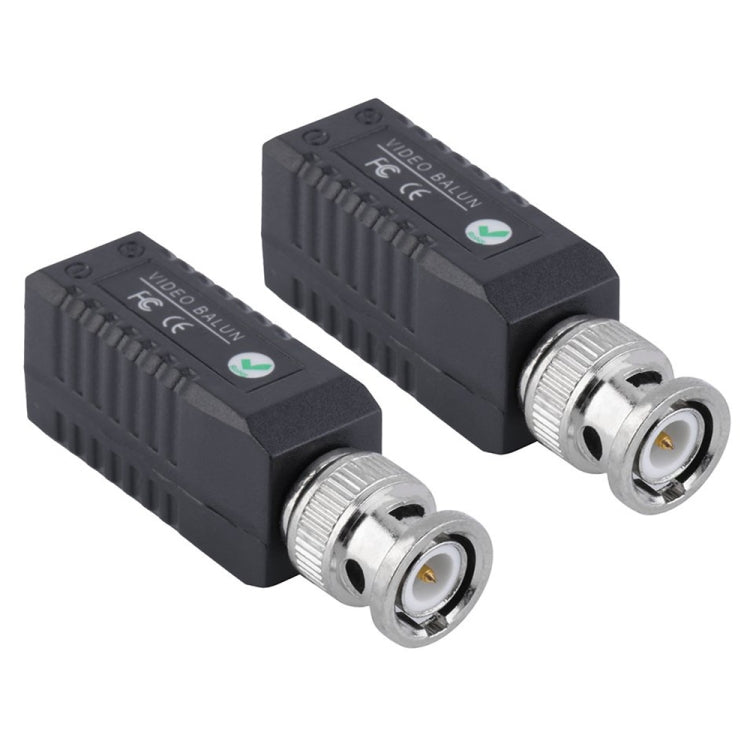

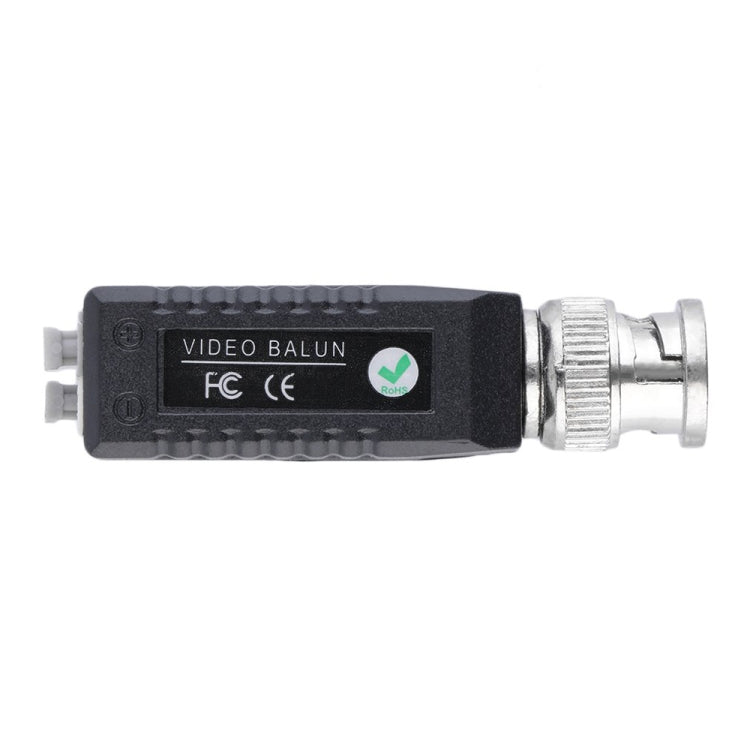

2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver, 203A
2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver, 203A
Regular price
£0.99
Regular price
£2.99
Sale price
£0.99
In stock, ready to ship
Quantity
Couldn't load pickup availability
Features:
1. Full-motion CCTV video at distances up to 330m when used with any passive transceiver
2. Up to 1500 m with any active UTP video receiver

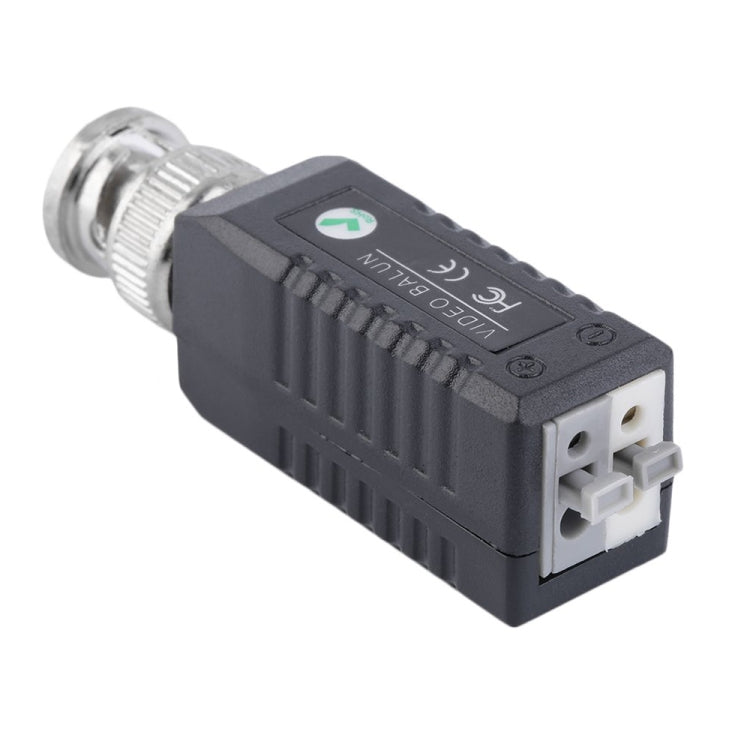

3. Press-Fit terminal block
4. NTSC, PAL, and SECAM video fornats
5. No power required
6. 60 dB crosstalk and noise immunity
7. Compact size and easy installation
8. Built-in transient suppression protection
Specifications:
1. Frequency response: DC to 8MHz
2. Attenuation: 0.5 dB typ
3. CMRR: 60dB
4. Connectors: Male BNC and Press-Fit terminal blocks
5. Impedance: BNC: 75 ohms, Terminal:100 ohms
6. Working Temperature: -10 degree C to +70 degree C
7. Storage Temperature: -30 degree C to +70 degree C
8. Humidity: 0 to 95%
9. Dimension: 39x16x19 mm (excluding connectors)
1. Full-motion CCTV video at distances up to 330m when used with any passive transceiver
2. Up to 1500 m with any active UTP video receiver
3. Press-Fit terminal block
4. NTSC, PAL, and SECAM video fornats
5. No power required
6. 60 dB crosstalk and noise immunity
7. Compact size and easy installation
8. Built-in transient suppression protection
Specifications:
1. Frequency response: DC to 8MHz
2. Attenuation: 0.5 dB typ
3. CMRR: 60dB
4. Connectors: Male BNC and Press-Fit terminal blocks
5. Impedance: BNC: 75 ohms, Terminal:100 ohms
6. Working Temperature: -10 degree C to +70 degree C
7. Storage Temperature: -30 degree C to +70 degree C
8. Humidity: 0 to 95%
9. Dimension: 39x16x19 mm (excluding connectors)
Specification:
