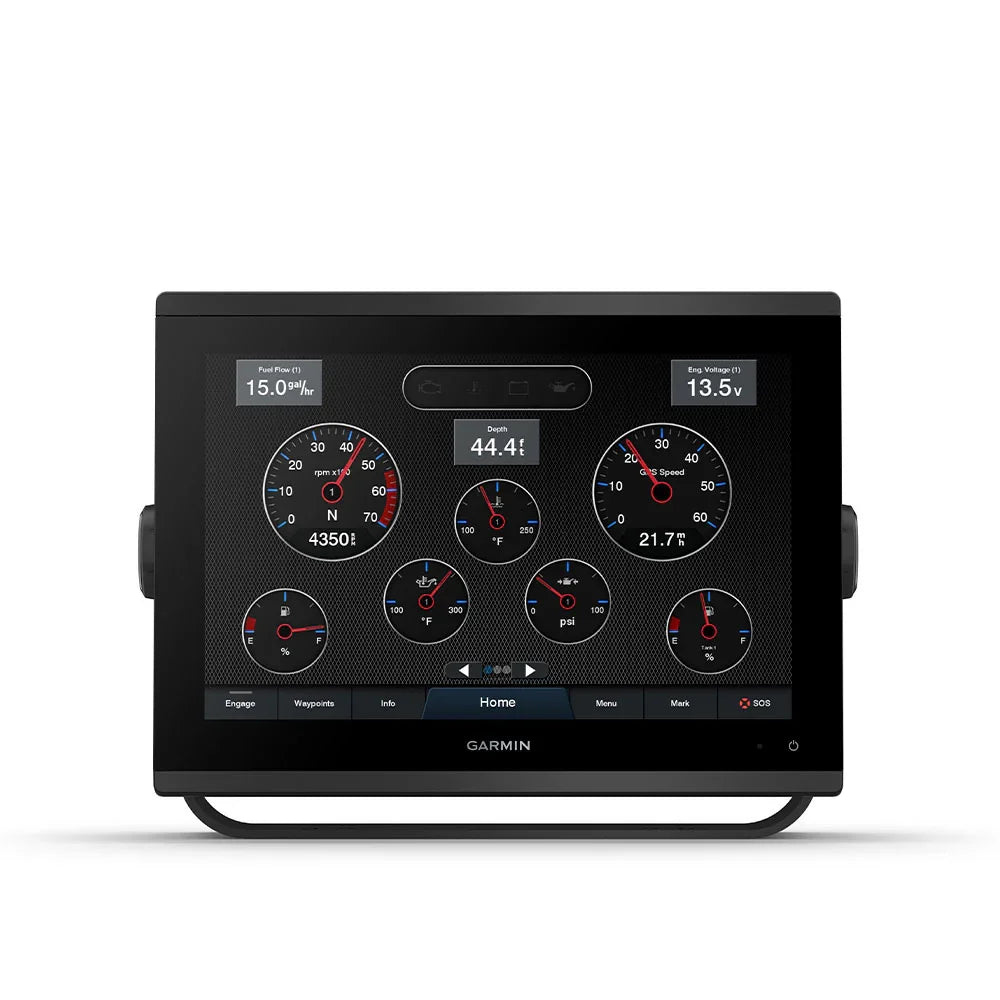

Garmin GPSMAP 1223xsv (010-02367-01)
High-Resolution 12" IPS Chartplotter & Sonar Combo
The Garmin GPSMAP 1223xsv offers a sharper, smarter view from your connected helm. Featuring a high-resolution 12-inch in-plane switching (IPS) display, this ultrasleek chartplotter provides improved sunlight readability and wide-angle visibility. With nearly double the processing power of previous generations, it integrates seamlessly into your Garmin marine system, supporting fully networkable radar, Panoptix LiveScope™ sonar, and premium mapping.
Key Features
- ✔ 12" IPS WXGA Touchscreen (1280x800)

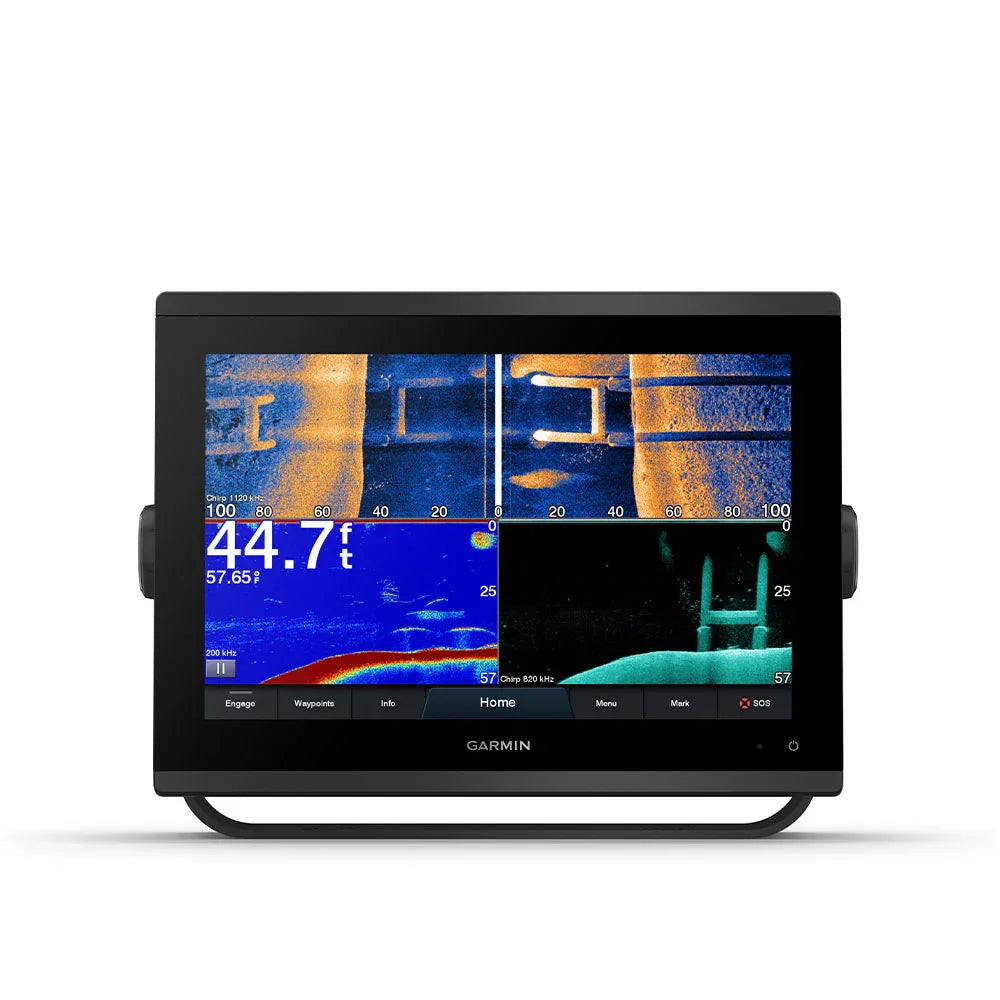

- ✔ Built-in UHD SideVü & ClearVü Sonar
- ✔ Supports 1kW Traditional CHIRP
- ✔ J1939 Engine Connectivity

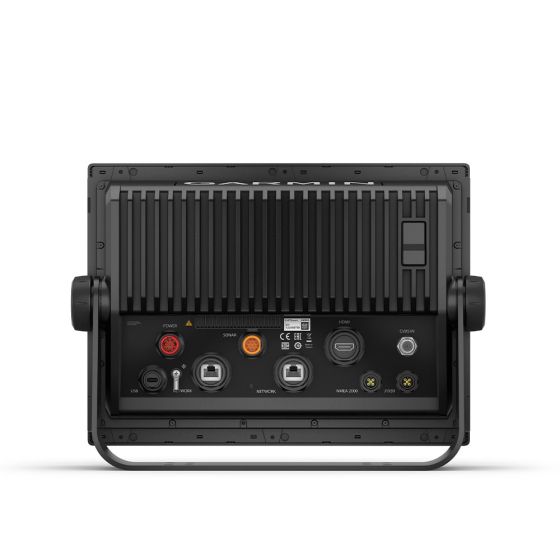

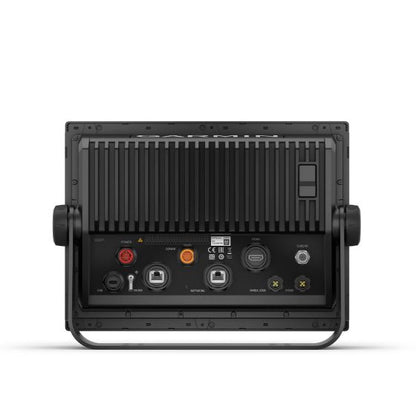

- ✔ Dual Garmin Marine Network Ports
- ✔ NMEA 2000 & NMEA 0183 Support
Technical Specs
| Dimensions: | 30.8 x 22.8 x 8.2 cm |
| Resolution: | 1280 x 800 pixels |
| Receiver: | 10 Hz GPS/GLONASS/Galileo |
| Power Draw: | 1.7 A @ 12V DC (Typical) |
| Voltage Range: | 10 - 32 Vdc |
| Weight: | 3.0 kg (6.6 lbs) |
Compatibility / Fitment Guide
| System/Category | Compatibility Detail | Notes |
|---|---|---|
| Engines | Yamaha, Mercury, Suzuki, Volvo Penta | Via J1939 or NMEA 2000 Gateway |
| Sonar | Panoptix, LiveScope, UHD Scanning | Transducer sold separately |
| Networking | Garmin Marine Network (2 Ports) | Share charts/sonar across units |
| Mounting | Bail or Flush Mount | Kits included in box |
OEM Cross Reference
| Garmin SKU | 010-02367-01 |
| Garmin EAN | 0753759250638 |
| Alternative SKU | 010-02367-02 (Region Dependent) |
Questions & Answers
Is this a genuine original part?
This is a 100% genuine Garmin product, brand new in original retail packaging, supplied through official UK distribution channels.
How do I know if it is compatible?
We recommend checking the SKU 010-02367-01. This unit replaces the older 1222 series and integrates with all NMEA 2000 and Garmin Marine Network accessories.
Can I use my existing 8-pin transducer with this 12-pin unit?
Yes, the package includes an 8-pin transducer to 12-pin sounder adapter cable, allowing you to connect your existing compatible Garmin 8-pin transducer directly to this xsv unit.
Note: Please verify your original part number and mounting clearance before purchasing. Transducer not included.
