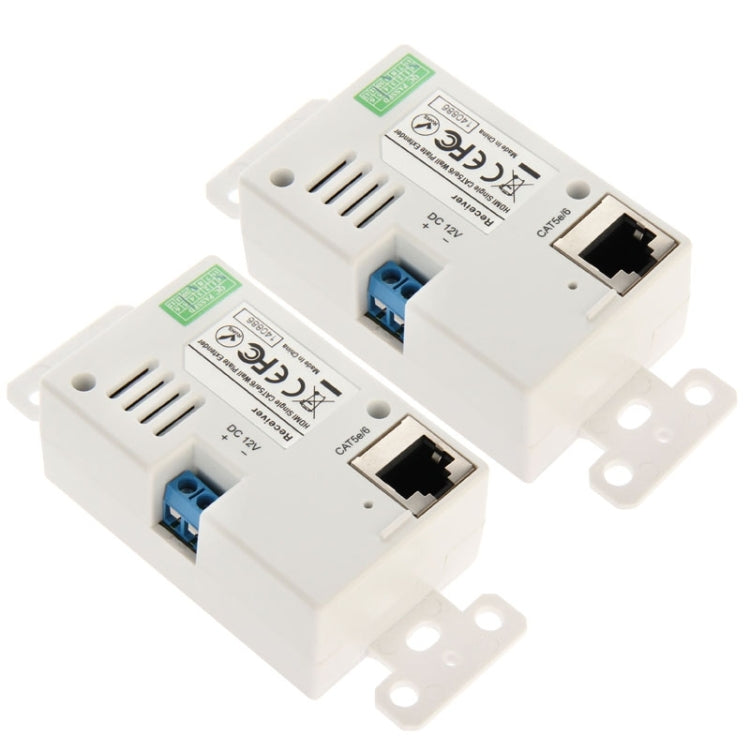

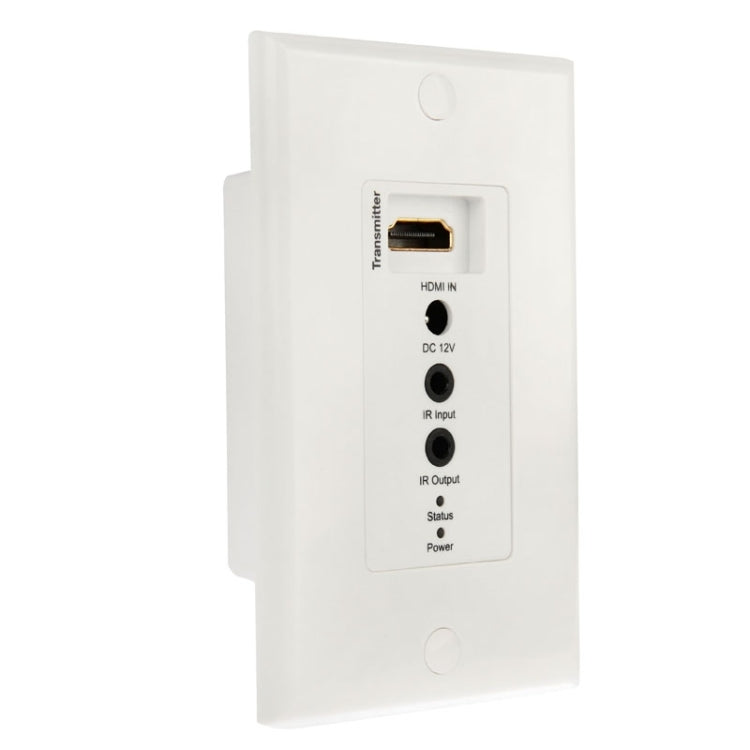

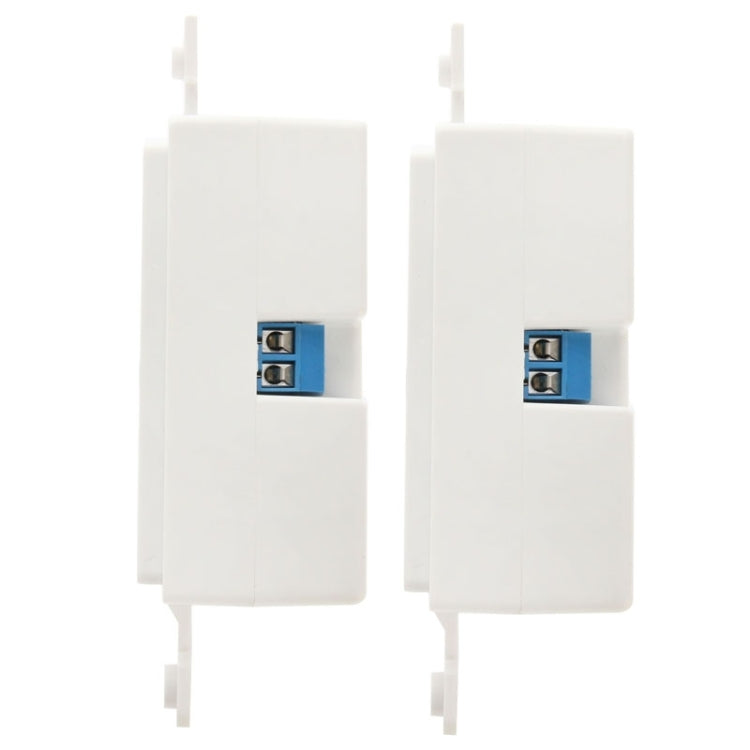

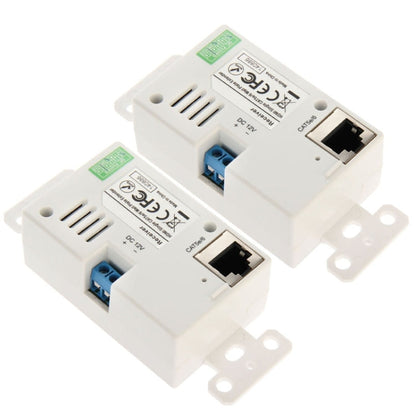

HDMI Single Cat5e / 6 50 Meters Wall Plate Extender, EU Plug

HDMI Single Cat5e / 6 50 Meters Wall Plate Extender, EU Plug

£36.99
£36.99
Sale Sold out
In stock, ready to ship
About the product
1. Extending distance is 50 meters at resolutions 1080P 3D or 1920x1200 60fs, and 80 meters at 1080i/720P through single CAT5e cable
2. Support audio formats, Dolby True HD, DTS-master, etc
3. Support 3D signals (all 7 formats), such as Frame Packing, Side-by-Side, Top-to-Bottom, etc.
4. Support EDID call back
5. Support CEC pass through
6. VESA DDC and hot swap technology (HPD)
7. Support power over UTP cable, single 12V DC power supply from any side of TX or RX

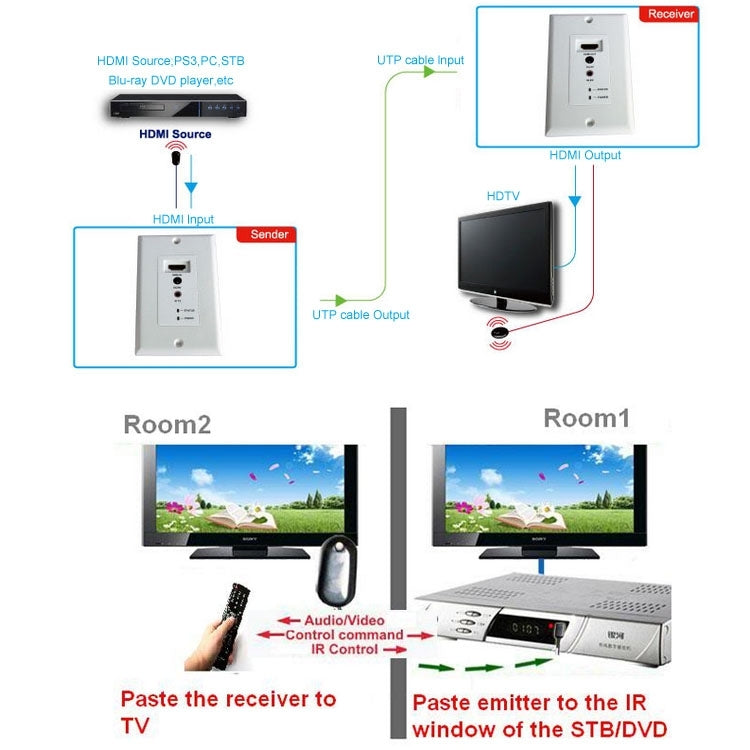

8. Bi-direction remote IR (RX->TX and TX->RX)
9. Both HDMI input and output are compatible with HDCP 1.2
10. Be compatible with DVI 1.0
11. Support cascade to enhance extending distance


Specification:
General
Video Bandwidth 165MHz
Frequency Bandwidth 4.95Gbps
Input/ Output TMDS Signal 1.2 volts (point to point)
ESD Level HBM +-8 kV
Input/ Output DDC Signal 5 volts (point to point)
Operating Temperature 0 ~ 40 Degree Celsius
Power Consumption <3.5W TX, <2.5W RX
Size 105mm x 45mm x 35mm

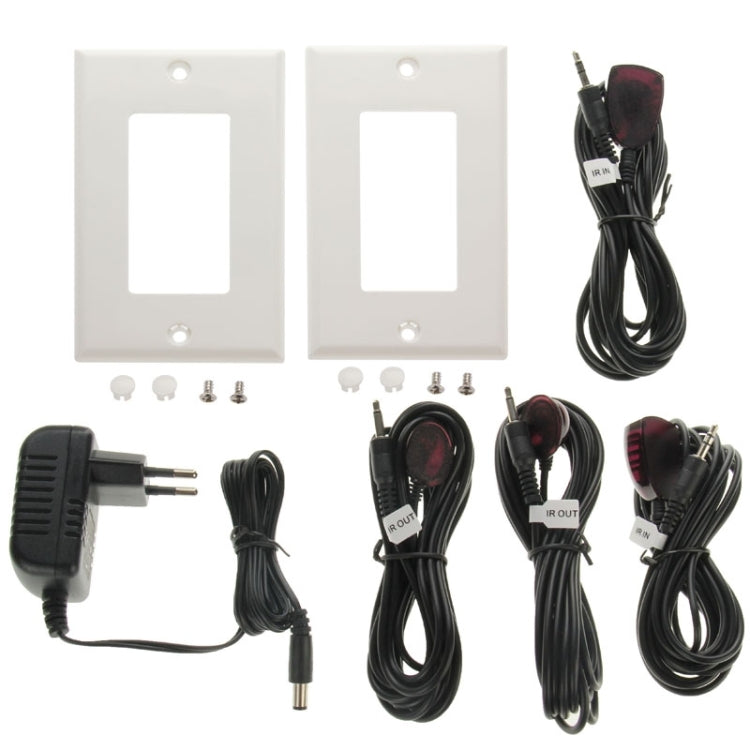

Package Include
Package Contents 1 x Power Adapter
1 x User Manual

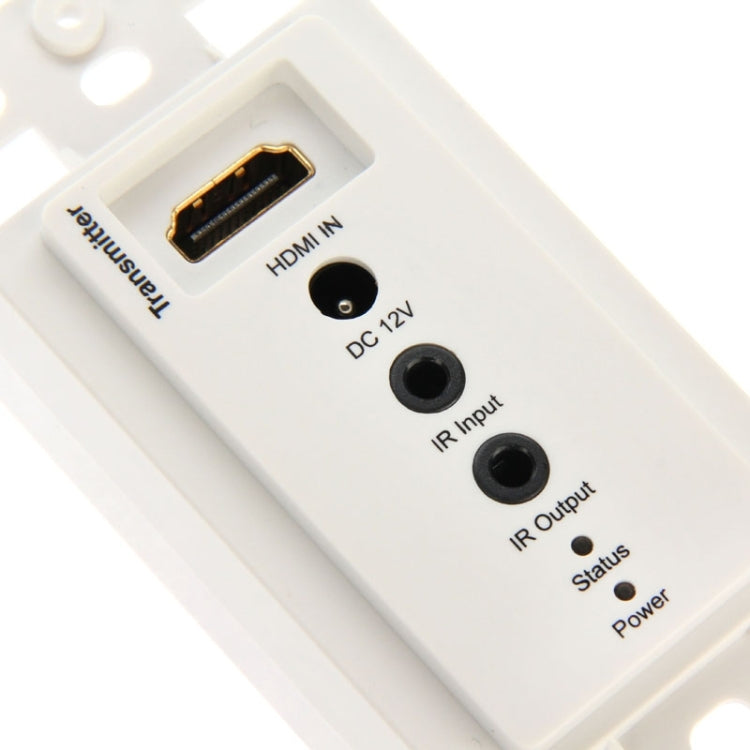

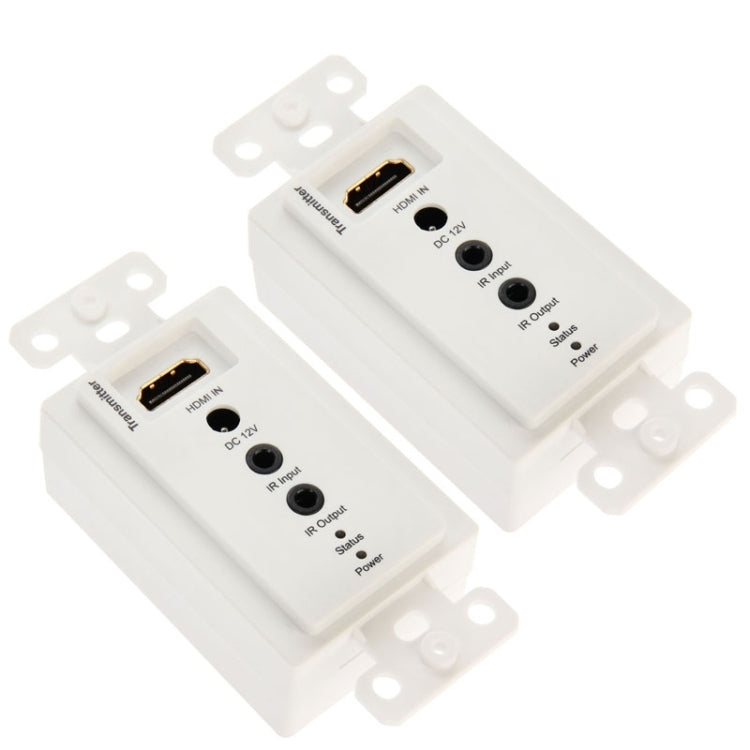

1 x Transmitter

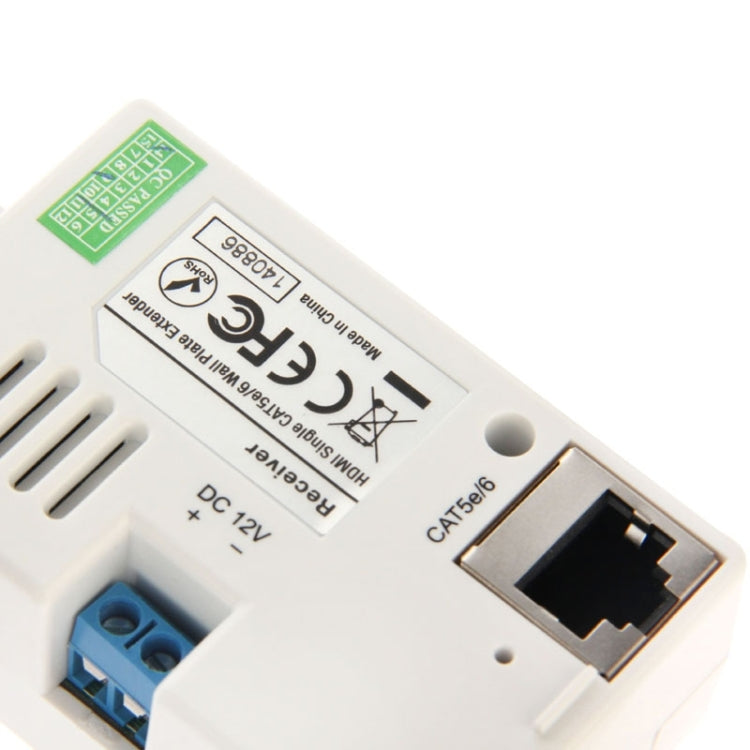

1 x Receiver
2 x IR IN Cables
2 x IR OUT Cables
Package Weight
One Package Weight 0.56kgs / 1.23lb
One Package Size 24.3cm * 15.3cm * 6.5cm / 9.57inch * 6.02inch * 2.56inch
Qty per Carton 20
Carton Weight 11.60kgs / 25.57lb
Carton Size 50cm * 35cm * 35cm / 19.69inch * 13.78inch * 13.78inch
Loading Container 20GP: 435 cartons * 20 pcs = 8700 pcs
40HQ: 1010 cartons * 20 pcs = 20200 pcs
