ADVANCED BYPASS: Features integrated internal bypass technology that significantly reduces pump cycling, resulting in smoother flow and ultra-quiet operation without the need for an accumulator tank.

Key Features

• ✔ Self-Priming: Up to 6 vertical feet (1.8m)
• ✔ Run-Dry Safe: Capable of running dry without damage

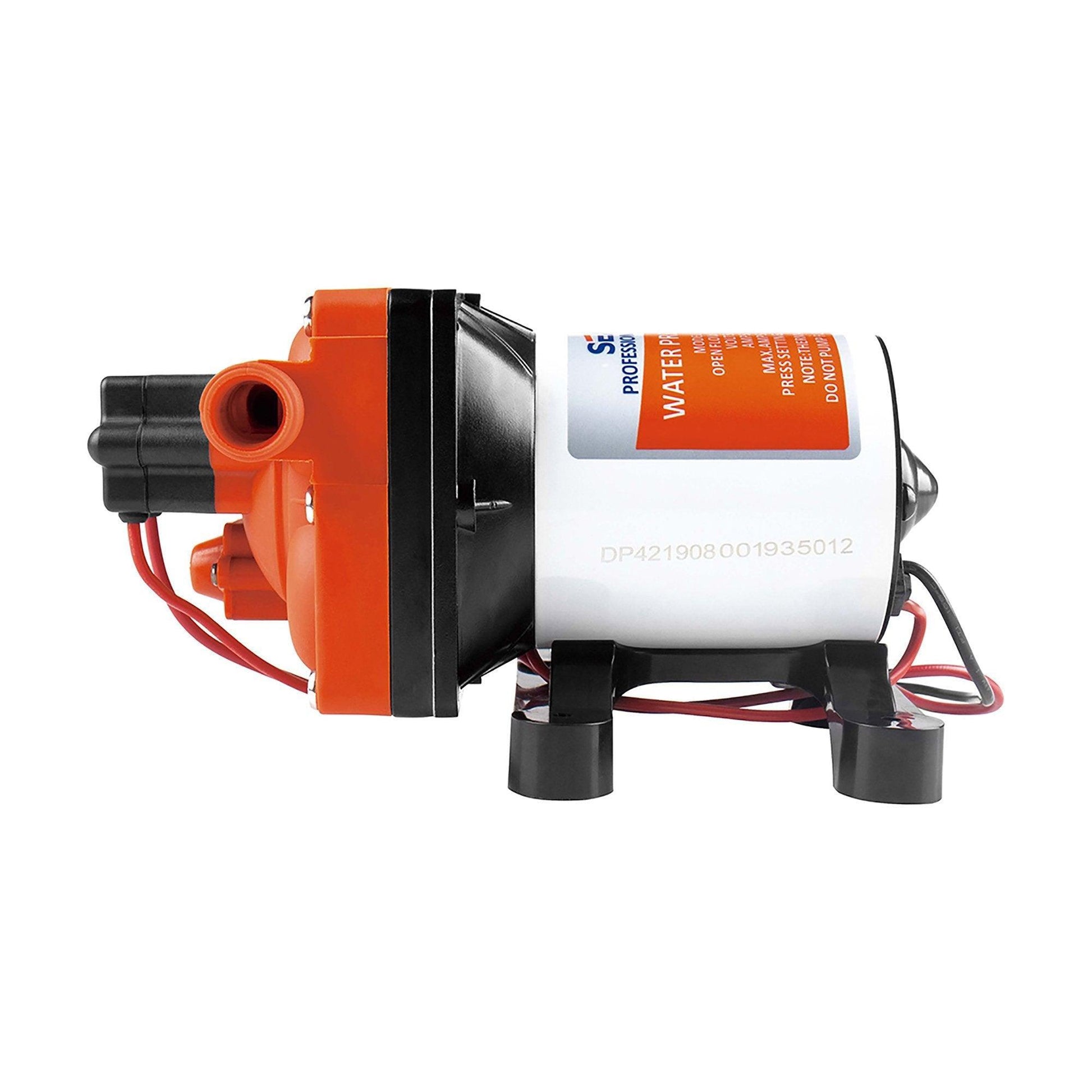

• ✔ Quiet Performance: Noise-dampening rubber mounting feet
• ✔ On-Demand: Automatic pressure switch control

Technical Specs

Voltage:	24V DC

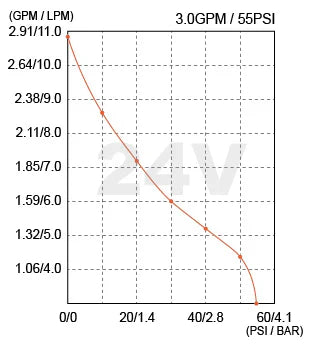

Flow Rate:	3.0 GPM (11.3 LPM)
Shut-off Pressure:	55 PSI (3.8 Bar)
Max Amperage:	4.0A

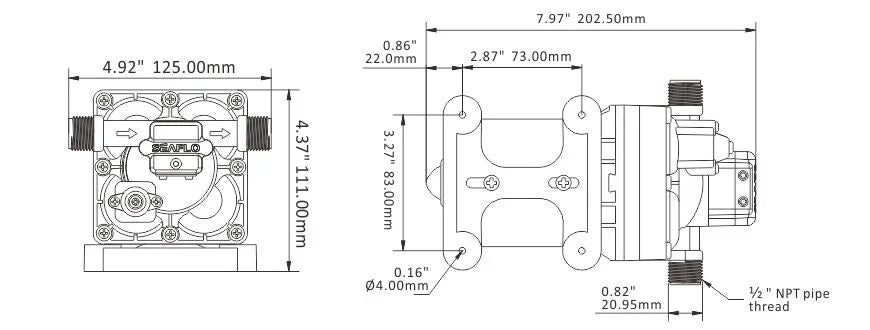

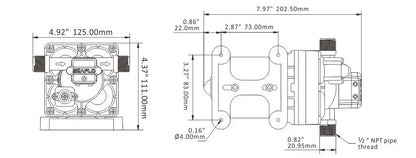

Ports:	1/2"-14 MNPT
Valves / Diaphragm:	EPDM / Santoprene

Application	System Type	Notes
Marine / Yachts	24V DC House Systems	Supports up to 3 fixtures
RV / Caravans	Off-Grid Water Supply	Quiet operation for night use
Agriculture	Spraying / Transfer	Chemical resistant EPDM valves

Is this a genuine original part?

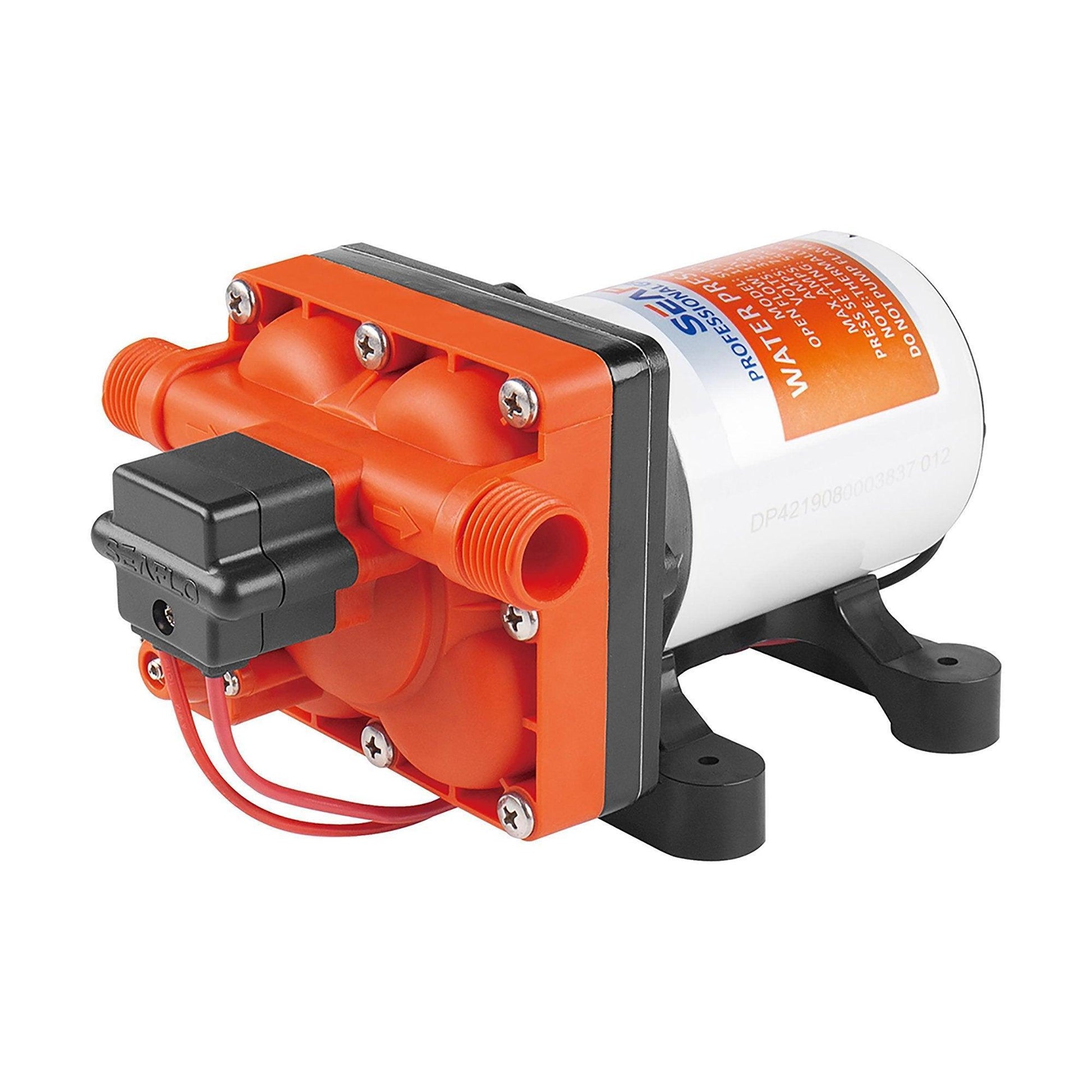

This is a genuine SEAFLO 42-Series pump, manufactured to the highest marine standards for high-performance and durability.

How do I know if it is compatible?

Compare your existing pump's voltage (must be 24V) and flow rate. This model uses standard 1/2" MNPT threaded fittings, making it a direct replacement for most Shurflo and Jabsco pumps with similar specifications.

Do I need an accumulator tank with this pump?

No, the internal bypass technology handles low-flow demand without the rapid cycling typical of older pumps, eliminating the strict necessity for an external accumulator tank.
