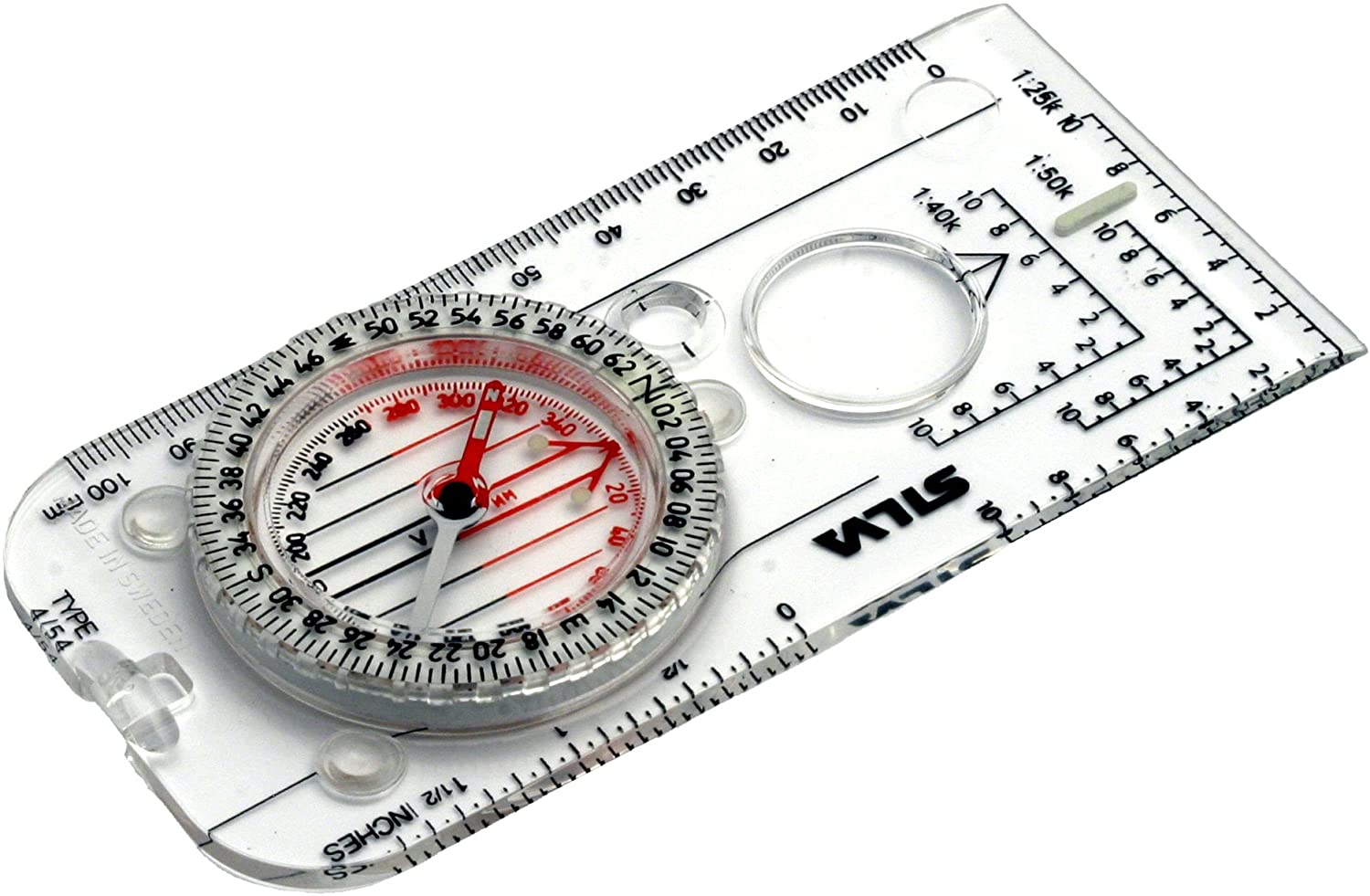

Silva Compass Expedition Militaire 4-6400/360

The “full-sized” base plate compass for experienced navigators – used by NATO Forces around the
world.
Mainly used by the infantry as a soldier’s or officer’s compass.
Additional features include measuring
scales for positioning (GPS), graduated in mils and degrees (6400/360), magnifying glass and rubber
feet for precision map work.

Features:

• Available graduations 6400/360 (360 inside the capsule), 6300, 360
• Resolution degrees / mils 2 / 50
• Measuring scales on base plate mm, inch
• UTM position plotting
• scales (Romer scales) 1:25k, 1:50k, 1:40k
• Settling time from 90 degree angle within +/- 3 deg 2.7 sec
• Settling time from 90 degree angle to complete rest 5 sec
• Accuracy +/- 1 degree (17.8 mils)
• Waterproof IP68
• Altitude use 5000m@-15 C
• Impact resistance 30g in XYZ directions and free fall from 1.5 m height into gravel
• Temperature operating range -40 to +60 C
• Material Acrylic
• Size (mm) 126x60x10
• Weight: 36g
