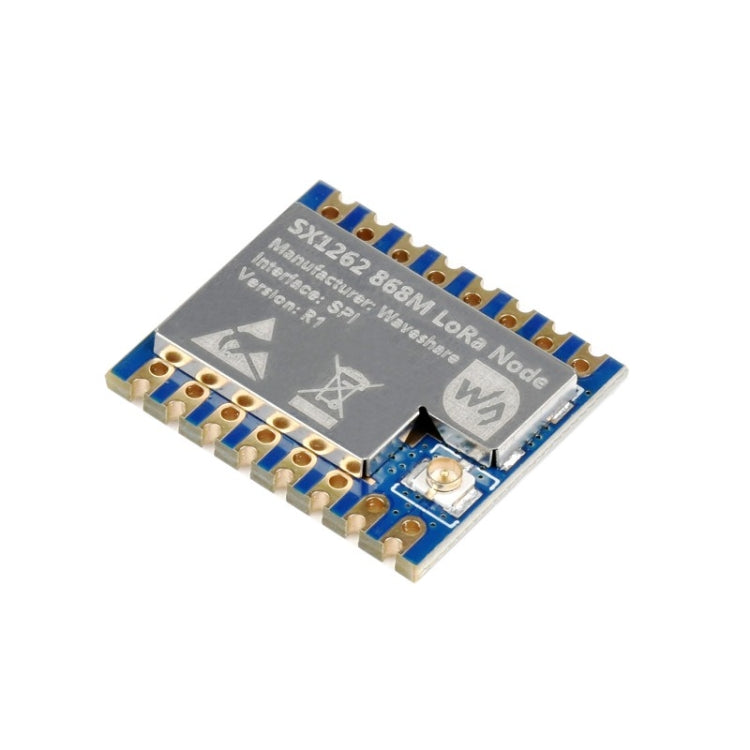

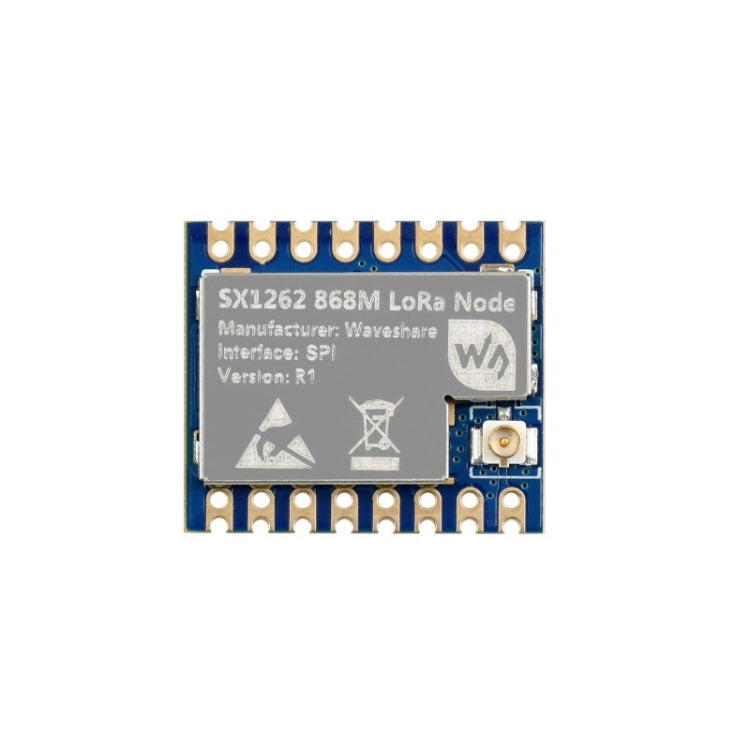

Waveshare Core1262-868M Anti-Interference SX1262 LoRa Module, EU868 Band

About The Product
The Core1262-868M is a LoRa core module which incorporates new-generation SX1262 chip. It has featuress including mini size, long range transmission, high anti-interference capability, and so on. The module uses EU868 band, combined with LoRa gateway, it can be connected to servers like TTN server to build LoRa network.

1. New-generation SX1262, higher power efficiency and longer transmission distance than the traditional SX1278

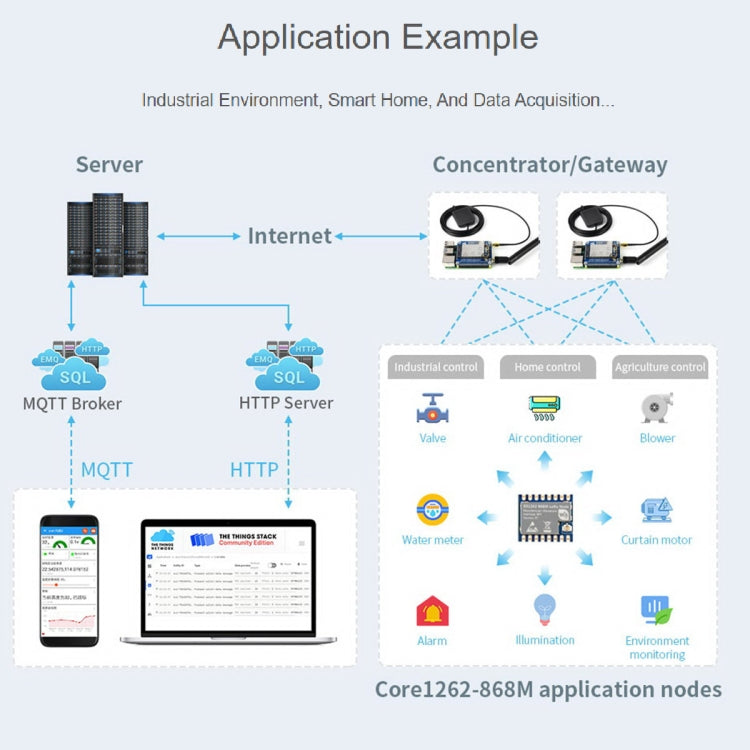

2. EU868 band, combined with LoRa gateway, quick connection to cloud servers like TTN server
3. Comes with rich development resources and manual (examples for STM32, Raspberry Pi Pico)

Specifications
1. RF chip: SX1262
2. Frequency range: EU868 (863~870MHz)
3. Modulation: LoRa/(G)FSK
4. Data rate: 0.018~62.5Kbps (LoRa), 0.6~300Kbps ((G)FSK)
5. Emit power: More than 14dBm 3.3V
6. Spreadind factor: SF5 ~ SF12
7. Operating voltage: 3.3V
8. Module power consumption: Emitting current: 45mA 14dBm;
receiving current: 5.3mA 125KHz

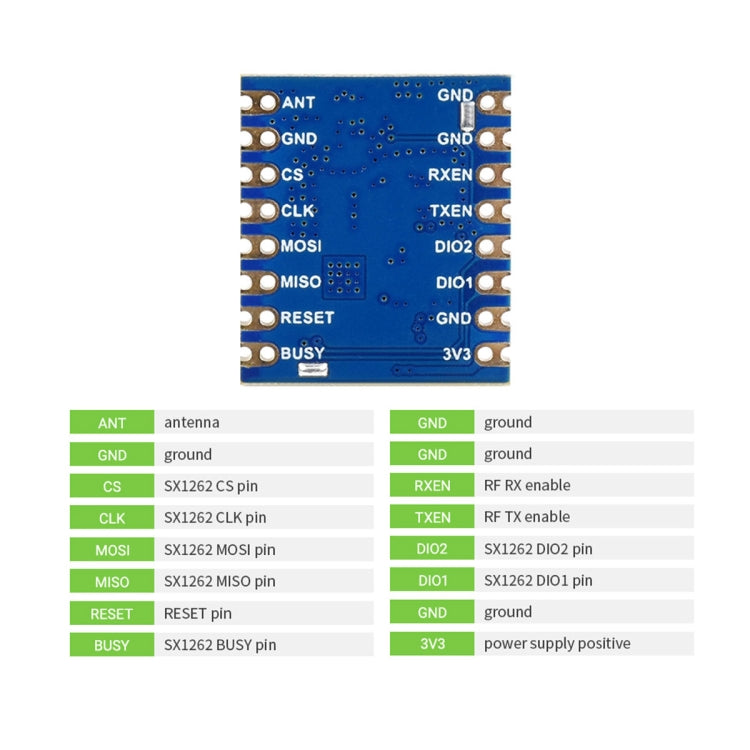

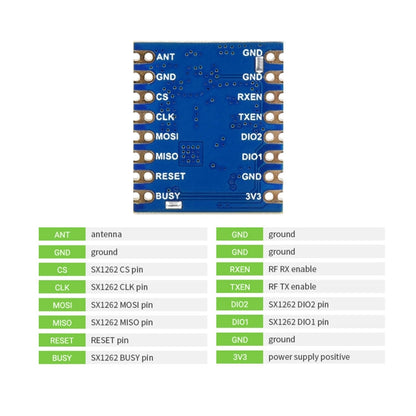

9. Communication bus: SPI
10. Operating temperature: -40 ~ 85 degree C

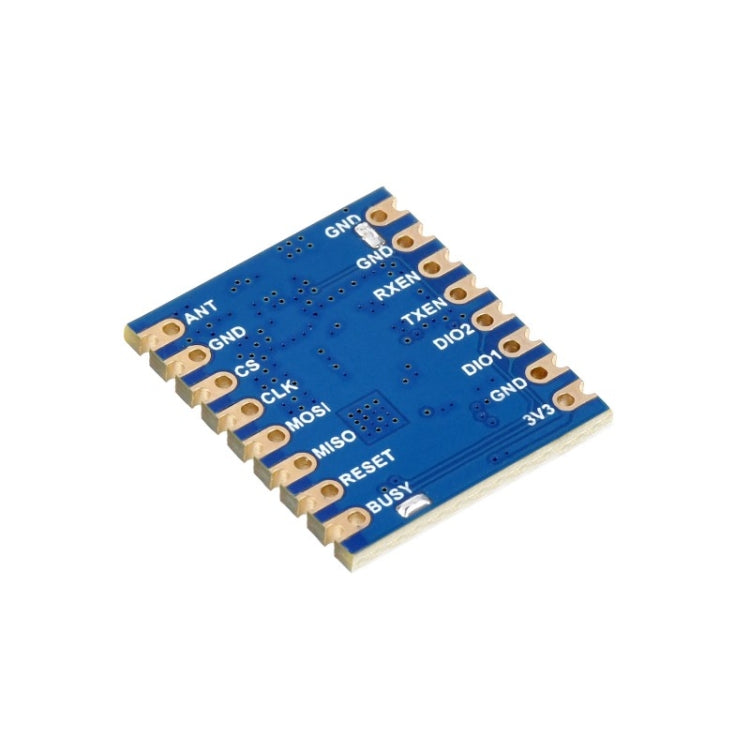

11. Connector: Castellated edge / solder holes
12. Dimensions: 21.00 x 52.00mm
