Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface, 13992
Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface, 13992
Regular price
£9.99
Regular price
Sale price
£9.99
In stock, ready to ship
Quantity
Couldn't load pickup availability
1.5inch OLED display Module, 128x128 pixels, 16 gray scale, SPI/I2C interface
Overview
This is a general OLED display Module, 1.5inch diagonal, 128x128 pixels, 16 gray scale, with embedded controller, communicating via SPI or I2C interface.
Features
1. 128x128 high resolution
2. 16 gray scale, better display effect
3. Support SPI or I2C interface, configured via onboard resistor
4. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
1. Driver: SSD1327
2. Interface: SPI / I2C
3. Display color: White
4. Gray scale: 16
5. Resolution: 128x128 (most other competitive products are typically 128x64)
6. Viewing angle: >160 degree
7. Operating voltage: 3.3V / 5V

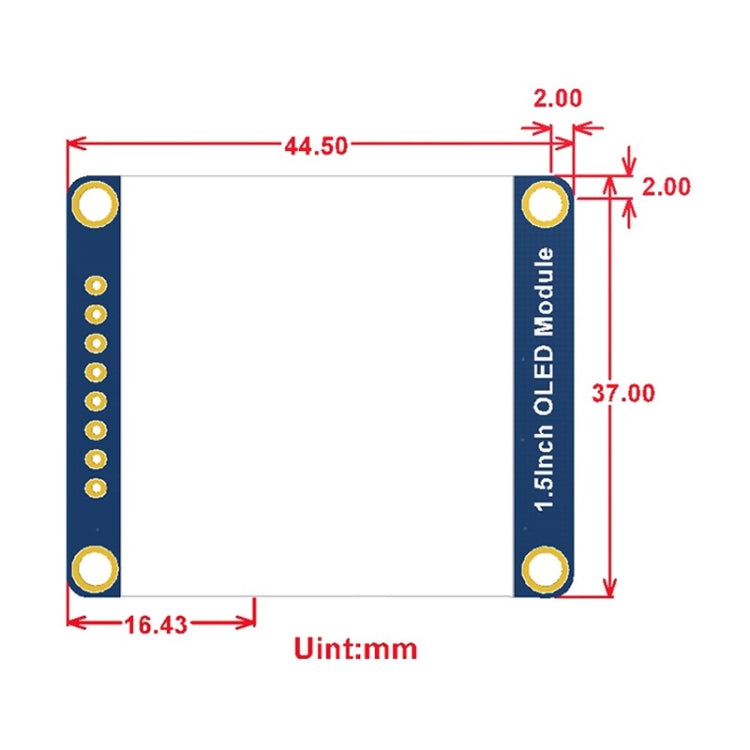

8. Dimension: 44.5 x 37 (mm)
Package Contents
1. 1.5 inch OLED Module x1
2. PH2.0 7Pin x1
Overview
This is a general OLED display Module, 1.5inch diagonal, 128x128 pixels, 16 gray scale, with embedded controller, communicating via SPI or I2C interface.
Features
1. 128x128 high resolution
2. 16 gray scale, better display effect
3. Support SPI or I2C interface, configured via onboard resistor
4. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
1. Driver: SSD1327
2. Interface: SPI / I2C
3. Display color: White
4. Gray scale: 16
5. Resolution: 128x128 (most other competitive products are typically 128x64)
6. Viewing angle: >160 degree
7. Operating voltage: 3.3V / 5V
8. Dimension: 44.5 x 37 (mm)
Package Contents
1. 1.5 inch OLED Module x1
2. PH2.0 7Pin x1
Specification:
