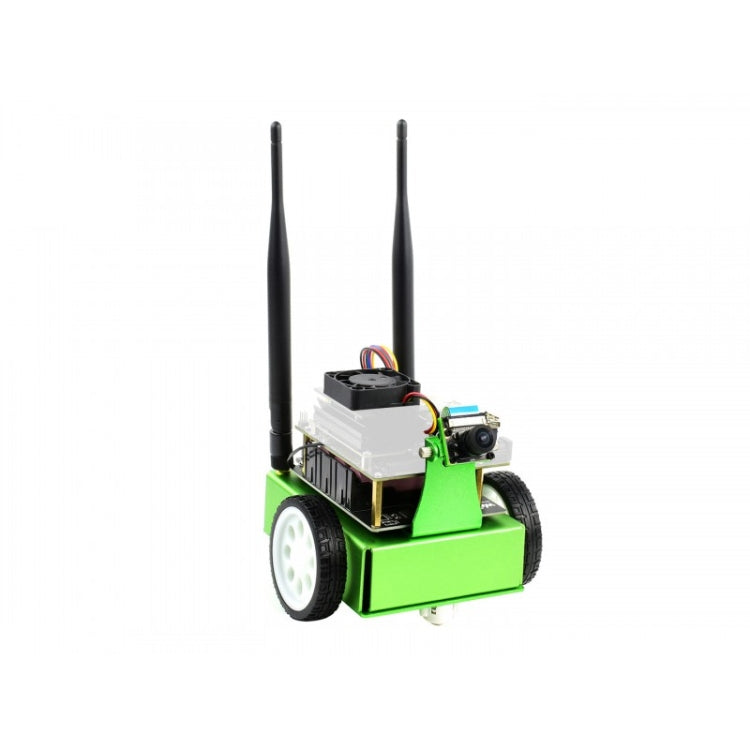

Waveshare JetBot AI Kit Accessories, Add-ons for Jetson Nano to Build JetBot, US Plug, Add-ons for Jetson Nano

Overview
1. Smart robot is always the favorite project of electronic enthusiasts, however, a robot will be "not that smart" if it is not AI-based.

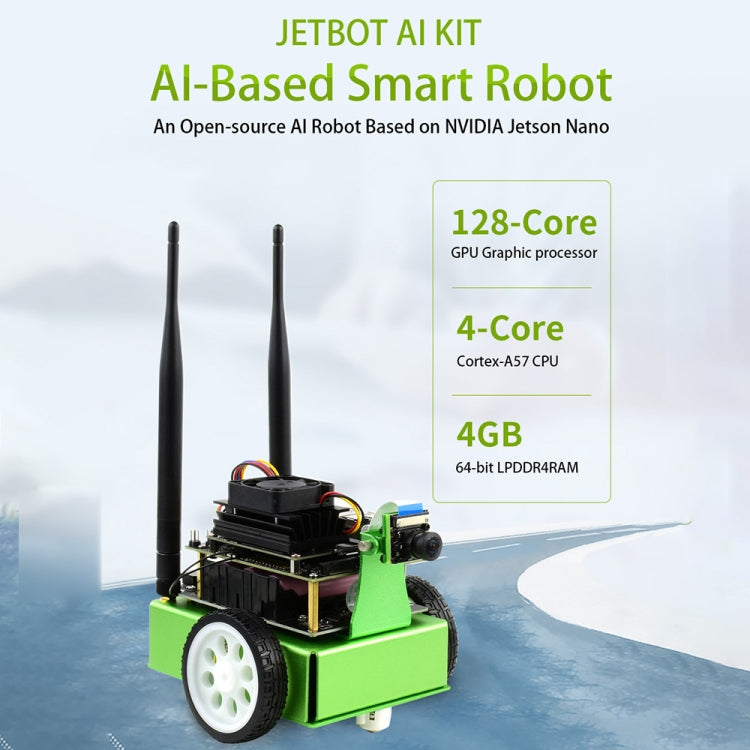

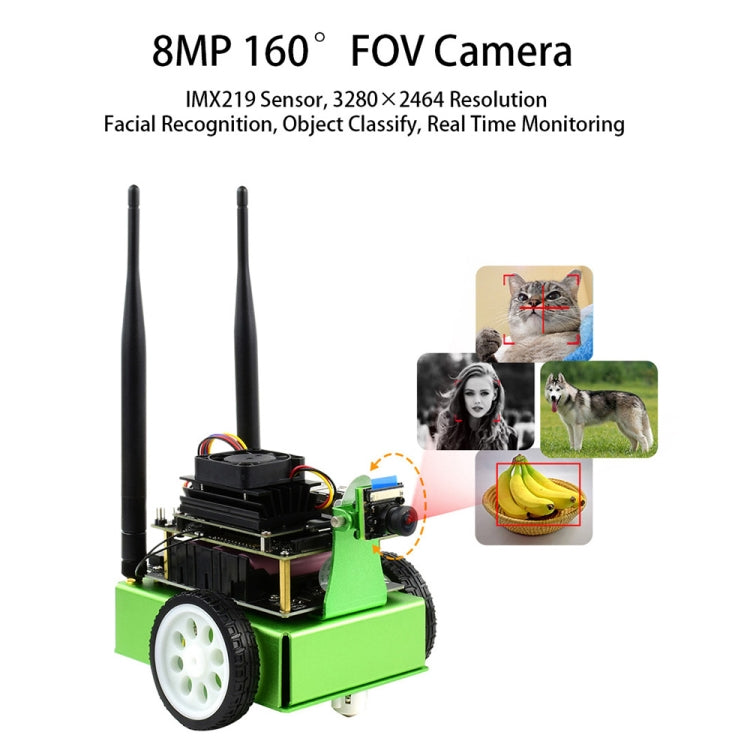

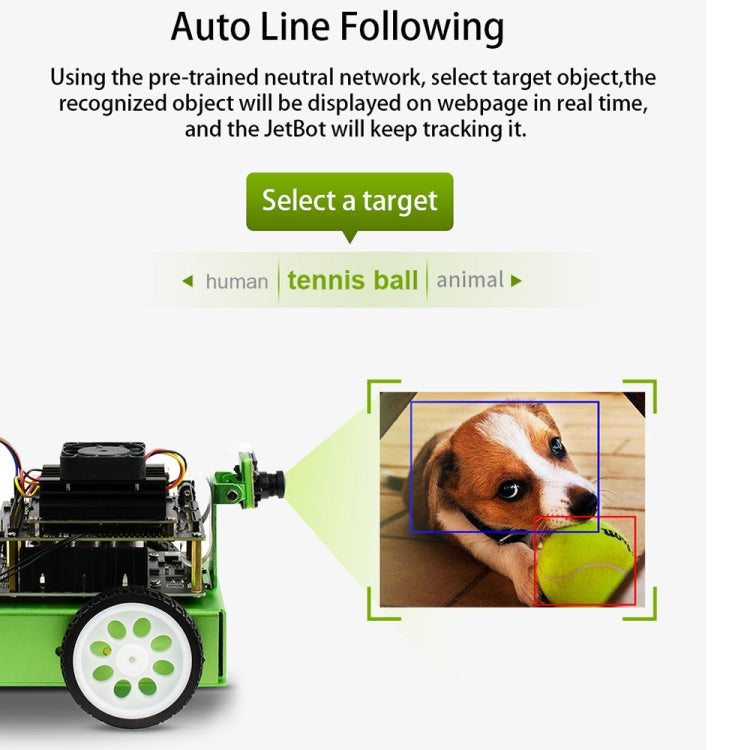

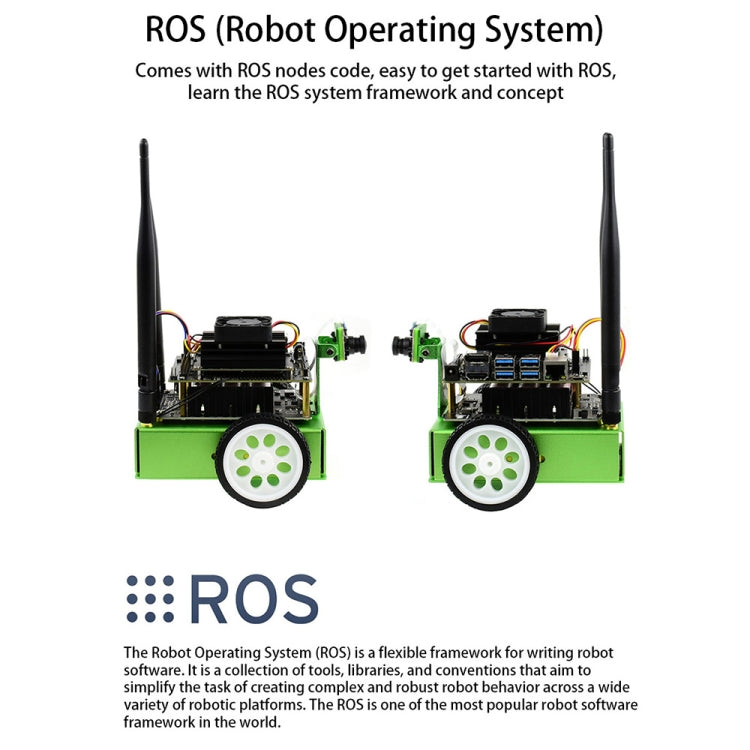

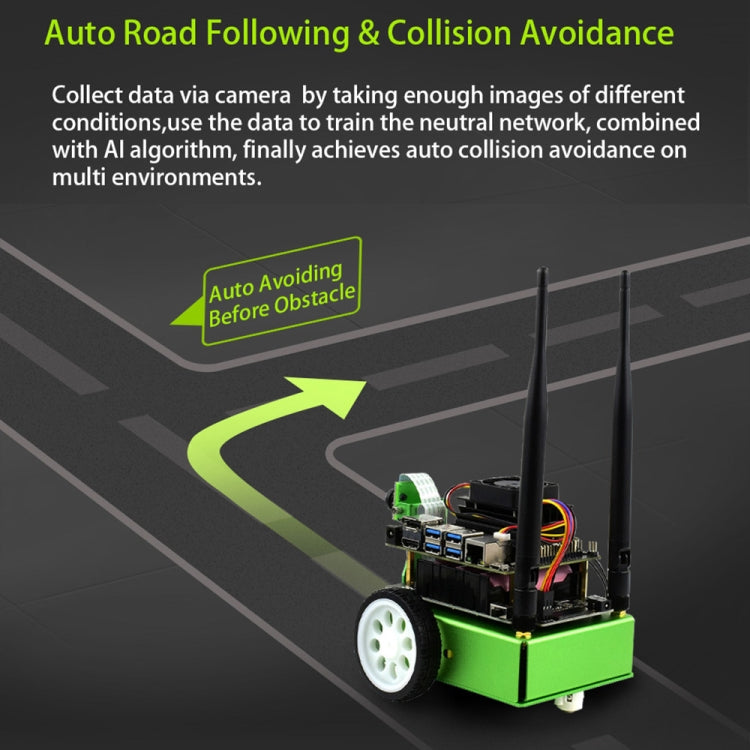

2. Welcome the JetBot, an actual smart robot powered by Jetson Nano. With the intelligent eye (front camera), facial recognition, object tracking, auto line following, and collision avoidance can be easily achieved. It also comes with ROS nodes code, which makes it easy to get started with the open source ROS (Robot Operating System), and to learn the system framework and concepts of ROS.
3. If you have got a Jetson Nano on your desk right now, combined with our open source codes and tutorials, these add-ons would be the ideal choice for you to learn AI robot designing and development.

Features
1. Adopts 3x 18650 batteries (NOT included), high battery capacity, up to 12.6V voltage output, more powerful driving force.
2. Integrates S-8254AA + AO4407A lithium battery protection circuit, provides protections for over-charge, over-discharge, over-current, and short circuit.
3. Onboard APW7313 voltage regulator, provides stable 5V voltage for the Jetson Nano.
4. Onboard TB6612FNG dual H-bridge motor driver.
5. Onboard 0.91inch 128×32 pixels OLED, allows to display robot IP address, RAM, battery life, etc.
6. Onboard ADS1115 AD acquisition chip for monitoring the battery in real time.
7. Weight: 773g

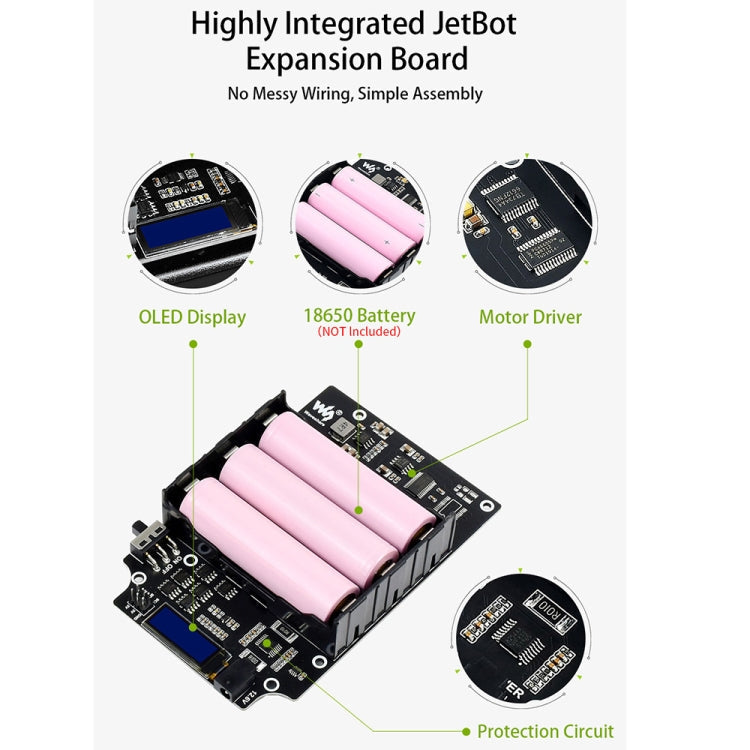

What is on the JetBot Expansion Board
1. S-8254AA: Lithium battery protector, provides protections for over-charge, over-discharge, over-current, and short circuit
2. ADS1115: 16-bit AD acquisition chip, monitoring the battery in real time
3. AO4407A:: P-Channel MOSFET for protection circuit
4. APW7313:: 5V power regulator for powering the Jetson Nano
5. PCA9685: PWM controller, I2C interface, for IO expansion
6. TB6612FNG: dual H-bridge motor driver
7. 0.91inch OLED: SSD1306 driver chip, 128×32 pixels
8. Battery charger input: charging the 3x 18650 batteries
9. Power switch
10. 18650 battery holder
11. Motor connector (bottom side)
12. Jetson Nano communication header: I2C interface and power supply

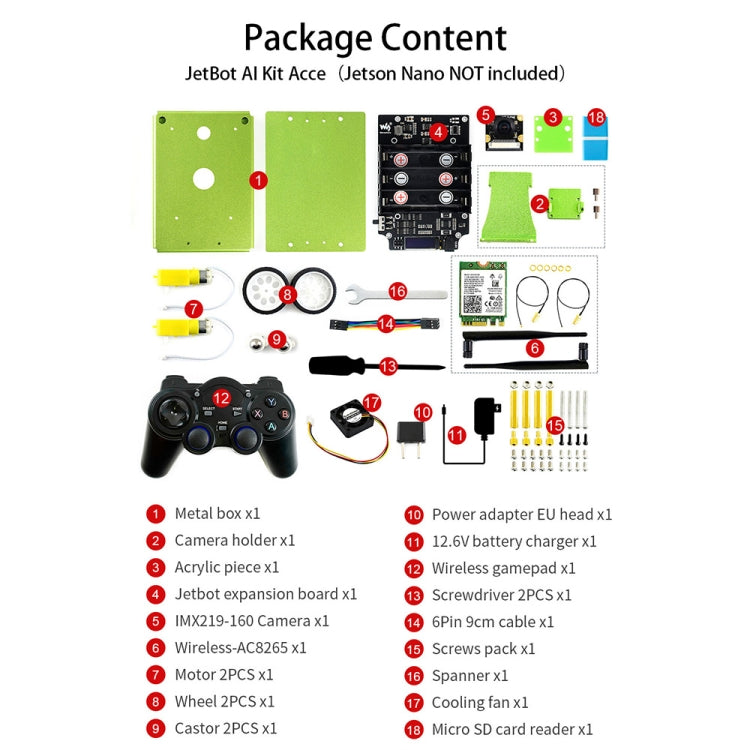

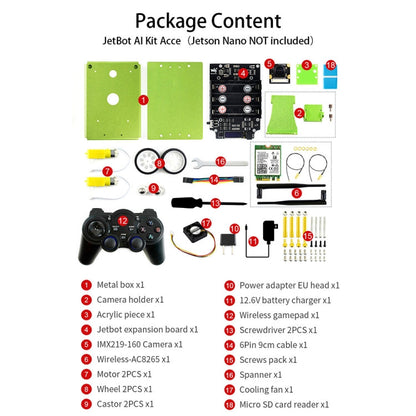

Packing List
1. Metal box x1
2. Camera holder x1
3. Acrylic piece x1
4. Jetbot expansion board x1
5. IMX219-160 Camera x1

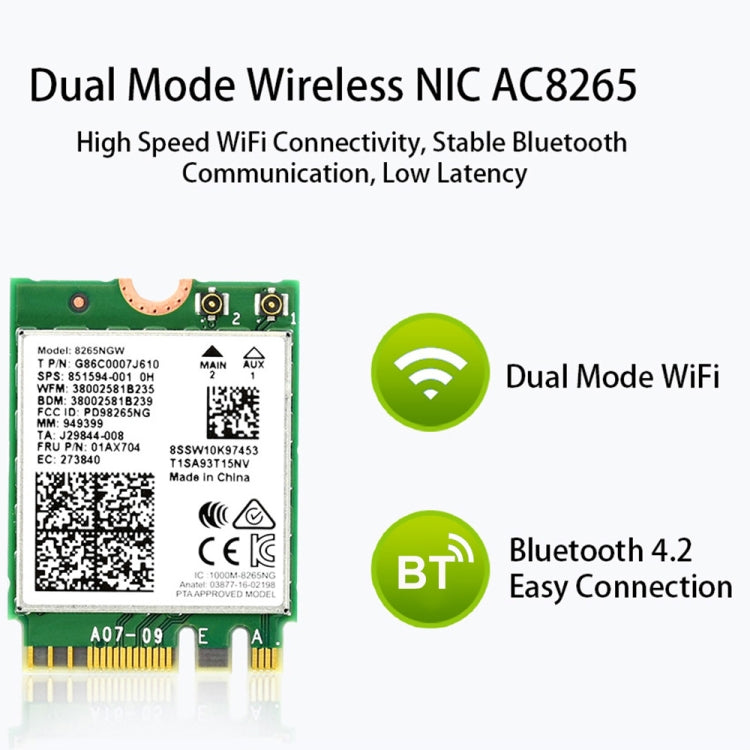

6. Wireless-AC8265 x1
7. Motor 2PCS x1
8. Wheel 2PCS x1
9. Omni-direction wheel 2PCS x1
10. Power adapter EU head x1
11. 12.6V battery charger x1

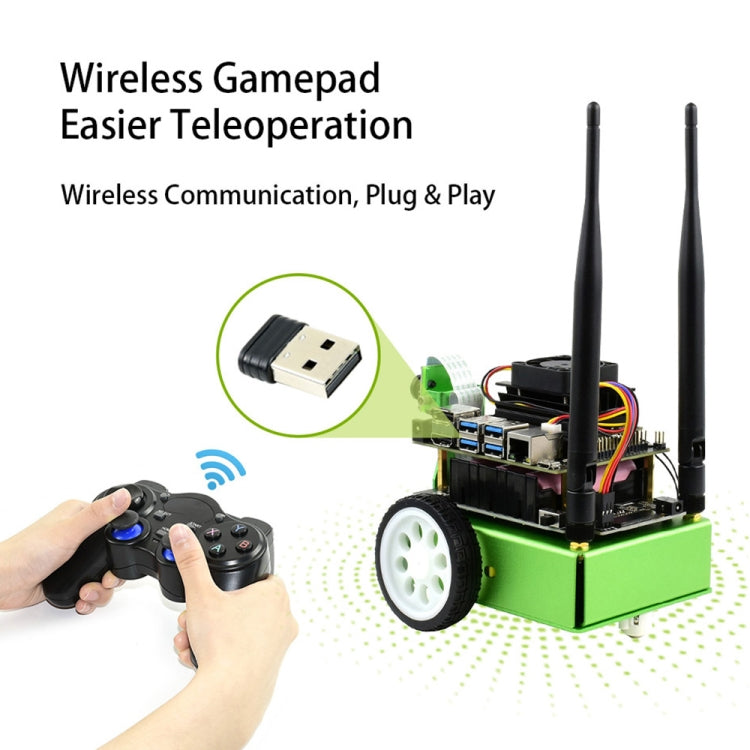

12. Wireless gamepad x1
13. Screwdriver 2PCS x1
14. 6Pin 9cm cable x1
15. Screws pack x1
16. Spanner x1
17. Cooling fan x1
18. Micro SD card reader x1
