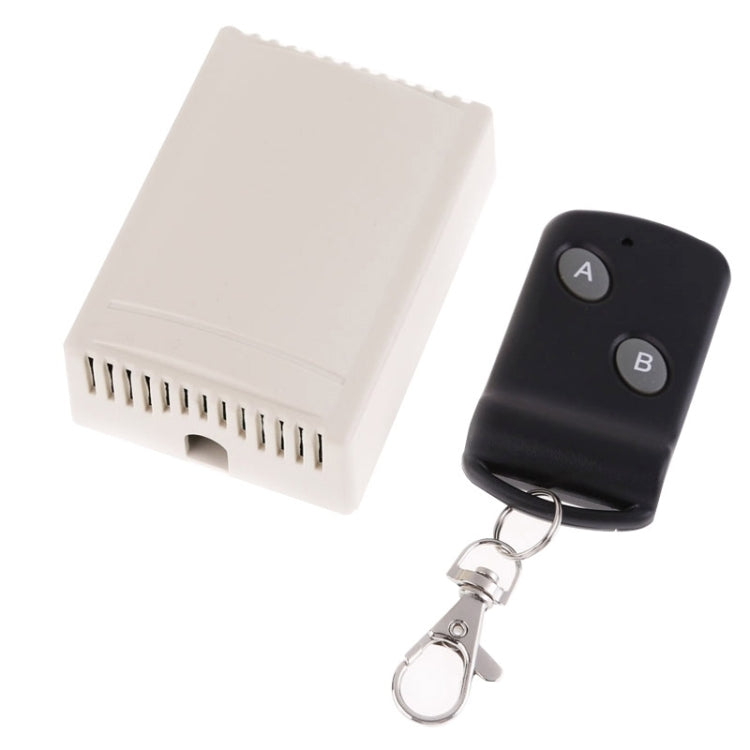

12V 2CH 200m RF Wireless Remote Control System Control + Switch Transmitter

12V 2CH 200m RF Wireless Remote Control System Control + Switch Transmitter

£6.99
£6.99
Sale Sold out
In stock, ready to ship
1. These units can be used for starting and stopping, or the connection and break of devices and electrical machinery. The product could also achieve the requirements of various kinds of special control procedures.
2. Each device connected will need to be powered by its own power source (there is no voltage output from the switch, it only acts as a connecter/dis-connecter for an existing live circuit).
3. If using a 24V device it can be wired in parallel with the switch power supply.

Ideal use in
1. Vehicle central locking systems
2. Garage doors
3. Electronic gates
4. TV, Motors, Fans, Cameras, Video Signals, Audio Signals, RC applications, Electric
5. Doors/ Locks/ Windows/ Curtains and more
6. Lightweight and portable
7. Easy to install and use


Specification:
General
Working Temperature -40 Degree Celsius ~+80 Degree Celsius
Receiver (Switch)
Working Voltage DC 12V
Output Current Less than 3A
Max load current 10A
Quiescent Current Less than 6mA
Working Frequency 315MHZ
Receiver Sensitivity -105dBm
Output way Jog, Self-lock, Inter-lock
Code Type Learning Code
Product Size 72mm x 52mm x 26mm
Remote Control (Transmitter)
Operating Voltage DC 12V
Operating Current 30MA
Operating Frequency 315MHz

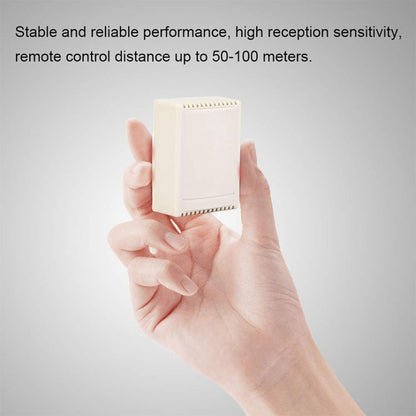

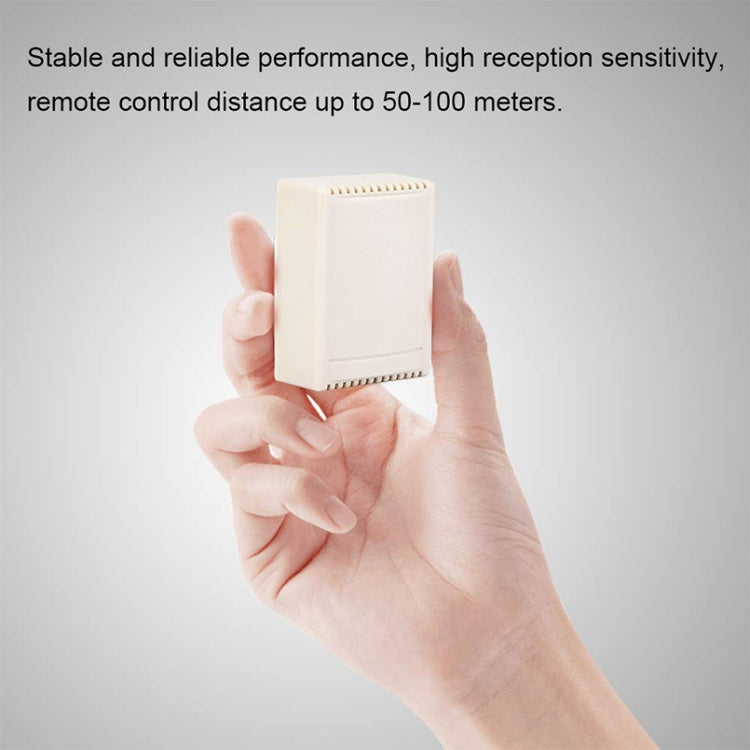

Frequency Distance 50-100m (open place)
Encoding type fixed code, learning code
Package Include
Package Contents 1 x Wireless Receiver
1 x Transmitter
Package Weight
One Package Weight 0.11kgs / 0.23lb
One Package Size 7.5cm * 5.5cm * 2.8cm / 2.95inch * 2.17inch * 1.1inch
Qty per Carton 160
Carton Weight 15.40kgs / 33.95lb
Carton Size 32cm * 24cm * 30cm / 12.6inch * 9.45inch * 11.81inch
Loading Container 20GP: 1157 cartons * 160 pcs = 185120 pcs
40HQ: 2686 cartons * 160 pcs = 429760 pcs
