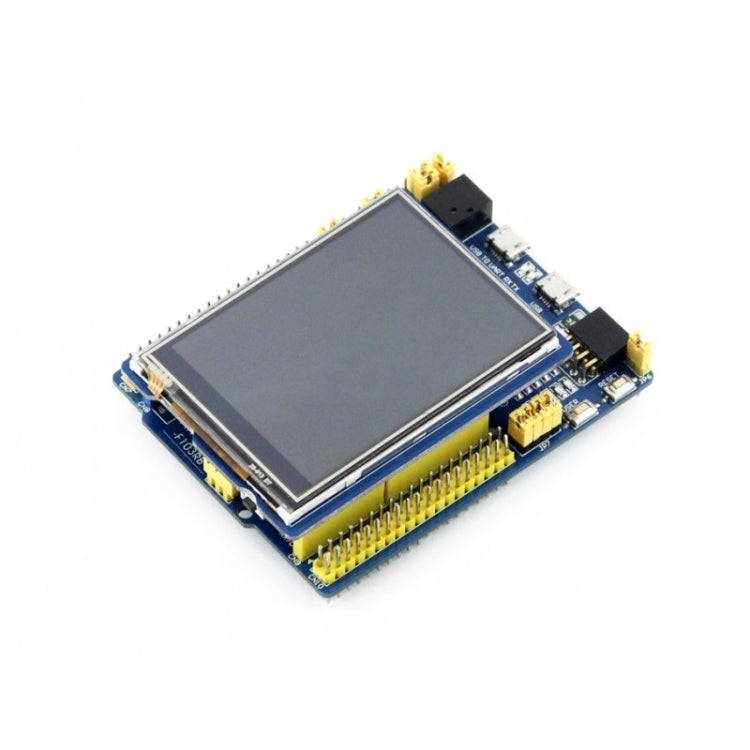

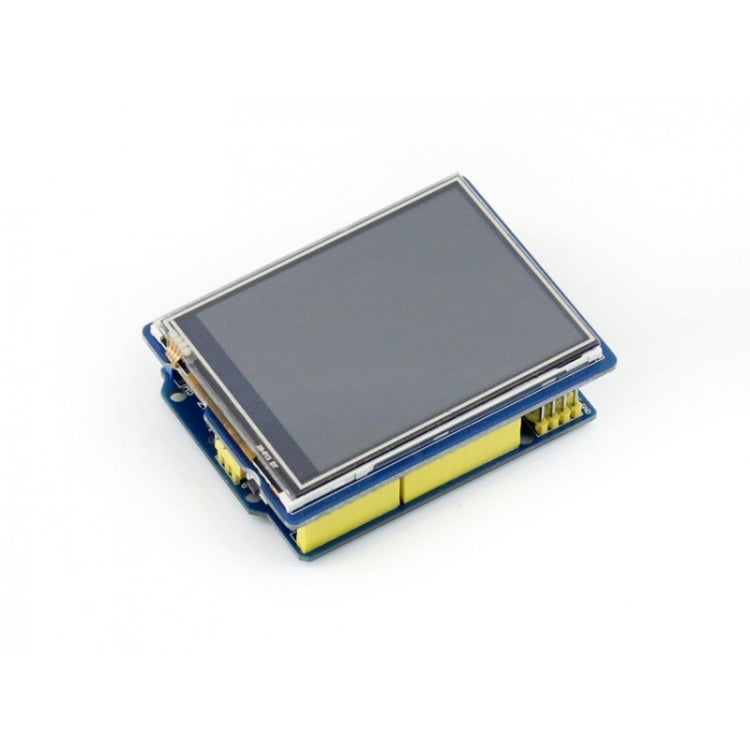

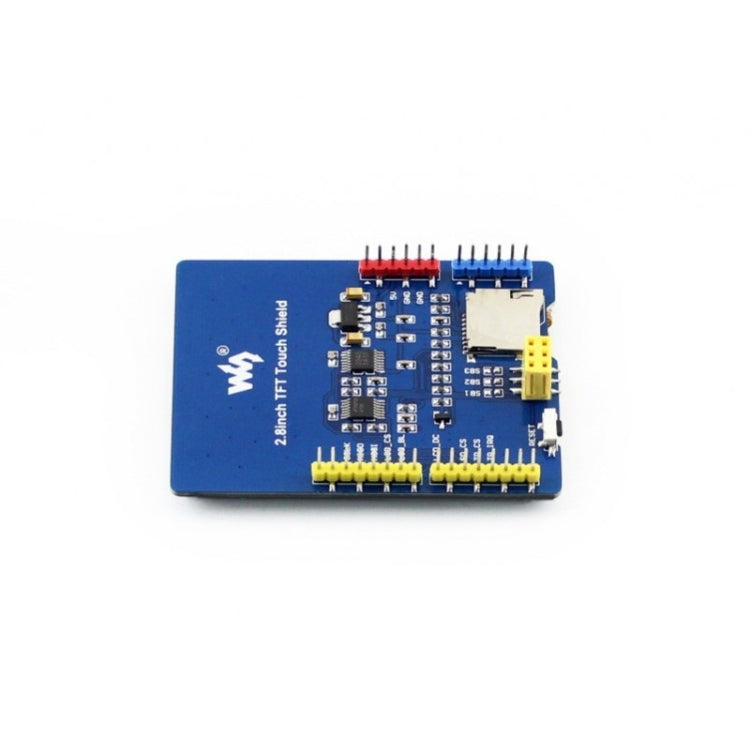

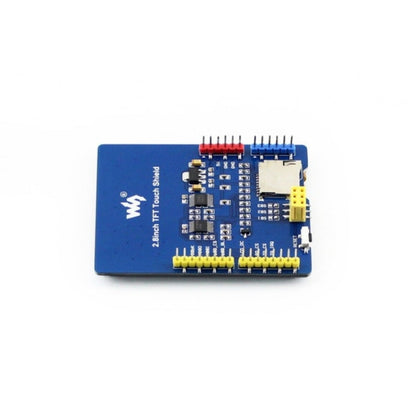

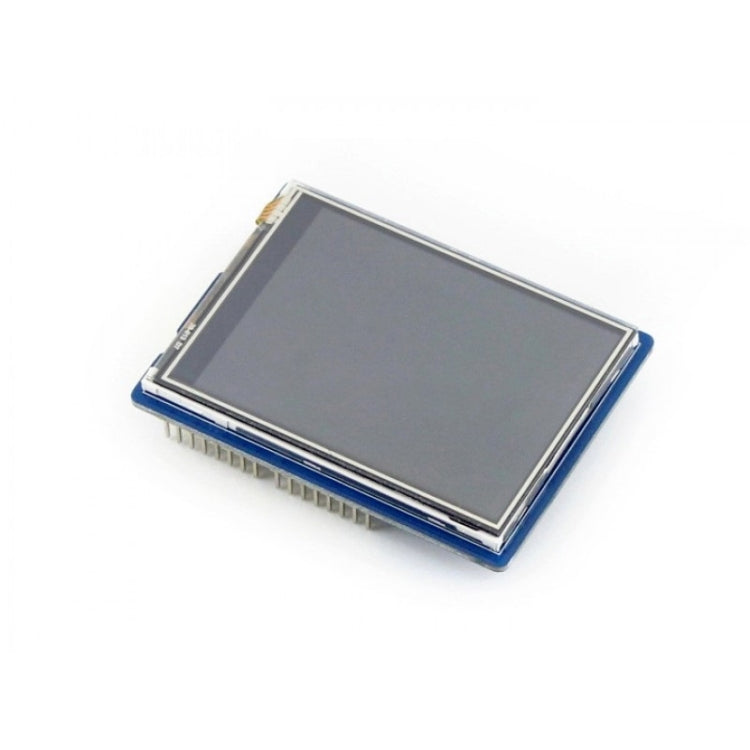

2.8 inch Touch LCD Shield for Arduino

2.8 inch Touch LCD Shield for Arduino

£13.99 GBP
£13.99 GBP
Sale Sold out
Shipping calculated at checkout.
Features
1. Resistive touch screen TFT LCD, 2.8inch, 320x240 resolution
2. Standard Arduino interface, compatible with development boards like : Arduino UNO, 3. Leonardo, UNO PLUS, NUCLEO, XNUCLEO
4. Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
5. Micro SD slot, provides an easy way to store photos for displaying
6. Controlled via SPI, only a few Arduino pins are used
7. Backlight adjustable by program, lower power consumption

Key Parameters
1. LCD Type: TFT
2. LCD Interface: SPI
4. LCD Controller: HX8347D
5. Touch Screen Type: Resistive
6. Touch Screen Controller: XPT2046
7. Colors: RGB, 65K colors
8. Resolution: 320x240 (Pixel)
9. I/O Voltage: 3.3V/5V

Wiki : www.waveshare.com/wiki/2.8inch_TFT_Touch_Shield


Specification:
Package Weight
One Package Weight 0.08kgs / 0.18lb
One Package Size 8cm * 6cm * 2cm / 3.15inch * 2.36inch * 0.79inch
Qty per Carton 840
Carton Weight 15.00kgs / 33.07lb
Carton Size 56cm * 36cm * 40cm / 22.05inch * 14.17inch * 15.75inch
Loading Container 20GP: 330 cartons * 840 pcs = 277200 pcs
40HQ: 767 cartons * 840 pcs = 644280 pcs
