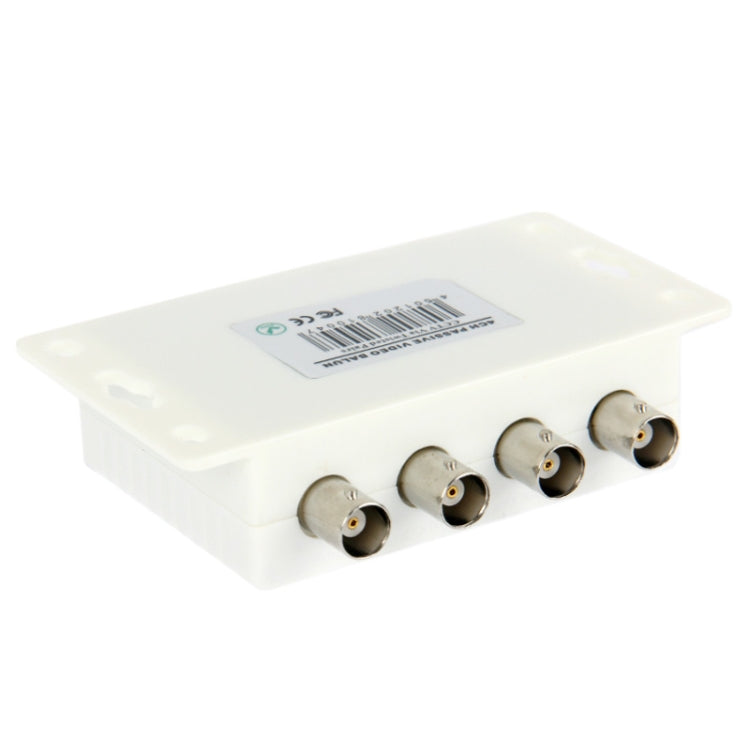

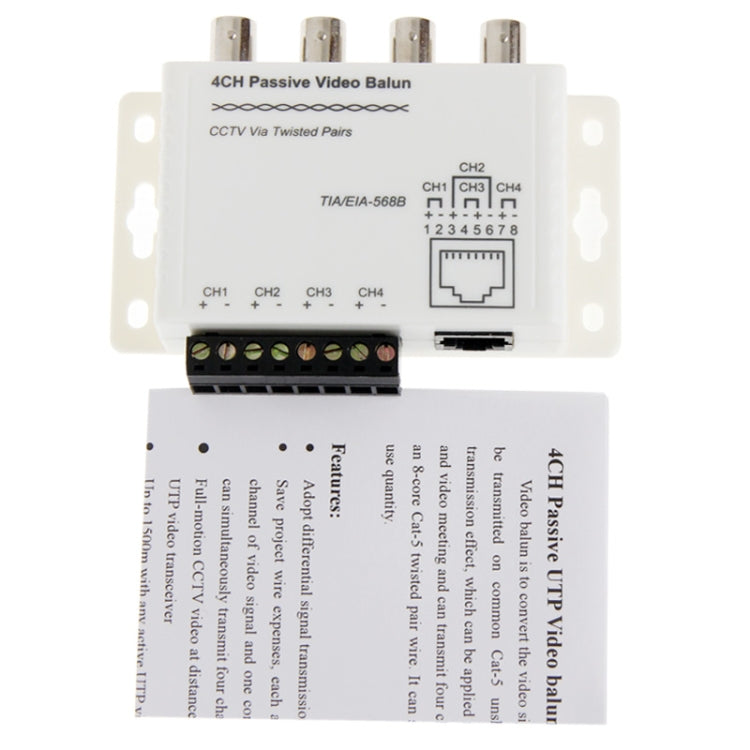

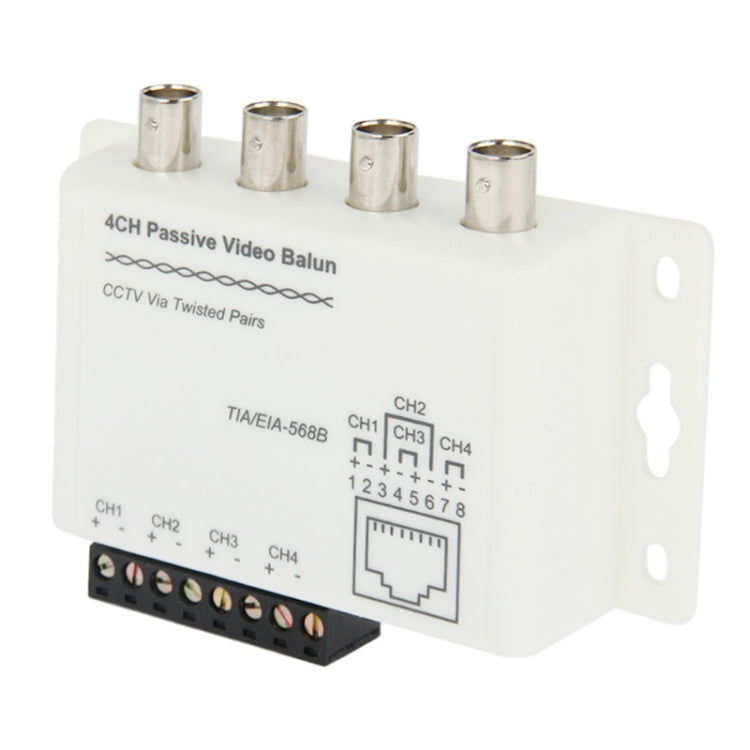

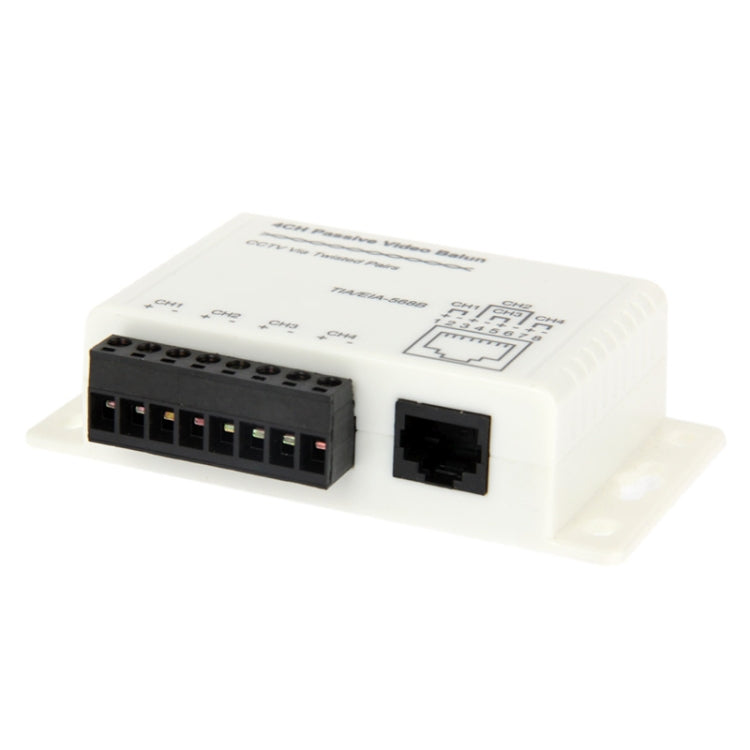

4 CH Passive UTP Video Balun / CCTV Via Twisted Pairs, UTP Video Balun

£2.99

Sale Sold out

In stock, ready to ship

Option UTP Video Balun

1) Adopt differential signal transmission with excellent anti-jamming ability

2) Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal

3) Full-motion CCTV video at distance up to 330m when used with any passive UTP video transceiver

4) Up to 1500m with any active UTP video receiver

5) No power required

6) Built-in transient suppression protection

7) Frequency response: DC-8MHz

8) CMRR (Common mode rejection ratio): 60dB

9) Impedance: BNC / 75ohms, RJ / 100ohms

10) Applicable to NTSC / PAL / SECAM / CCIR systems

Specification:

Package Weight

One Package Weight

0.15kgs / 0.33lb

One Package Size

11.5cm * 9cm * 5.5cm / 4.53inch * 3.54inch * 2.17inch

Qty per Carton

Carton Weight

12.80kgs / 28.22lb

Carton Size

40cm * 35cm * 36cm / 15.75inch * 13.78inch * 14.17inch

Loading Container

20GP: 529 cartons * 80 pcs = 42320 pcs
40HQ: 1228 cartons * 80 pcs = 98240 pcs
