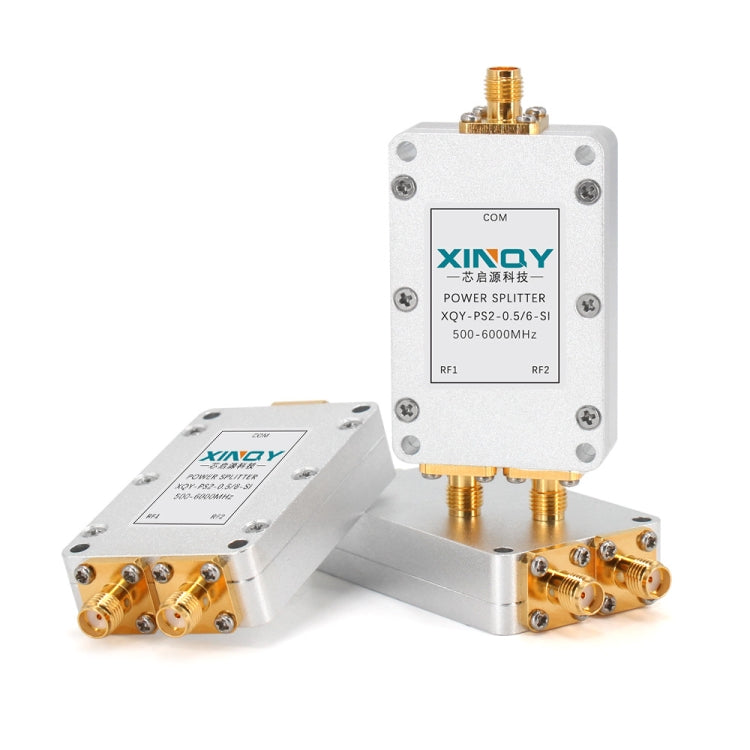

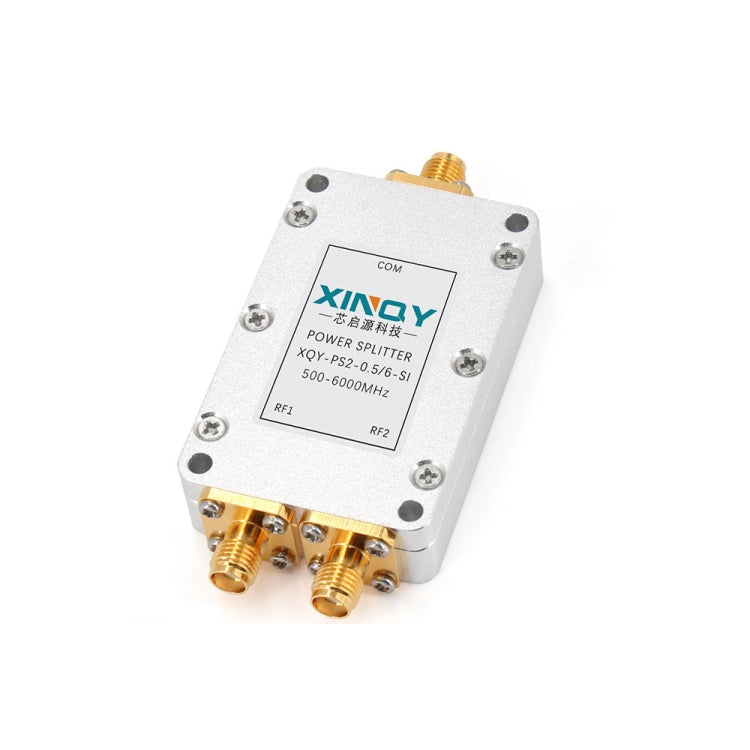

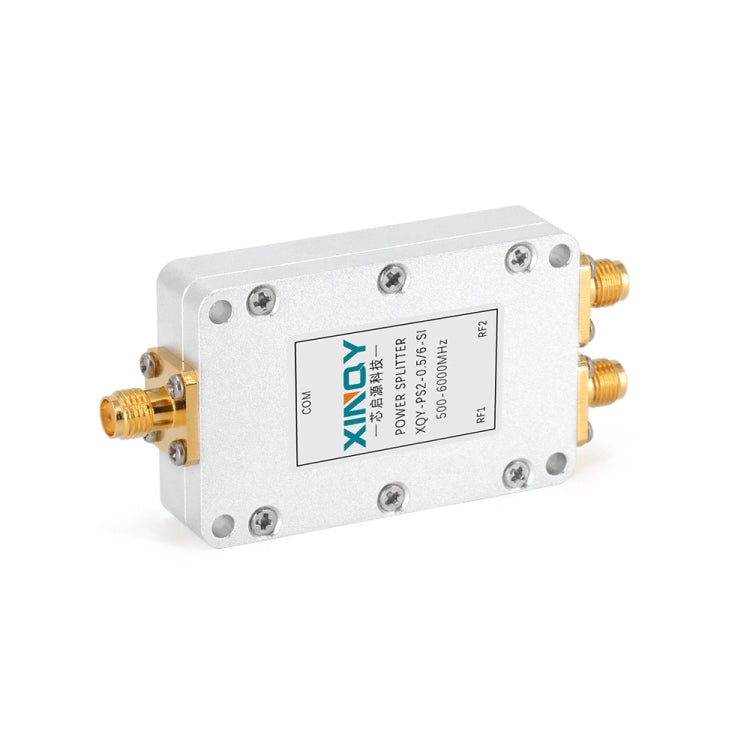

500~6000MHz SMA RF Microstrip Power Splitter

500~6000MHz SMA RF Microstrip Power Splitter

£24.99
£24.99
Sale Sold out
In stock, ready to ship

1. Impedance: 50 Ohms
2. Phase balance: ±3 degrees
3. Surface treatment: sandblasting guide
4. Gold-plated joints, sandblasting process
5. Port connector: SMA-Female

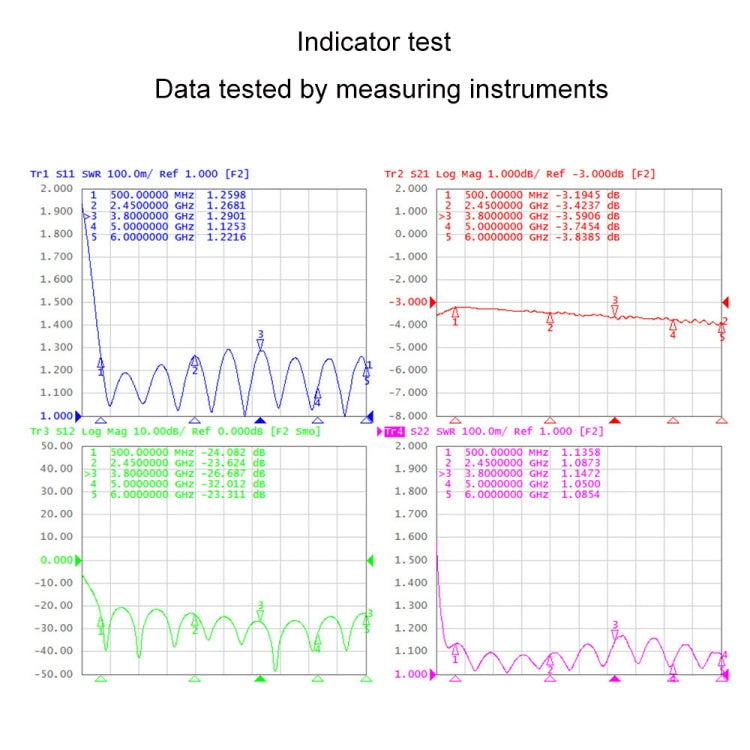

6. Low insertion loss, low standing wave, high isolation
7. Working temperature: -40~+75 degrees celsius
8. Frequency range: 500~6000MHz
9. Amplitude balance: less than or equal to 0.3dB
10. Isolation: Typ.23dB / Min.20dB
11. Input standing wave: Typ. 1.25／Max.1.3
12. Output standing wave: Typ. 1.12 / Max.1.2
13. Withstand power: 30W for splitter; 2W for combiner
14. Insertion loss: less than or equal to 1.0dB (excluding theoretical loss of 3.0dB)

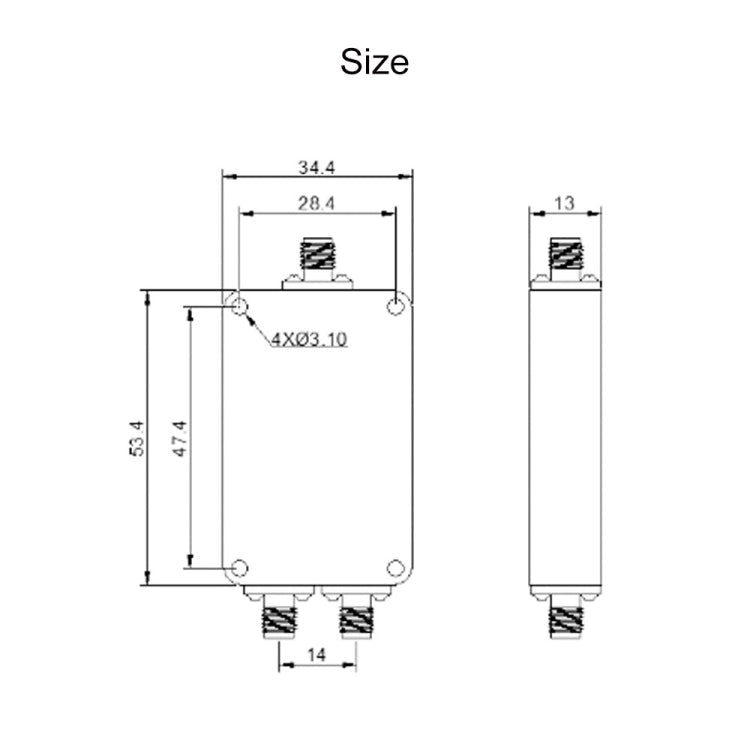

15. Dimensions: 53.4x34.4x13mm
16. Weight: 50g


Specification:
Package Weight
One Package Weight 0.07kgs / 0.16lb
One Package Size 7cm * 4cm * 2cm / 2.76inch * 1.57inch * 0.79inch
Qty per Carton 404
Carton Weight 30.00kgs / 66.14lb
Carton Size 51cm * 29cm * 14cm / 20.08inch * 11.42inch * 5.51inch
Loading Container 20GP: 1287 cartons * 404 pcs = 519948 pcs
40HQ: 2989 cartons * 404 pcs = 1207556 pcs
