8 Channel CCTV BNC Surge Arrester Surge Protector Device (CoaxJK/ V8), CoaxJK/ V8
8 Channel CCTV BNC Surge Arrester Surge Protector Device (CoaxJK/ V8), CoaxJK/ V8
Regular price
£28.99
Regular price
Sale price
£28.99
In stock, ready to ship
Quantity
Couldn't load pickup availability

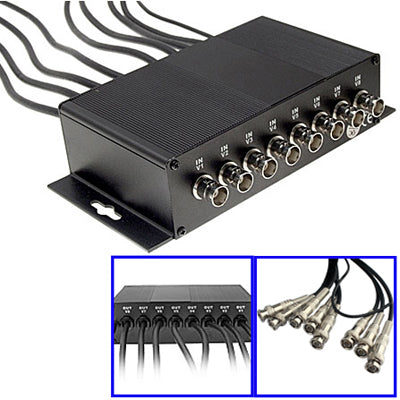

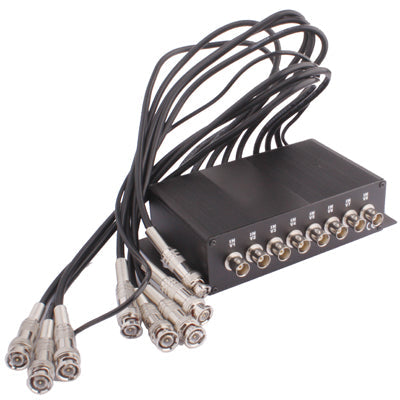

1. 8 Channel CCTV BNC Lightning Arrester Surge Protector Device.

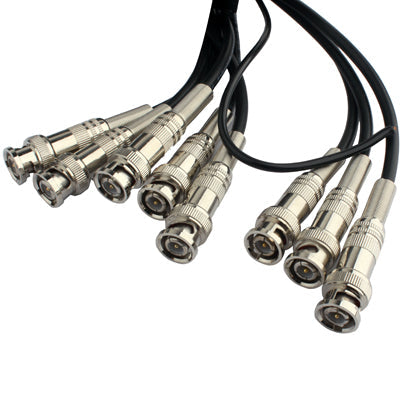

2. CCTV Lightning Arrester adopt internal standard BNC interface(male to female).
3. Suitable for coaxial communication equipment surge protection, such as cable TV, aatellite TV receive, minitor system, etc.
4. This 8CH Surge Protector can protect the lighting response of coaxial cable or equipment damage caused by other high surge voltage.
5. CCTV Surge Protector is used to protect the indirect thunder influence or other instantaneous over voltage surge.
Specifications:
1. Working Voltage: 5V
2. Max Working Voltage: 10V
3. Nominal Discharge Current(8/20us): 5KA
4. Discharge Current(8/20us): 10KA
5. Voltage Limit: 15V
6. Data Transfer Rate: 100Mbps
7. Insertion Loss: 0.2db
8. Response Time: 1nS
9. Interface Type: BNC
10. Protection Method: Line to line, line to ground
11. Working Temperature: -25-/+65 degree C
12. Humidity: ~95% 25-30 degree C
13. Test Standard: IEC61643-21: 2000
14. Cable length: Approx. 400mm
15. Size: Approx.168x80x40mm
2. CCTV Lightning Arrester adopt internal standard BNC interface(male to female).
3. Suitable for coaxial communication equipment surge protection, such as cable TV, aatellite TV receive, minitor system, etc.
4. This 8CH Surge Protector can protect the lighting response of coaxial cable or equipment damage caused by other high surge voltage.
5. CCTV Surge Protector is used to protect the indirect thunder influence or other instantaneous over voltage surge.
Specifications:
1. Working Voltage: 5V
2. Max Working Voltage: 10V
3. Nominal Discharge Current(8/20us): 5KA
4. Discharge Current(8/20us): 10KA
5. Voltage Limit: 15V
6. Data Transfer Rate: 100Mbps
7. Insertion Loss: 0.2db
8. Response Time: 1nS
9. Interface Type: BNC
10. Protection Method: Line to line, line to ground
11. Working Temperature: -25-/+65 degree C
12. Humidity: ~95% 25-30 degree C
13. Test Standard: IEC61643-21: 2000
14. Cable length: Approx. 400mm
15. Size: Approx.168x80x40mm
Specification:
