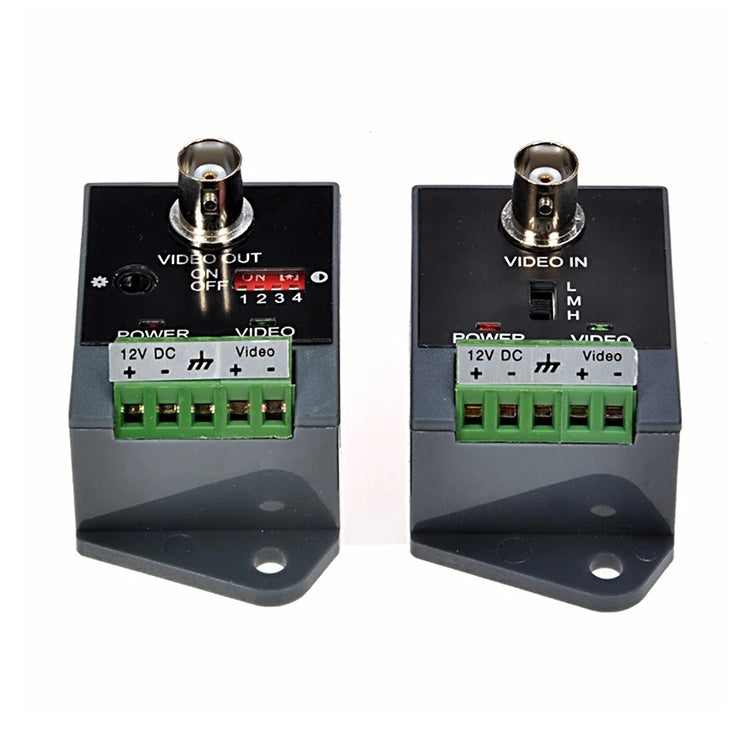

Active CCTV UTP Twisted Pair Video Balun Transmitter and Receiver, 351TR
Active CCTV UTP Twisted Pair Video Balun Transmitter and Receiver, 351TR
Regular price
£13.99 GBP
Regular price
Sale price
£13.99 GBP
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

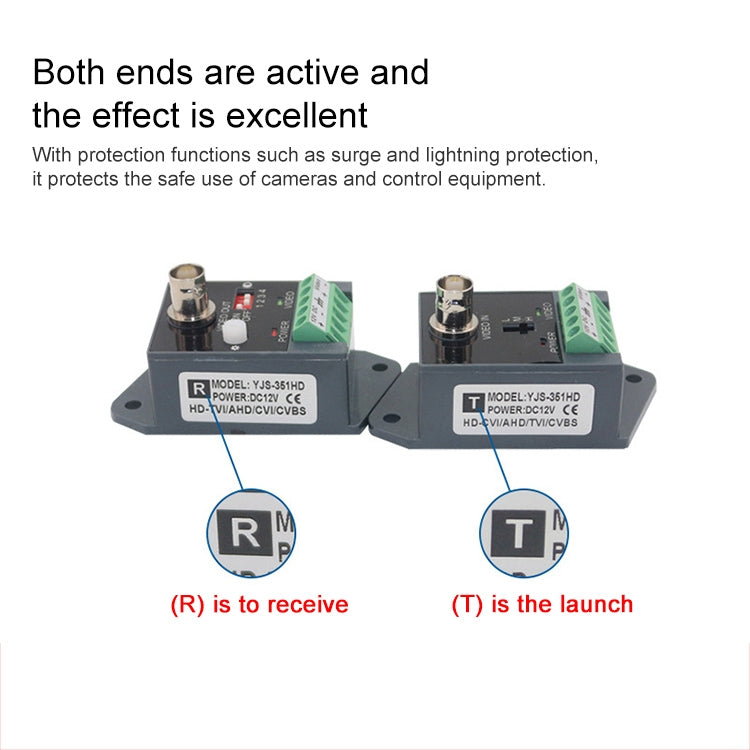

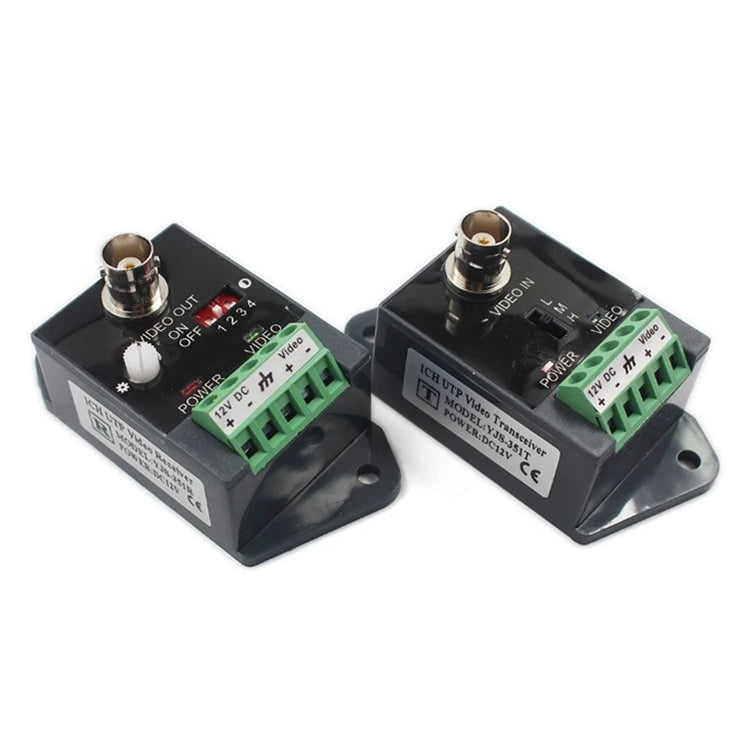

1. Smart Twisted Pair Video Balun are designed for CCTV signal transmission over unshielded twisted pair wire

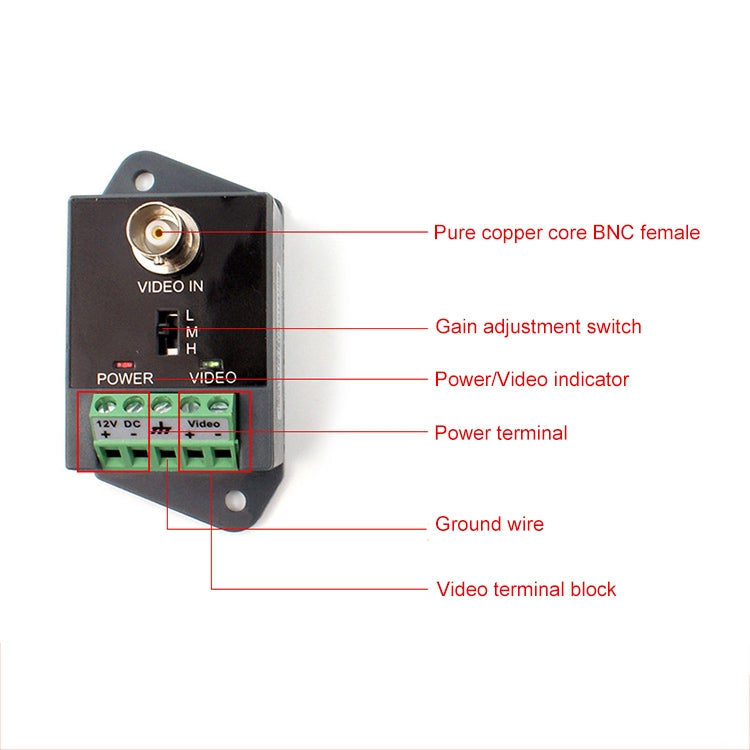

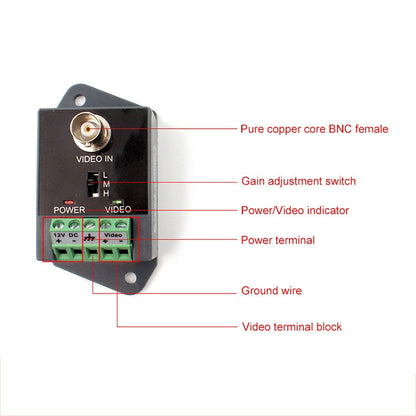

2. Three position range switch for gain select on transmitter.

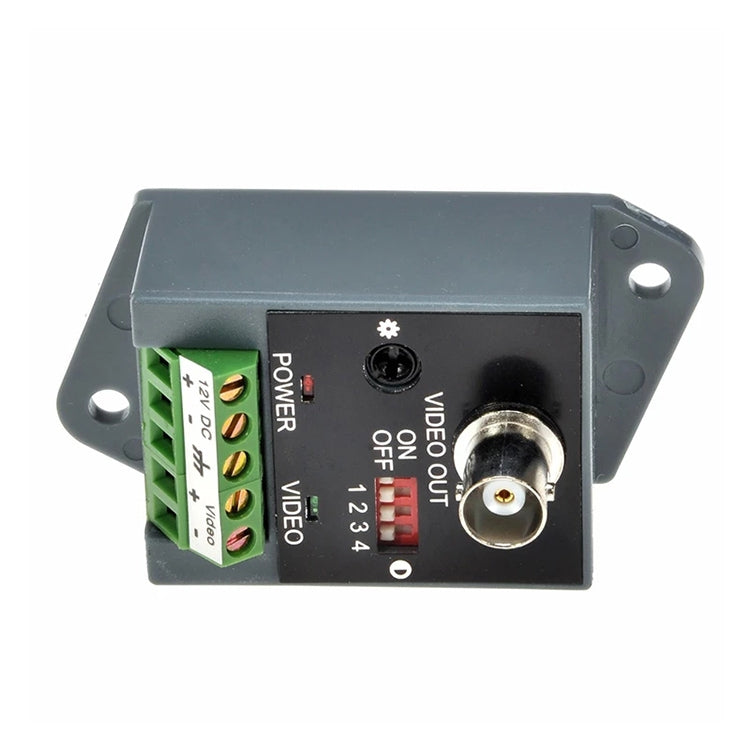

3. 4 position distance range switch on Receiver
4. UTP Video Balun with built in transient protection and ground lifting.
5. Specification of the CCTV Video Balun: single-channel
6. Frequency response: DC-6MHz
7. Common-mode/differential-mode rejection: 15kHz to 6MHz 60dB type
8. Impedance: BNC 75 Ohms
9. UTP/connector: 100 Ohms or RJ-45 100 Ohms
10. Environment:
- Temperature: 0 to 50 degrees Celsius
- Humidity: 0 to 95%
11. Wire type:
- Full-motion CCTV video at long distances (9,000ft / 3000M)
- Built-in linearity, sharpness and charoma control
- Enable unparalleled common interference rejection
- Built-in transient protection
- Improve the picture definition when connet to DVR or Quad, and reduce noise affects
- Dimensions: 76 x 40 x 26mm
2. Three position range switch for gain select on transmitter.
3. 4 position distance range switch on Receiver
4. UTP Video Balun with built in transient protection and ground lifting.
5. Specification of the CCTV Video Balun: single-channel
6. Frequency response: DC-6MHz
7. Common-mode/differential-mode rejection: 15kHz to 6MHz 60dB type
8. Impedance: BNC 75 Ohms
9. UTP/connector: 100 Ohms or RJ-45 100 Ohms
10. Environment:
- Temperature: 0 to 50 degrees Celsius
- Humidity: 0 to 95%
11. Wire type:
- Full-motion CCTV video at long distances (9,000ft / 3000M)
- Built-in linearity, sharpness and charoma control
- Enable unparalleled common interference rejection
- Built-in transient protection
- Improve the picture definition when connet to DVR or Quad, and reduce noise affects
- Dimensions: 76 x 40 x 26mm
