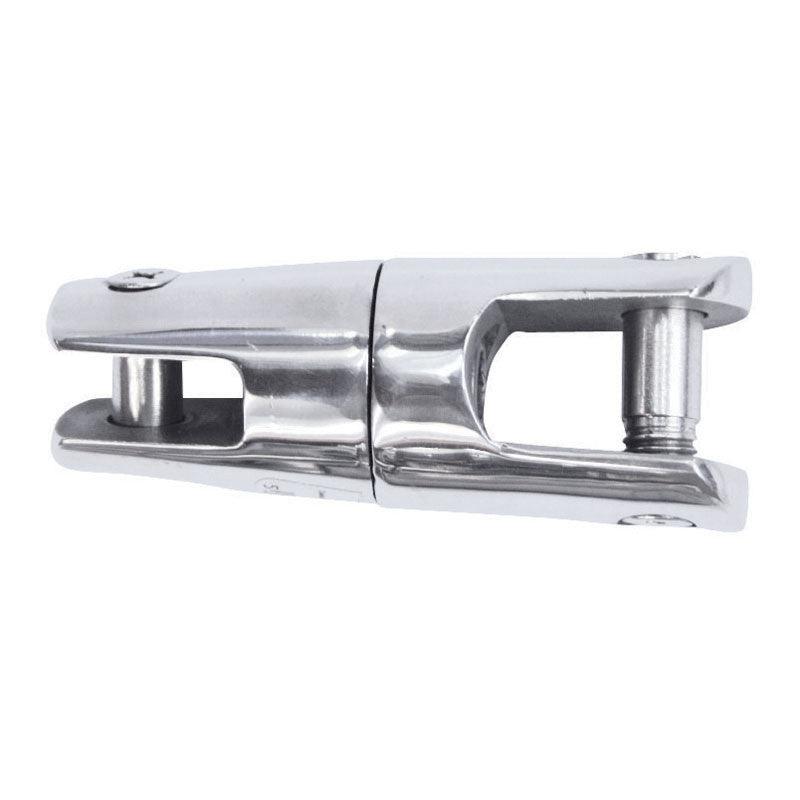

Anchor Chain Connector 6mm - 8mm
AISI 316 Stainless Steel | Marine Grade

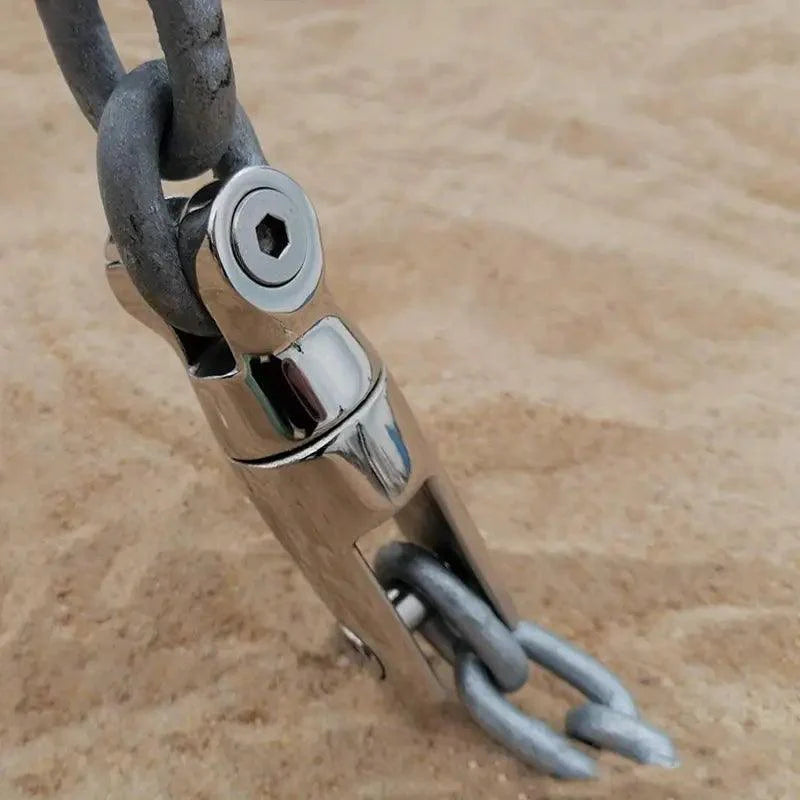

This premium Anchor Chain Connection is engineered from high-grade AISI 316 Stainless Steel to provide a secure and streamlined junction between your anchor and chain. Designed specifically for 6mm and 8mm chains, its slim, protrusion-free profile ensures your ground tackle transitions smoothly over bow rollers and through windlass systems without snagging.
Key Features
- ✔ Universal fit for 6mm & 8mm chain
- ✔ High-strength AISI 316 Stainless Steel
- ✔ Streamlined "No-Snag" design
- ✔ Mirror-polished anti-corrosion finish
- ✔ Captured pins for secure locking

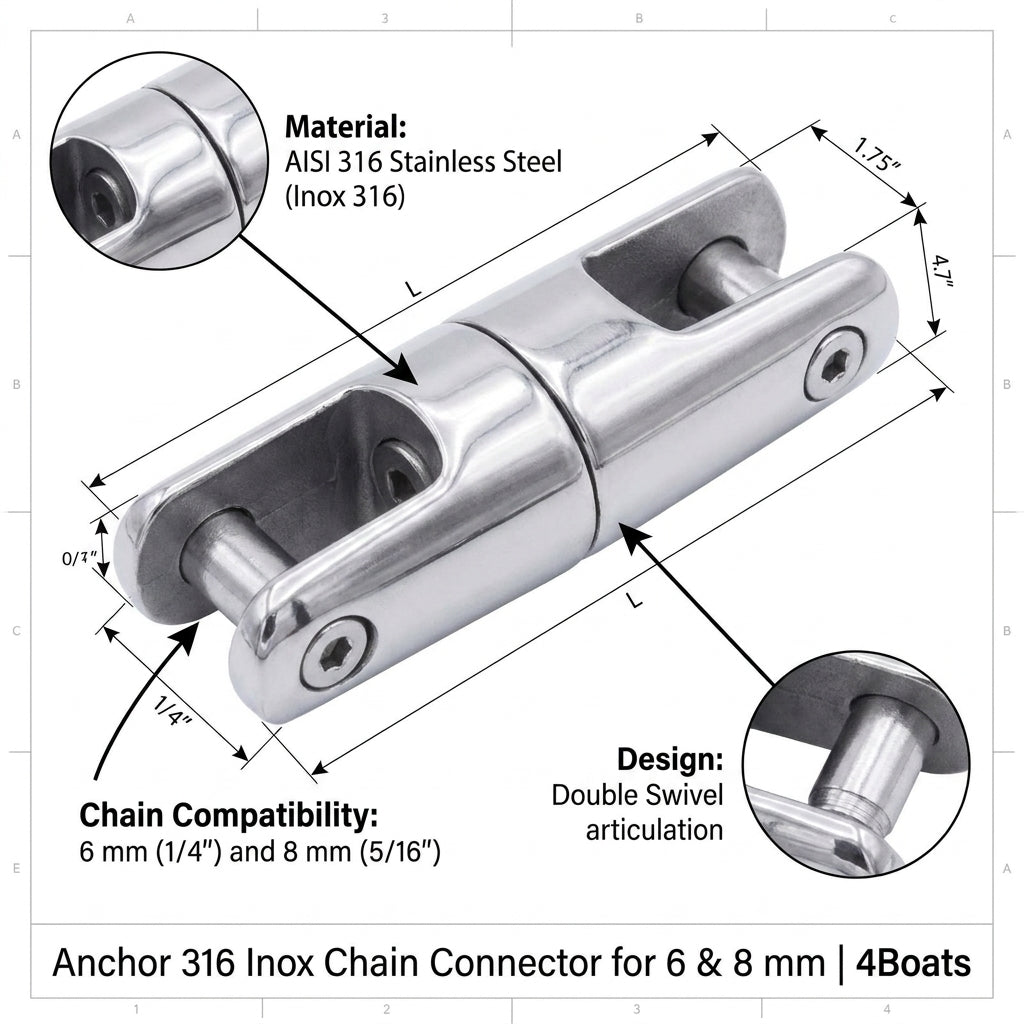

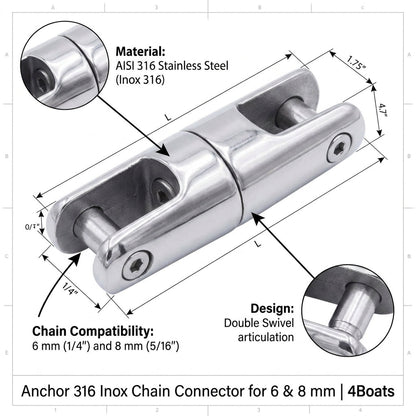

Technical Specs
| Material | AISI 316 Stainless Steel |
| Chain Size | 6mm - 8mm (1/4" - 5/16") |
| Breaking Load | ~ 2,500 kg |
| SWL | ~ 850 kg |
| Finish | Mirror Polished |
Compatibility / Fitment Guide
| Chain Standard | Chain Gauge | Anchor Type |
|---|---|---|
| DIN 766 / ISO 4565 | 6mm (Short Link) | Compatible |
| DIN 766 / ISO 4565 | 8mm (Short Link) | Compatible |
| General Purpose | All standard anchors | Fits most shanks up to 16mm |
OEM Cross Reference
| Lalizas Part Number | 98076 |
| Osculati Equivalent | 01.220.01 / 01.320.01 |
| Marine Town Ref | 805228 |
Questions & Answers
Is this a genuine original part?
This is a premium Lalizas marine component, manufactured to professional maritime standards for reliability and strength.
How do I know if it is compatible?
This connector is suitable for all 6mm and 8mm short-link calibrated chains (DIN766/ISO). If your chain is within this range, it is a guaranteed fit.
Does it come with the locking pins?
Yes, the connector includes two high-tensile stainless steel pins that are tightened flush with an Allen key to prevent snagging on the bow roller.
Note: We recommend using a thread-locking compound (such as Loctite) on the pins during final installation to ensure maximum security. Available at 4boats.co.uk.
