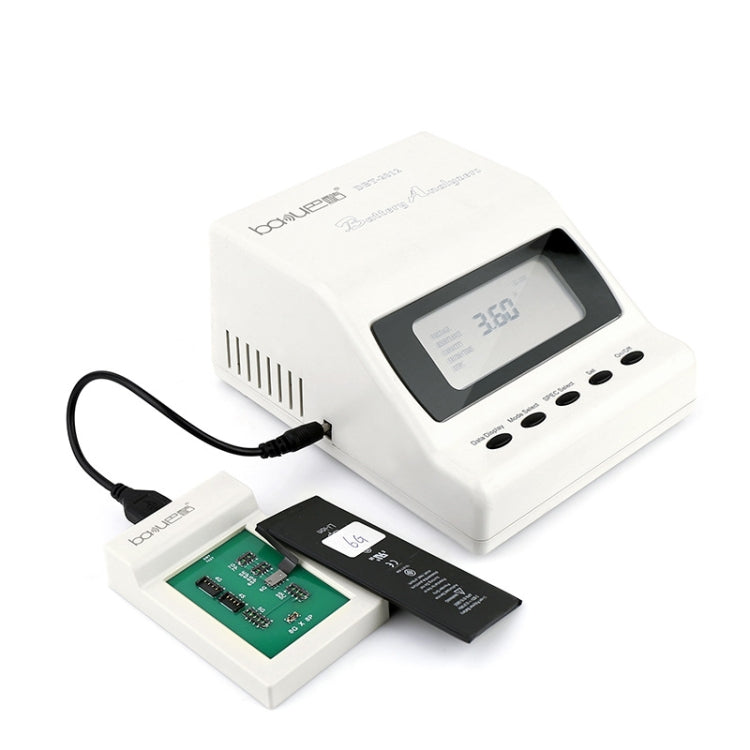

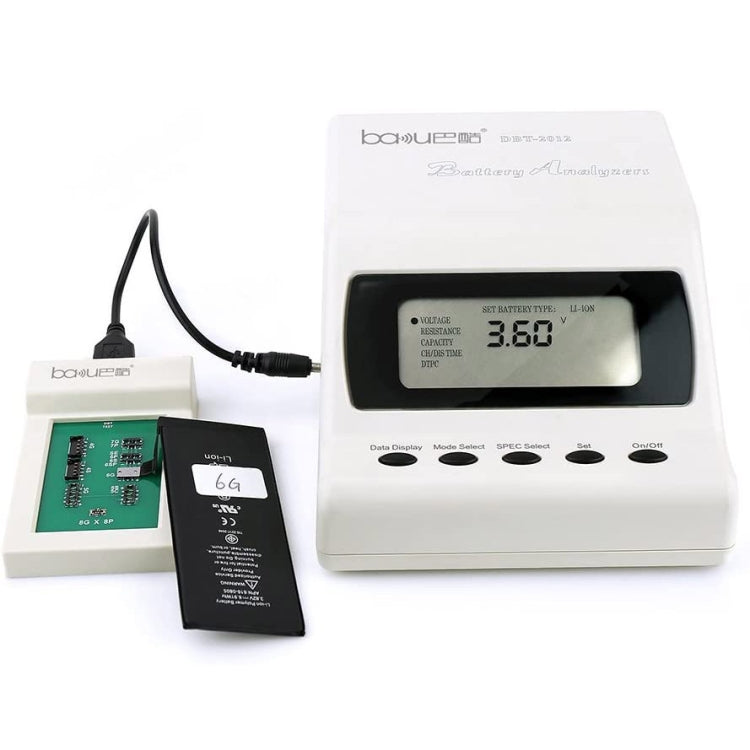

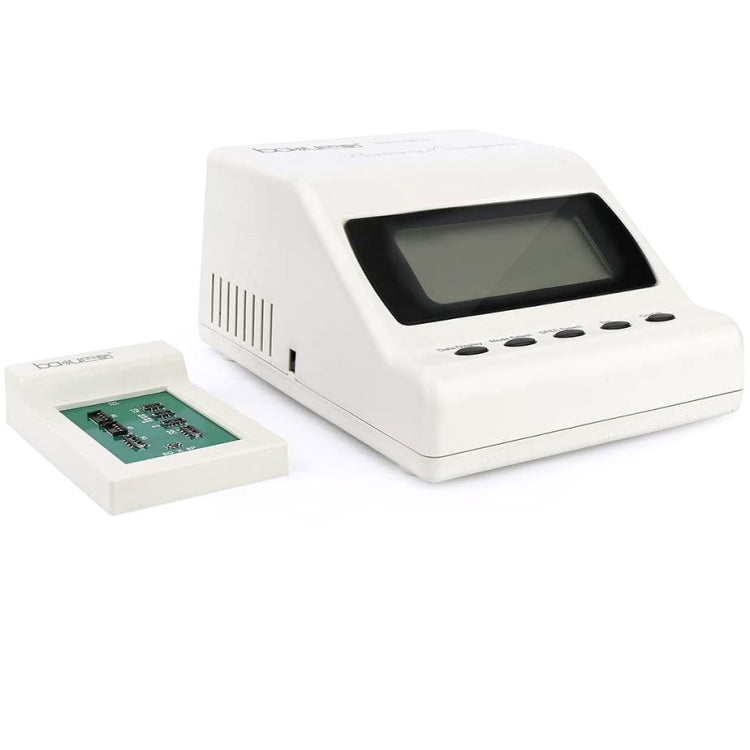

BAKU DBT-2012 Battery Capacitive Tester, US Plug, US Plug

1. Model: DBT-2012
2. Test voltage(ni-mh and lithium): <7.2v
3. Input Voltage: DC 13.5 OR 18V
4. Procedures Before Testing:
- Step1: Push down the cover button to open the top board of battery holder
- Step2: Hold on the probe track board button and rotary the probe track board to correspond to that side of the battery contacts
- Step3: Move the probe handles for correspond to the battery contacts
- Step4: Place the battery on the baseboard,make sure that the metal contact to the probe
- Step5: hold on the battery and press down the top board of battery holder
- Step6: nsure that the battery holder has been clamping the battery

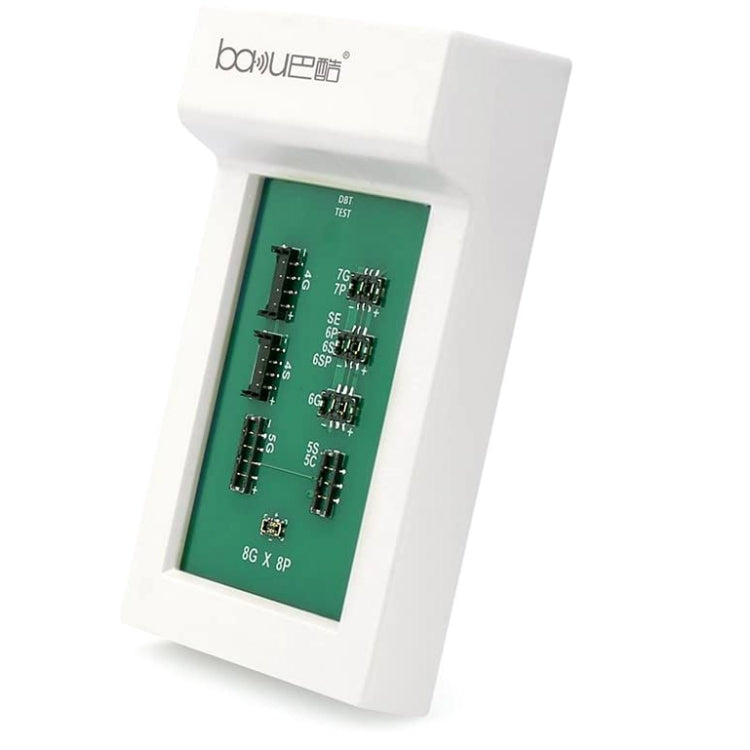

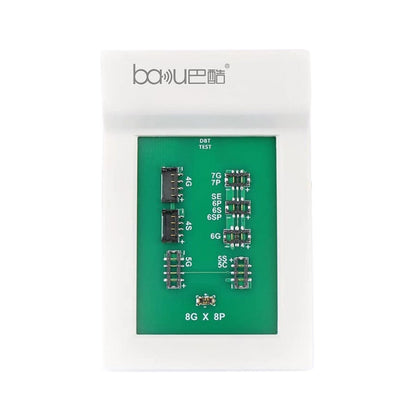

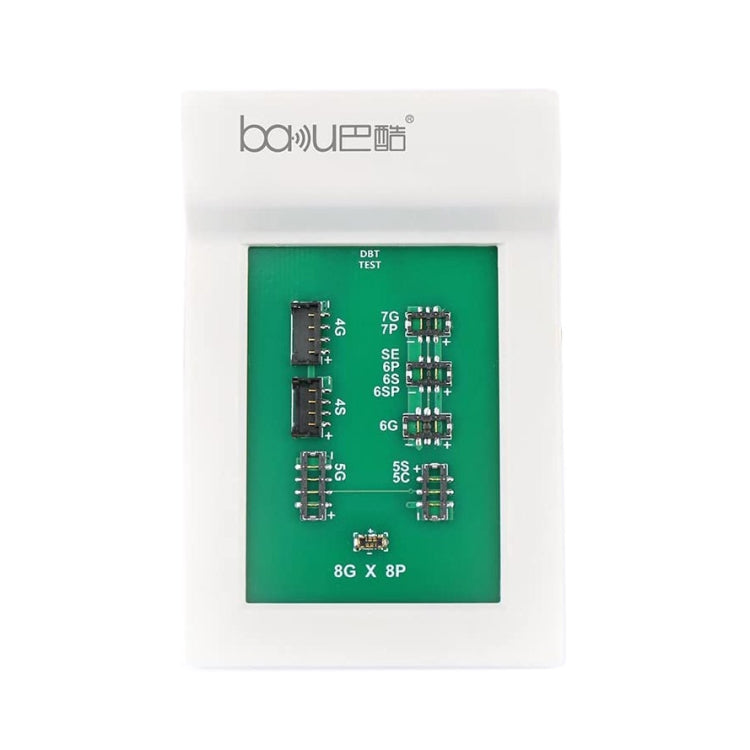

- Step7: Connect the adapter and the analyzer by the small USB cable
- Step8: Connect the analyzer to the power supply
