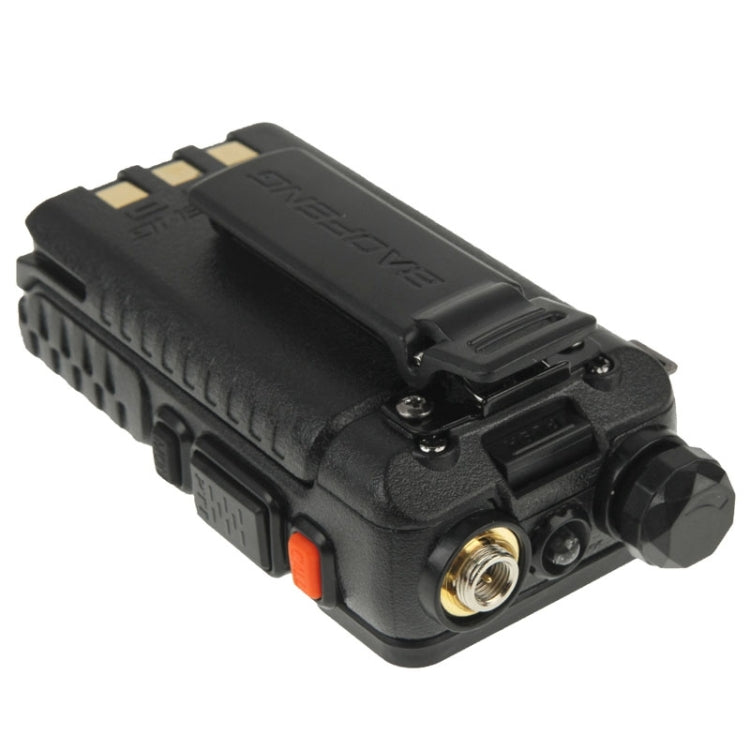

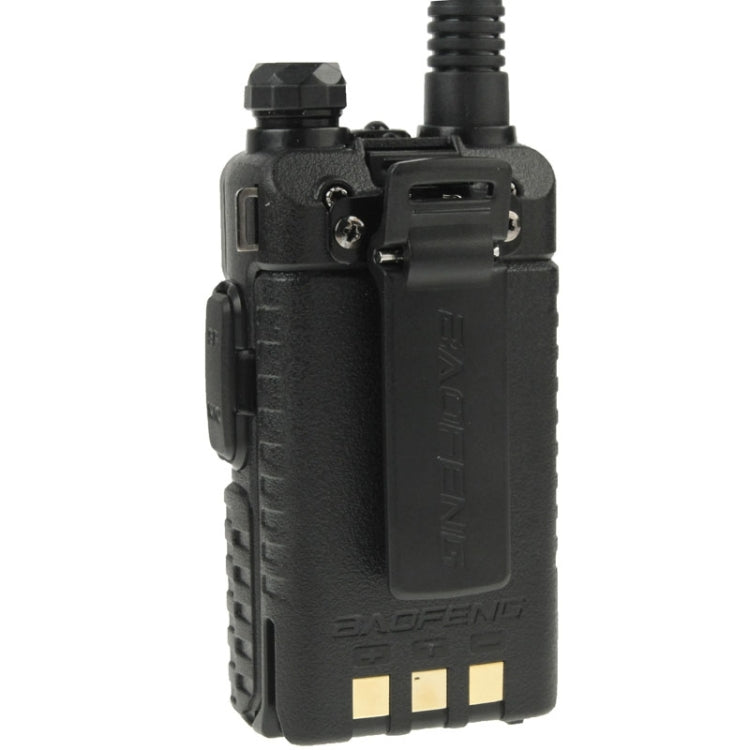

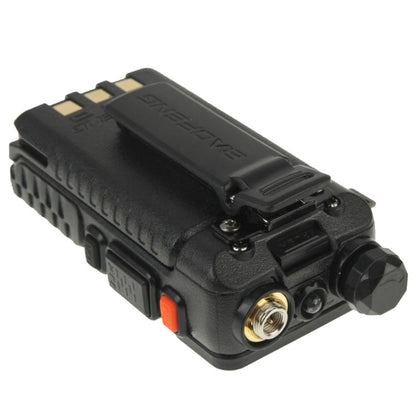

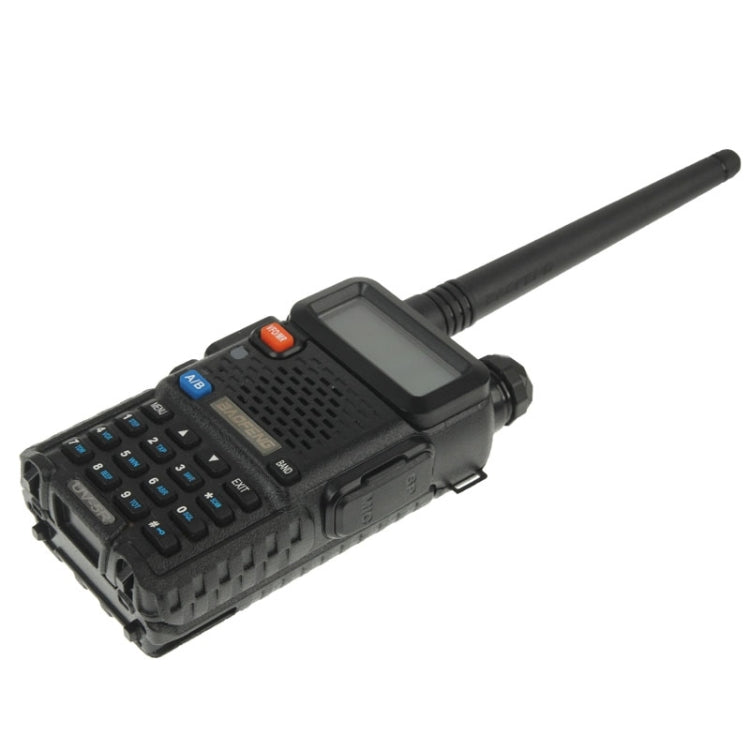

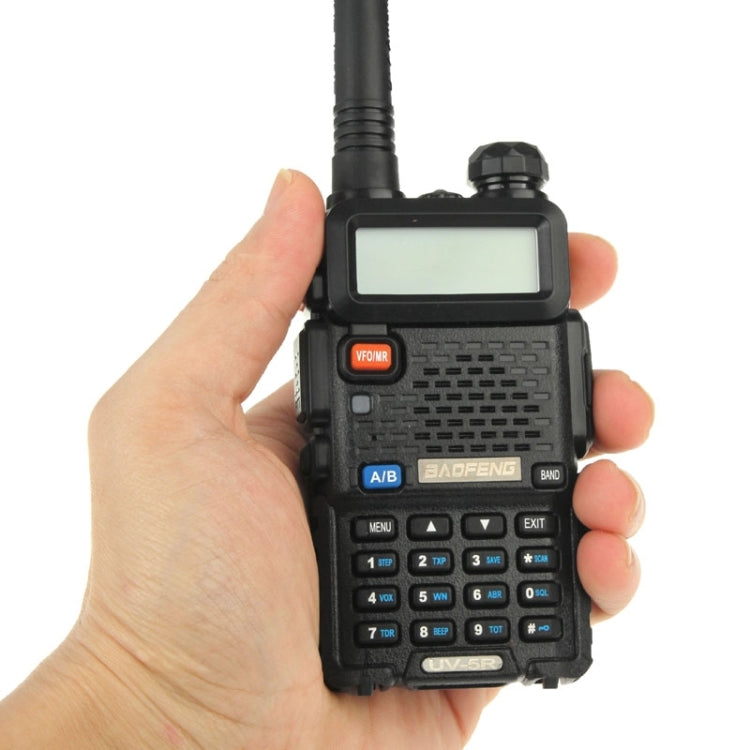

BAOFENG UV-5R Professional Dual Band Transceiver FM Two Way Radio Walkie Talkie Transmitter

BAOFENG UV-5R Professional Dual Band Transceiver FM Two Way Radio Walkie Talkie Transmitter

£15.99
£15.99
Sale Sold out
In stock, ready to ship
Color
Features
1. FM Radio Frequency range: 65-108MHz
2. Dual-band display, dual standby
3. High power 5W / low selectable 1W
4. 128 channels
5. 50 CTCSS and 105 DCS
6. Built-in VOX function
7. Tone end of transmission
8. LED flashlight, large LCD display
9. High /Low RF power switchable
10. Squelch set(1-9 Level)
11. Emergency alert, low battery alert, battery saver, time-out timer, keypad kock
12. Monitor channel
13. Channel step: 2.5/5/6.25/10/12.5/25KHz
14. Restore to Factory Default
15. PC programming
16. Long comminution range: Open ground: 5-10km, Obstacle ground: 3-5km


Specification:
General
Model UV-5R
Frequency Range FM 65MHz-108MHz, UHF 400MHz-520MHz, VHF 136MHz-174MHz, UHF 400MHz-480MHz
Channel 128
Frequency Step 2.5kHz, 5kHz, 6.25kHz, 10kHz, 12.5kHz, 25kHz
Antenna Impedance 50 ohms
Voltage 7.4V
Consumption Standby =<75mA

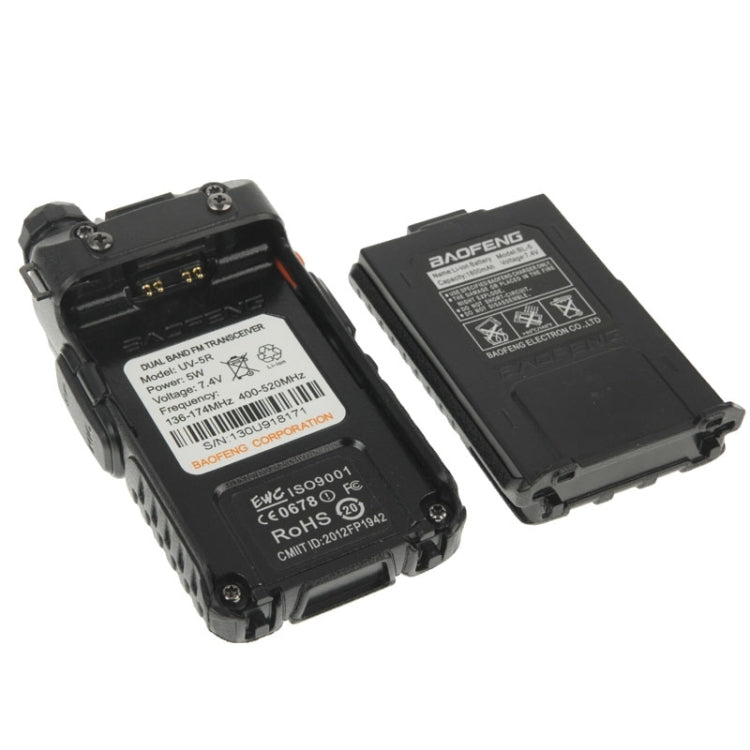

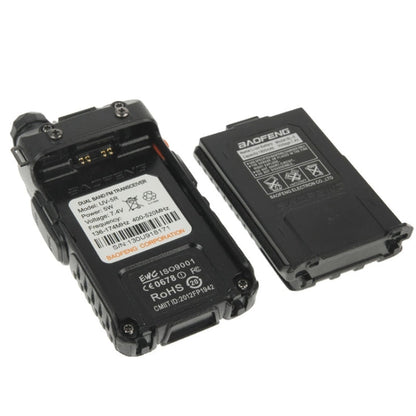

Battery Types Lithium-ion Battery
Battery Capacity 1800mAh
Operation Mode Simplex, Semi-duplex
Duty Cycle 03/03/54 min. (RX / Tx / Standy)
Working Temperature -20C to 60C
Walkie Distance (Open) 3-5km
Walkie Distance (Barrier) 1-3km
Size 10.8*5.5*3.0cm
Weight 186g
Transmitter Parameters
RF Power 4W/1W
Spurious Emission <-60dB
Maximum Deviation =<+/-5kHz, =<+/-2.5kHz
Modulation Types FM
Emission Class 16K/F3E, 11K/F3E
Transmitting Current =<1.4A
Receiver Parameters
Stability 0.2μV (at 12dB Sinad)
Intermodulation 60dB
Adjacent Channel Selectivity 65dB
Audio Output 1000mW
Current 380mA

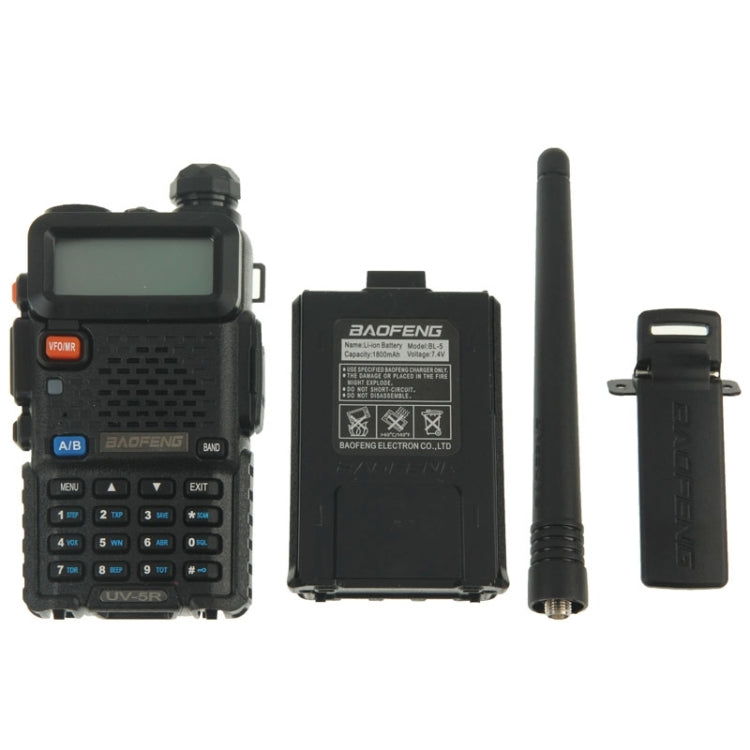

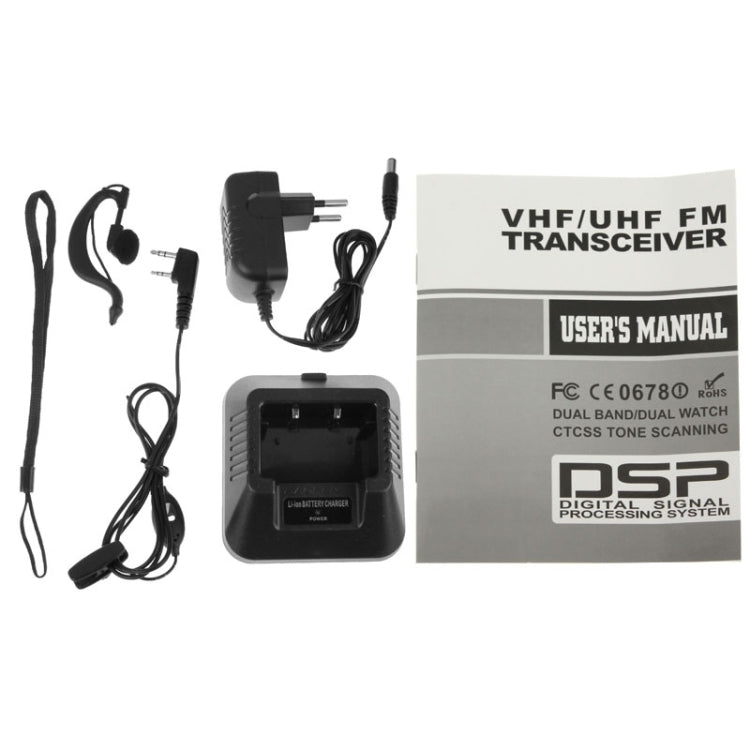

Package Include
Package Contents 1 x Walkie Talkie
1 x Rechargeable Battery
1 x Charger Base
1 x Belt-clip
1 x Strap
1 x User Manual
Package Weight
One Package Weight 0.48kgs / 1.06lb
One Package Size 18cm * 11cm * 10cm / 7.09inch * 4.33inch * 3.94inch
Qty per Carton 20
Carton Weight 11.00kgs / 24.25lb
Carton Size 52cm * 24cm * 38cm / 20.47inch * 9.45inch * 14.96inch
Loading Container 20GP: 562 cartons * 20 pcs = 11240 pcs
40HQ: 1305 cartons * 20 pcs = 26100 pcs
