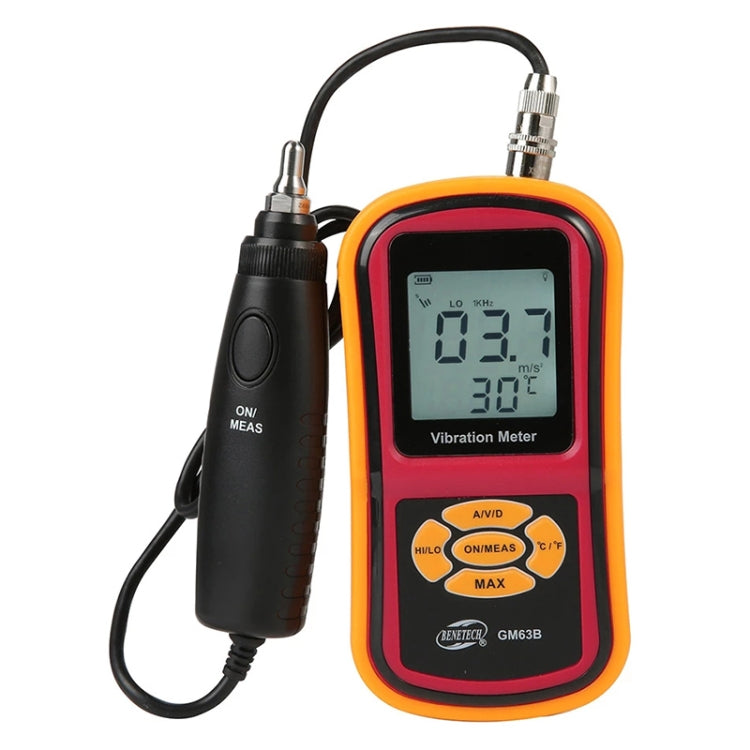

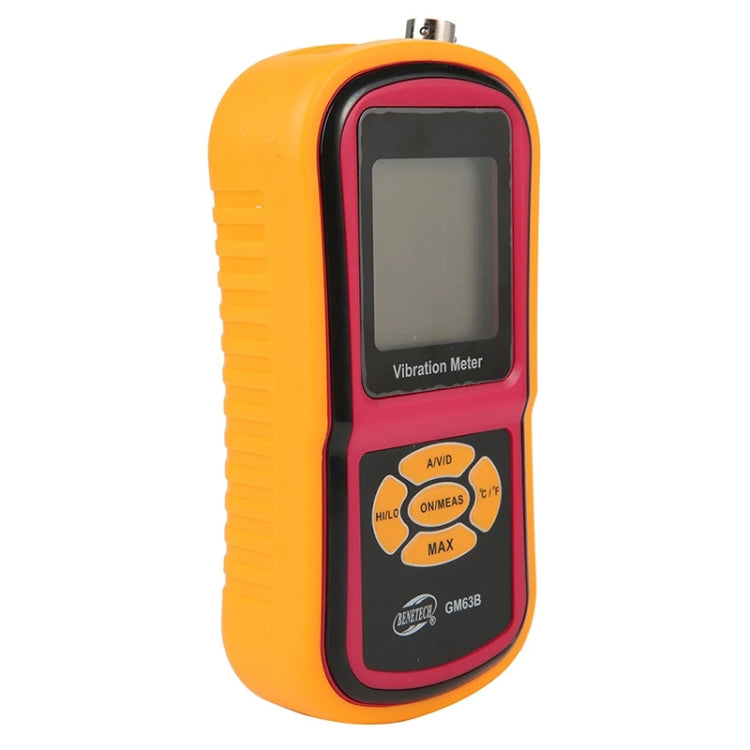

BENETECH GM63B Digital Vibration Meter

BENETECH GM63B Digital Vibration Meter

Regular price £113.99
Regular price Sale price £113.99
Sale Sold out
In stock, ready to ship
Quantity
About the product
1. This product adopts piezoelectric effect of artificial polarized ceramic for design.
2. It is suitable for monitoring of all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery.
3. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc. field.

Features

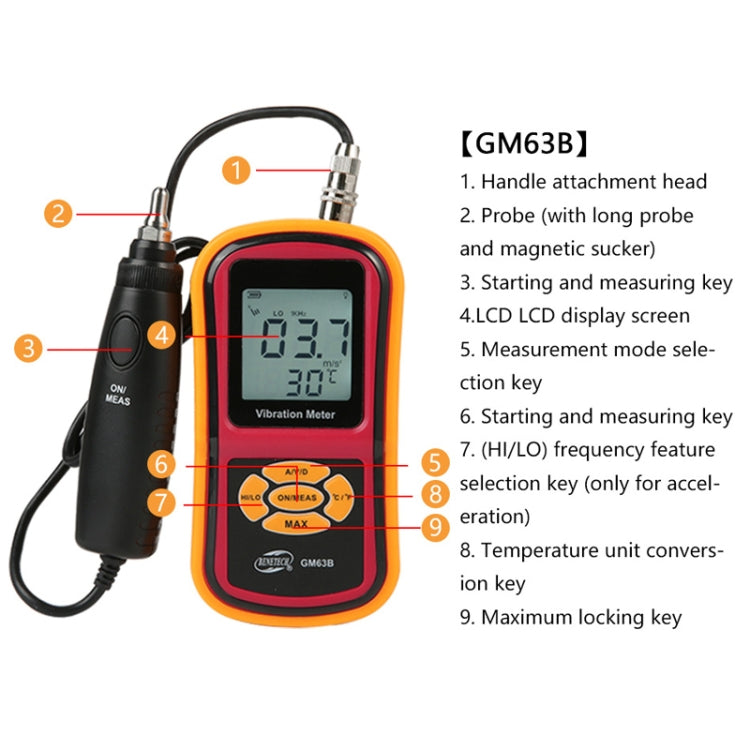

1. LCD displays measurement result and conditions directly
2. Measure acceleration, velocity and displacement
3. Selective vibration characteristic
4. Use hi-sense of vibration sensor, measuring accurately
5. Equipped two probes (S and L) to adapt the different measurement requirement
6. Provide a magnetic probe to fit the condition uneasy hold on by hand
7. Low battery indication
8. Auto turn off function
9. LCD back light function
10. Maximum value hold function
11. Temperature unit Celsius Degree / Fahrenheit Degree selection


Specification:
General
Operating Temperature 0 ~ 40 Degree Celsius
Temperature Range -10-80 Celsius Degree
Operating Humidity 30-90%RH
Accuracy +-5%+-2digits
Display Update Cycle 1 second
LCD Display 3 1/2 Digits Display
Standby Current <=15uA
Operating Current <=25mA
Power Supply 9V 6LR6I battery (included)
Battery Life 20H Continuous Use
Measurement Range of Acceleration 0.1~199.9 m/s2 Peak
Measurement Range of Velocity 0.1~199.9mm/s rms
Measurement Range of Displacement 0.001~1.999mm p-p
Measurement Frequency Range of Acceleration 10Hz~1KHz(LO); 1KHz~15KHz(HI)
Measurement Frequency Range of Velocity 10Hz~1KHz(LO)
Measurement Frequency Range of Displacement 10Hz~1KHz(LO)
Size 145mm x 72mm x 35mm
Weight 229g
Package Weight
One Package Weight 1.09kgs / 2.40lb
One Package Size 28.7cm * 18.5cm * 8cm / 11.3inch * 7.28inch * 3.15inch
Qty per Carton 10
Carton Weight 11.90kgs / 26.23lb
Carton Size 50cm * 40cm * 30cm / 19.69inch * 15.75inch * 11.81inch
Loading Container 20GP: 444 cartons * 10 pcs = 4440 pcs
40HQ: 1031 cartons * 10 pcs = 10310 pcs
