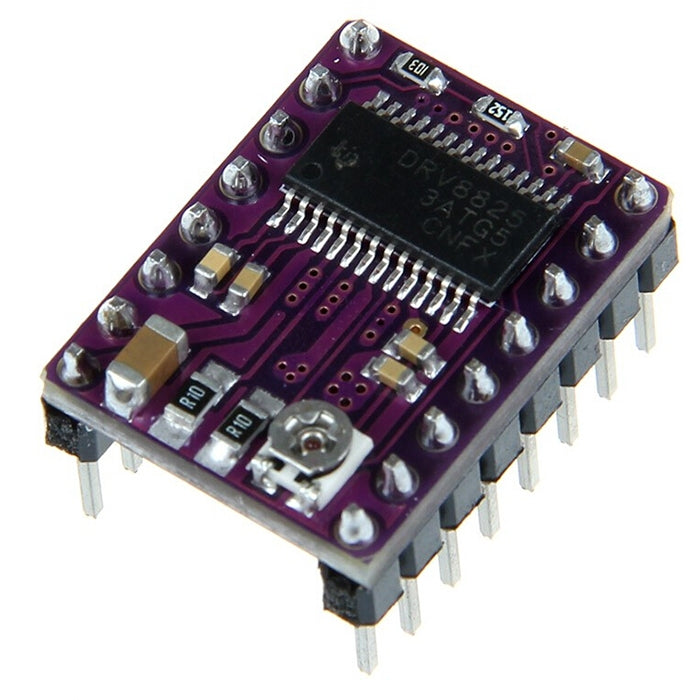

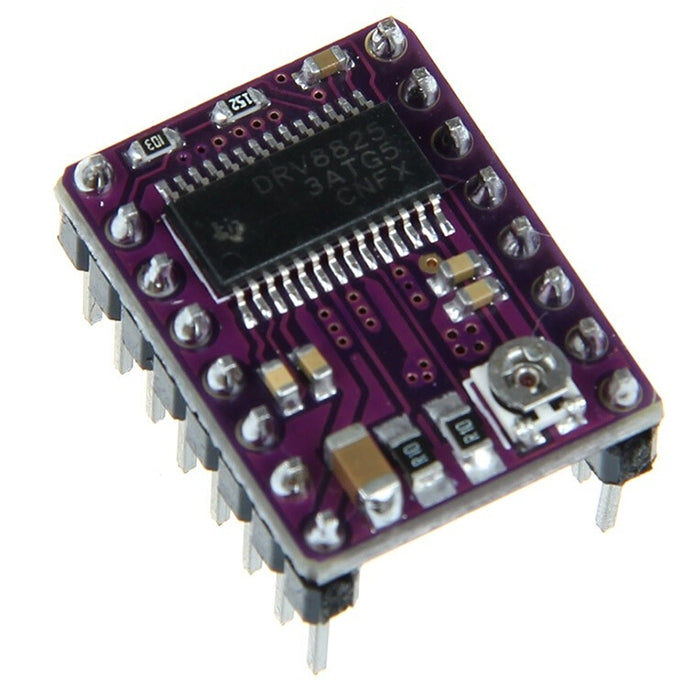

DRV8825 Stepper Motor Driver Carrier Reprap 4 Layer PCB

DRV8825 Stepper Motor Driver Carrier Reprap 4 Layer PCB

£0.99
£2.99 £0.99
Sale Sold out
In stock, ready to ship
1. The DRV8825 stepper motor driver carrier is a breakout board for TI DRV8825 microstepping bipolar stepper motor driver.
2. Simple step and direction control interface.
3. Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step.
4. Can interface directly with 3.3 V and 5 V systems.
5. Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
6. Short-to-ground and shorted-load protection.
7. 4-layer, 2 oz copper PCB for improved heat dissipation.

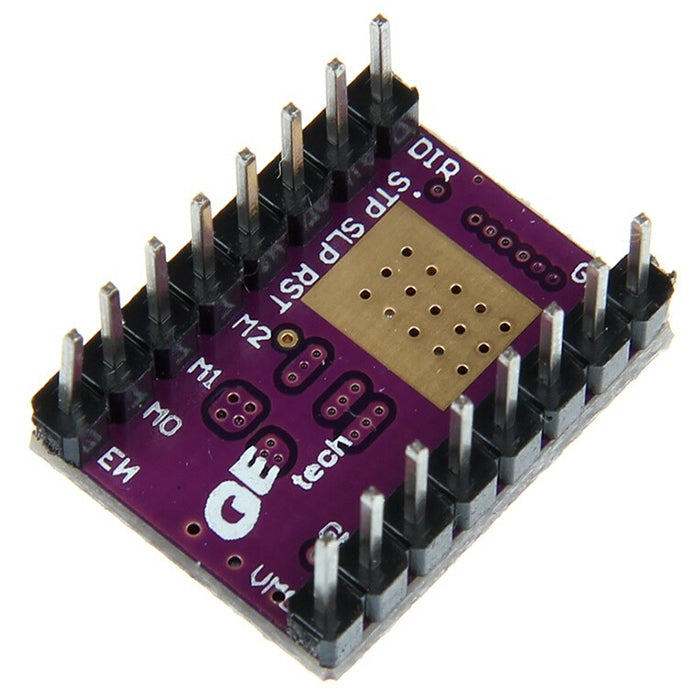

8. Exposed solderable ground pad below the driver IC on the bottom of the PCB.


Specification:
Dimensions
Size 2*1.7 cm
Weight 4 g
Package Weight
One Package Weight 0.06kgs / 0.13lb
One Package Size 11cm * 6cm * 3cm / 4.33inch * 2.36inch * 1.18inch
Qty per Carton 150
Carton Weight 8.60kgs / 18.96lb
Carton Size 35cm * 30cm * 30cm / 13.78inch * 11.81inch * 11.81inch
Loading Container 20GP: 846 cartons * 150 pcs = 126900 pcs
40HQ: 1965 cartons * 150 pcs = 294750 pcs
