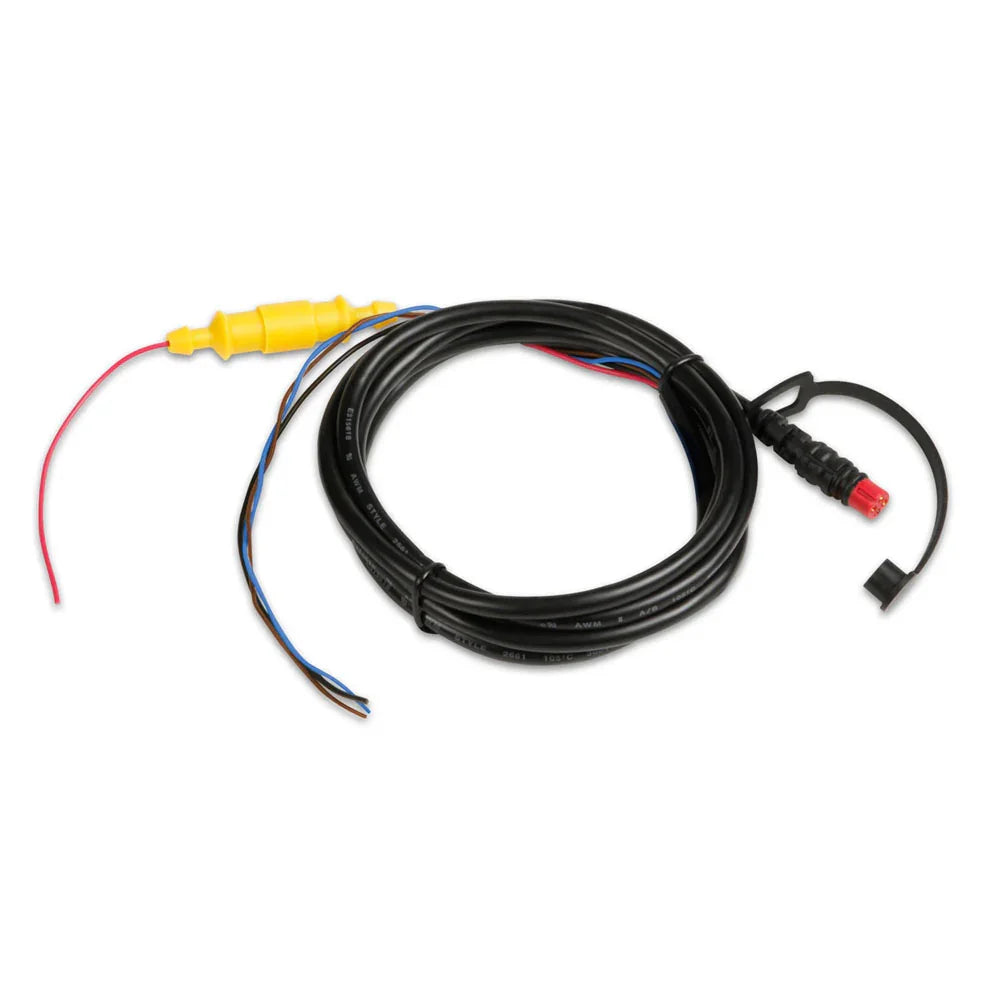

Garmin Threaded 4-Pin Power/Data Cable
For selected echoMAP CHIRP, ECHOMAP Plus and UHD displays
Genuine Garmin replacement power/data cable with a threaded 4-pin display connector and conductors for DC power plus NMEA 0183 data.
Key Features
- ✔ Secure threaded 4-pin display connection
- ✔ DC power conductors for the chartplotter
- ✔ NMEA 0183 input/output wiring
- ✔ Direct replacement for Garmin 010-12199-04
- ✔ Not a sonar transducer cable
Technical Specs
| Accessory type | Display power/data cable |
| Display connector | Threaded 4-pin |
| Data interface | NMEA 0183 |
| Compatible families | echoMAP CHIRP; ECHOMAP Plus; ECHOMAP UHD |
| Garmin part | 010-12199-04 |
Compatibility / Fitment Guide
| Application | Compatible fitment | Verification / exclusions |
|---|---|---|
| echoMAP CHIRP | 75dv, 75sv, 92sv and 95sv | Rear socket must be the threaded 4-pin power/data port. |
| ECHOMAP Plus | 75cv, 75sv and 95sv | Model name must include Plus; check the rear connector. |
| ECHOMAP UHD | 75cv, 75sv and 95sv | For the original UHD generation using 010-12199-04. |
| Not compatible | Units requiring 010-12938-00, an 8-pin power/data lead or another keyed connector | Not for Ultra 10/12-inch displays and not for transducer signals. |
Before installation: confirm the complete model suffix on the label, compare the threaded 4-pin receptacle and follow the chartplotter installation guide for power, fuse and NMEA 0183 wire assignments. Do not identify the cable by pin count alone.
Part Number Cross Reference
| Garmin part number | 010-12199-04 |
| 4Boats SKU | 230-0101219904 |
| Supply type | Genuine Garmin accessory |
Frequently Asked Questions
Will it fit ECHOMAP Ultra 102/122?
No. Those models use a different 4-pin power/data cable, Garmin 010-12938-00.
Does it connect the transducer?
No. It powers the display and provides NMEA 0183 data conductors.
Is it genuine Garmin?
Yes. This listing is for Garmin part 010-12199-04.
Before ordering: match Garmin part number, connector pin count and the receiving device socket. Similar-looking Garmin connectors are not interchangeable.
