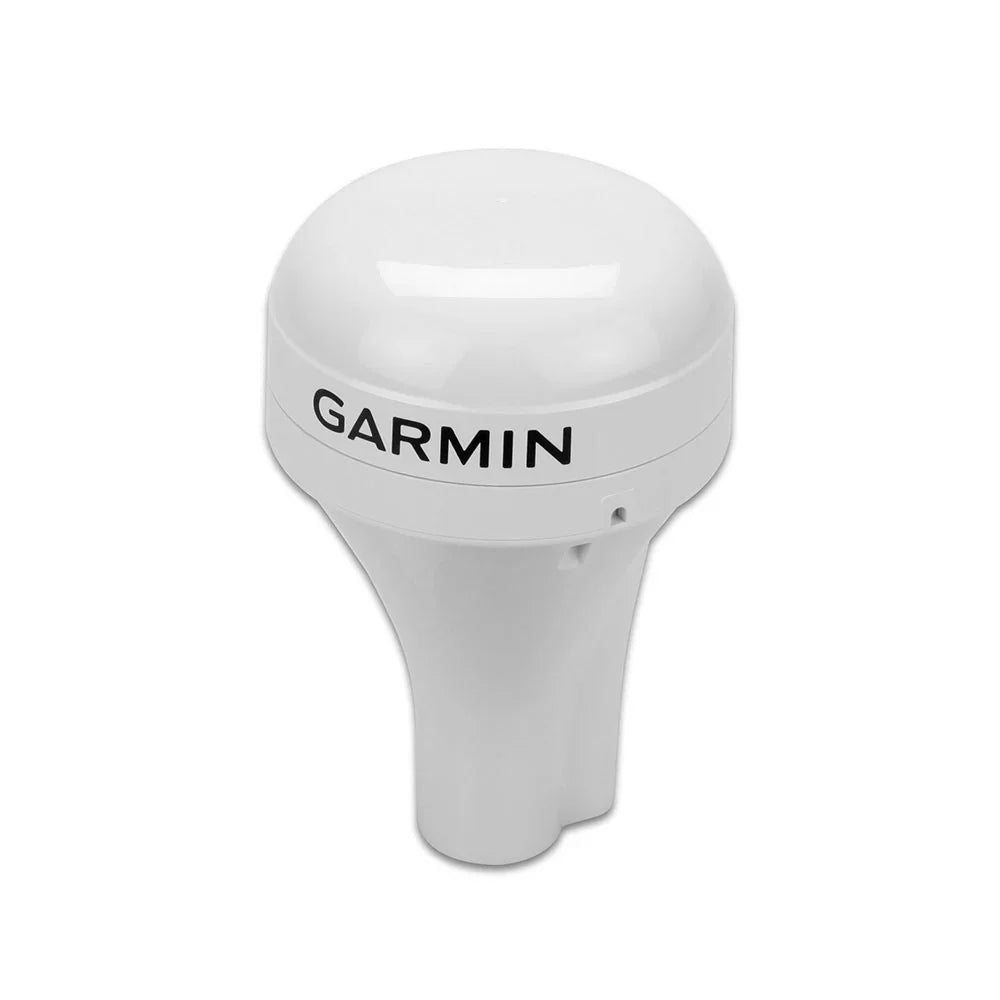

PRECISION NAVIGATION: Utilizing L1 and L5 frequencies alongside multi-constellation support (GPS, GLONASS, Galileo, BeiDou), the 24xd ensures a reliable fix in challenging conditions like deep canyons or heavy tree cover.

Key Features

• ✔ Multi-Band GNSS: High accuracy via L1 and L5 signals.
• ✔ 10 Hz Update Rate: Smooth position and velocity data.
• ✔ Magnetic Heading: Accuracy within 3 degrees for radar overlay.
• ✔ Multi-Constellation: Tracks GPS, GLONASS, Galileo, and BeiDou.
• ✔ Versatile Mounting: Pole, surface, or under-deck (fiberglass).

Technical Specs

MPN:	010-02316-00
Input Voltage:	8-33 Vdc (Unregulated)
Dimensions:	91.6 mm x 49.5 mm
Weight:	201 g (7.1 oz)
Cable Length:	9.14 m (30 ft)
Waterproof Rating:	IPX7

Protocol	Devices	Notes
NMEA 0183	Garmin GPSMAP Series	Compatible with 4000, 5000, 6000, 7000 & newer series with NMEA 0183 ports.
NMEA 0183	Third-Party Plotters	Raymarine, Simrad, Lowrance with NMEA 0183 Rx/Tx wires.
NMEA 0183	Marine VHF Radios	Provides GPS data for DSC emergency functions.

Is this a genuine original part?

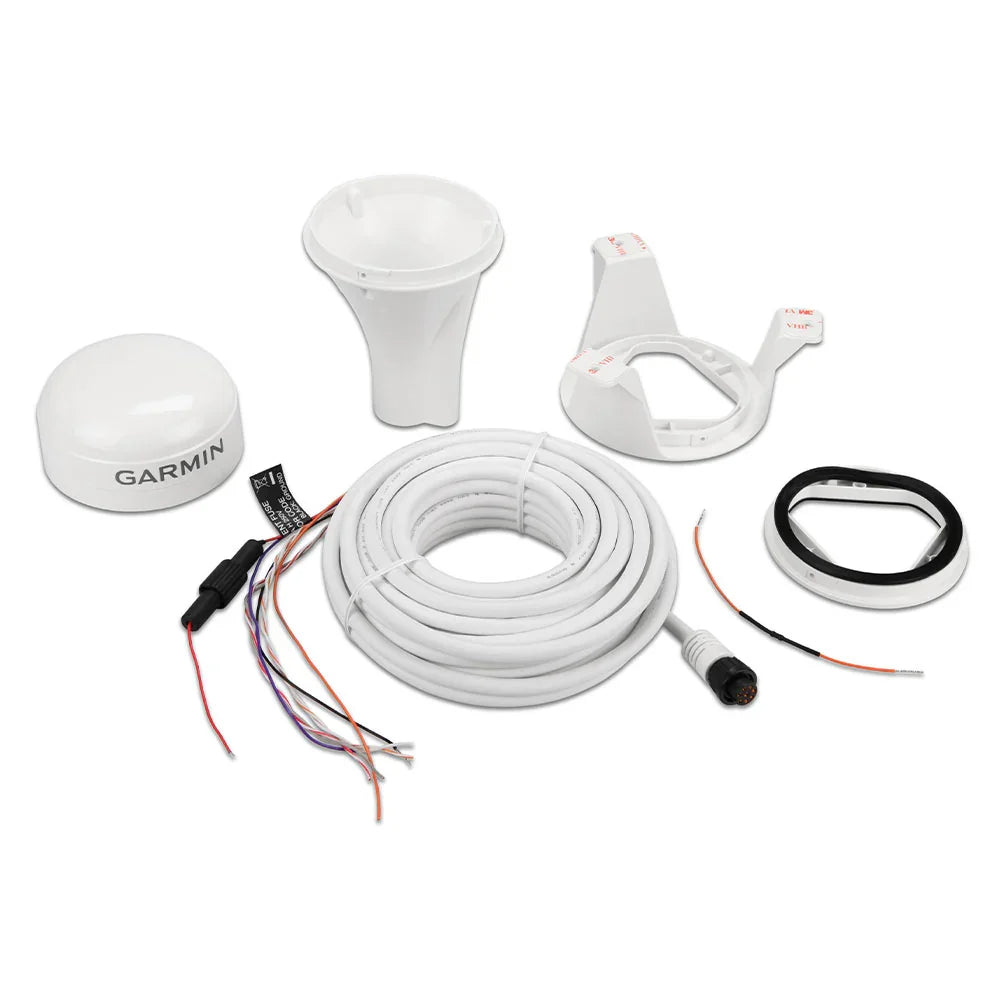

Yes, this is a genuine Garmin marine part, complete with full manufacturer documentation and mounting hardware.

How do I know if it is compatible?

We recommend checking if your device supports NMEA 0183 (bare wire) communication. This is the direct replacement for the discontinued GPS 19x HVS.

Can I change the update rate from 10 Hz to 1 Hz?

Yes. This unit includes an "Update Rate Select" cable. By installing the included resistor cable to the orange accessory wire, you can limit the output to 1 Hz at 4800 bps for older legacy systems.
