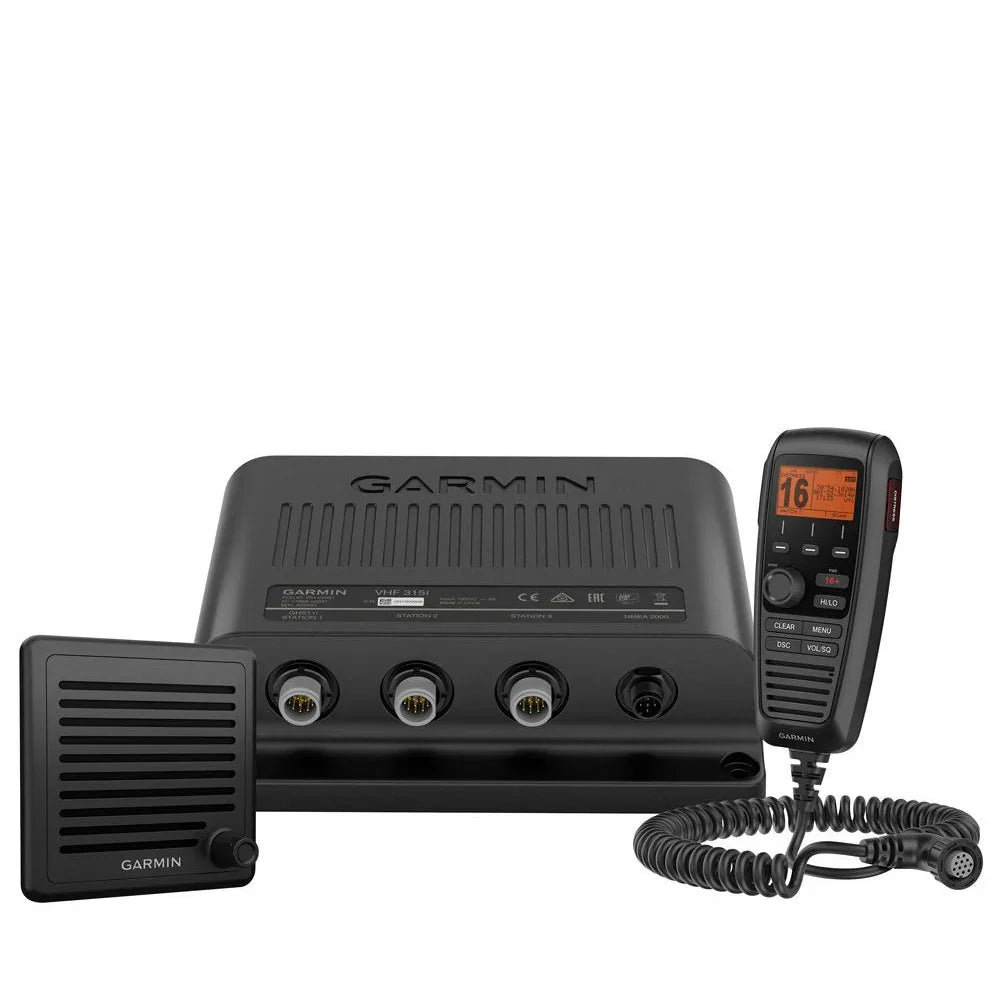

Garmin VHF 315i Marine Radio

• Dimensions: 20.5 x 18.1 x 6.0 cm
• Weight: 1.53 kg
• Operating temperature range: -15°C to 70°C
• Water rating: IPX7
• Compass-safe distance: 5 cm
• Digital selective calling: Class D
• Frequency bands: All international marine channels
• Operating voltage: 9.6 - 16 Vdc
• Current draw: Standby: 350 mA; Receive: 600 mA; Transmit high power: 6 A max; transmit wow power: 2 A max
• Transmitter power (at 13.6 Vdc): High power: 23-25 W; low power: 0.7-1 W
• NMEA 2000 LEN: 1

Enjoy reliable communication

• Reliable 25-watt VHF Class D DSC marine radio
• Includes GHS 11i handset and new active speaker to use as intercom between up to 3 stations
• Built-in GPS receiver (requires external antenna)
• NMEA 2000 connectivity for easy integration with compatible chartplotters and multifunction displays
• Preprogrammed with international marine channels

The 25-watt VHF 315i marine radio with Class D DSC is a modular communication solution. It provides the security of reliable communication on the water by meeting the latest industry standards. Pre-programmed with international marine channels it's easy to use and integrates seamlessly into the Garmin onboard system. It has a built-in GPS receiver with connector for required external antenna.

The VHF 315i includes a GHS 11i handset and new active speaker to use as an intercom between up to 3 stations. It's also equipped with a two-way 30-watt hailer system for communication with other boats or deckhands. NMEA 2000 connectivity enables easy integration with compatible chartplotters multifunction displays and convenient software updates. Simplified handset connectors and an uncomplicated easy-to-use interface allow you to get your radio set up quickly so you can get back out on the water and start communicating.

In The Box

• VHF 315i marine radio
• GHS 11i
• Cradle (for GHS 11i)
• Active speaker
• Power cable
• Deck cable (10 metres)
• Microphone hanger
• Mounting hardware
• Documentation
