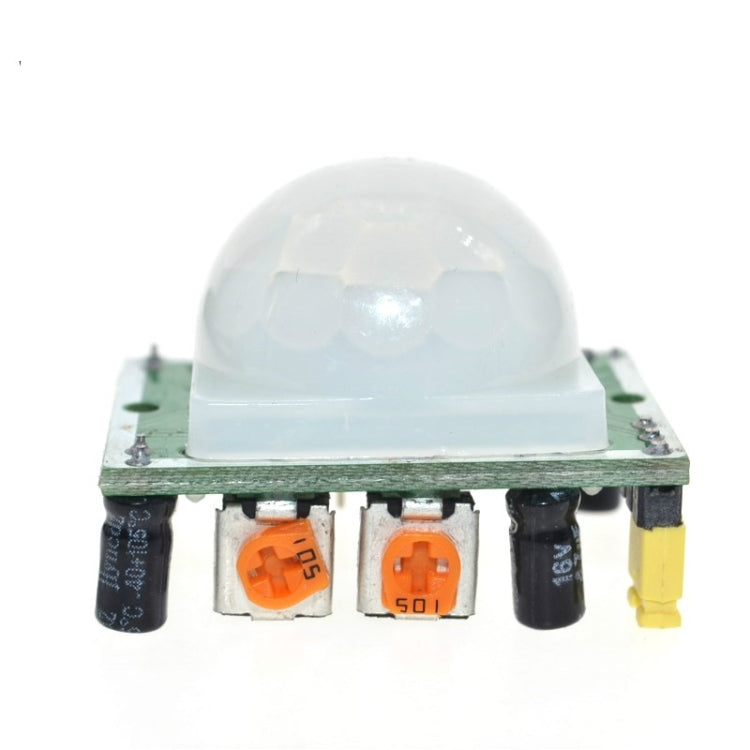

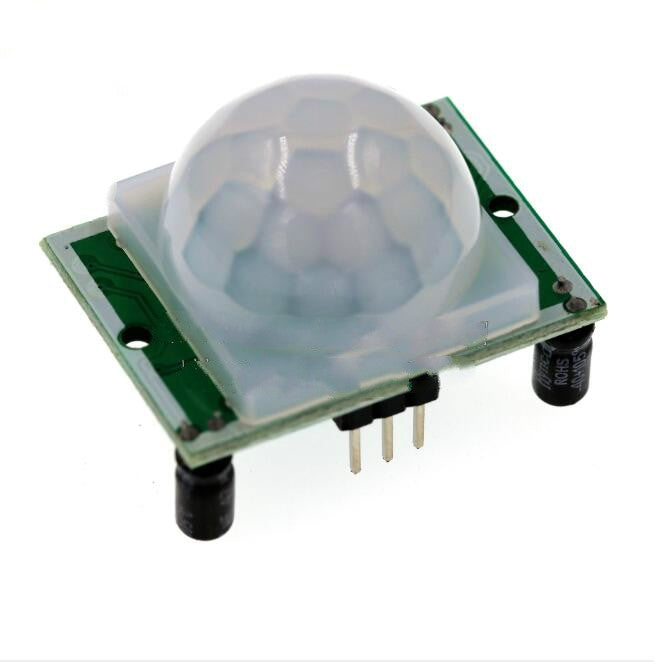

HC-SR501 Module Human Infrared Sensor Module SUNLEPHANT Pyroelectric Infrared Sensor

HC-SR501 Module Human Infrared Sensor Module SUNLEPHANT Pyroelectric Infrared Sensor

£0.99
£2.99 £0.99
Sale Sold out
In stock, ready to ship

1. Operating voltage range: DC voltage 5-20V
2. Static current: <65uA
3. Level output: 3.3 V high / low 0V
4. Trigger mode: L non-repeatable trigger / H repeat trigger (default repeat trigger)
5. Delay time: 0.5-200S (adjustable) can be made in the range of a few seconds - tens of minutes
6. Blocking time: 0.2S can be made in the range of a few seconds - tens of seconds
7. Circuit board dimensions: 32mm*24mm
8. Sensing range: <120 degree cone angle, in 7m
9. Working temperature: -15-+70 degrees
10. Induction lens size: diameter: 23mm


Specification:
Package Weight
One Package Weight 0.03kgs / 0.06lb
One Package Size 8cm * 5cm * 3cm / 3.15inch * 1.97inch * 1.18inch
Qty per Carton 510
Carton Weight 14.00kgs / 30.86lb
Carton Size 30cm * 50cm * 46.7cm / 11.81inch * 19.69inch * 18.39inch
Loading Container 20GP: 380 cartons * 510 pcs = 193800 pcs
40HQ: 883 cartons * 510 pcs = 450330 pcs
