Lalizas Classic LED Bi-Colour Navigation Light 225° 12/24V to 12m

Overview

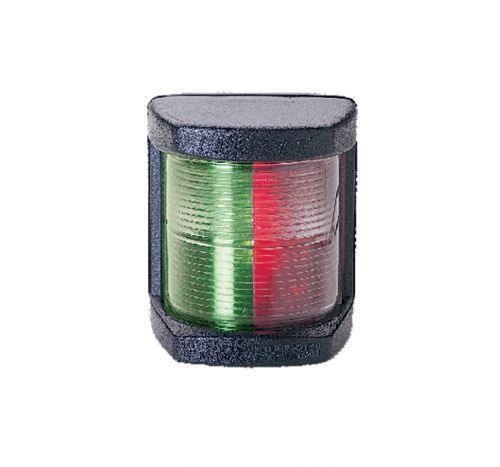

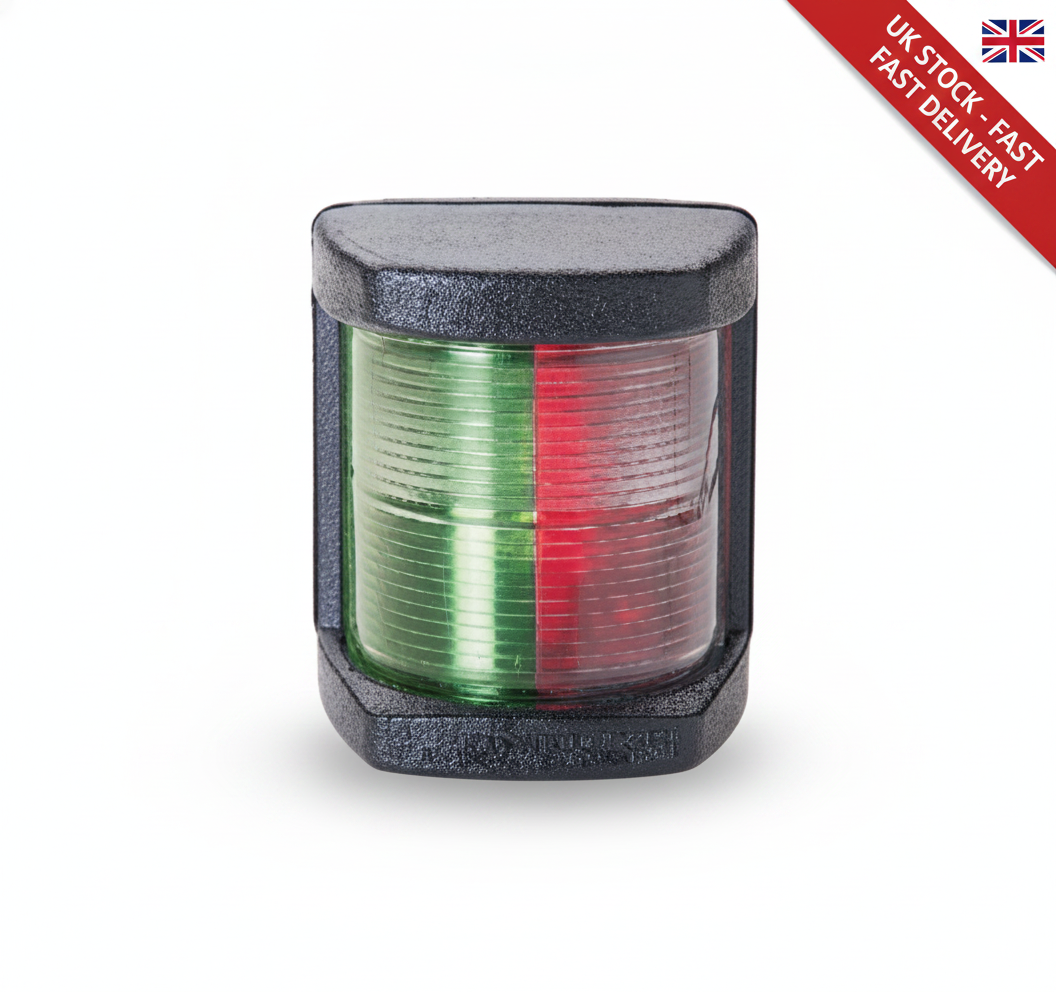

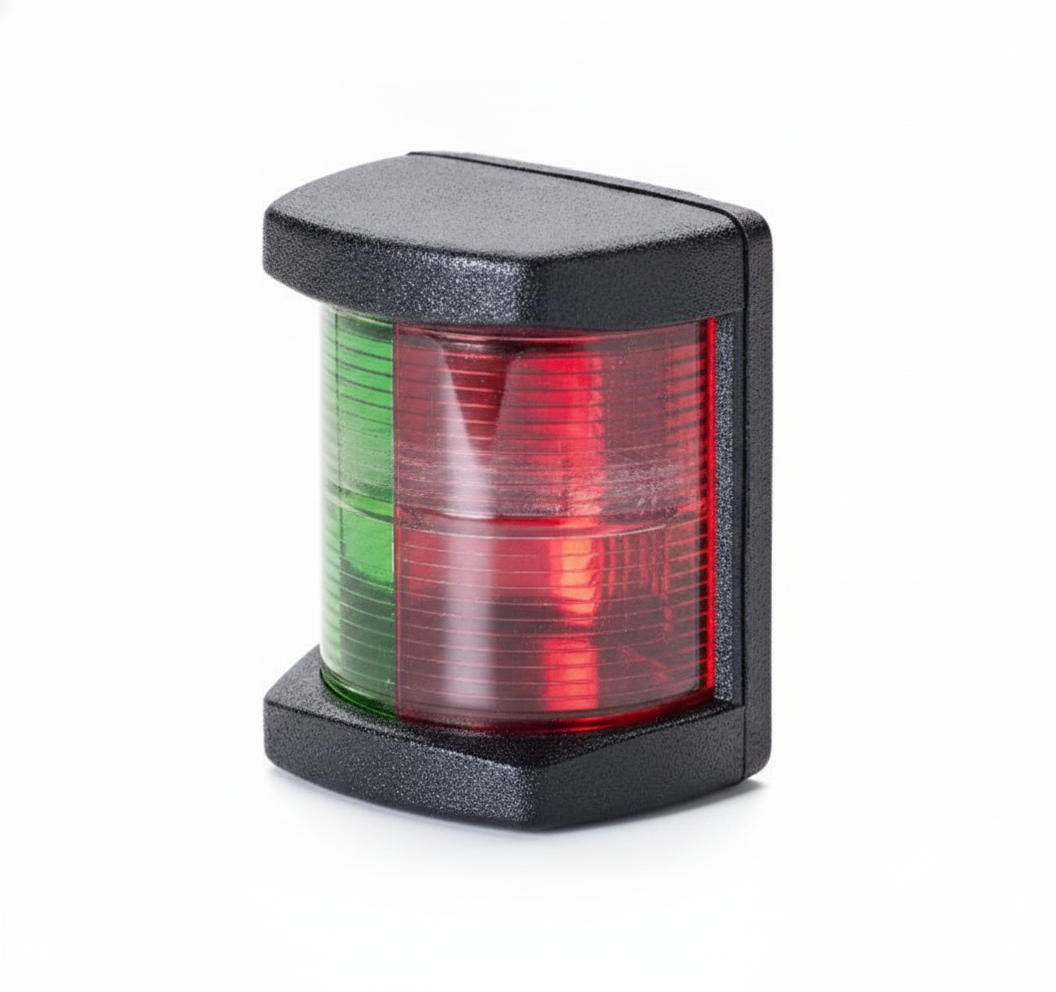

Compact red/green LED navigation light for recreational craft up to 12m.

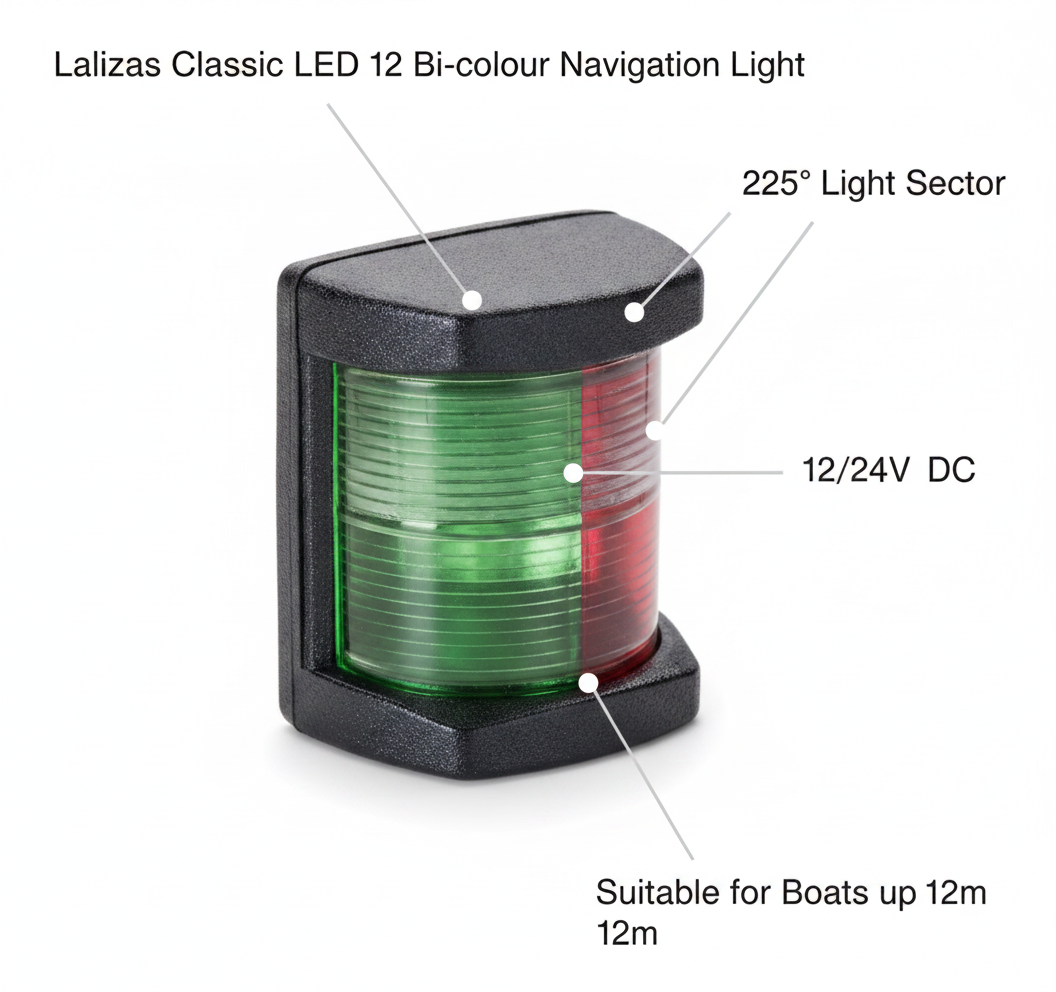

This Classic LED bi-colour fitting combines the port and starboard sectors in one 225° side-mounted black housing. Low 2W consumption suits both 12V and 24V DC electrical systems.

Technical specifications

Applications and compatibility

For motorboats, sailing boats, RIBs, day boats and fishing craft up to 12m that require a combined red/green bow navigation light.

• Confirm that the vessel's navigation-light plan calls for a 225° bi-colour fitting.
• Suitable for 12V or 24V DC systems; check wiring polarity and circuit protection.
• Mounting position and orientation must provide unobstructed, correctly separated red and green sectors.
• Do not substitute it for an all-round, masthead, stern or anchor light.

Installation and package contents

• Install on the vessel centreline with the lens facing forward and the housing level.
• Keep the light clear of rails, covers and equipment that could obstruct either sector.
• Use marine-grade wiring, connectors, fuse protection and watertight cable routing.
• Test both colours from ahead and off each bow after installation.
• Package contains: one Lalizas Classic LED bi-colour navigation light.

Frequently asked questions

Is it suitable for a boat longer than 12m?

No. This version is specified for recreational craft up to 12m.

Does it work on both 12V and 24V systems?

Yes. The light is rated for 12/24V DC and consumes 2W.

What is the visibility range?

The red/green bi-colour light is rated at 1 nautical mile.

Can it replace a white masthead or anchor light?

No. This is a 225° red/green port-and-starboard navigation light.
