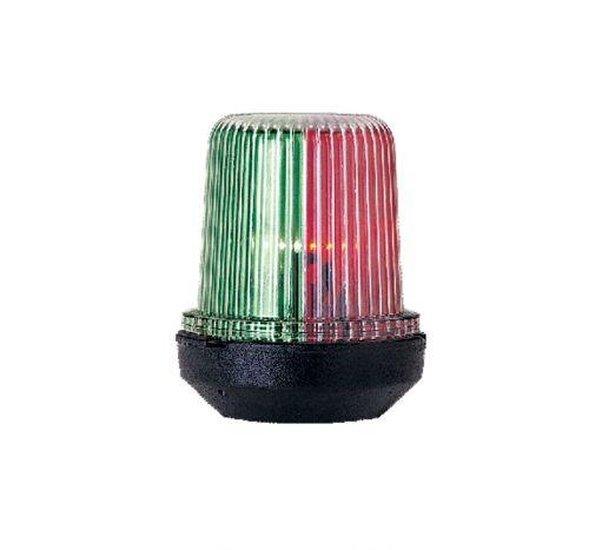

Lalizas Classic LED 12 Tri-Colour Masthead Light 12/24V 2NM

Overview

Compact tri-colour LED navigation light for boats up to 12m.

The black-housing Classic LED 12 combines red, green and white navigation sectors in a single deck-mounted fitting intended for installation high on the mast. It operates from 12V or 24V DC and consumes only 2W.

Technical specifications

Applications and compatibility

For sailing boats up to 12m whose approved navigation-light arrangement requires a masthead tri-colour light while underway under sail.

• Confirm the required red, green and white sector arrangement before ordering.
• Do not use the tri-colour light as an all-round white anchor light.
• Do not display it at the same time as duplicate lower sidelights and stern light unless regulations for the situation require otherwise.
• It is not a substitute for the separate lights required when a sailing vessel is operating under engine power.

Installation and package contents

• Mount upright, as high as practical, with the red sector to port, green to starboard and white astern.
• Align the fitting accurately to the vessel centreline and keep all sectors free of rigging, sails and equipment.
• Use marine-grade cable, sealed connections and correctly rated circuit protection.
• Test each sector from the appropriate viewing angle after installation and before departure.
• Package contains: one Lalizas Classic LED 12 black-housing tri-colour light.

Frequently asked questions

What size boat is it for?

It is specified for boats up to 12m.

Can it run on a 24V system?

Yes. It is rated for 12/24V DC and consumes 2W.

Can it be used as an anchor light?

No. This version is a tri-colour navigation light and does not provide a separate all-round white anchor function.

Is it suitable while motoring?

A sailing vessel under engine power must show the lights required for a power-driven vessel; confirm the vessel's full light plan.
