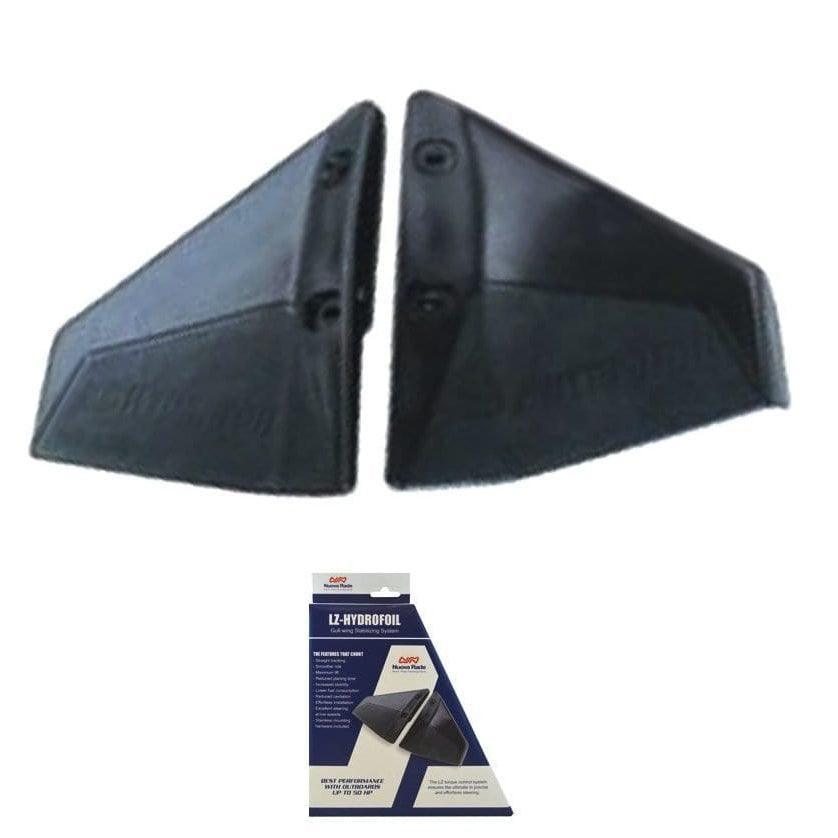

Lalizas LZ Hydrofoil Outboard Stabiliser for Engines up to 50HP

Overview

Compact outboard hydrofoil designed for engines rated up to 50HP.

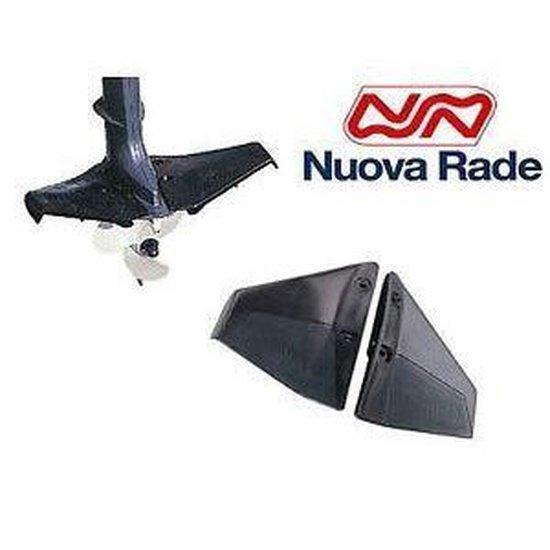

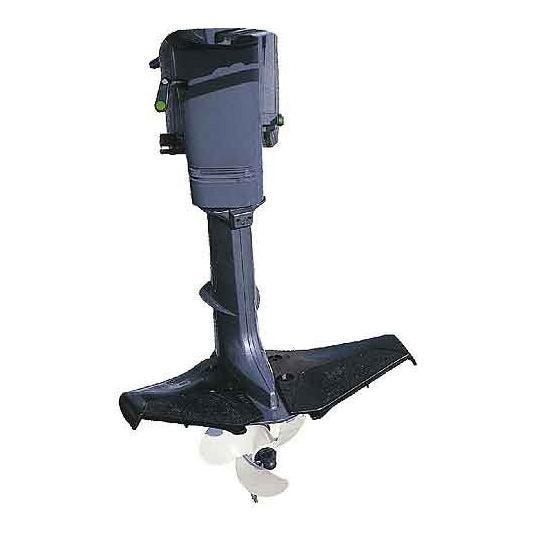

The LZ torque-control shape mounts to a compatible anti-ventilation plate to increase lift, shorten planing time and improve low-speed steering and straight tracking. Stainless-steel mounting bolts are included.

Technical specifications

Applications and compatibility

For small planing boats, RIBs, tenders and fishing craft powered by an outboard engine up to 50HP with a suitable anti-ventilation plate.

• Horsepower alone does not confirm fit; compare the plate shape, width, thickness and available drilling area.
• Check clearance from the propeller, trim tab, cooling-water pickups and steering components through the full trim/turn range.
• Follow the drilling template and engine manufacturer's guidance before modifying the anti-ventilation plate.
• Performance varies with hull, load distribution, propeller, engine height and trim setup.

Installation and package contents

• Remove the ignition key and isolate the engine before measuring or drilling.
• Centre and align both hydrofoil halves exactly as instructed; drill only after confirming all clearances.
• Use the included stainless-steel bolts and tighten evenly to the specified installation method.
• After fitting, test progressively at low speed, then recheck bolt security and steering/trim clearance.

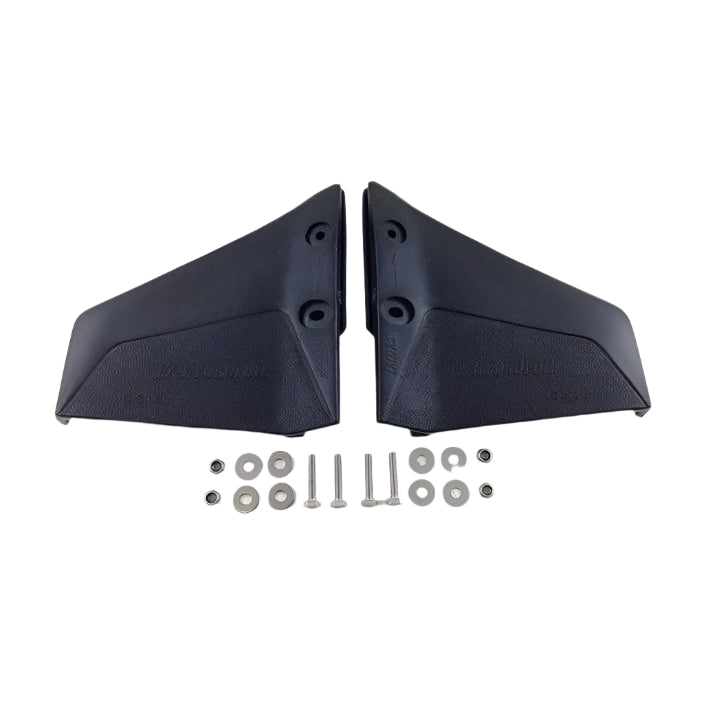

• Package contains: one Lalizas LZ hydrofoil set for outboards up to 50HP with stainless-steel mounting bolts.

Frequently asked questions

Will it fit every outboard up to 50HP?

No. The anti-ventilation plate must also provide the correct shape, dimensions and drilling clearance.

What improvements is it designed to provide?

The manufacturer lists quicker planing, greater lift, improved stability and steering, straighter tracking and reduced cavitation.

Are mounting bolts included?

Yes. Stainless-steel / Inox mounting bolts are included.

Does fitting require drilling?

The installation normally requires drilling the anti-ventilation plate; follow the supplied instructions and engine manufacturer's guidance.
