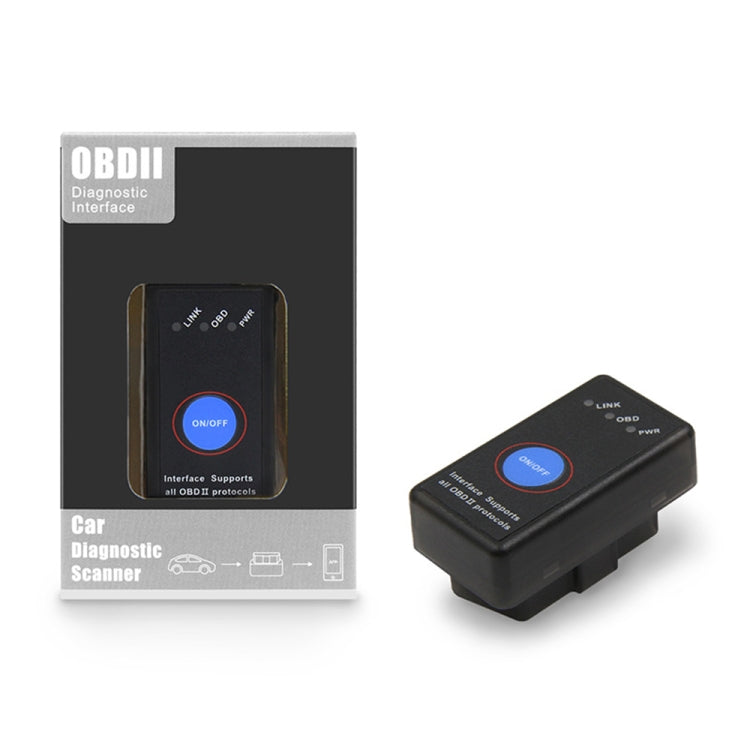

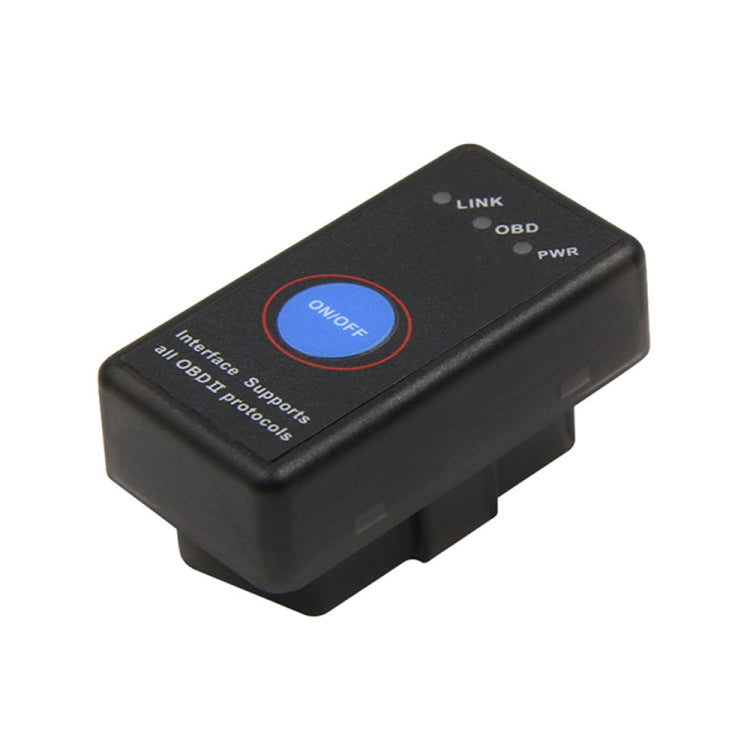

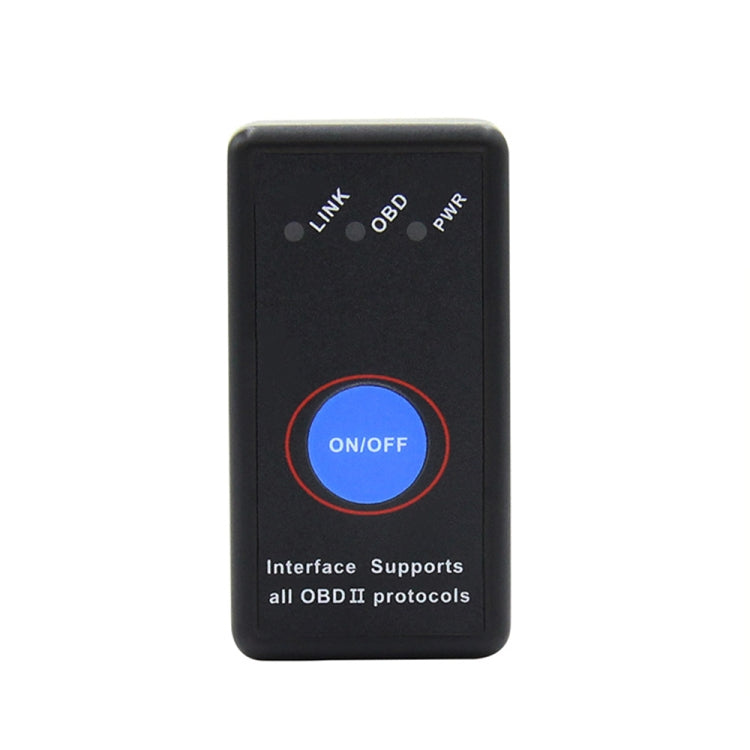

Mini Bluetooth 4.0 ELM327 OBD Car Fault Diagnostic Scanner with Power Switch, Bluetooth 4.0 with Power Switch

Function
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL (Check Engine light)
3. Display current sensor data
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages / associated short term fuel trims
17. Fuel System status
18. Fuel Pressure

Supported Protocol
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

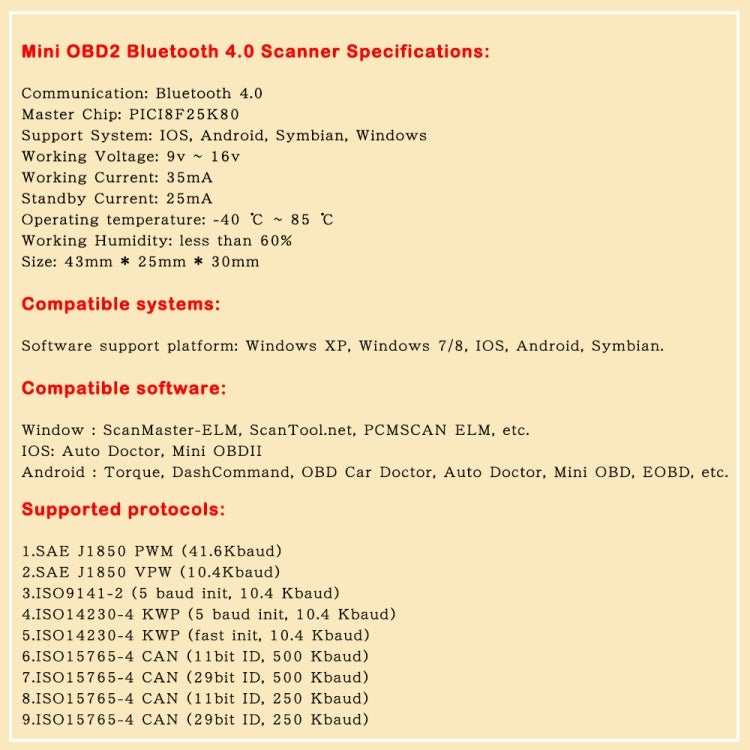

Specification
1. Communication: Bluetooth 4.0

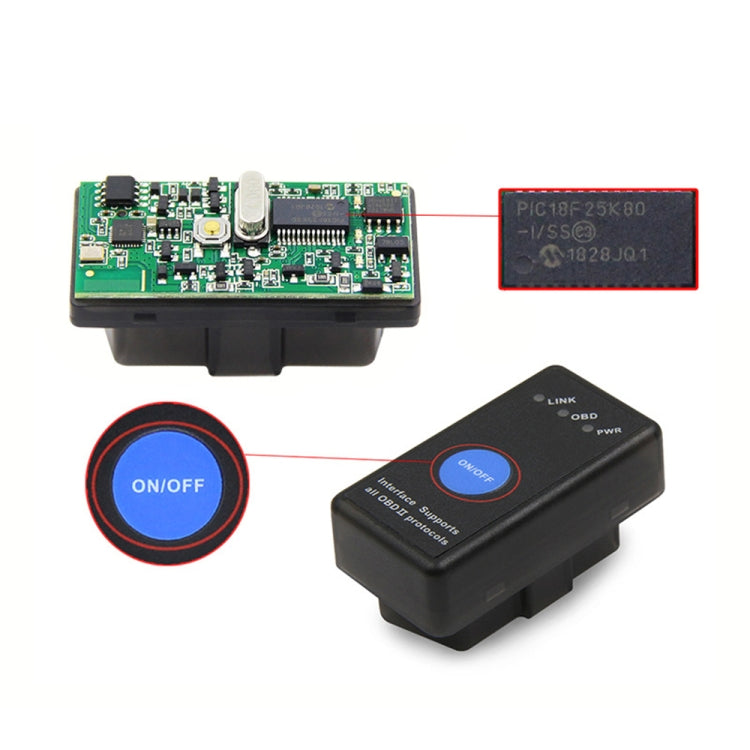

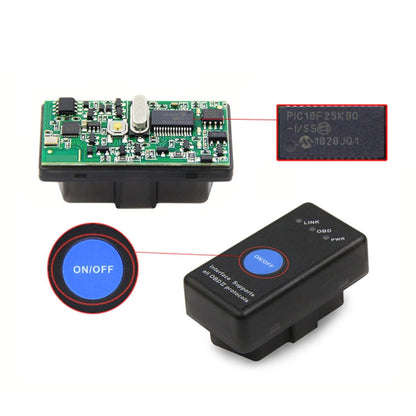

2. Master Chip: PICI8F25K80
3. Support System: IOS, Android, Symbian, Windows
4. Working Voltage: 9v ~ 16v
5. Working Current: 35mA
6. Standby Current: 25mA
7. Operating temperature: -40~85 degree Celsius
8. Working Humidity: less than 60%
9. Compatible systems:
Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.
10. Compatible software:
Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

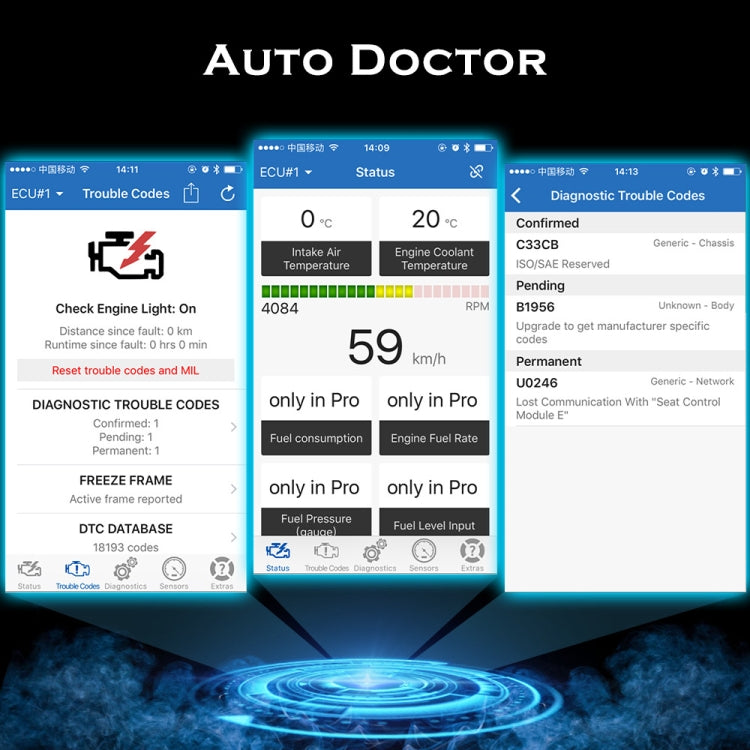

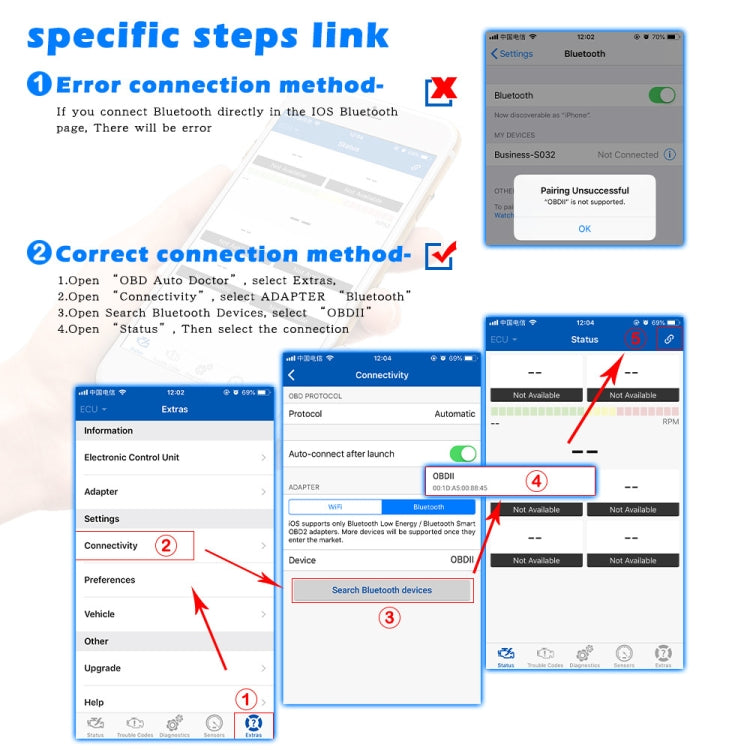

IOS: Auto Doctor, Mini OBDII

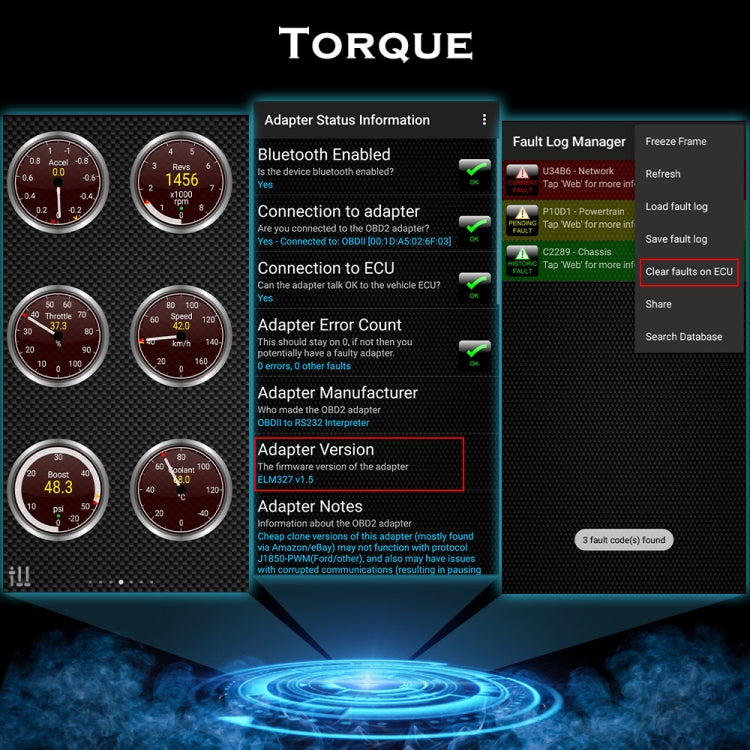

Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian: OBDScope
11. Size: 43mm x 25mm x 30mm
