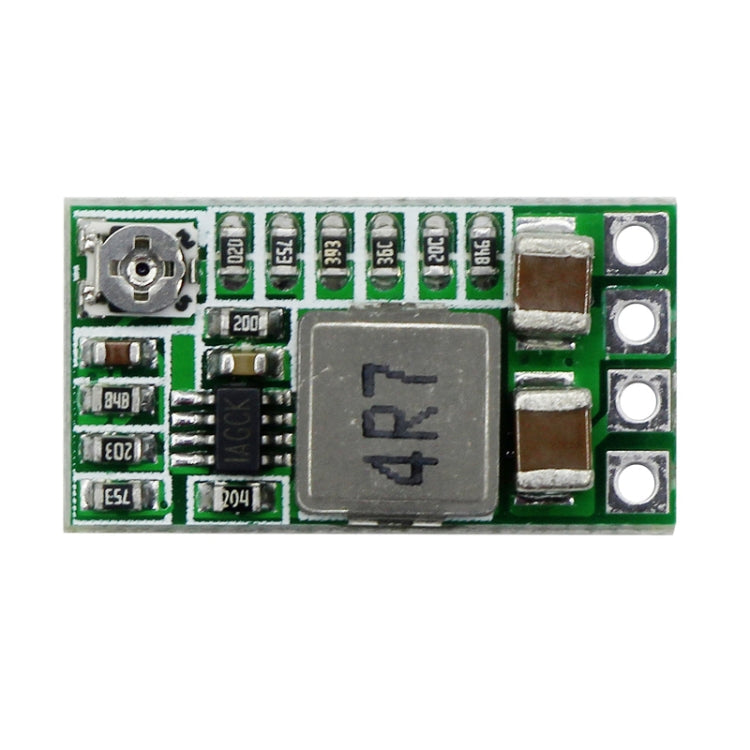

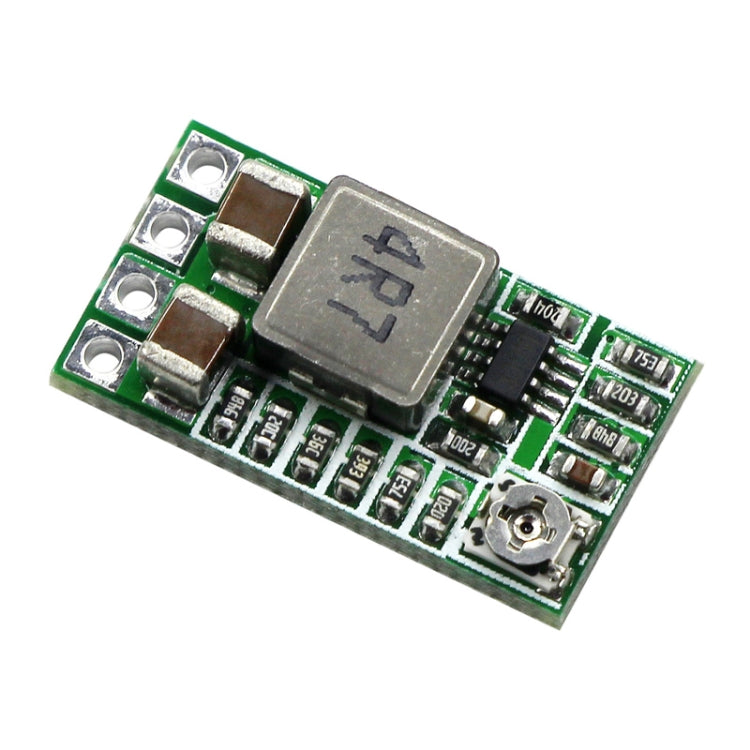

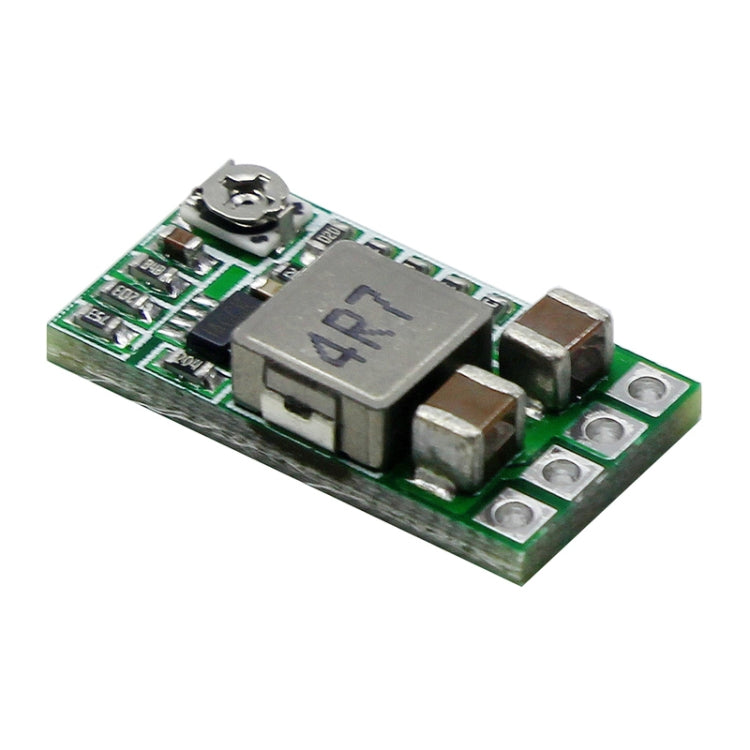

Mini High Efficiency Ultra Small Size DC-DC Step-Down Module 12V-24V To 5V3A Car, Step-Down Module
Mini High Efficiency Ultra Small Size DC-DC Step-Down Module 12V-24V To 5V3A Car, Step-Down Module
Regular price
£0.99
Regular price
£2.99
Sale price
£0.99
In stock, ready to ship
Quantity
Couldn't load pickup availability
Type:Voltage Regulator
1. Package: Step-down module
2. Power: Standard
3. Size: 20*11*5 mm
4. Input voltage: DC 4.5-24V
5. Output voltage: integrated adjustable and fixed output, fixed output voltage on the back
6. Adjustable range (0.8-17V), fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
7. Output current: maximum 3A (please pay attention to heat dissipation at full load), the actual test input 12V output within 1.5A without special treatment heat dissipation.
8. Conversion efficiency: up to 97.5% (6.5 to 5V 0.7A)
9. Switching frequency: 500KHz
10. Output ripple: 20mV (12V to 5V3A) 20M bandwidth
11. Wiring method: welding
12. Input method: welding
13. Output method: welding / pin header
14. Welding hole spacing: 2.54 mm
15. Output over voltage protection: none
16. Full load temperature rise: 40 ° C
17. Quiescent current: 0.85 mA
18. Load adjustment rate: ±1%
19. Voltage regulation rate: ±0.5%
20. Dynamic response speed: 5% 200uS
1. Package: Step-down module
2. Power: Standard
3. Size: 20*11*5 mm
4. Input voltage: DC 4.5-24V

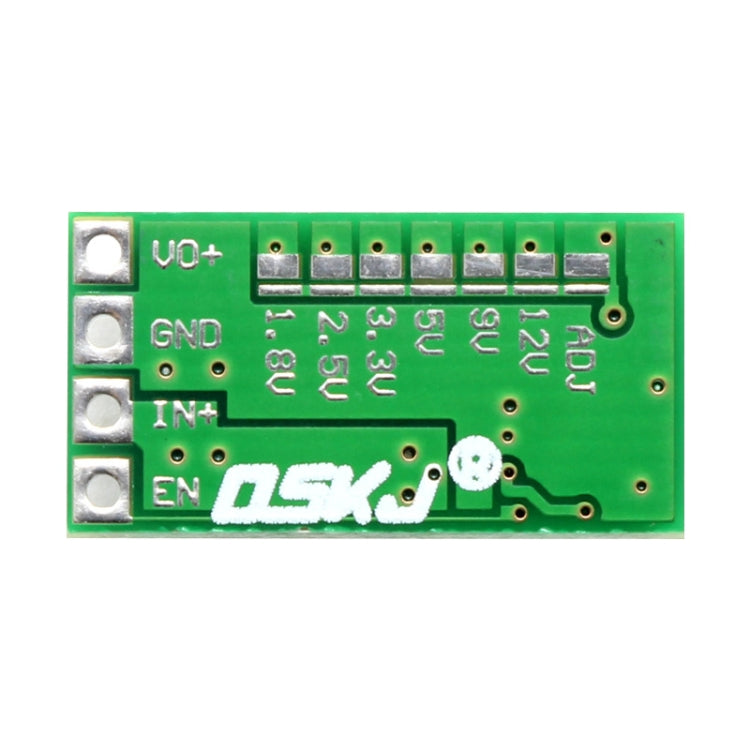

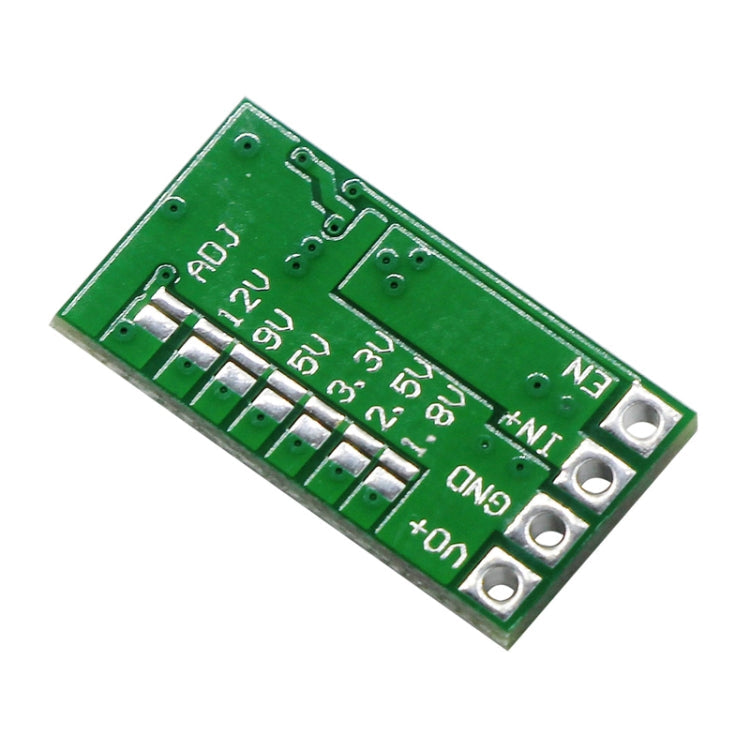

5. Output voltage: integrated adjustable and fixed output, fixed output voltage on the back
6. Adjustable range (0.8-17V), fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
7. Output current: maximum 3A (please pay attention to heat dissipation at full load), the actual test input 12V output within 1.5A without special treatment heat dissipation.
8. Conversion efficiency: up to 97.5% (6.5 to 5V 0.7A)
9. Switching frequency: 500KHz
10. Output ripple: 20mV (12V to 5V3A) 20M bandwidth
11. Wiring method: welding
12. Input method: welding
13. Output method: welding / pin header
14. Welding hole spacing: 2.54 mm
15. Output over voltage protection: none
16. Full load temperature rise: 40 ° C
17. Quiescent current: 0.85 mA
18. Load adjustment rate: ±1%
19. Voltage regulation rate: ±0.5%
20. Dynamic response speed: 5% 200uS
Specification:
