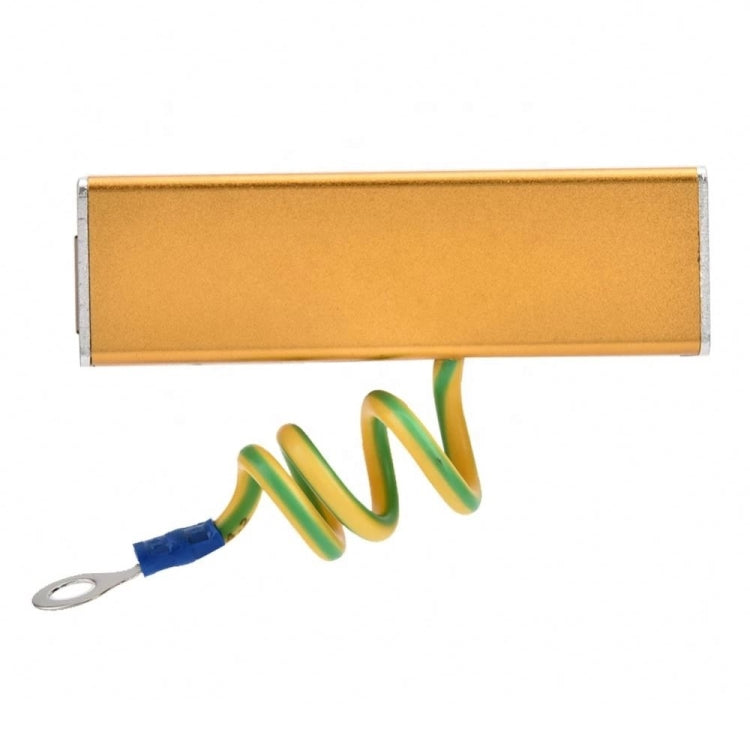

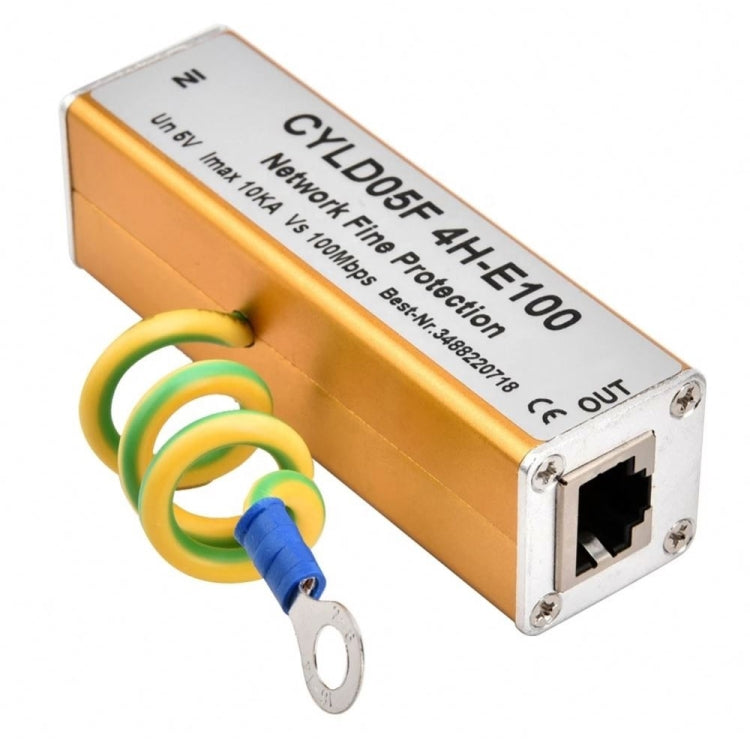

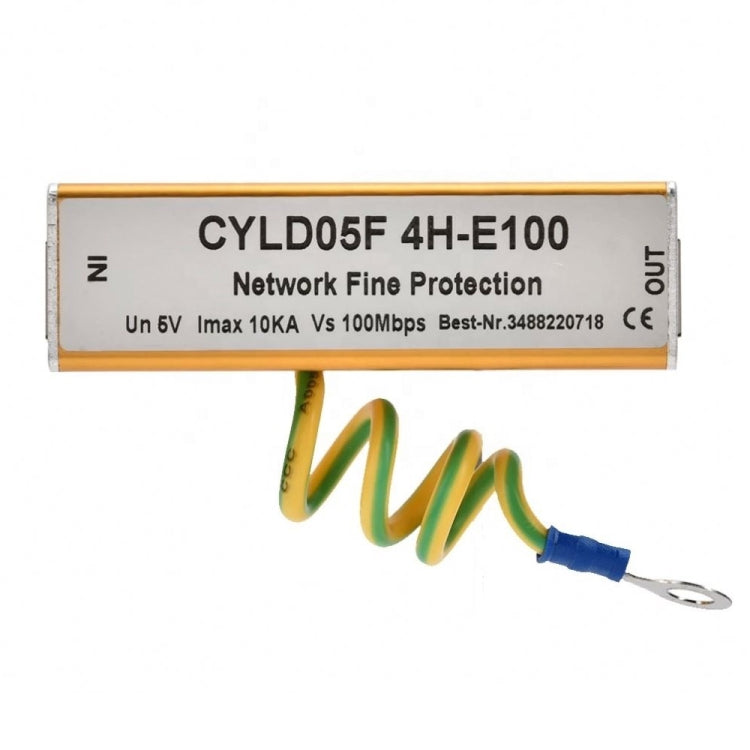

Network Surge Arrester Surge Protection Device (CYL D05F4H-E100), CYL D05F4H-E100

Network Surge Arrester Surge Protection Device (CYL D05F4H-E100), CYL D05F4H-E100

£5.99
£5.99
Sale Sold out
In stock, ready to ship
Option
1. Function:
Protect data transit in Ethernet from surge.Make sure system and equipment safety when surge come from thunderbolt or static
2. Features:
Large elecric current support , multiple level protection, quickly response, minor wastage when join them.

Technical parameter:
1. Model: CYL D05F4H-E100
2. Responsive time: Less than or equal 1ns
3. Operating Temperature: -40?°C to + 80?°C; Humidity a?¤95% (25-30?°C)
4. Discharge current: 10KA
5. Rated voltage: 5V
6. Protection voltage: 12-18V
8. Joint wastage: Less than or equal 0.5dB
9. Transmission speed: 100Mbps
10. Protect pin:1/2/3/6
11. Size: 80x26x26mm
12. Net weight: 100g


Specification:
Package Weight
One Package Weight 0.12kgs / 0.26lb
One Package Size 13cm * 7cm * 4cm / 5.12inch * 2.76inch * 1.57inch
Qty per Carton 100
Carton Weight 12.00kgs / 26.46lb
Carton Size 42cm * 35cm * 27cm / 16.54inch * 13.78inch * 10.63inch
Loading Container 20GP: 671 cartons * 100 pcs = 67100 pcs
40HQ: 1559 cartons * 100 pcs = 155900 pcs
