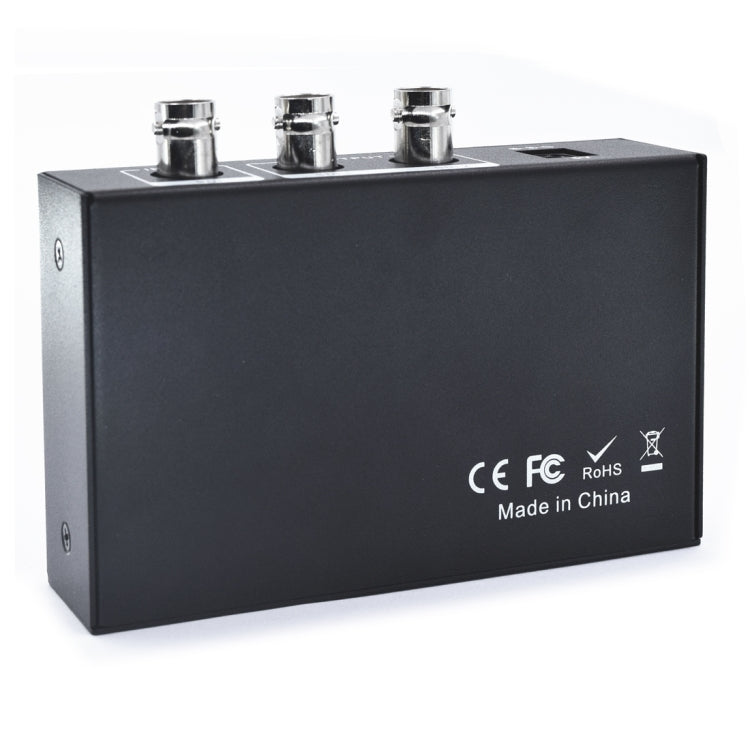

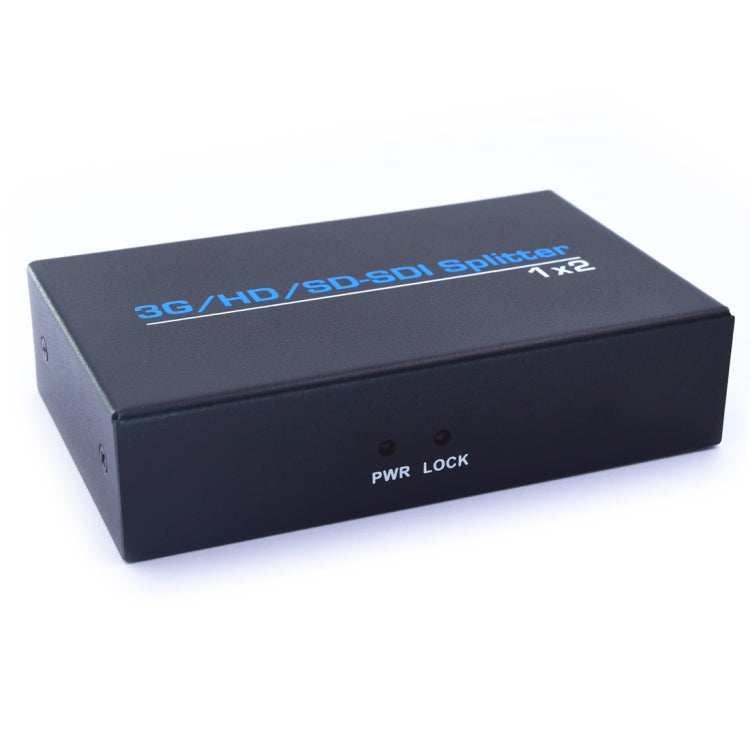

NK-812 2 in 1 3G-SDI / HD-SDI / SD-SDI Splitter

NK-812 2 in 1 3G-SDI / HD-SDI / SD-SDI Splitter

£26.99
£26.99
Sale Sold out
In stock, ready to ship
Features
Introduction

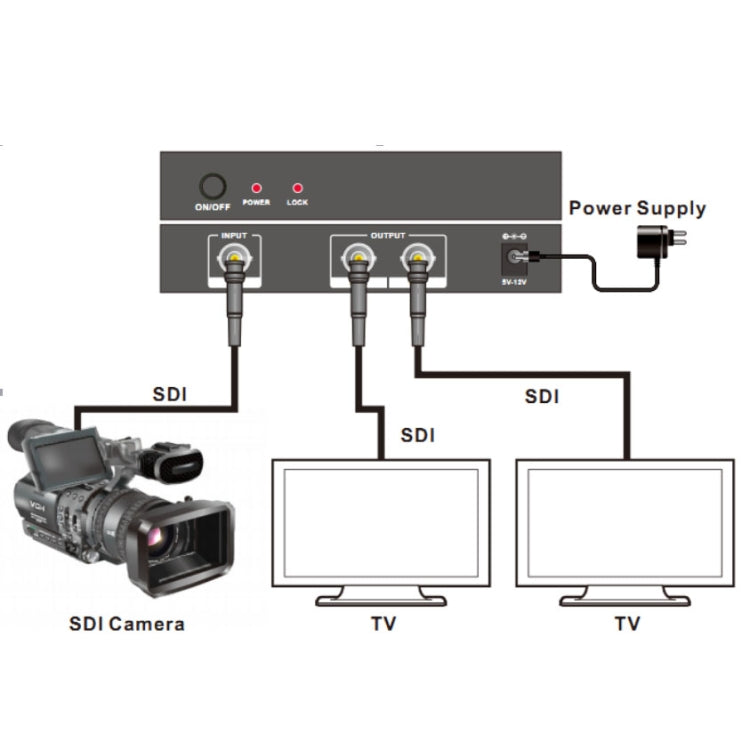

1 x 2 SDI splitter distributes allows 1 SDI, HD-SDI or 3G-SDI video source to 2 SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances.

Features
1. 1 SDI input signal split to 2 SDI sink devices.
2. Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.
3. Built-in cable equilibrium, clock recovery and drive.
4. Support resolutions up to 1920x1080@60Hz.
5. Support signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.
6. Support 5V wide voltage input.


Specification:
General
Model HDV-S12
Types Splitter

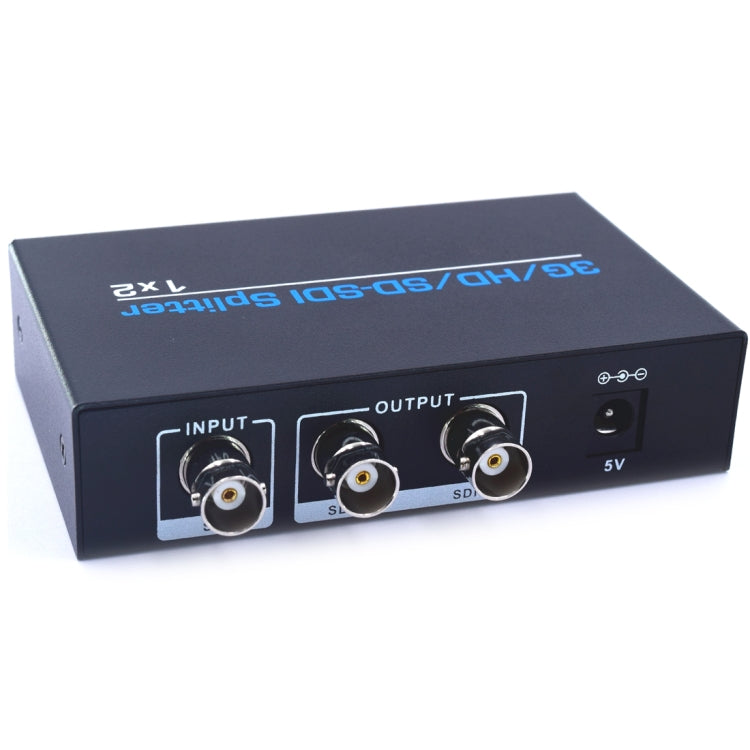

Input Port 1 x BNC Female input port
Output Port 2 x BNC Female output ports
SDI Transmission Rates SD-SDI (270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI (2.97Gb/s)
Power Supply DC 5.0V / 1.0A
Frequency Bandwidth 3.0Gbps
Operating Temperature 0 ~ 40 Degree Celsius
Storage Temperature -20 ~ 60 Degree Celsius
Operating Humidity 20 ~ 90 Percent RH (Non-condensing)
Power Consumption 1.5W
ESD Protection Human Body Model +-8kV (air-gap discharge)
+-4kV (contact discharge)
Size 70*145*25mm
Weight 320g
Package Include
Package Contents 1 x User Manual
1 x Power Supply
1 x SDI Splitter
Package Weight
One Package Weight 0.40kgs / 0.87lb

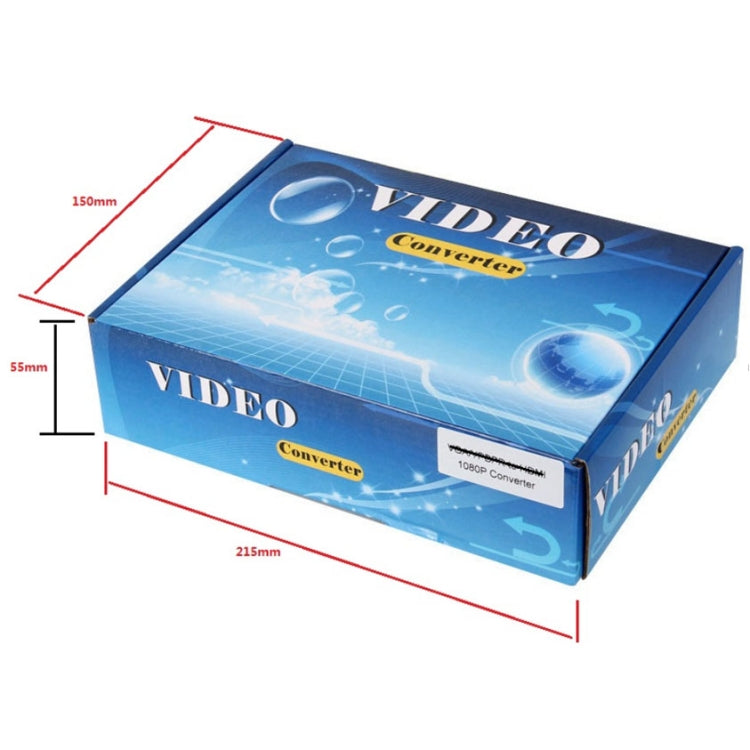

One Package Size 23cm * 15cm * 6cm / 9.06inch * 5.91inch * 2.36inch
Qty per Carton 20
Carton Weight 8.40kgs / 18.52lb
Carton Size 47cm * 32cm * 34cm / 18.5inch * 12.6inch * 13.39inch
Loading Container 20GP: 521 cartons * 20 pcs = 10420 pcs
40HQ: 1210 cartons * 20 pcs = 24200 pcs
