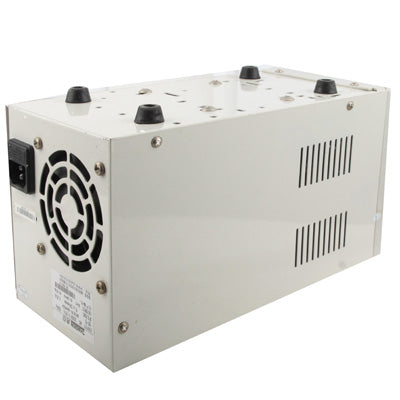

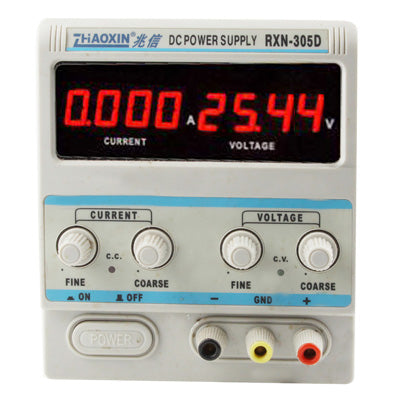

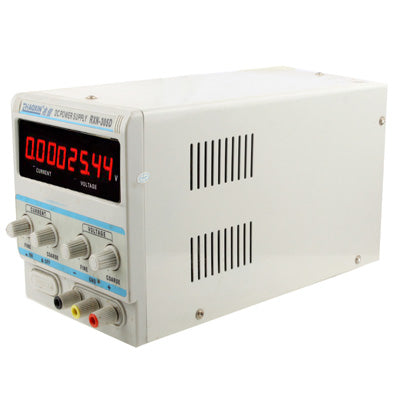

RXN-305D Linear Adjustable DC Power Supply, 30V / 5A

1) Single channel output

2) Front / behind output terminal

3) Internal radiator and electronic temperature control cooling

4) Digital or pointer meter display output voltage and output current

5) Current-limiting protection and users can set the current-liming protection point arbitrarily

6) Reverse polarity protection

7) Voltage Output: 0-30V

8) Current Output: 0-5A

9) Input voltage AC 220V± 10% 50Hz/60Hz (also can be AC 110V± 10% 50Hz/60Hz if required )

10) Working Condition Temperature: -10-40Degree Celsius Relative humidity: <90%

11) Storage Condition Temperature: -10-40Degree Celsius Relative humidity: <80%

12) Constant Voltage Operation Voltage stability: ≤ 0.01%+2mV

13) Load stability: ≤ 0.01%+2mV

14) Recovery time: ≤ 100uS

15) Ripple and noise: ≤ 1mVrms ( effective value )

16) Temperature coefficient: ≤ 200PPM/Degree Celsius

17) Constant Current Operation Current stability: ≤ 0.1%+3mA

18) Load stability: ≤ 0.2%+3mA

19) Ripple and noise: ≤ 2mArms ( effective value )

20) Voltage Display Precision 4 digits LED display: ± 1%

21) Current Display Precision 4 digits LED display: ± 1%

22) Size: 275 x 155 x 126mm
