SEAFLO 12V 800GPH Livewell Baitwell Aerator Pump 13D Series

Livewell circulation with a serviceable cartridge motor

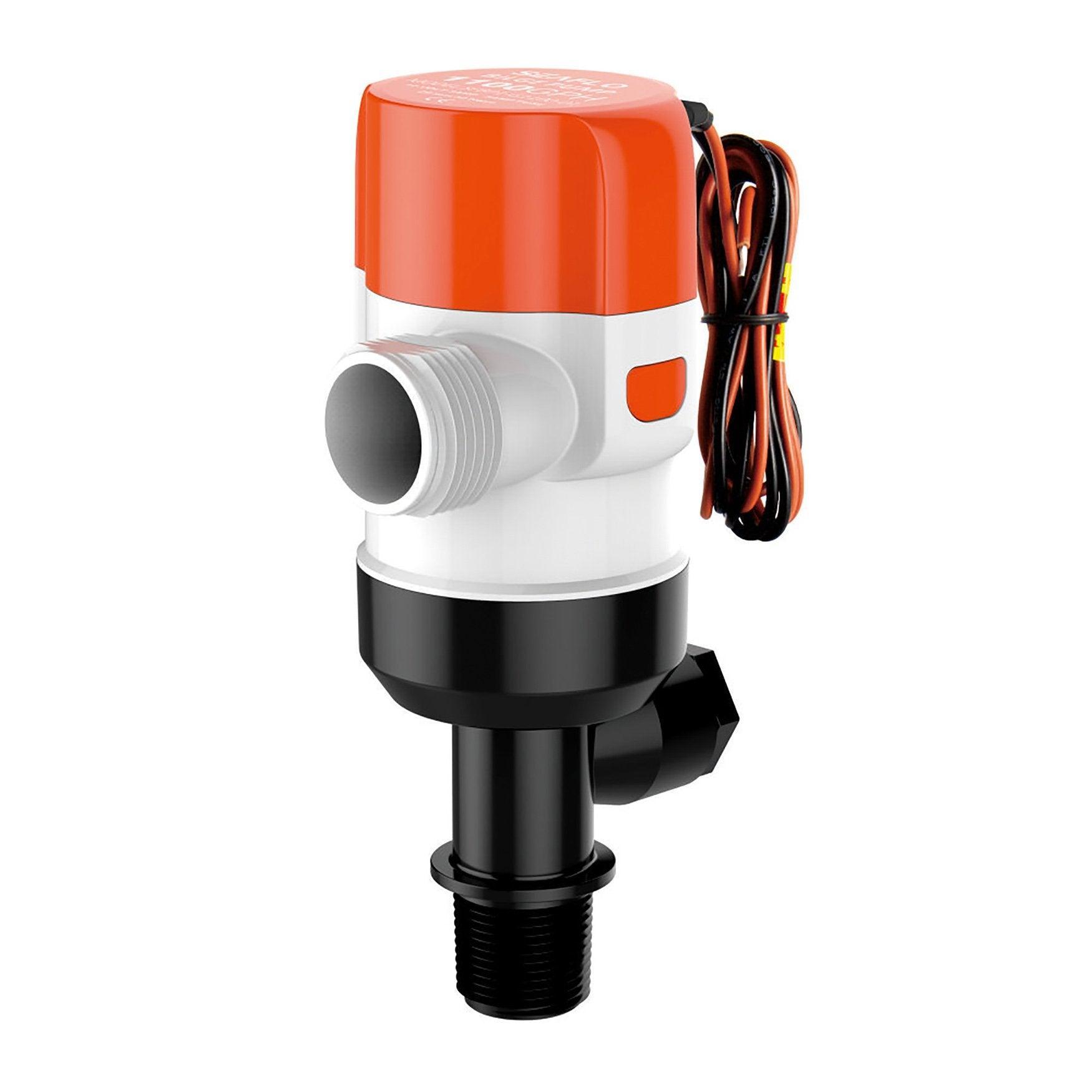

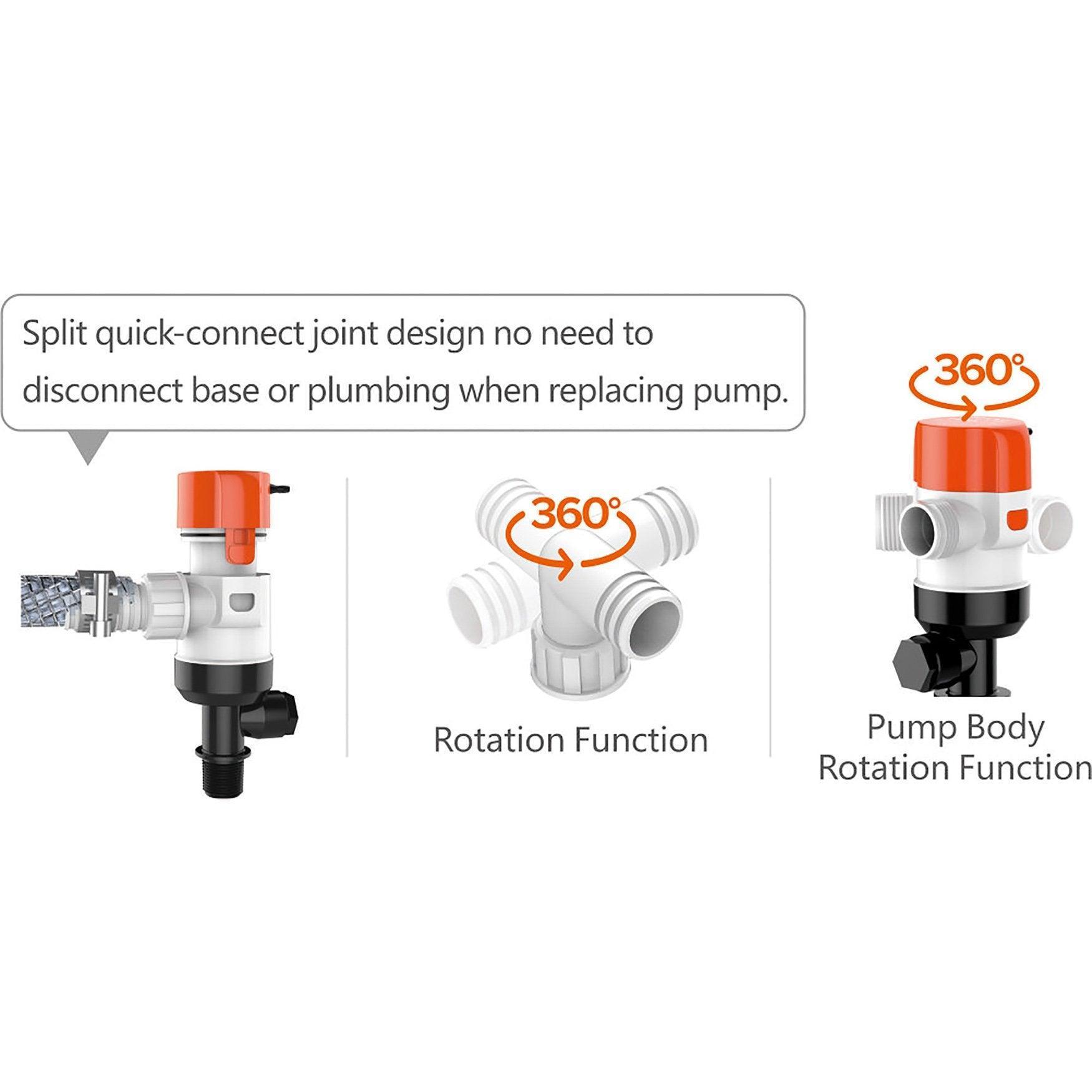

A 12V 800GPH-class pump for filling and circulating clean, oxygenated water through livewells and baitwells on fishing boats. The housing and nozzle rotate through 360°, and the quick-connect cartridge can be removed without disconnecting the base from the plumbing.

Technical specifications

Applications and compatibility

• For 12V fishing boats, RIBs, centre consoles and workboats with a plumbed livewell or baitwell.
• Select required turnover from tank volume, species and actual installed flow; 800GPH is the open-flow maximum.
• This centrifugal pump requires a flooded intake and correct below-waterline pickup; it is not self-priming.
• Compare through-hull/base, outlet size, voltage and service clearance before replacing another livewell pump.

Installation and package contents

• Install on a suitable pickup or seacock arrangement with safe below-waterline plumbing and shut-off access.
• Rotate the outlet for a smooth hose route without restrictions or trapped air.
• Protect the 12V circuit with appropriately sized cable, fuse and switch.

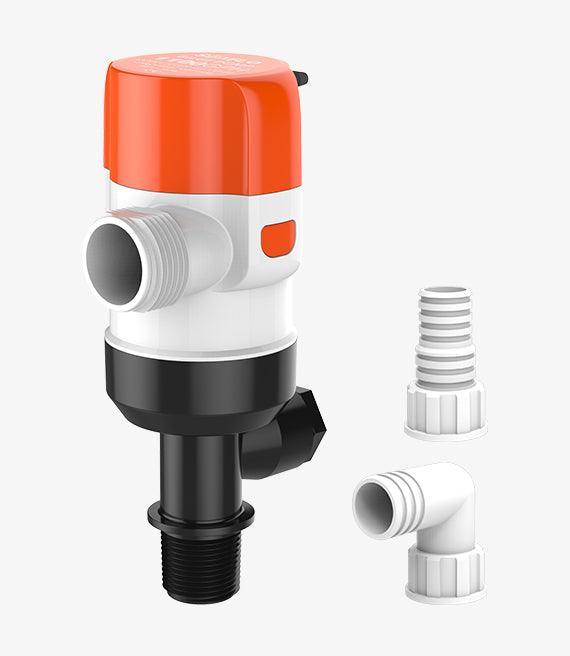

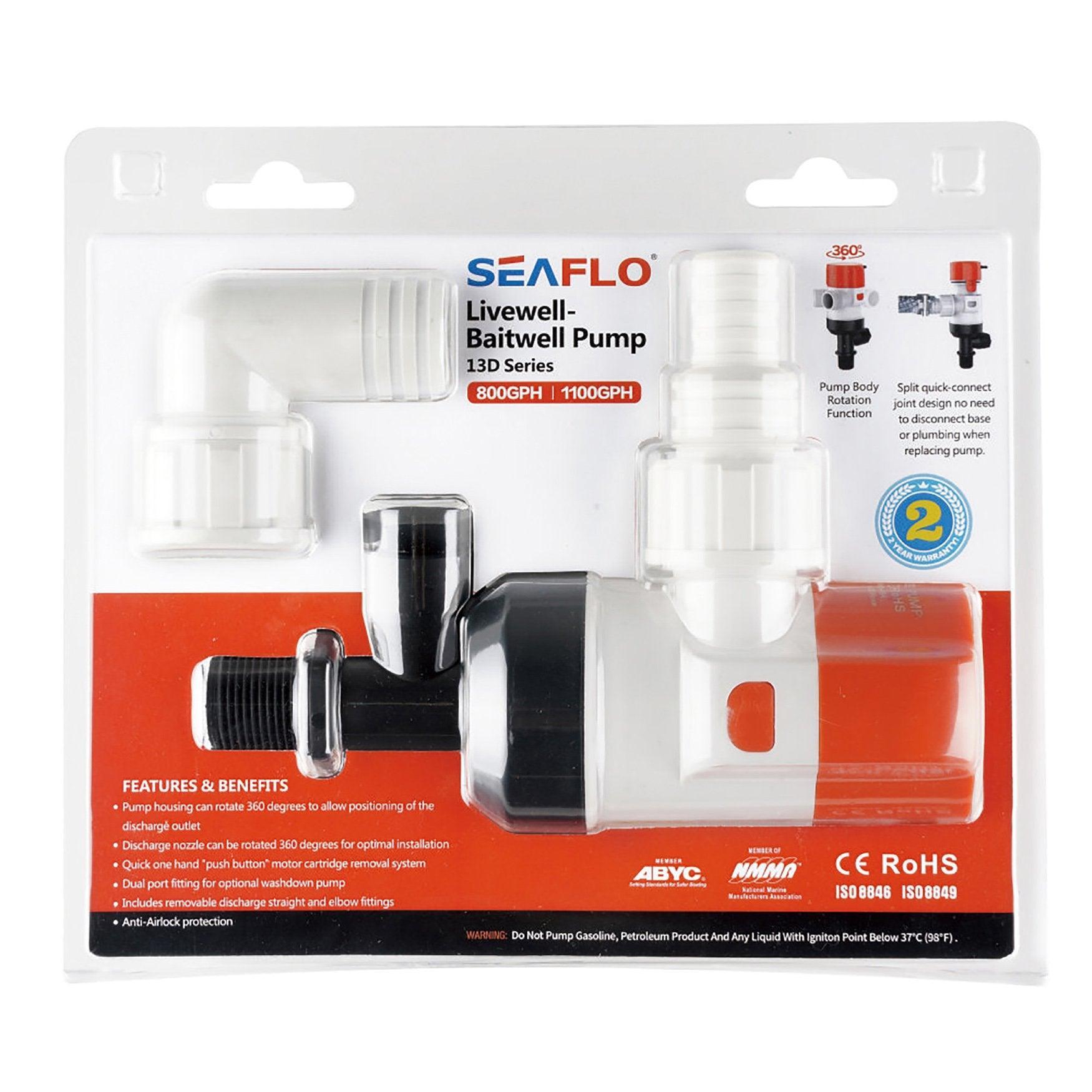

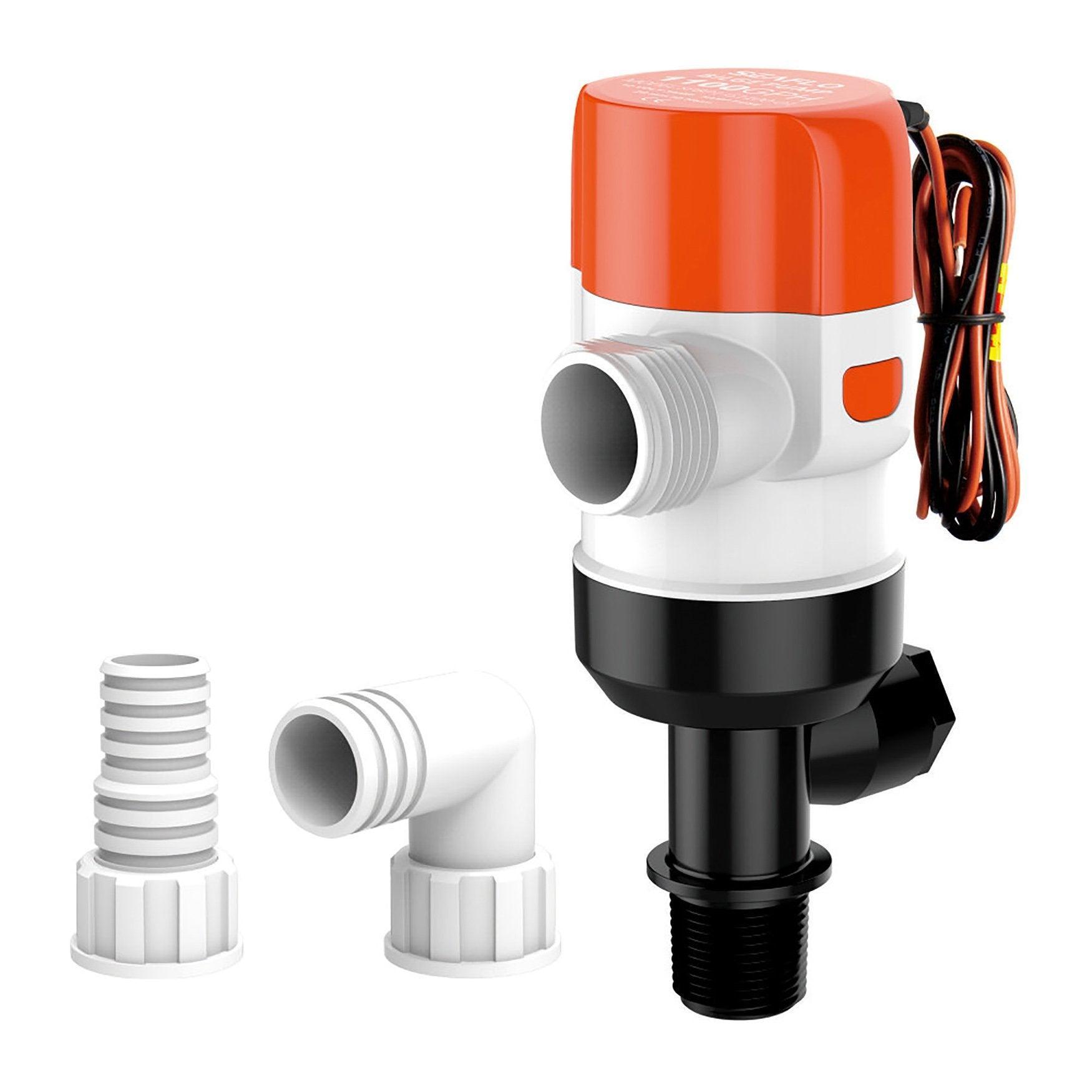

• Package contains one SEAFLO 13D pump with cartridge motor/base and removable outlet fittings. Confirm exact adapters, nut and washers supplied before ordering.

Frequently asked questions

Is it intended as a bilge pump?

No. It is designed to fill and circulate livewell or baitwell water.

Can the motor be serviced without removing the plumbing?

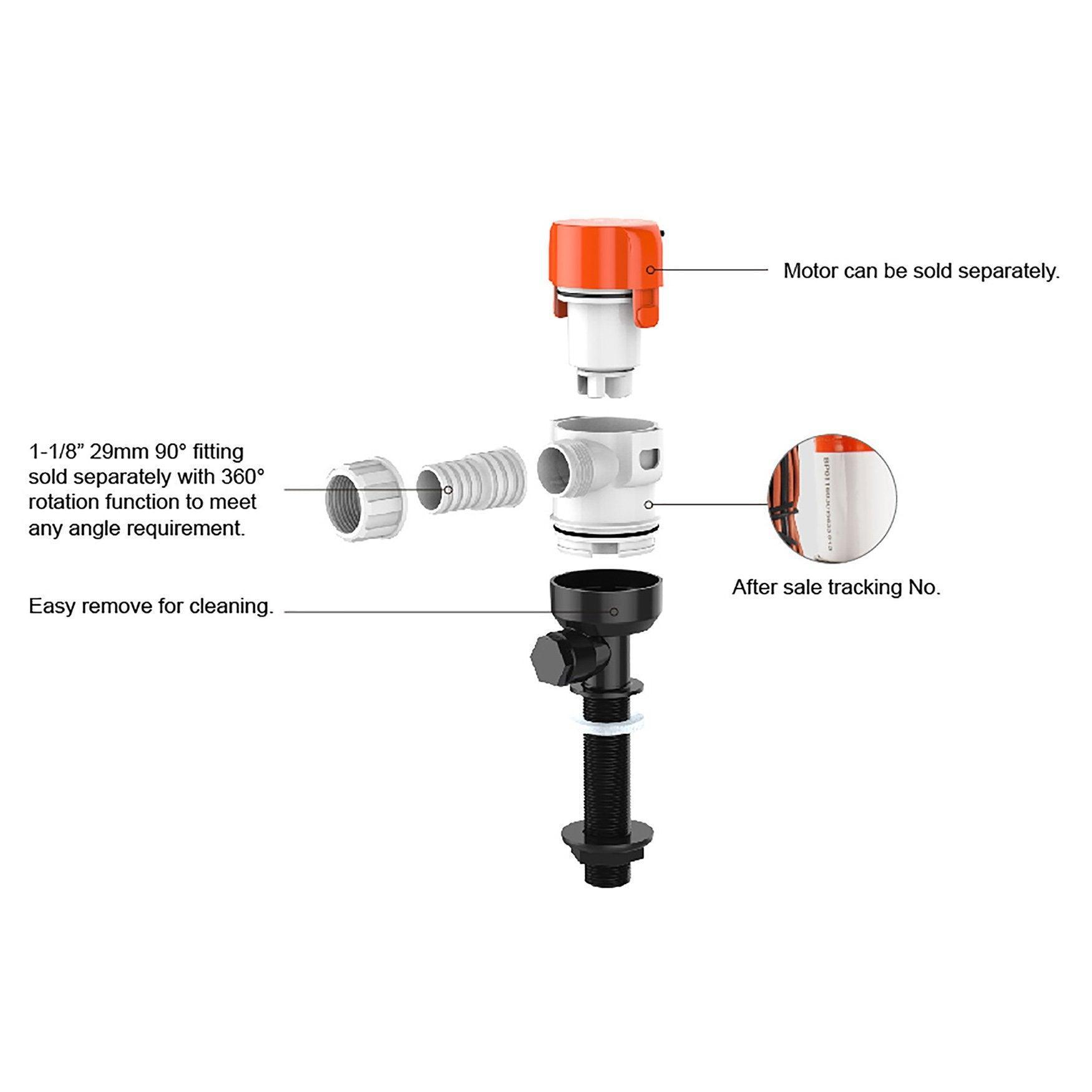

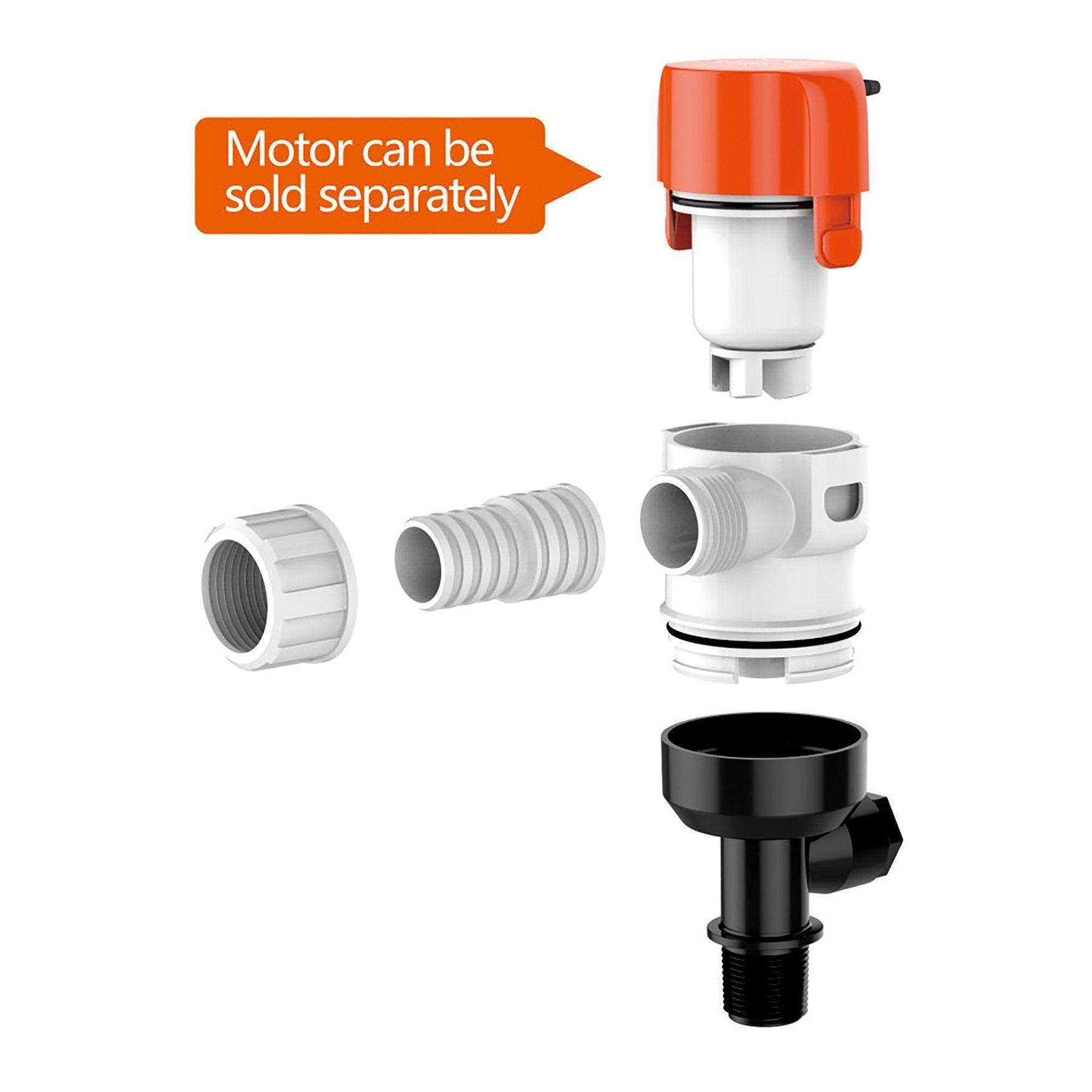

Yes. The cartridge can be removed while the base remains installed.

Will it run on 24V?

No. This model requires 12V DC.

Does every installation receive 800GPH?

No. Lift, hose length, fittings and restrictions reduce delivered flow.
