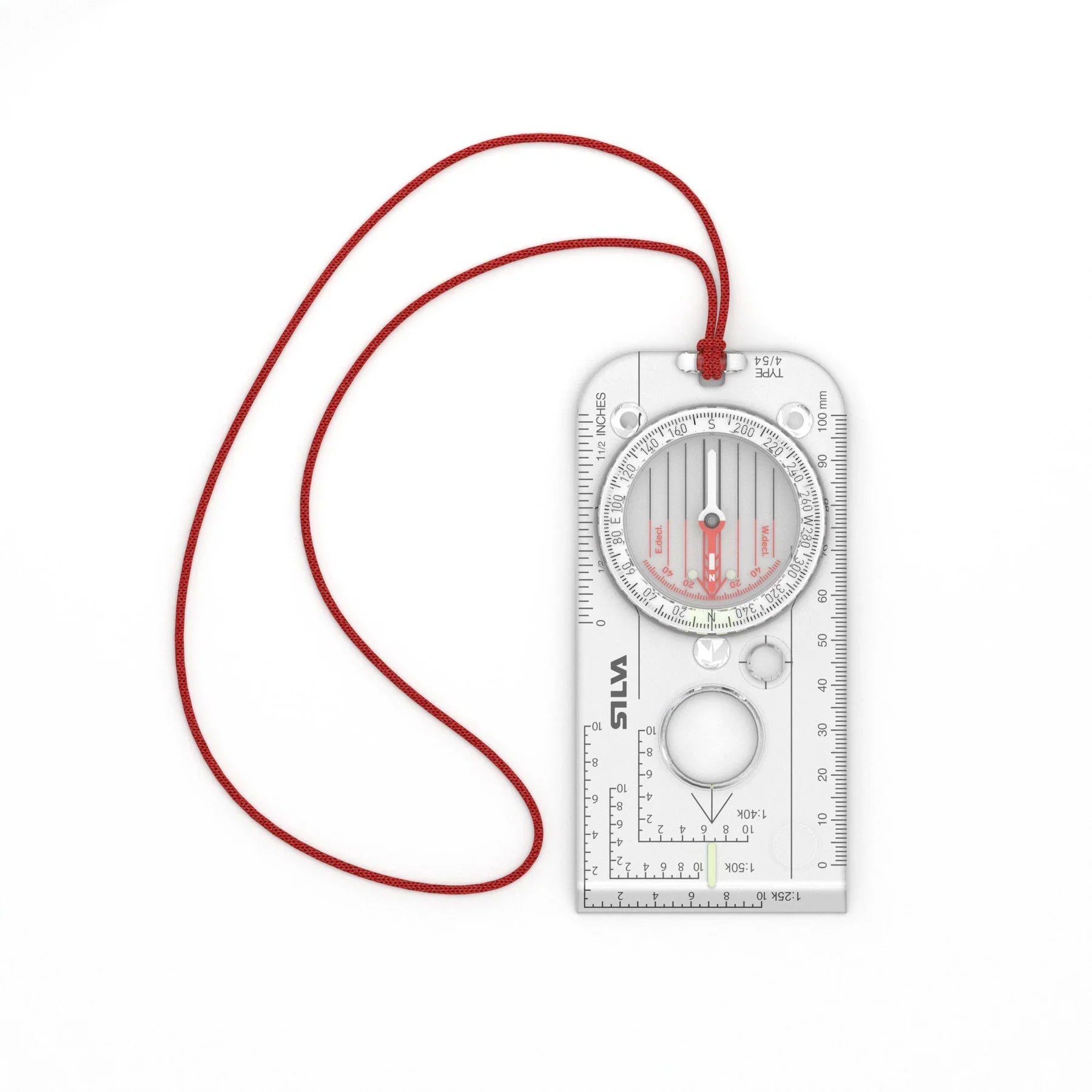

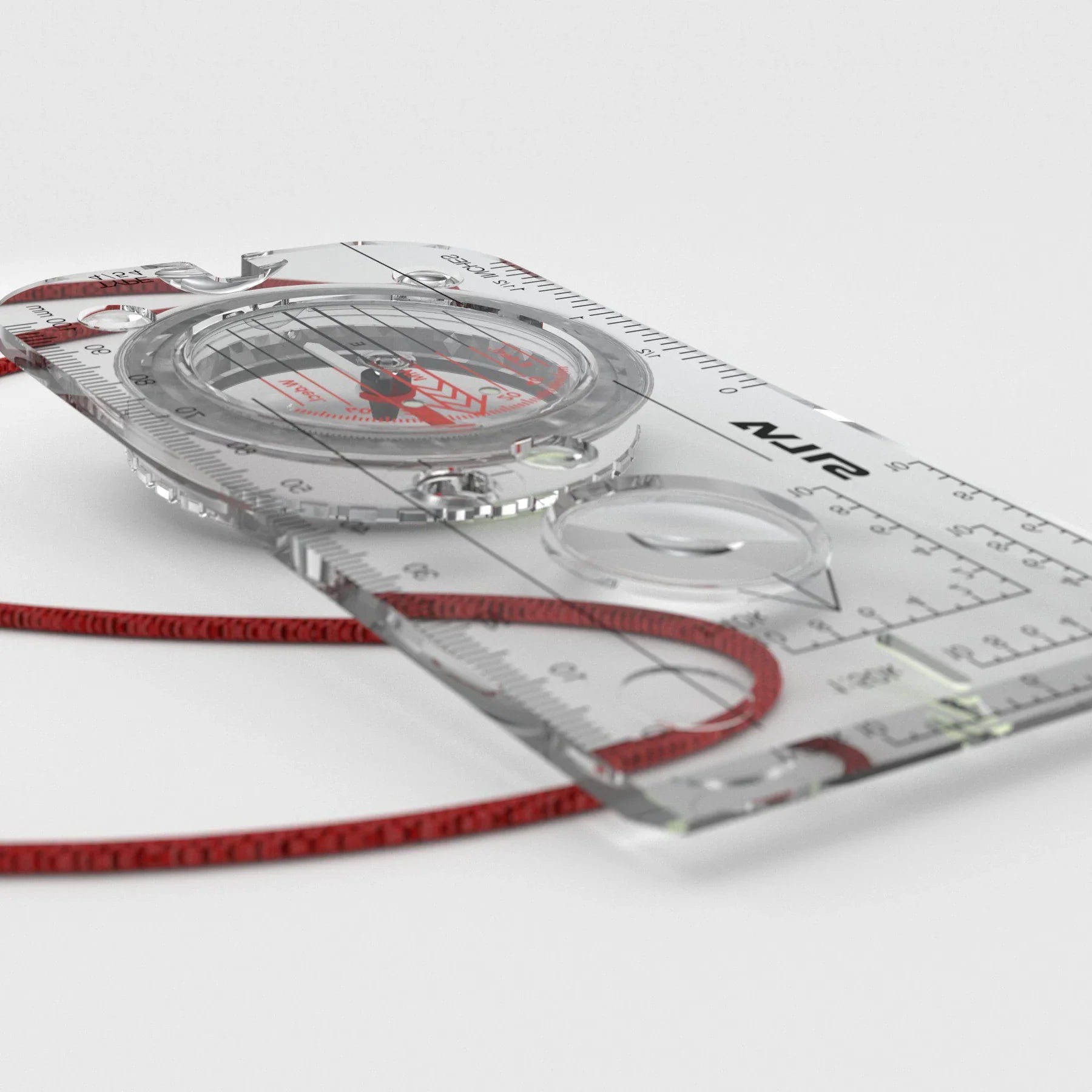

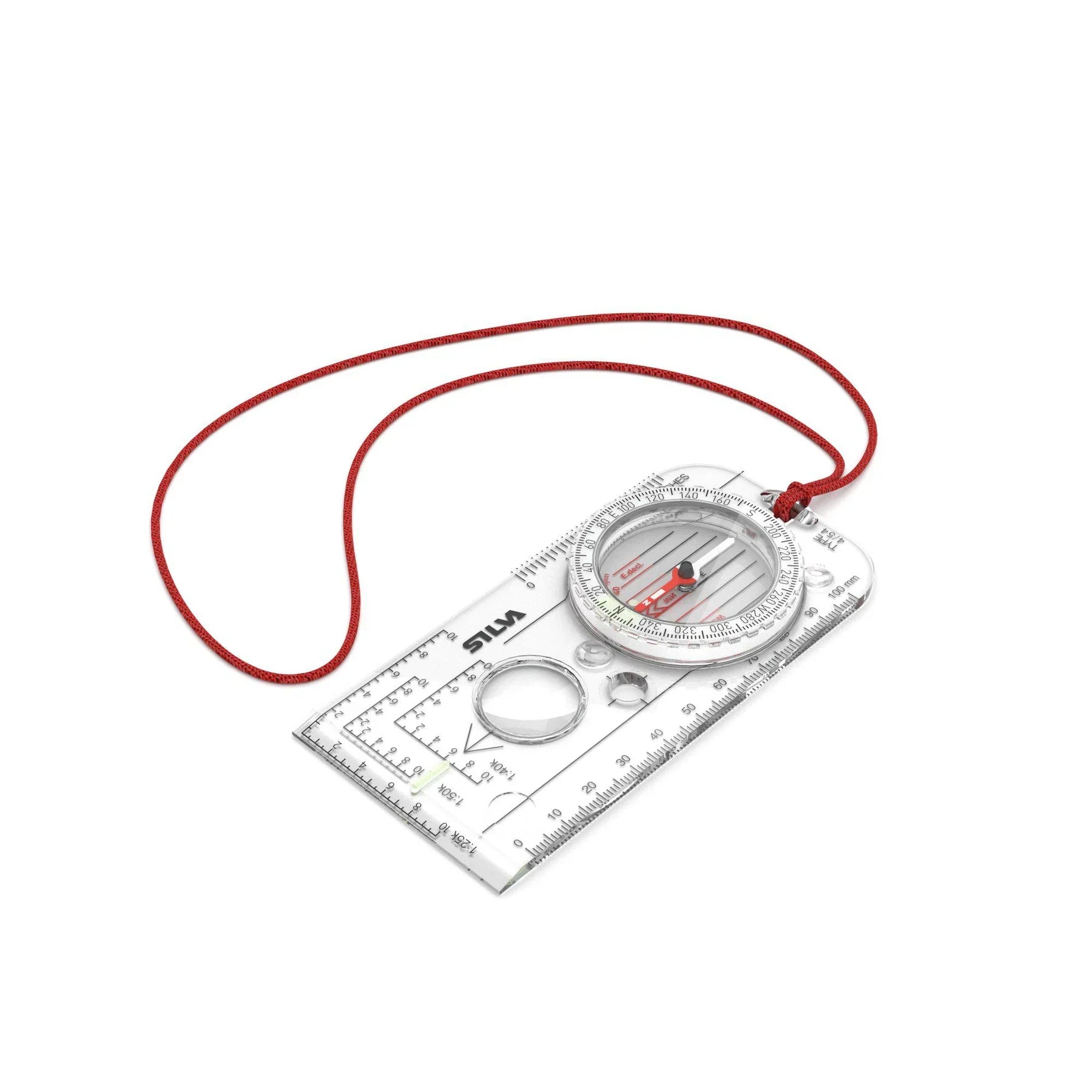

Silva Expedition 4-360 Compass DofE Recommended

The “full-size” base plate compass for experienced navigators.
Contains everything you need in a compass and has added functionality for GPS.
The Expedition 4 is used by many defence forces around the world.

Features:

• Available graduations 360
• Resolution degrees/Mils 2/50
• Measuring scales on base plate mm, inch
• UTM position plotting

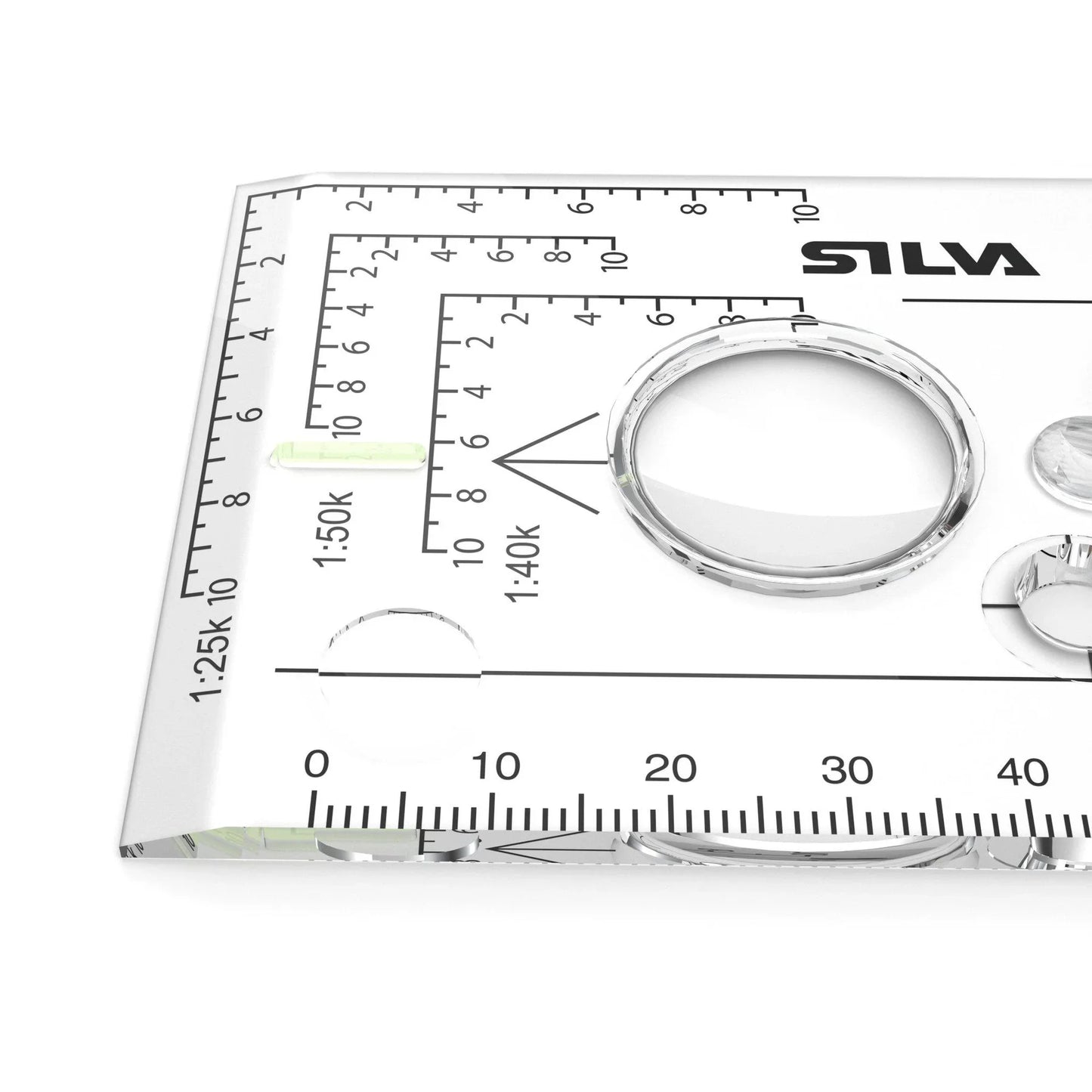

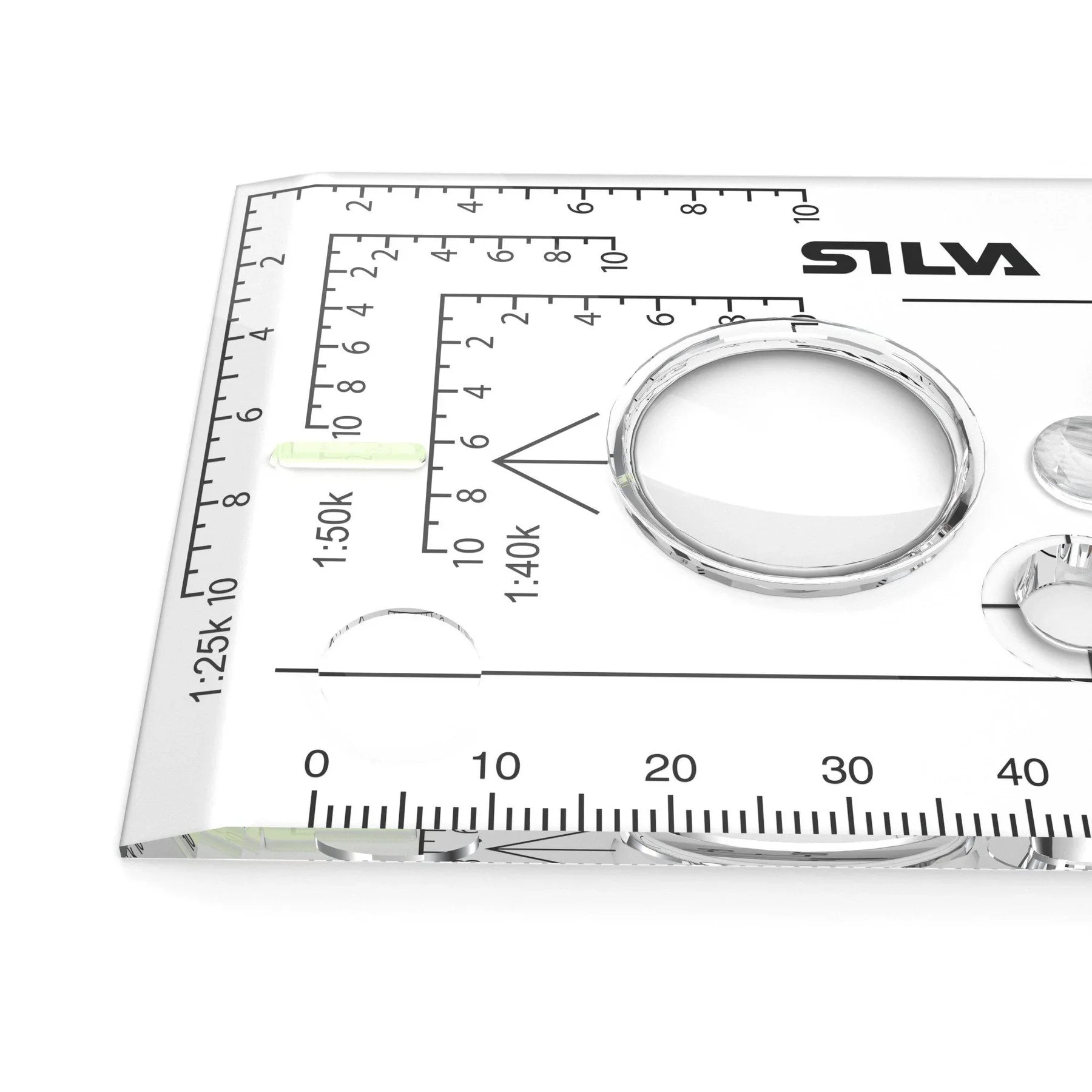

• scales (Romer scales) 1:25k, 1:50k, 1:40k
• Settling time from 90 degree angle within +/- 3 deg 2.7 sec
• Settling time from 90 degree angle to complete rest 5 sec
• Accuracy +/- 1 degree (17.8 mils)
• Waterproof IP68
• Altitude use 5000m@-15 C
• Impact resistance 30g in XYZ directions and free fall from 1.5 m height into gravel
• Temperature operating range: -40 to +60 C
• Material Acrylic
• Size (mm): 126 x 60 x 10
• Weight: 36g
• Art.No. 35692-8011
