Talamex 75.230.794 Force Suzuki Female Fuel Connector 5/16in
Talamex 75.230.794 Force Suzuki Female Fuel Connector 5/16in
Couldn't load pickup availability

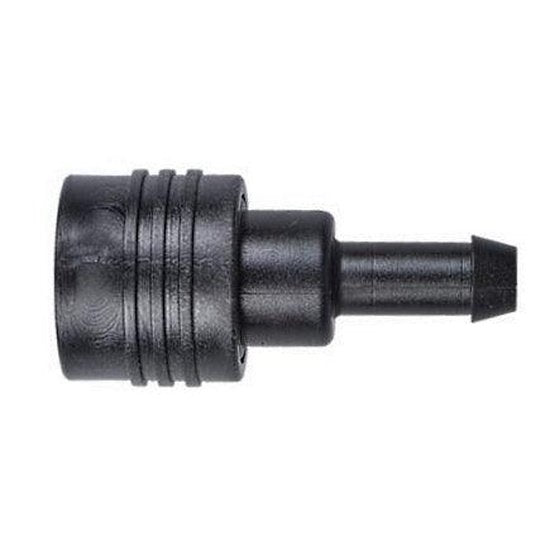

Talamex Force / Suzuki Female Fuel Connector
Female quick connector | 7.9mm (5/16in) hose
A Talamex female quick connector for compatible Force and Suzuki external fuel systems. It attaches 7.9mm (5/16in) inside-diameter marine fuel hose to a matching male connector at the tank or outboard, depending on the installation.
Key Features
- Female quick-disconnect coupling
- Force/Suzuki pattern
- For 7.9mm (5/16in) ID marine fuel hose
- May be used at tank or engine where the matching male fitting is installed
- Talamex catalogue reference 75.230.794
Technical Specs
| Manufacturer | Talamex |
| Part number | 75.230.794 |
| Compact code | 75230794 |
| System family | Force / Suzuki |
| Connector gender | Female |
| Installation end | Tank or engine, with matching male fitting |
| Hose connection | 7.9mm (5/16in) hose tail |
| 4Boats SKU | 75.230.794 |
Compatibility / Fitment Guide
| Check | Compatible when | Do not use when |
|---|---|---|
| Coupling profile | Existing male fitting matches the Force/Suzuki quick-connector geometry. | Different pin, latch, nose length or seal position. |
| Installation point | Tank or engine has the matching male fitting. | Assuming every Force/Suzuki tank and engine uses the same connector. |
| Fuel hose | Marine fuel hose ID is 7.9mm (5/16in). | 9.5mm (3/8in) or another size. |
| Final verification | Compare the old connector and male fitting before cutting the hose. | Selecting by outboard horsepower alone. |
Part Number Cross Reference
| Talamex MPN | 75.230.794 |
| Compact catalogue code | 75230794 |
| Catalogue description | Force/Suzuki 5/16in quick connector |
| OEM cross-reference | No Force or Suzuki OEM number claimed |
| 4Boats SKU | 75.230.794 |
This is an aftermarket Talamex connector. Cross-reference by physical interface and hose size rather than assuming OEM equivalence.
Frequently Asked Questions
Is it an engine-side or tank-side connector?
Talamex lists it for compatible tank and/or engine connections. The mating male fitting must match.
Will it fit every Suzuki outboard?
No. Confirm the existing coupling profile and 5/16in hose; Suzuki applications use more than one connector style.
Is this suitable for 3/8in hose?
No. The hose tail is specified for 7.9mm (5/16in) hose.
What should be checked after installation?
Use a fuel-rated clamp, prime the system and inspect the hose joint and quick coupling carefully for leakage before operation.
Before ordering or installation: compare all dimensions, interface details and manufacturer codes above.
