TDA7850 Amplifier Board 2.1 Channel 2x80W Car AB Type Amplifier Module DIY High Power 120W Bass, TDA7850
TDA7850 Amplifier Board 2.1 Channel 2x80W Car AB Type Amplifier Module DIY High Power 120W Bass, TDA7850
Regular price
£13.99
Regular price
Sale price
£13.99
In stock, ready to ship
Quantity
Couldn't load pickup availability

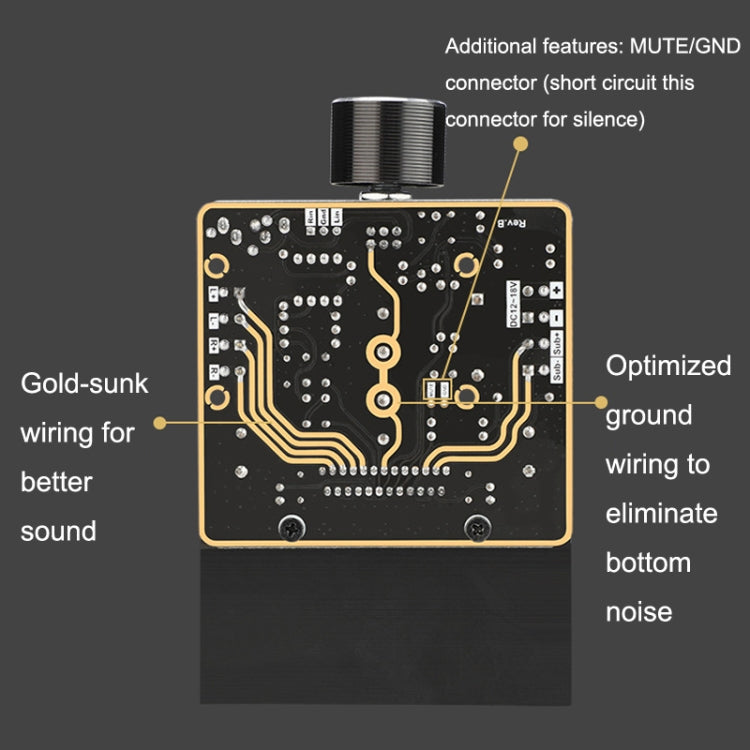

1. Gold-sunk wiring for better sound
2. Optimized ground wiring to eliminate bottom noise

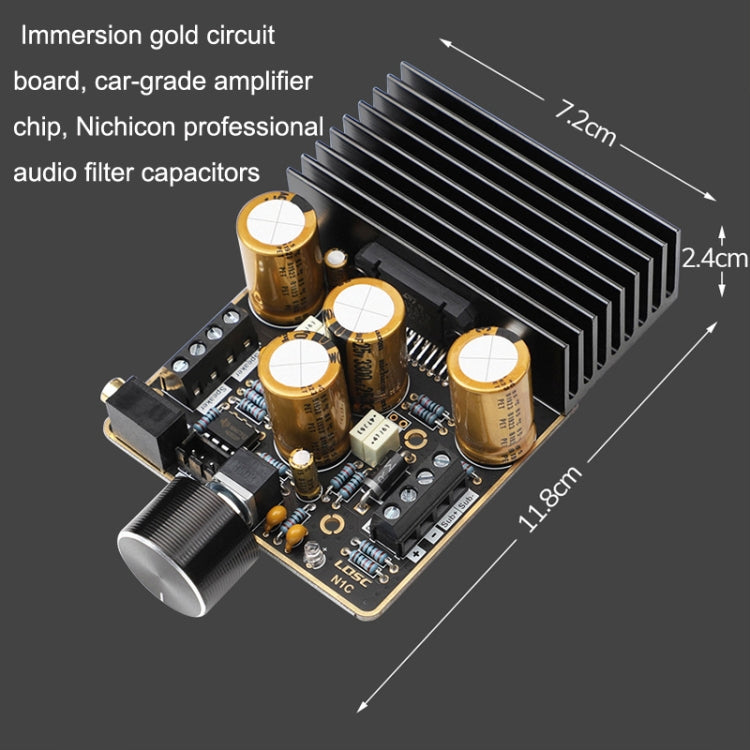

3. Immersion gold circuit board, car-grade amplifier chip, Nichicon professional audio filter capacitors

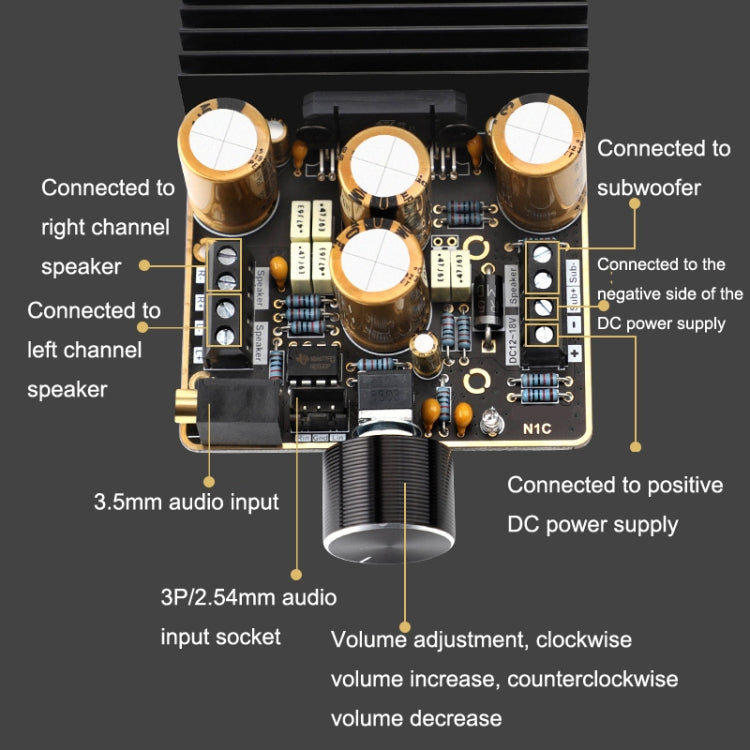

4. Input mode: 3.5mm audio cable input or 3P 2.54mm terminal input
5. Can be connected to 2/4/6/8 ohm speakers
6. Protection function: reverse power input protection, short circuit protection, over-current protection, overheat protection
7. Supply voltage: DC12-18V
8. Output power: 2x80W stereo (18V / 4 ohms) and 1x120W pure bass (18V / 2 ohms)
9. Potentiometer knob opening: 7mm
10. Mounting hole spacing: 25.4x48.26mm (Bluetooth module spacing compatible)
11. PCB size: 72.36 x 66.65mm
12. Overall (including heat sink):: 72.36 x 96 x 27mm
13. Weight: 170g
2. Optimized ground wiring to eliminate bottom noise
3. Immersion gold circuit board, car-grade amplifier chip, Nichicon professional audio filter capacitors
4. Input mode: 3.5mm audio cable input or 3P 2.54mm terminal input
5. Can be connected to 2/4/6/8 ohm speakers
6. Protection function: reverse power input protection, short circuit protection, over-current protection, overheat protection
7. Supply voltage: DC12-18V
8. Output power: 2x80W stereo (18V / 4 ohms) and 1x120W pure bass (18V / 2 ohms)
9. Potentiometer knob opening: 7mm
10. Mounting hole spacing: 25.4x48.26mm (Bluetooth module spacing compatible)
11. PCB size: 72.36 x 66.65mm
12. Overall (including heat sink):: 72.36 x 96 x 27mm
13. Weight: 170g
Specification:
