U581 Live Data Can OBDII / EOBDII Scanner Can Bus Code Reader, U581

Manufacturer
The U581 Scanner is for real-time automotive diagnosis based on the OBD 2 & CAN-BUS protocol. It offers Full Feature Scanning including 'LIVE DATA'. By simply plugging it into your vehicles diagnostic socket, you will be able to Read all Trouble Codes & Definitions related to the "Check Engine Light", Save & Review results, Reset the trouble light, Monitor & Freeze-Frame Data,and more. Also retrieves the VIN (vehicle identification number) on supported vehicles.

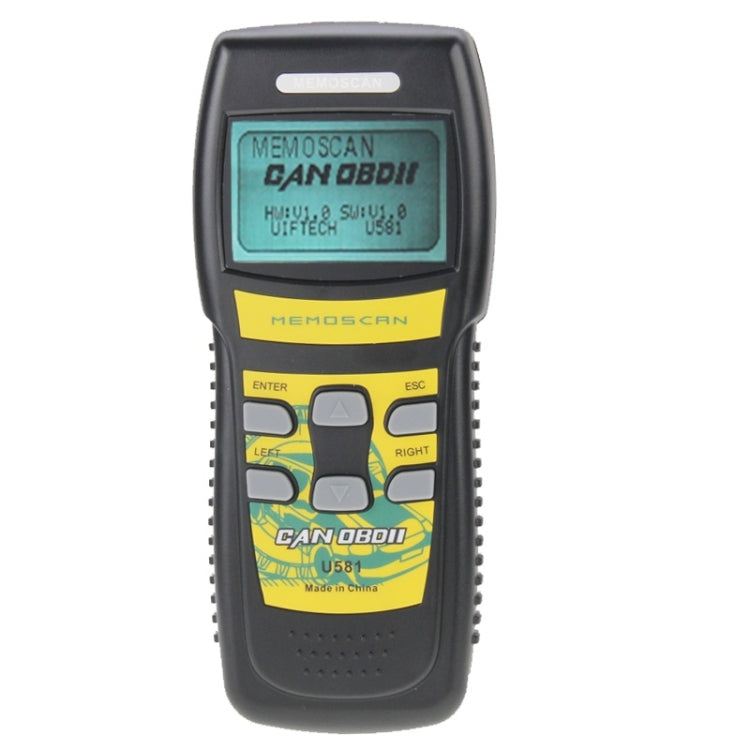

Tool
1. LCD Display, 128*64 pixel display with contrast adjustment, Backlit
2. Enter key selects displayed.
3. Exit key go back to the previous screens.
4. Up/down arrows-moves the selection pointer and scrolls up or down.
5. LEFT/RIGHT arrows-Select responses and moves cursor.

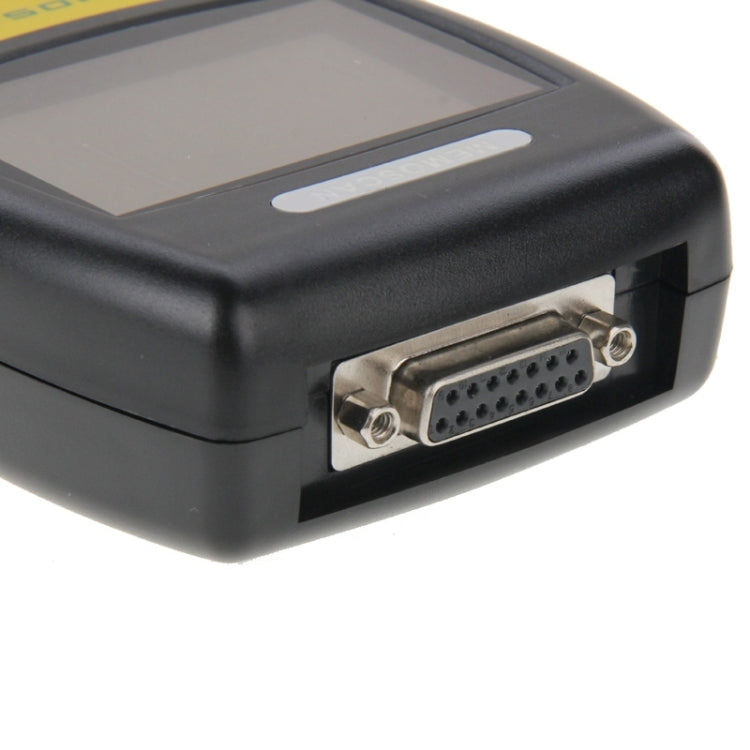

6. OBDII connector cable, connect car and the scan tool.

Features
1. Works on all 1996 and newer cars & light trucks that are OBD II compliant (including the VPW, PWM, ISO, KWP 2000 and CAN protocols).
2. Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs).
3. DTCs definition displayed on the LCD screen, no need to cross-reference with code book.
4. Reading Live Data
5. Reading Freeze Frame Data.
6. Testing I/M Reading Status.
7. Reading Vehicle Info VIN (most vehicles built 2000 & up).
8. Rescanning Data.

Vehicle Coverage
GM '96 - Current Year (OBD-II)
Ford '96 - Current Year (OBD-II)
Chrysler '96 - Current Year (OBD-II)
Toyota '96 - Current Year (OBD-II)
Honda '96 - Current Year (OBD-II)
NISSAN '96 - Current Year (OBD-II)
All other Asian and European '96 - Current Year (OBD-II)
All new CAN protocol cars.
