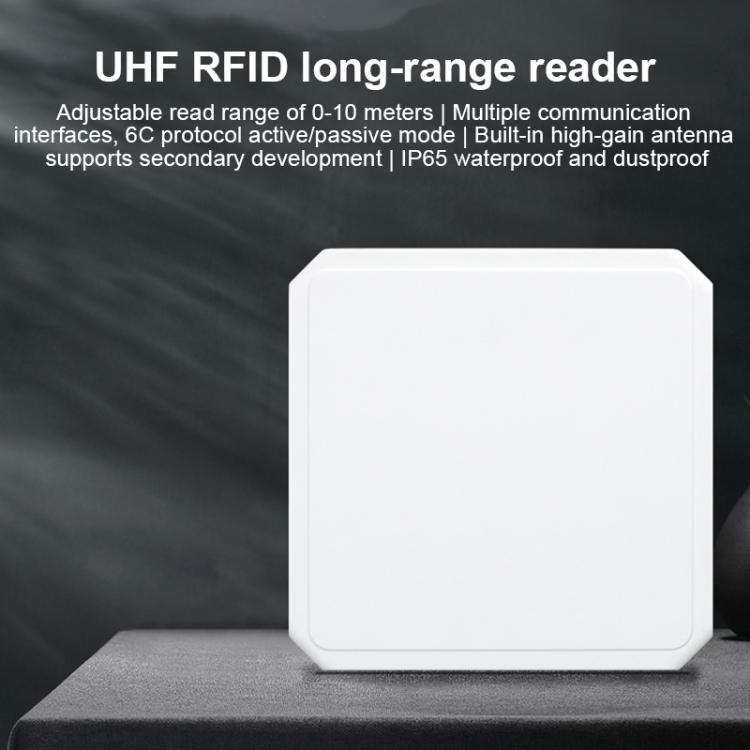

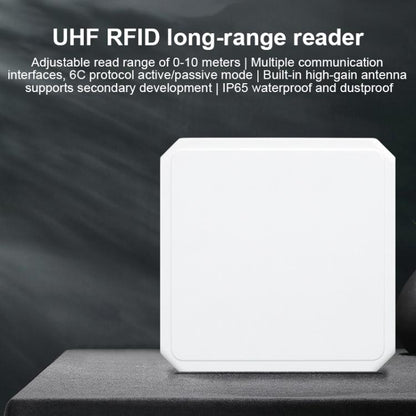

UHF RFID Long Range Integrated Reader with Built-in 9dBi Antenna, Style: Standard, Standard

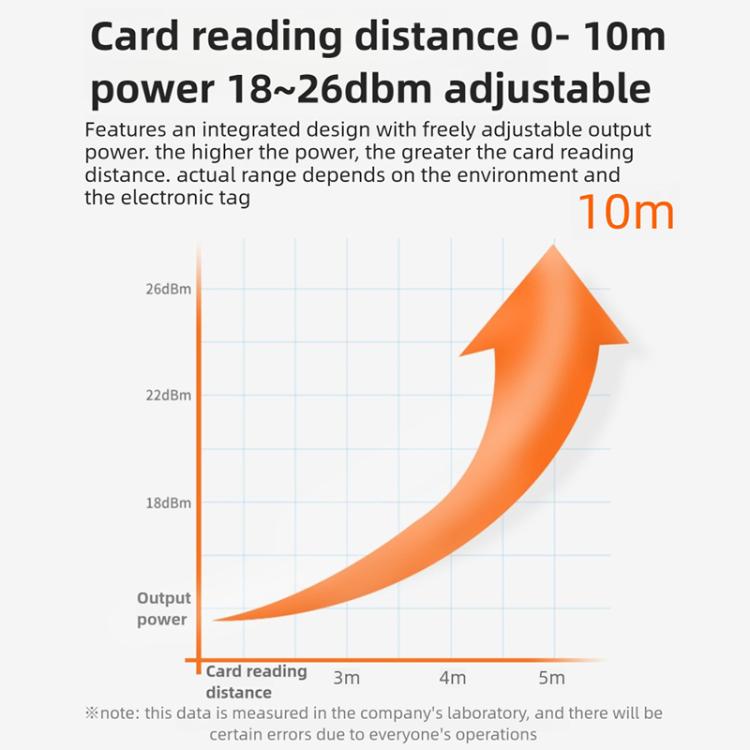

1. Card reading distance 0-10m, adjustable power 18-26dBm

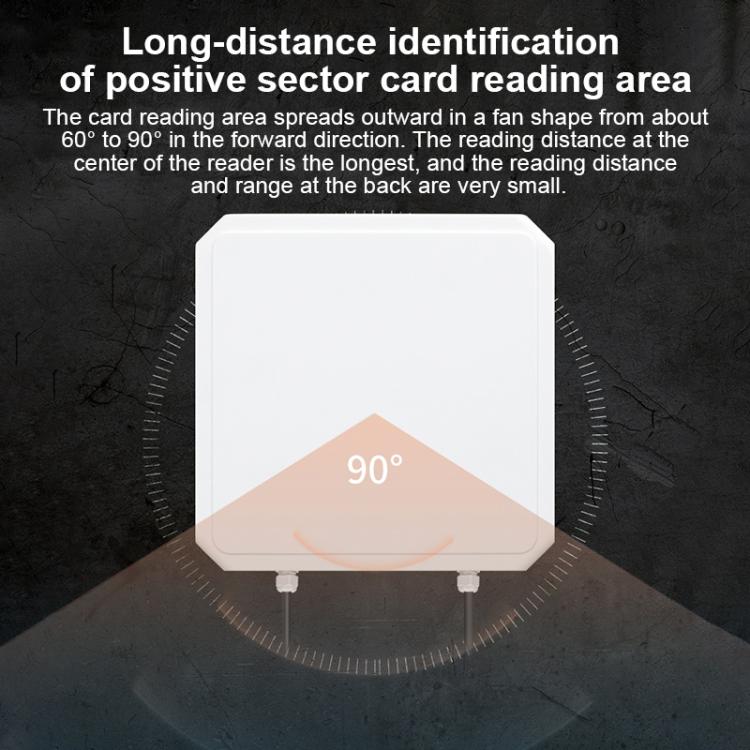

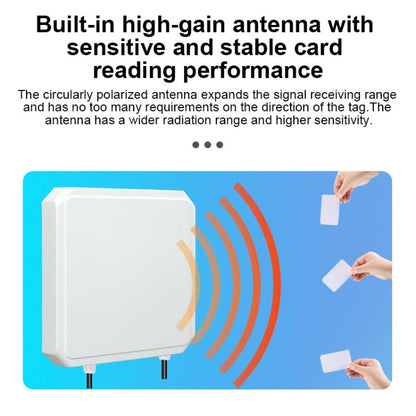

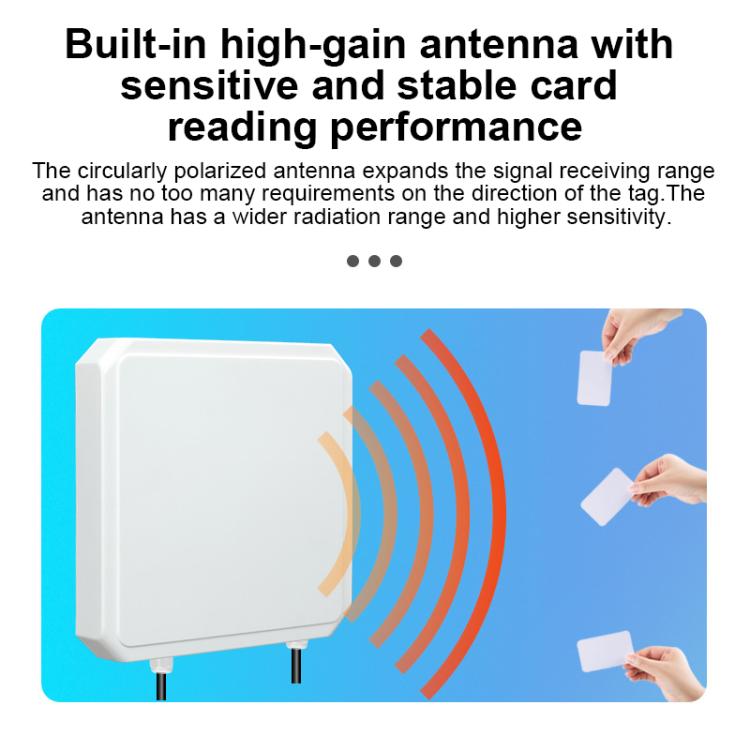

2. Built-in high-gain 9dBi antenna for wide coverage, sensitive card reading, and stable performance

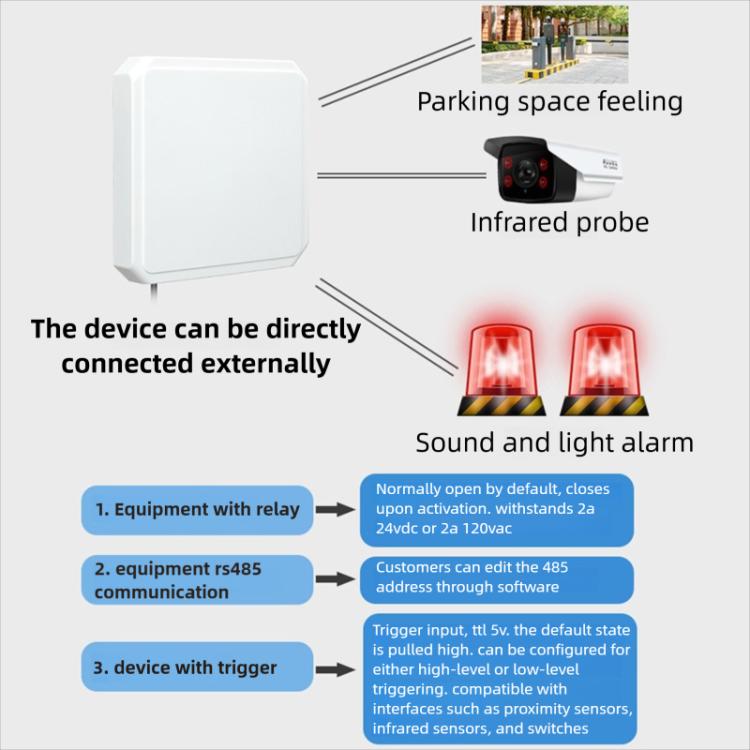

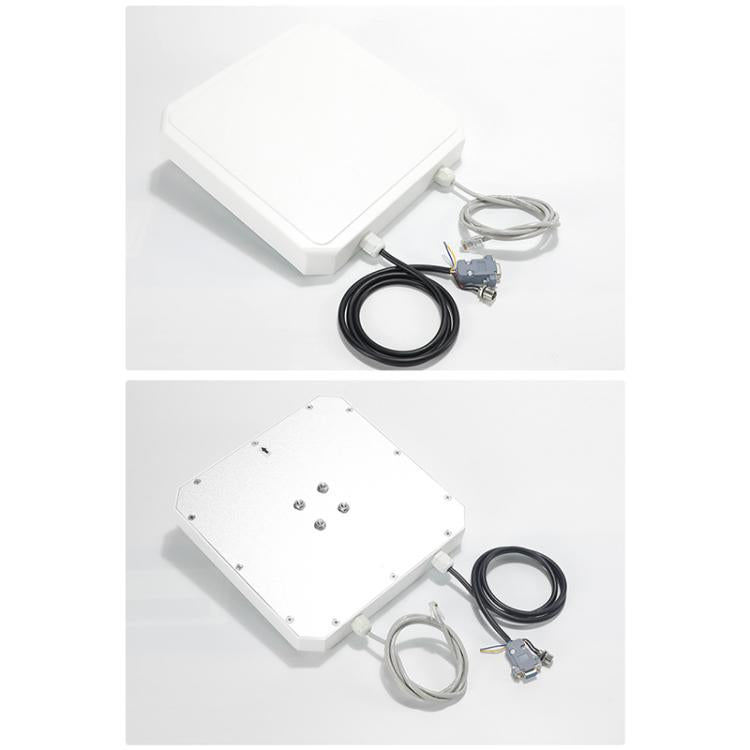

3. Multiple communication interfaces and a separate cable design allow for connection to various devices, such as parking sensors and infrared detectors

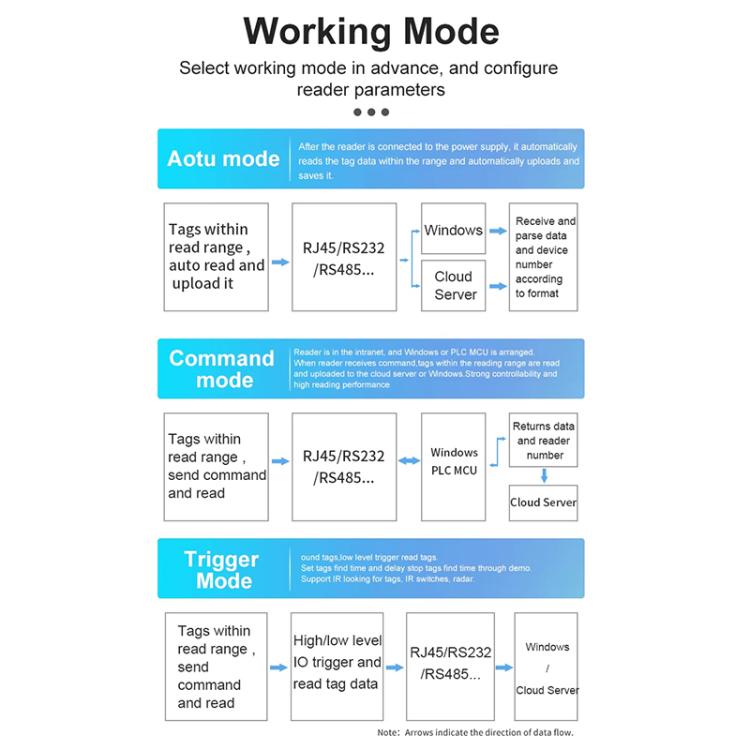

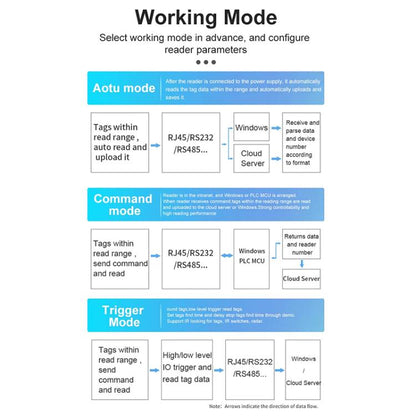

4. Flexible switching between active, passive, and trigger modes

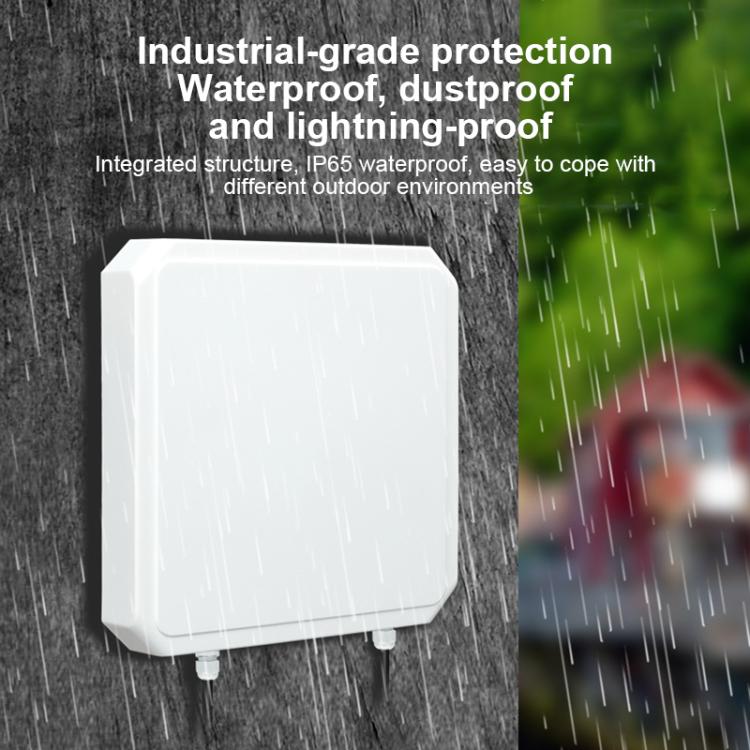

5. Integrated structure with IP65-rated waterproof and dustproof protection for easy operation in various outdoor environments
6. Wide range of applications: Suitable for warehousing and logistics, production line tracking, intelligent asset management, and access control systems

Specifications:
1. Model: FI-806

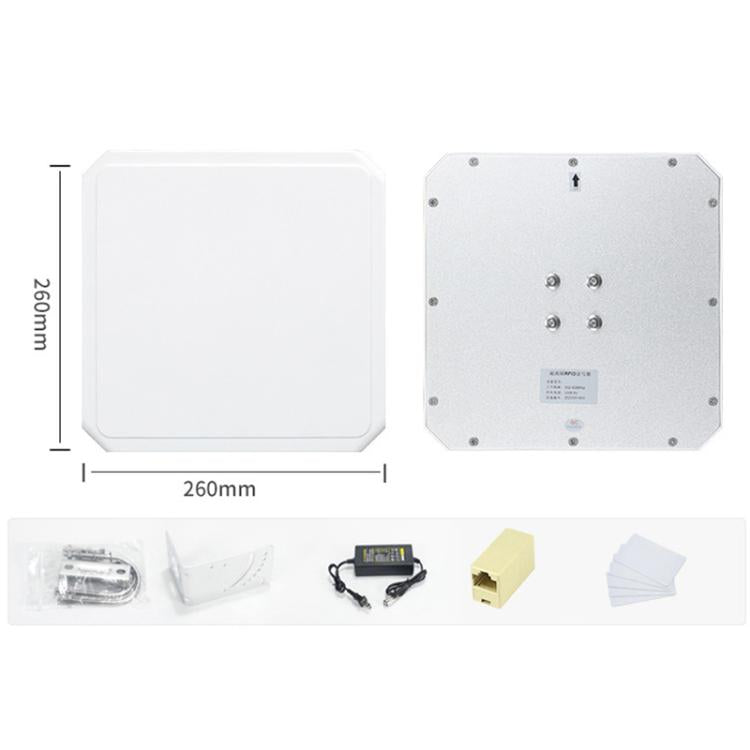

2. Dimensions: 260mm x 260mm x 40mm
3. Weight: Approximately 1000g
4. Operating frequency: Standard ISM 902-928MHz and ISM 865-868MHz, optional
5. Operating protocol: ISO18000-6C (EPCGEN2)
6. Card Reading Distance: 0-10m
7. Card Reading Speed: Software-adjustable, average reading speed per 64 bits per card is less than 6ms
8. Output Power: 18-26dBm, software-adjustable
9. Operating Mode: Wide Frequency Hopping Spectrum (FHSS)
10. Antenna Gain: Built-in circularly polarized antenna, 9dBi gain

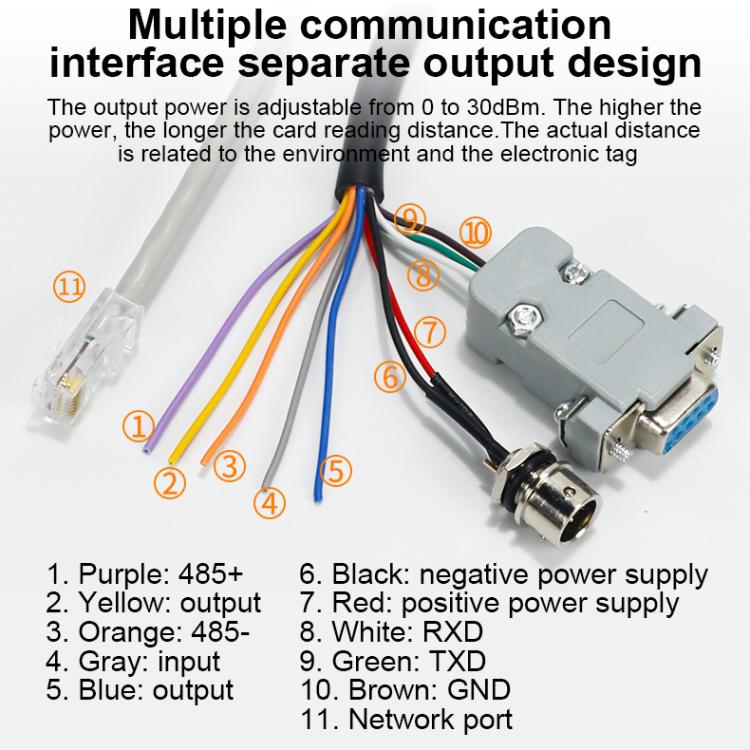

11. Communication Interfaces: RS232, RS485, RJ45, Wiegand 26/34, one trigger output, one relay output
12. Operating Indicator: Buzzer
13. Power Supply: DC+12V (with power adapter), voltage range: 9-16V
14. Operating Temperature: -20 degrees Celsius to +80 degrees Celsius
