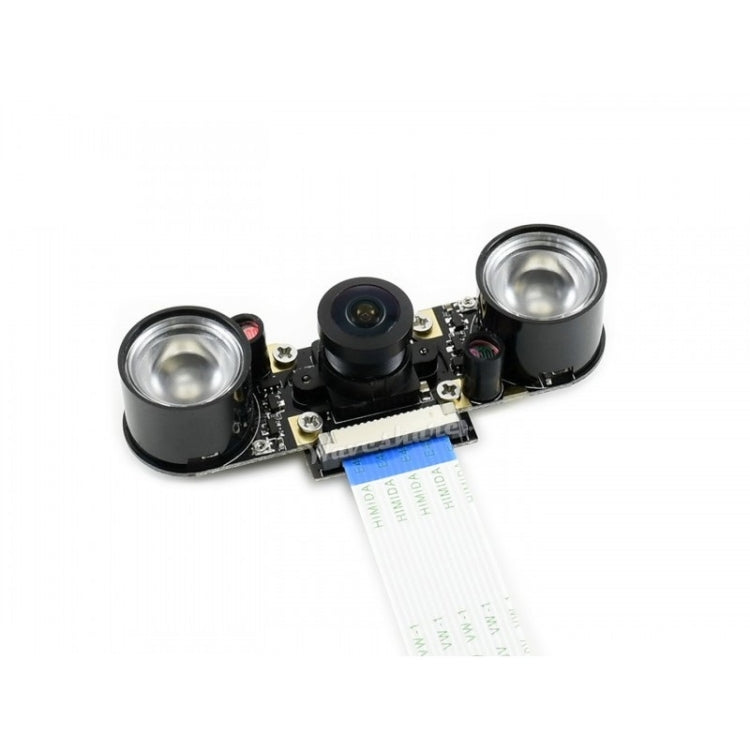

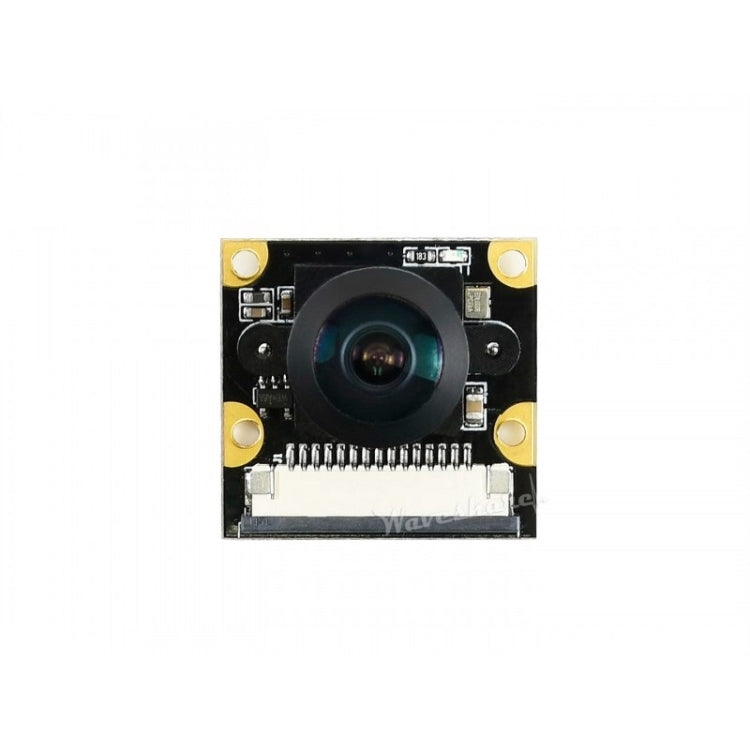

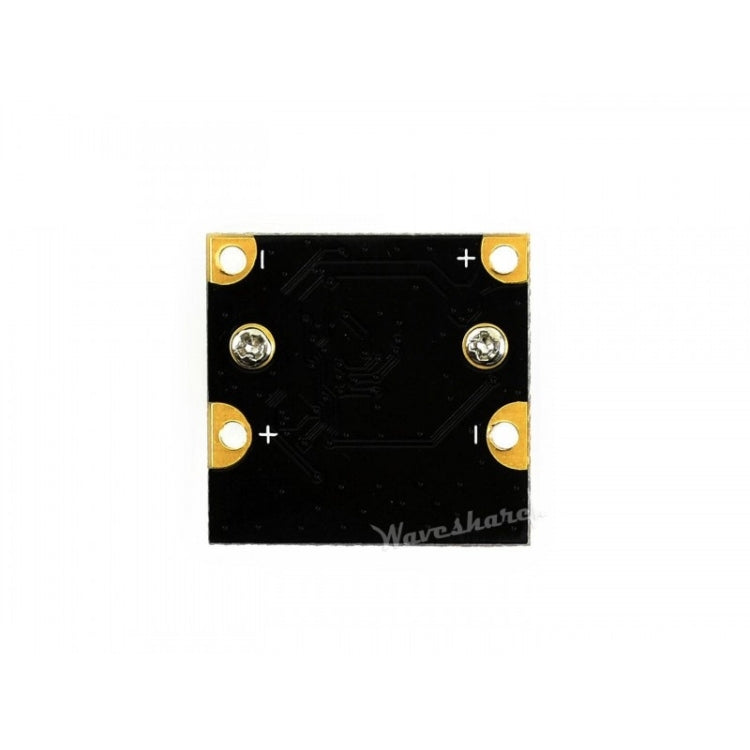

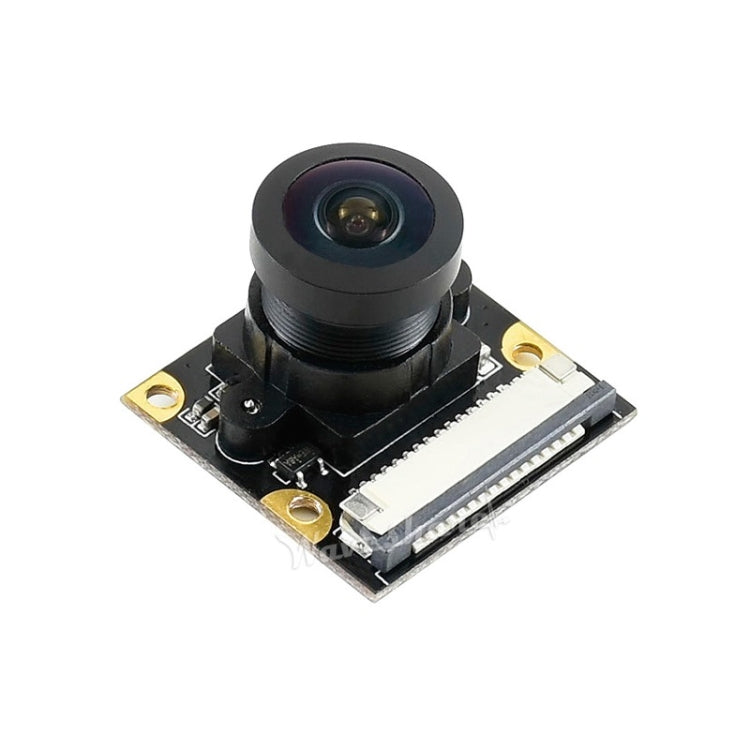

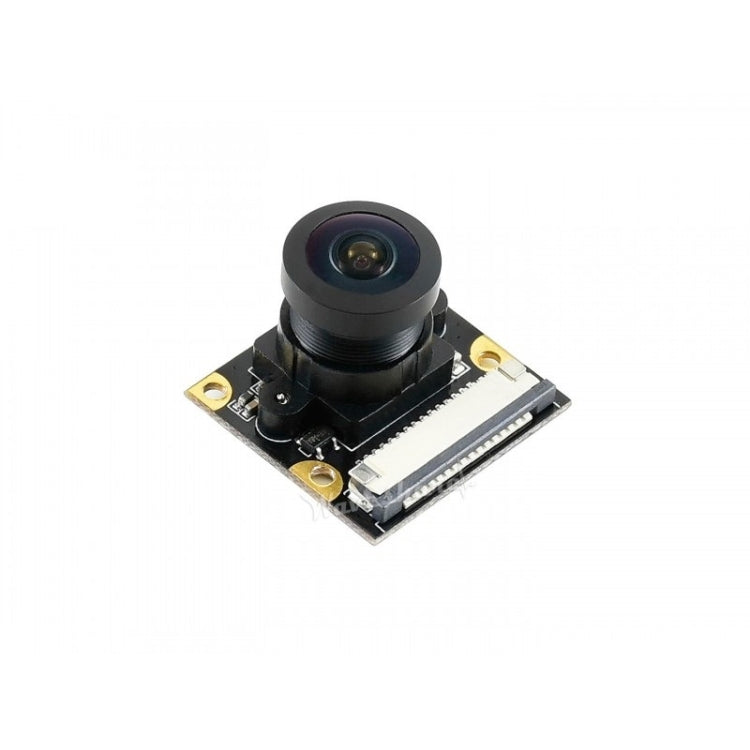

Waveshare IMX219-160IR 8MP 160 Degree FOV Infrared Camera, Applicable for Jetson Nano

Waveshare IMX219-160IR 8MP 160 Degree FOV Infrared Camera, Applicable for Jetson Nano

£24.99
£24.99
Sale Sold out
In stock, ready to ship
Features

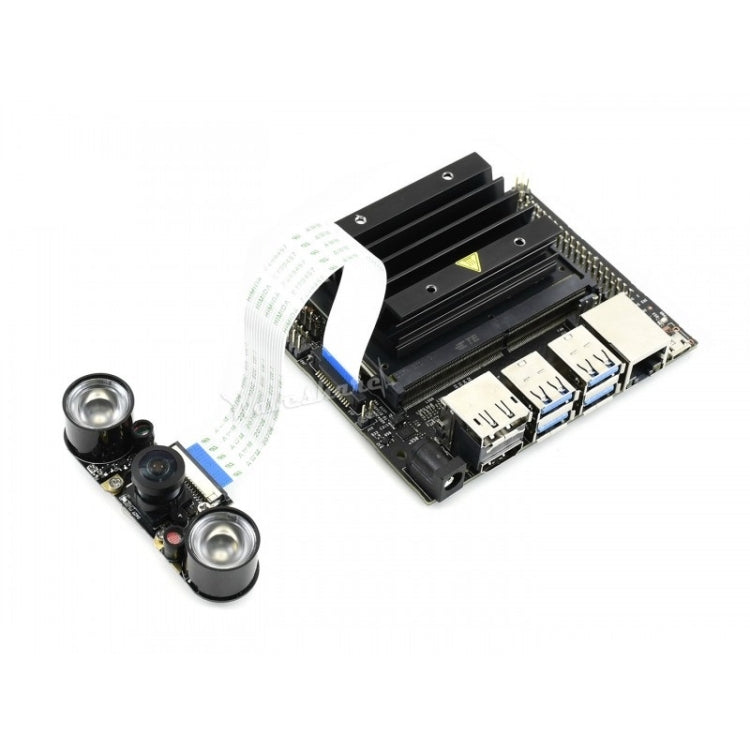

1. Supports NVIDIA Jetson Nano Developer Kit
2. Supports night vision when works with infrared LEDs
3. 8 Megapixels
4. Sensor: IMX219
5. Resolution: 3280 × 2464
6. Lens specifications:
- CMOS size: 1/4 inch
- Aperture (F): 2.35
- Focal Length: 3.15mm
- Angle of View (diagonal): 160 degree
- Distortion: <14.3%
7. 4 screw holes
8. Used for attachment
9. Provides 3.3V power output
10. Supports connecting infrared LED and/or fill flash LED
11. Dimension: 25mm x 24mm
12 . Weight: 31g

Packing List:
1. IMX219-160IR Camera x1

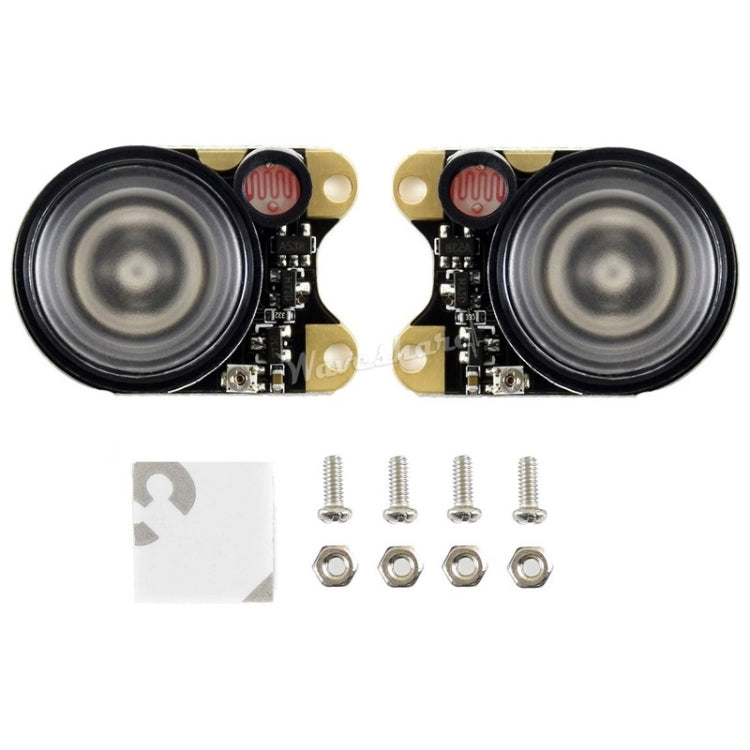

2. Infrared LED Board (B) 2PCS x1
3. 15-pin FFC (opposite sides contact) x1
Specification:
Package Weight
One Package Weight 0.05kgs / 0.10lb
One Package Size 10cm * 6cm * 3cm / 3.94inch * 2.36inch * 1.18inch
Qty per Carton 468
Carton Weight 15.00kgs / 33.07lb
Carton Size 60cm * 36cm * 39cm / 23.62inch * 14.17inch * 15.35inch
Loading Container 20GP: 316 cartons * 468 pcs = 147888 pcs
40HQ: 734 cartons * 468 pcs = 343512 pcs
