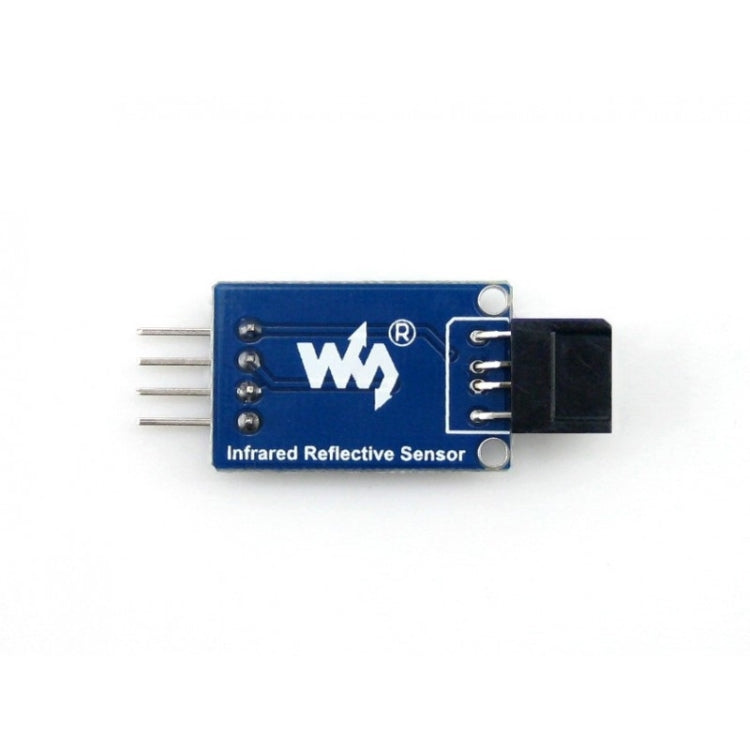

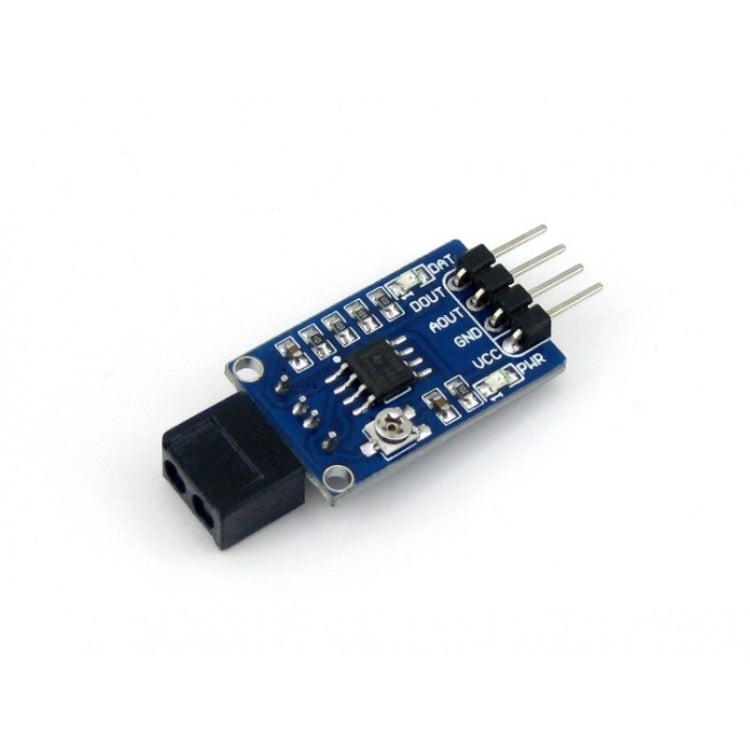

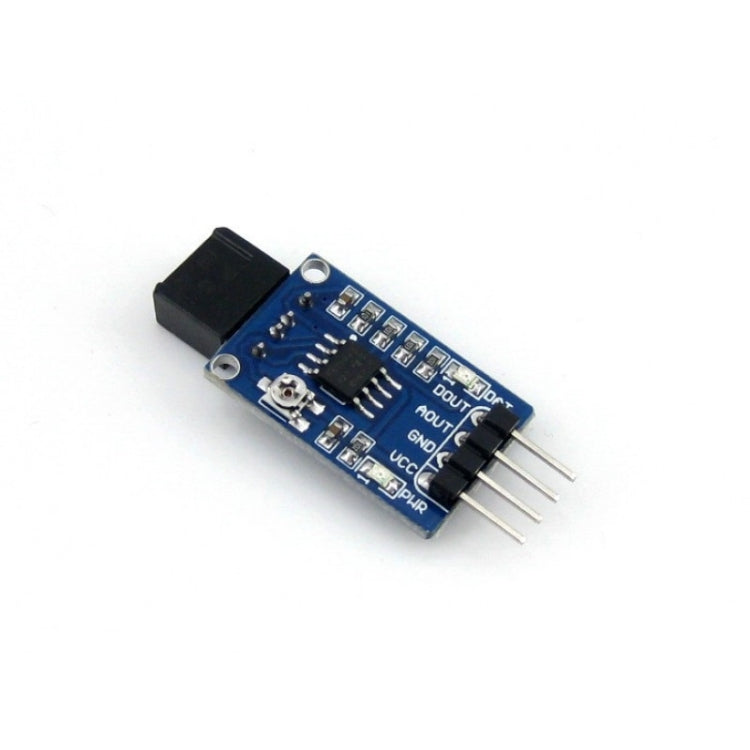

Waveshare Infrared Reflective Sensor, IR

Waveshare Infrared Reflective Sensor, IR

£4.99 GBP
£4.99 GBP
Sale Sold out
Shipping calculated at checkout.
Option
Overview
1. Reflective infrared Transceiver
2. Features wide range voltage comparator LM393
3. Adjustable sensitivity
4. Signal output indicator

Specifications
1. Power: 3.0V ~ 5.3V
2. Dimension: 25mm * 15.9mm
3. Mounting holes size: 2.0mm

Applications
1. Robot path tracking
2. Obstacle-avoiding car
3. Pipeline counter

How to Use

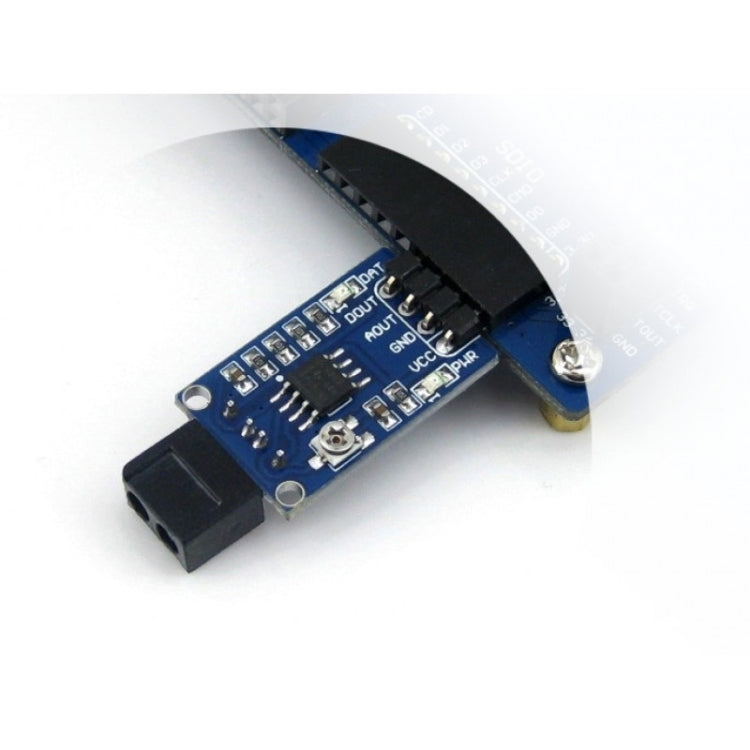

In the case of working with a MCU:

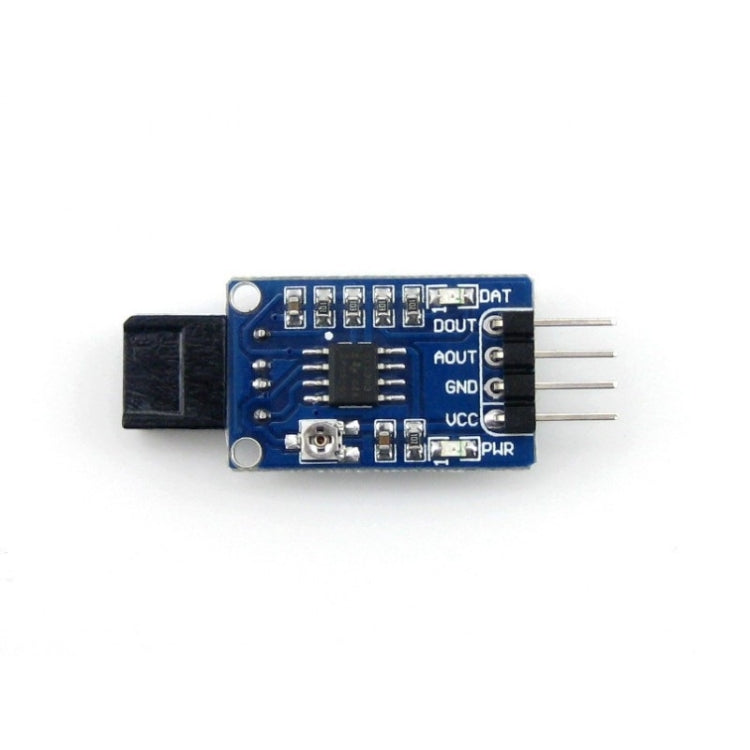

Pinouts
1. VCC: 3.0V ~ 5.3V
2. GND: Power supply ground
3. AOUT: MCU.IO (analog output)
4. DOUT : MCU.IO (digital output)

Package Contents
1. Infrared Reflective Sensor x1
2. 4-pin custom connector jumper wire x1


Specification:
Package Weight
One Package Weight 0.01kgs / 0.02lb
One Package Size 5cm * 3cm * 1cm / 1.97inch * 1.18inch * 0.39inch
Qty per Carton 6240
Carton Weight 15.00kgs / 33.07lb
Carton Size 60cm * 39cm * 40cm / 23.62inch * 15.35inch * 15.75inch
Loading Container 20GP: 284 cartons * 6240 pcs = 1772160 pcs
40HQ: 661 cartons * 6240 pcs = 4124640 pcs
