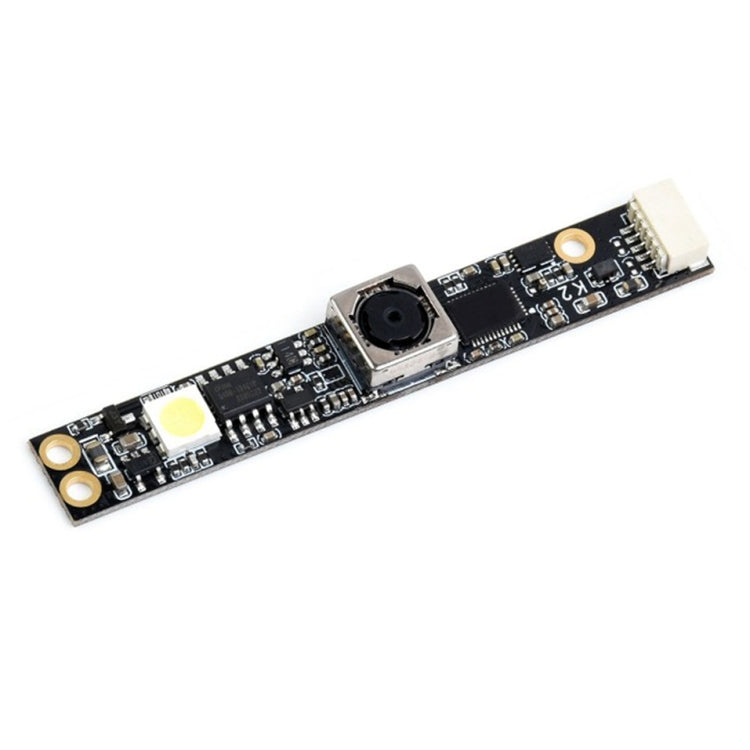

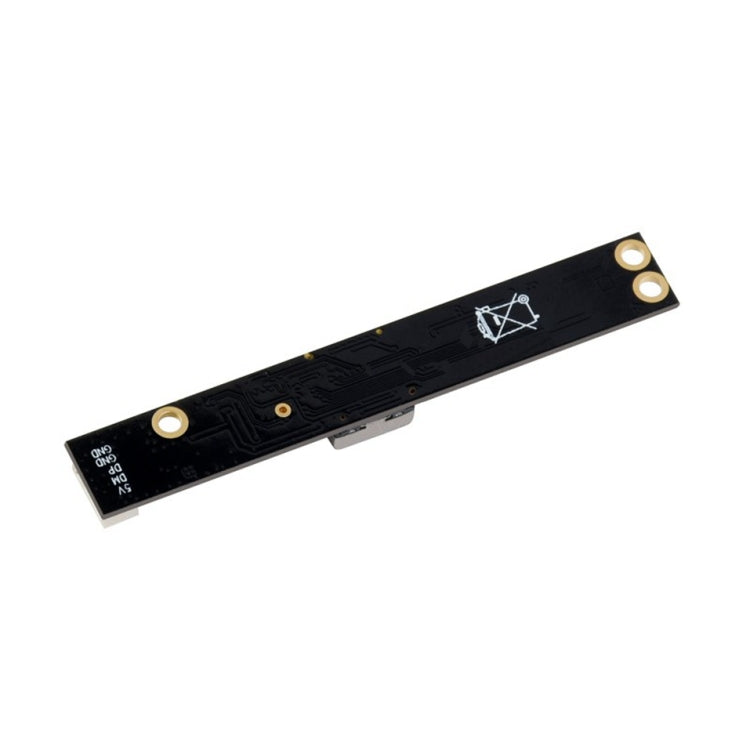

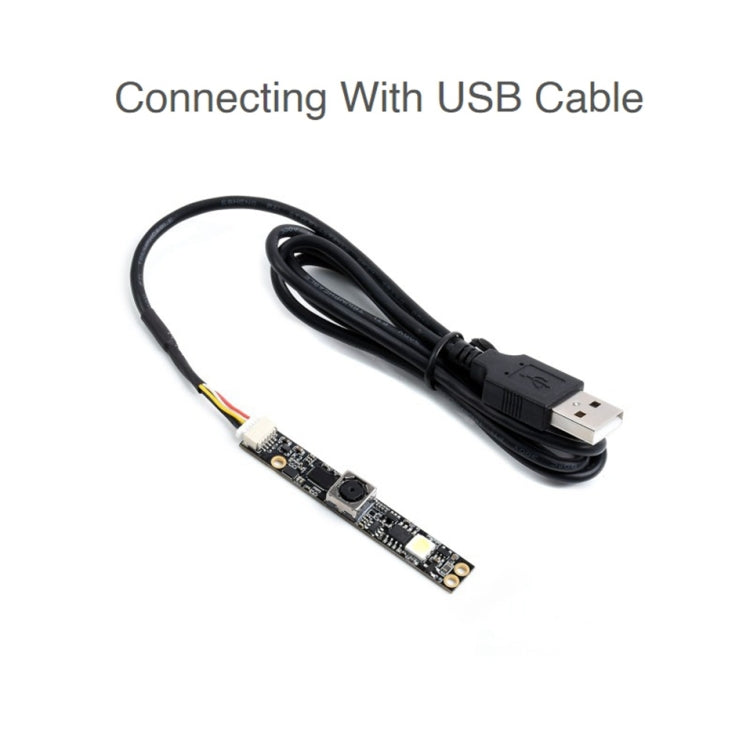

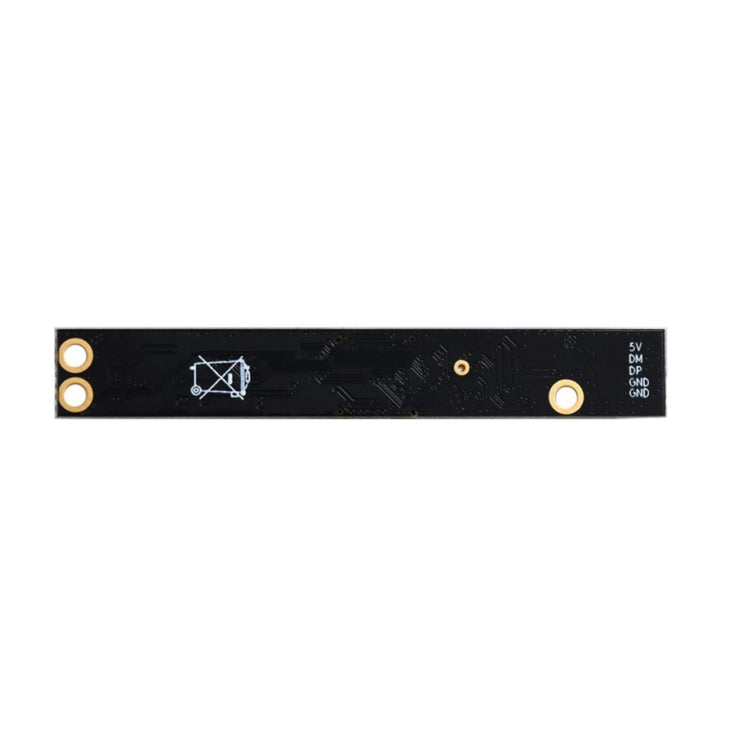

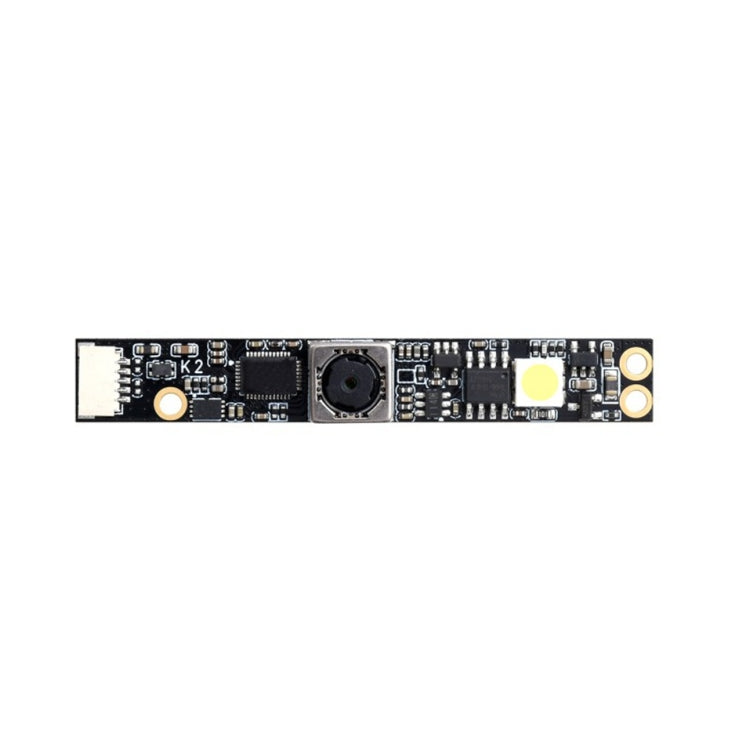

Waveshare OV5640 FF 5MP USB Camera Module, Support 1080P Video Recording, FF
Waveshare OV5640 FF 5MP USB Camera Module, Support 1080P Video Recording, FF
Regular price
£22.99
Regular price
Sale price
£22.99
In stock, ready to ship
Quantity
Couldn't load pickup availability
1. Pixels: 5MP
2. Sensor: OV5640
3. Interface: USB 2.0
4. Camera: Sensor size 1/4 inch
5. Aperture (F): 2.8
6. Focal length (EFL): 3.29 mm
7. Field of view (FOV): 68 degree
8. Distortion: Less than 1%
9. Focusing(C): FF Fixed-Focus
10. Image Format support: MJPG, YUV422
11. Static image resolution: 2592 x 1944
12. Video recording: 15 FPS 2592 x 1944, 30 FPS 1920 x 1080, 30 FPS 1280 x 720
13. Operating voltage: 5V +/- 5%

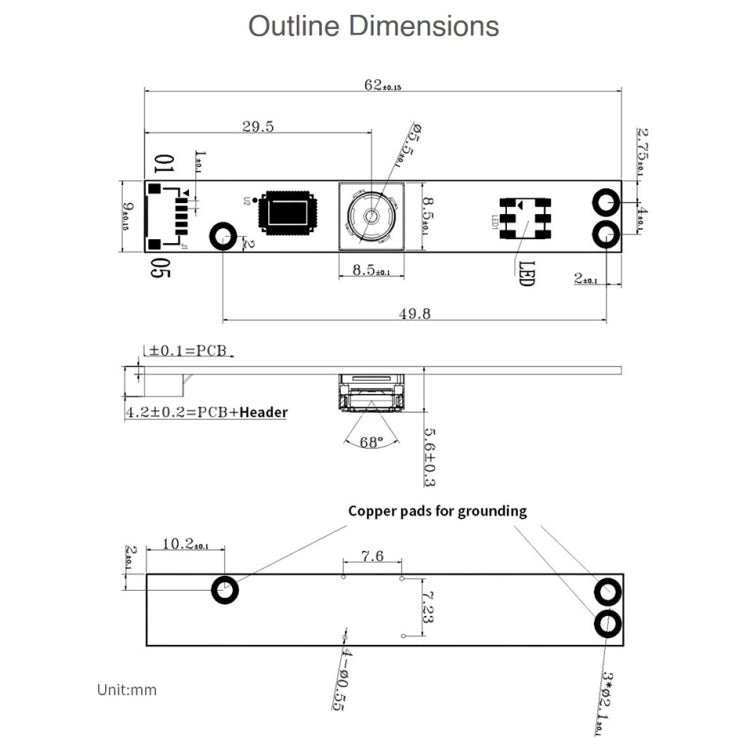

14. Camera size: 8.5 x 8.5 mm
15. Module size: 9 x 62 mm
2. Sensor: OV5640
3. Interface: USB 2.0
4. Camera: Sensor size 1/4 inch
5. Aperture (F): 2.8
6. Focal length (EFL): 3.29 mm
7. Field of view (FOV): 68 degree
8. Distortion: Less than 1%
9. Focusing(C): FF Fixed-Focus
10. Image Format support: MJPG, YUV422
11. Static image resolution: 2592 x 1944
12. Video recording: 15 FPS 2592 x 1944, 30 FPS 1920 x 1080, 30 FPS 1280 x 720
13. Operating voltage: 5V +/- 5%
14. Camera size: 8.5 x 8.5 mm
15. Module size: 9 x 62 mm
Specification:
