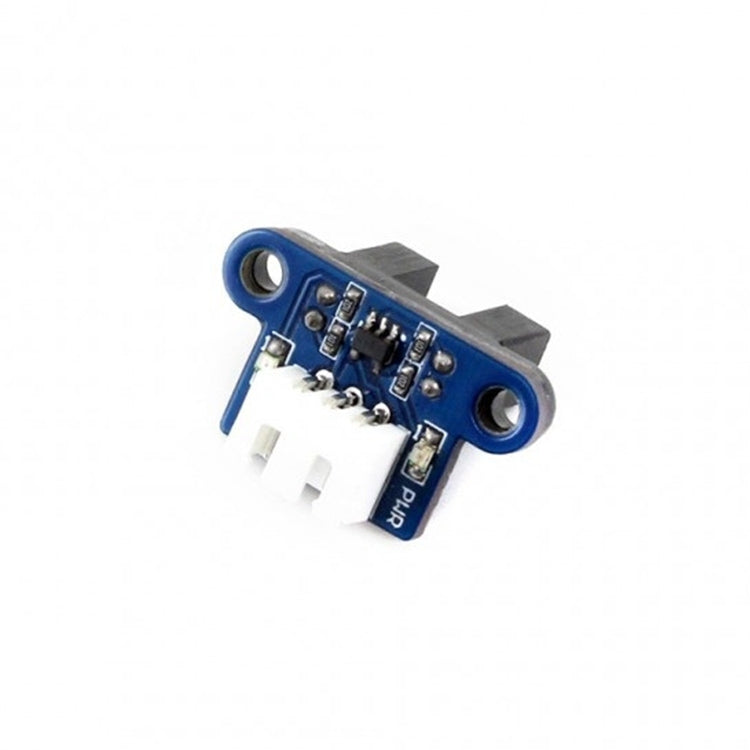

Waveshare Photo Interrupter Sensor, Speed Measuring
Waveshare Photo Interrupter Sensor, Speed Measuring
Regular price
£2.99
Regular price
Sale price
£2.99
In stock, ready to ship
Quantity
Couldn't load pickup availability
Overview
1. Infrared detection, eliminating the interferences of external stray light
2. Schmitt trigger, stable wave form and signals

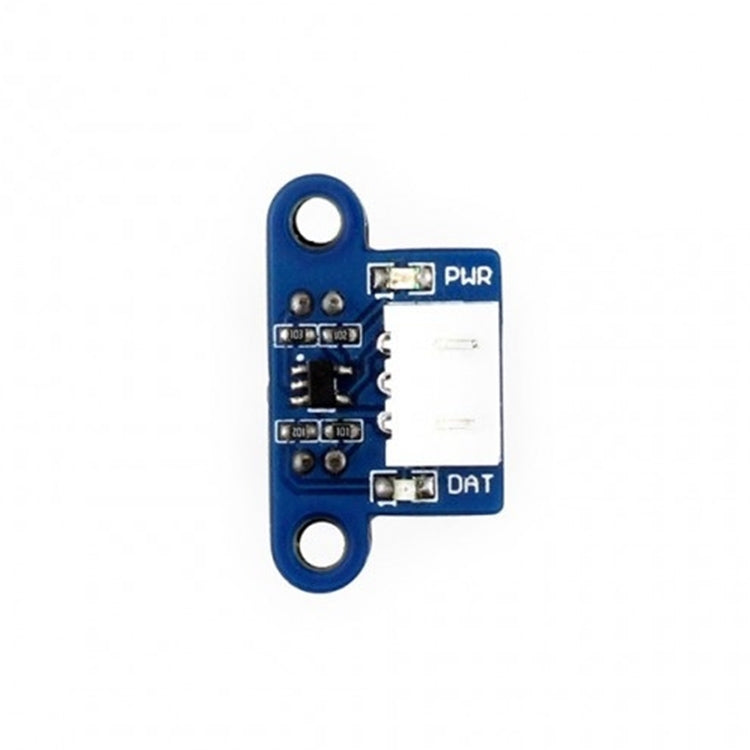

3. Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)
Specifications
1. Power: 3.3V ~ 5V
2. Dimension: 26.8mm × 15mm × 18.7mm
3. Mounting holes size: 3mm
4. Gap width: 6mm
Applications

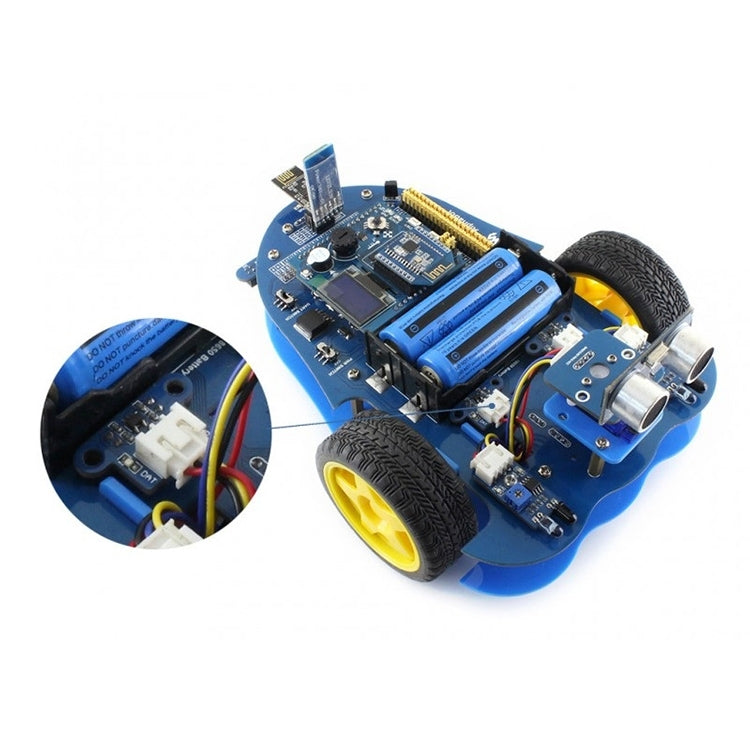

- Motor speed detection
- Pulse counter

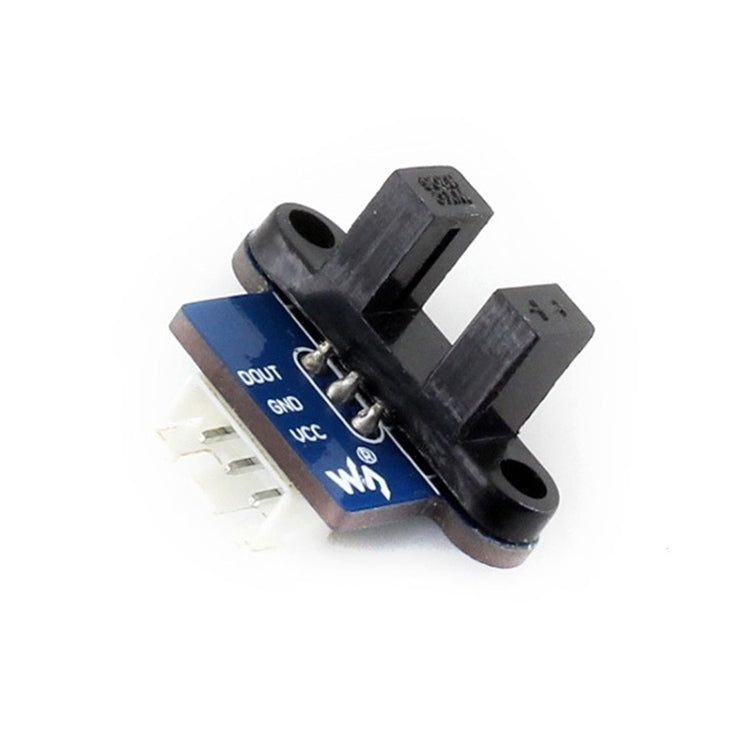

How to Use
In the case of working with a MCU:
- VCC ? 3.3V ~ 5V
- GND ? GND
- DOUT ? MCU.IO (digital output)
1. Infrared detection, eliminating the interferences of external stray light
2. Schmitt trigger, stable wave form and signals
3. Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)
Specifications
1. Power: 3.3V ~ 5V
2. Dimension: 26.8mm × 15mm × 18.7mm
3. Mounting holes size: 3mm
4. Gap width: 6mm
Applications
- Motor speed detection
- Pulse counter
How to Use
In the case of working with a MCU:
- VCC ? 3.3V ~ 5V
- GND ? GND
- DOUT ? MCU.IO (digital output)
Specification:
| Package Weight |
|
