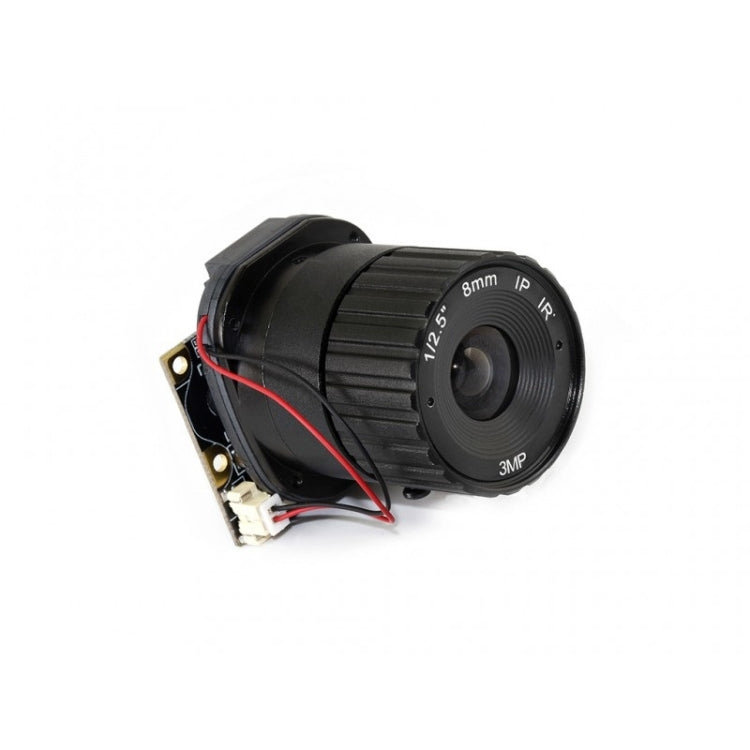

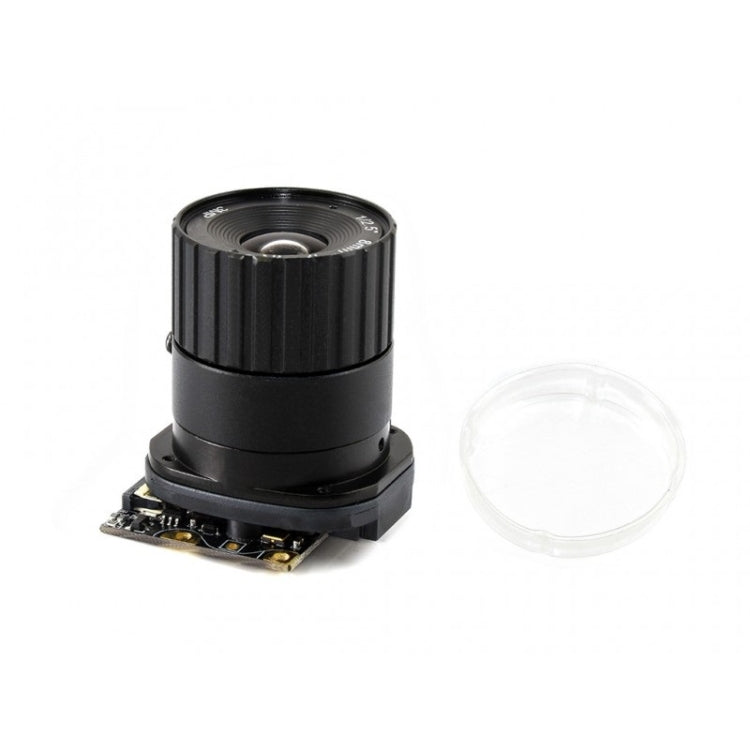

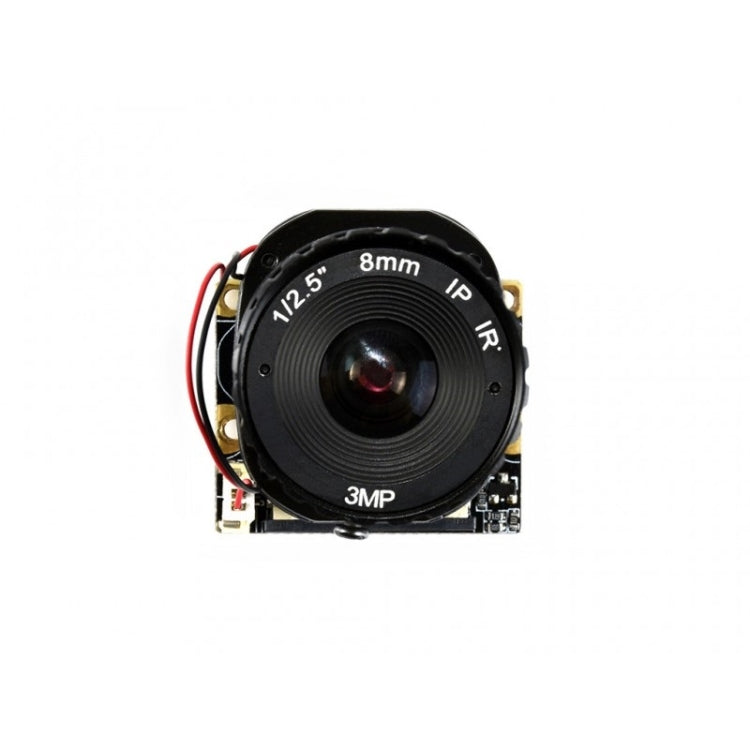

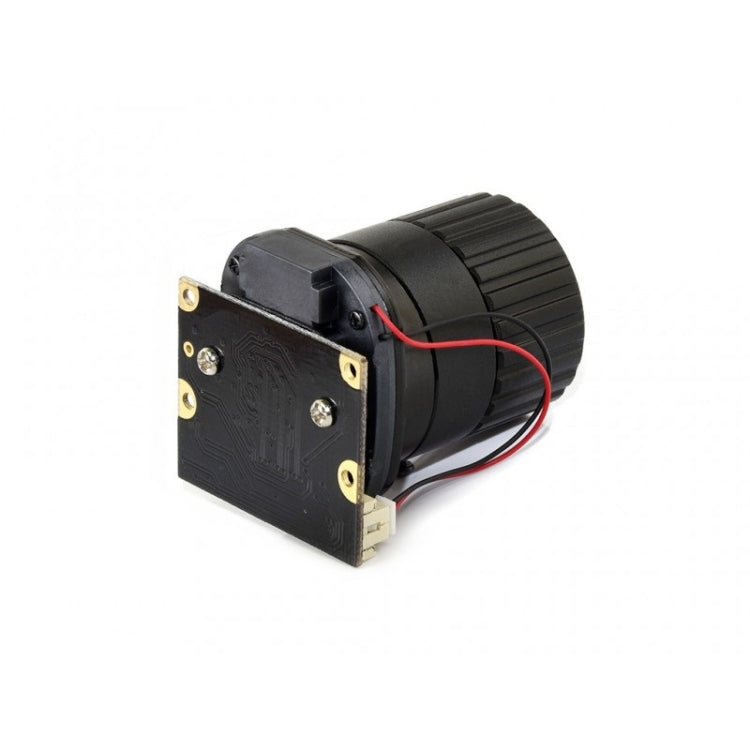

Waveshare Raspberry Pi Camera Module, Embedded IR-CUT, Supports Night Vision, Type B
Waveshare Raspberry Pi Camera Module, Embedded IR-CUT, Supports Night Vision, Type B
Regular price
£19.99
Regular price
Sale price
£19.99
In stock, ready to ship
Quantity
Couldn't load pickup availability
Features
1. Raspberry Pi camera, supports all revisions of the Pi
2. Embedded removable IR-CUT filter, eliminating color distortion in the daylight
3. Comes with infrared LED, supports night vision
4. 5 megapixel OV5647 sensor
5. Adjustable focus distance
6. Camera specifications
- CCD size: 1/4 inch
- Aperture (F): 1.2
- Focal Length: 8mm
- Angle of View (diagonal): 40 degree
- Sensor best resolution: 1080p
7. 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
8. Dimension: 31mm x32mm
Note: To use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Note: The actual image pixels is 5MP, which depends on the sensor, so it doesnt matter that there is a 3MP silk mark on the camera.
Package Contents
1. RPi IR-CUT Camera (B) x1

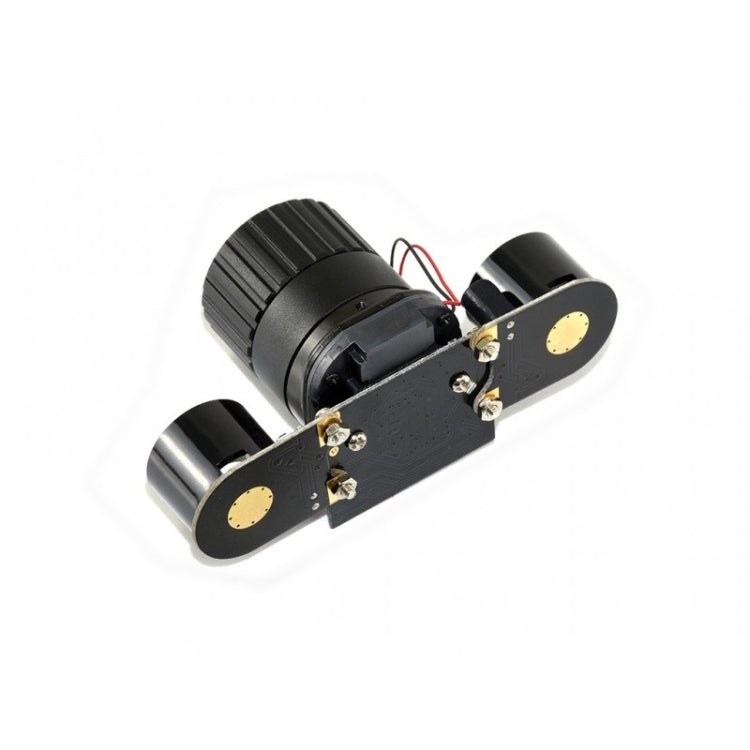

2. Infrared LED Board (B) x2
3. 15-pin FFC (opposite sides contact) x1
1. Raspberry Pi camera, supports all revisions of the Pi
2. Embedded removable IR-CUT filter, eliminating color distortion in the daylight
3. Comes with infrared LED, supports night vision
4. 5 megapixel OV5647 sensor
5. Adjustable focus distance
6. Camera specifications
- CCD size: 1/4 inch
- Aperture (F): 1.2
- Focal Length: 8mm
- Angle of View (diagonal): 40 degree
- Sensor best resolution: 1080p
7. 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
8. Dimension: 31mm x32mm
Note: To use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Note: The actual image pixels is 5MP, which depends on the sensor, so it doesnt matter that there is a 3MP silk mark on the camera.
Package Contents
1. RPi IR-CUT Camera (B) x1
2. Infrared LED Board (B) x2
3. 15-pin FFC (opposite sides contact) x1
