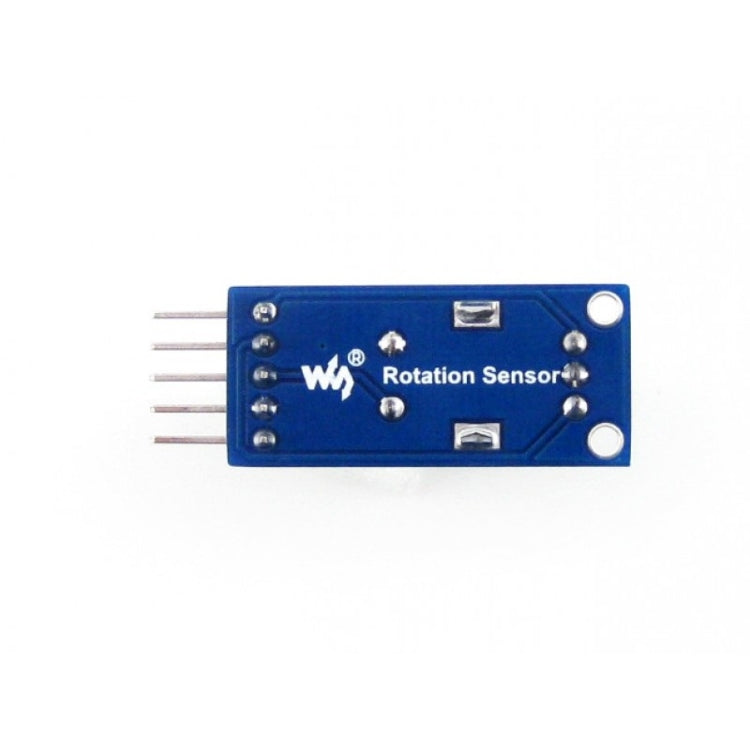

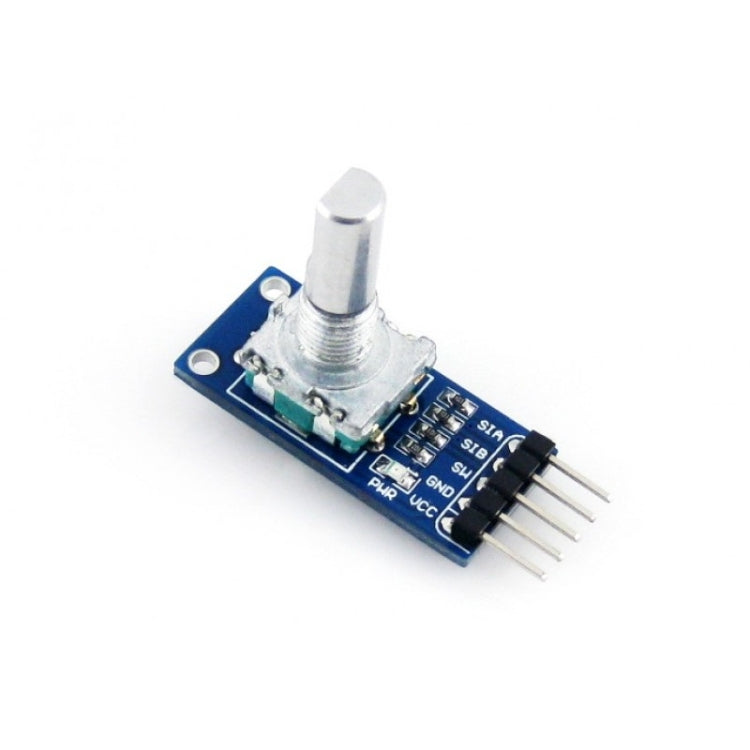

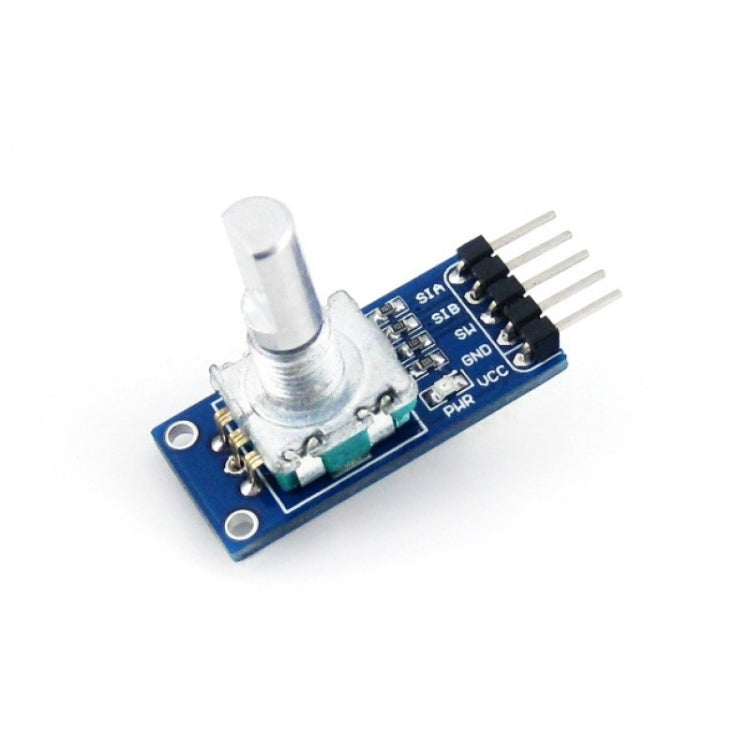

Waveshare Rotation Sensor, Rotation
Waveshare Rotation Sensor, Rotation
Regular price
£2.99
Regular price
Sale price
£2.99
In stock, ready to ship
Quantity
Couldn't load pickup availability
Overview
Detects clockwise/anti-clockwise rotations: degrees and laps
Specifications
1. Pulses per lap: 15
2. Power: 3.0V ~ 5.3V
3. Dimension: 32.1mm * 15.4mm
4. Mounting holes size: 2.0mm
Applications
Positioning in Industrial Controls
How to Use

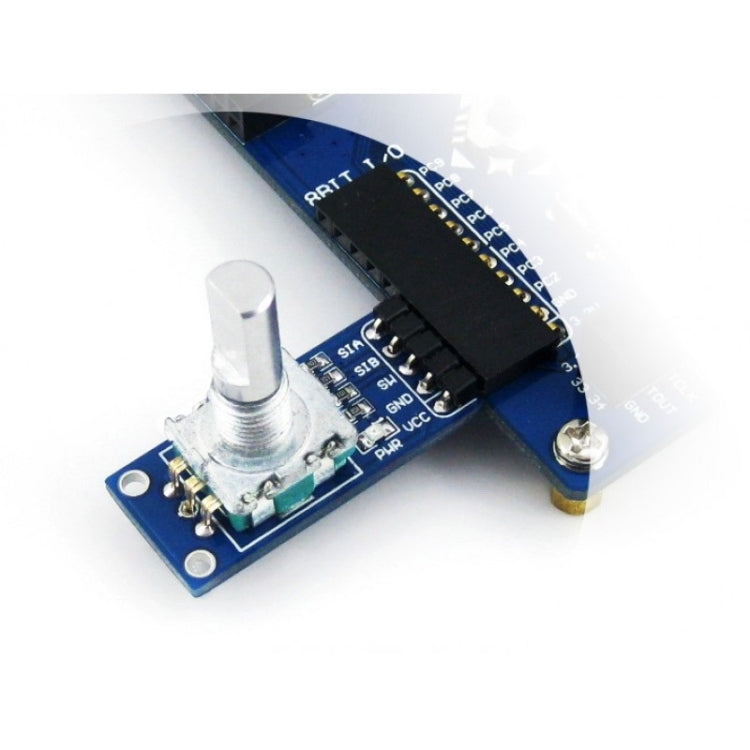

In the case of working with a MCU:

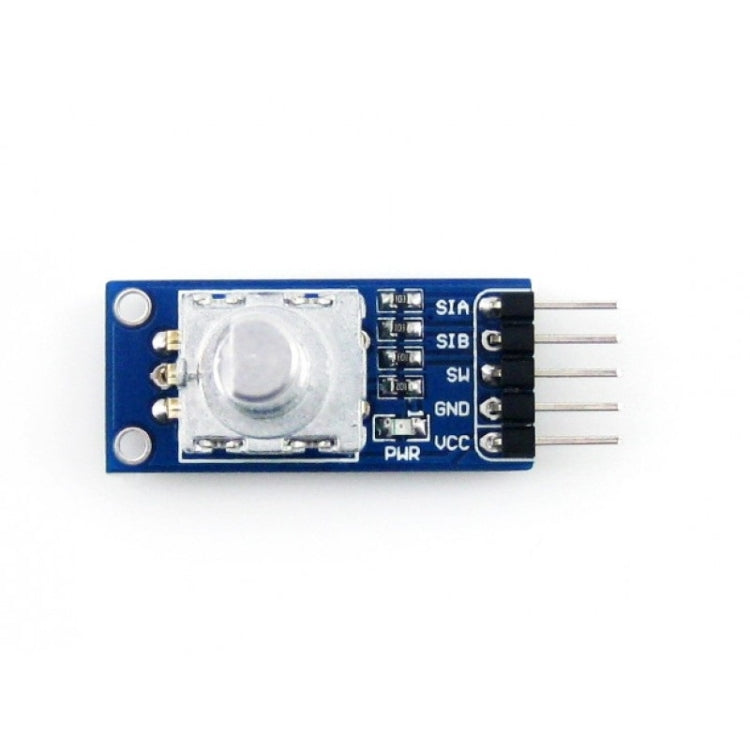

1. VCC -- 3.0V ~ 5.3V
2. GND -- Power supply ground
3. SW -- MCU.IO (encoder button status)
4. SIB -- MCU.IO (output status)
5. SIA -- MCU.IO (output status)
Detects clockwise/anti-clockwise rotations: degrees and laps
Specifications
1. Pulses per lap: 15
2. Power: 3.0V ~ 5.3V
3. Dimension: 32.1mm * 15.4mm
4. Mounting holes size: 2.0mm
Applications
Positioning in Industrial Controls
How to Use
In the case of working with a MCU:
1. VCC -- 3.0V ~ 5.3V
2. GND -- Power supply ground
3. SW -- MCU.IO (encoder button status)
4. SIB -- MCU.IO (output status)
5. SIA -- MCU.IO (output status)
Specification:
| Package Weight |
|
