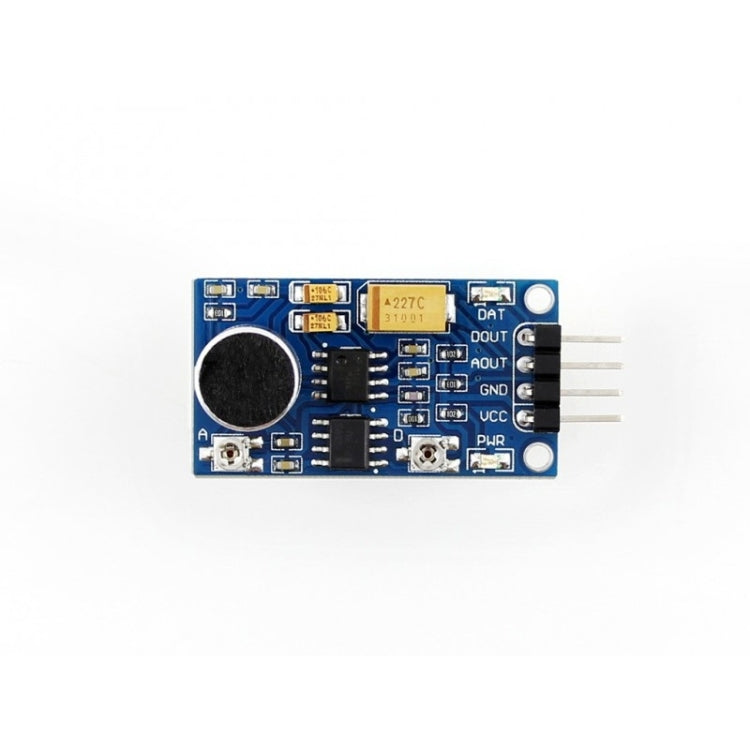

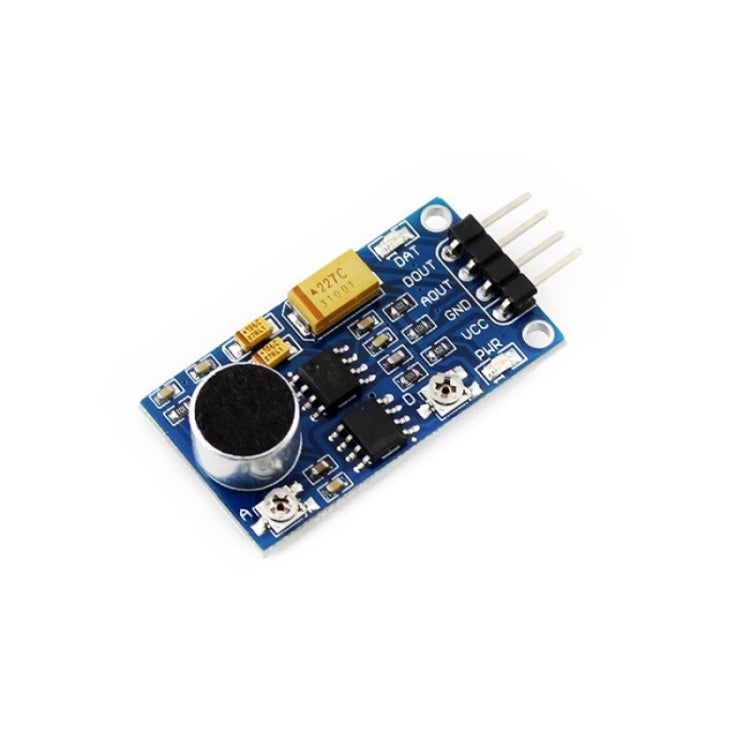

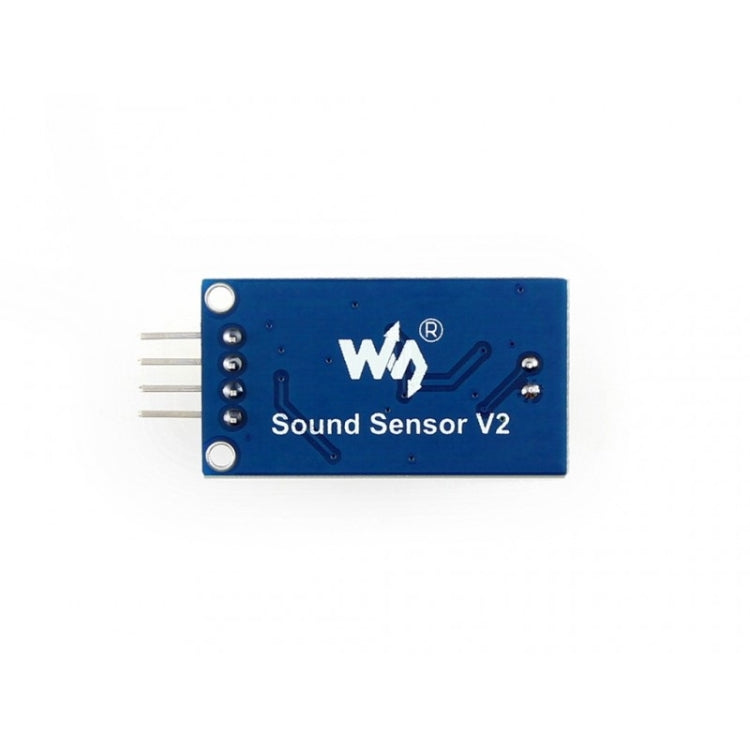

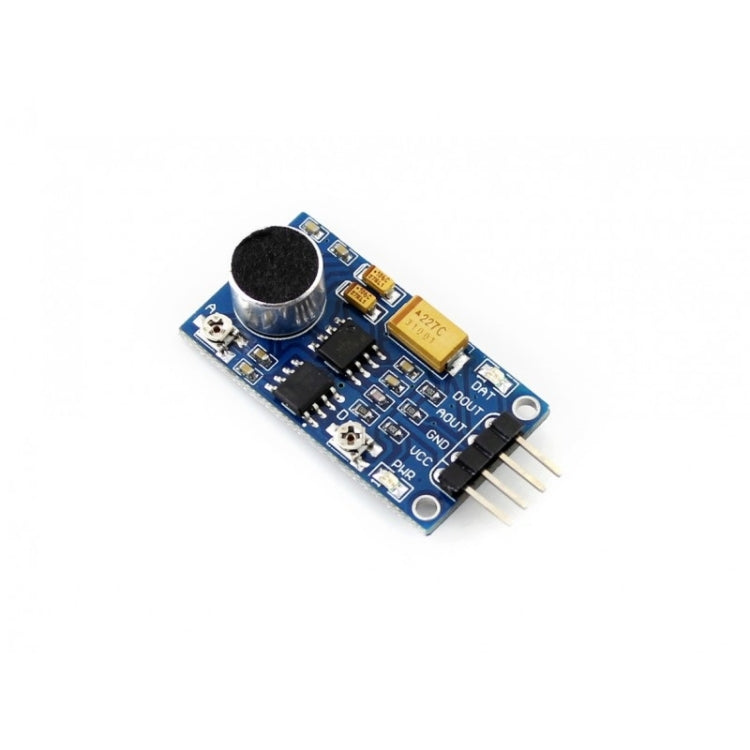

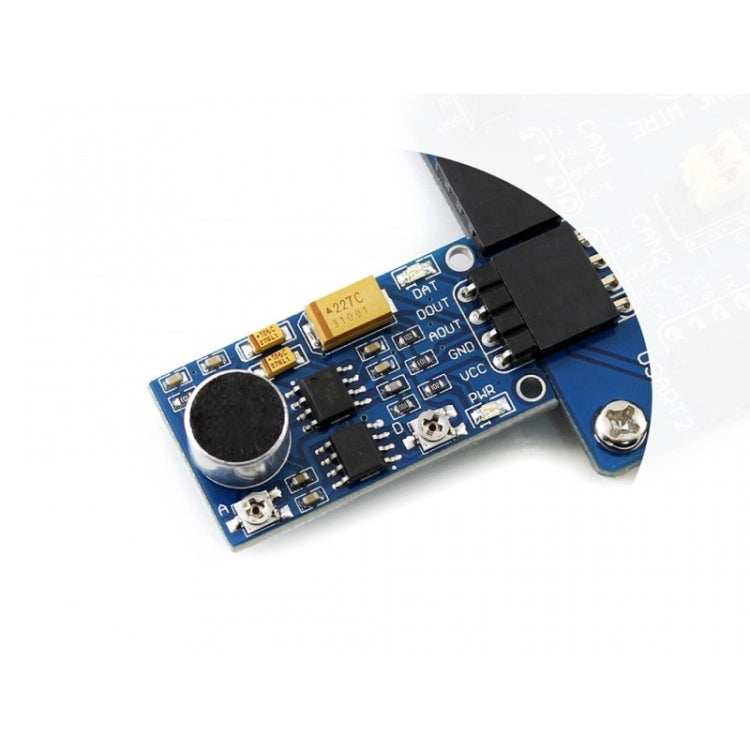

Waveshare Sound Sensor

Waveshare Sound Sensor

£2.99
£2.99
Sale Sold out
In stock, ready to ship
Overview
1. Onboard audio power amplifier LM386
2. Audio signal gain up to 200
3. Adjustable accuracy
4. Signal output indicator

Specifications
1. Mic sensitivity: 52dB
2. Frequency range: 50Hz ~ 20KHz
3. Power: 3.3V ~ 5.3V

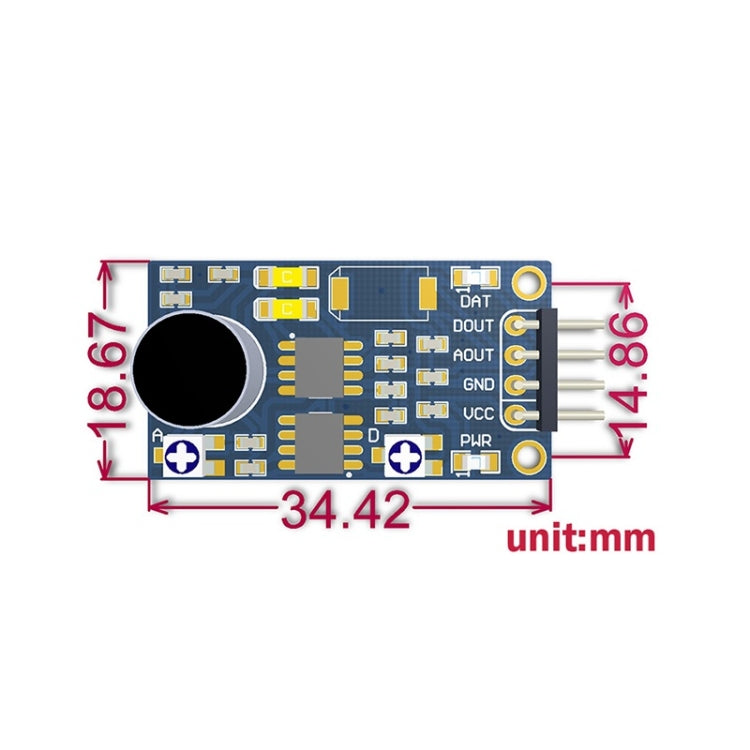

4. Mounting holes size: 2.0mm

Applications
1. Audio amplifier
2. Ambient sound detection
3. Sound level detection (unable to get exact dB value)

How to Use
In the case of working with a MCU:
1. VCC: 3.3V ~ 5.3V
2. GND: Power supply ground
3. AOUT: MCU.IO (analog output)
4. DOUT: MCU.IO (digital output)

Package Contents
1. Sound Sensor x1
2. 4-pin custom connector jumper wire x1


Specification:
Package Weight
One Package Weight 0.02kgs / 0.03lb
One Package Size 5cm * 3cm * 1cm / 1.97inch * 1.18inch * 0.39inch
Qty per Carton 6240
Carton Weight 15.00kgs / 33.07lb
Carton Size 60cm * 39cm * 40cm / 23.62inch * 15.35inch * 15.75inch
Loading Container 20GP: 284 cartons * 6240 pcs = 1772160 pcs
40HQ: 661 cartons * 6240 pcs = 4124640 pcs
