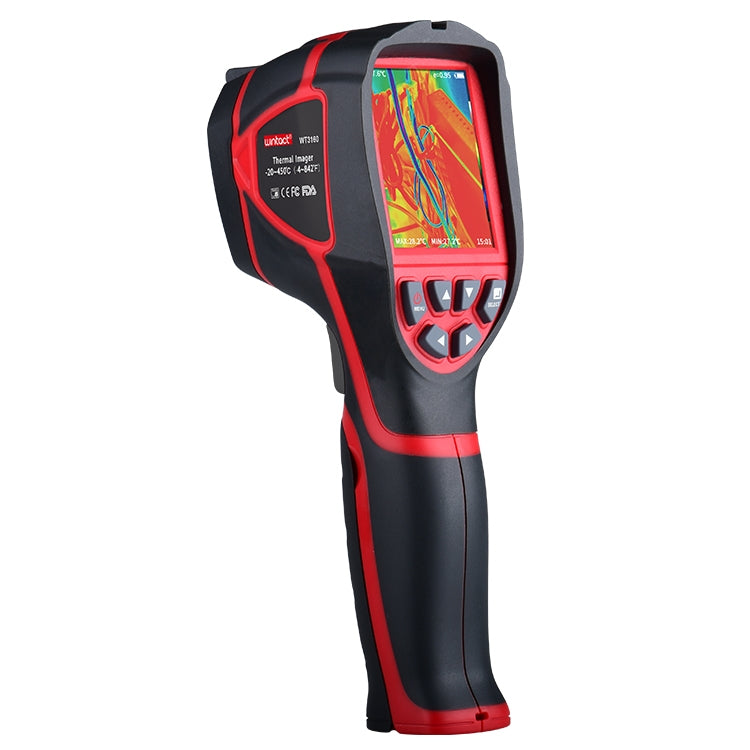

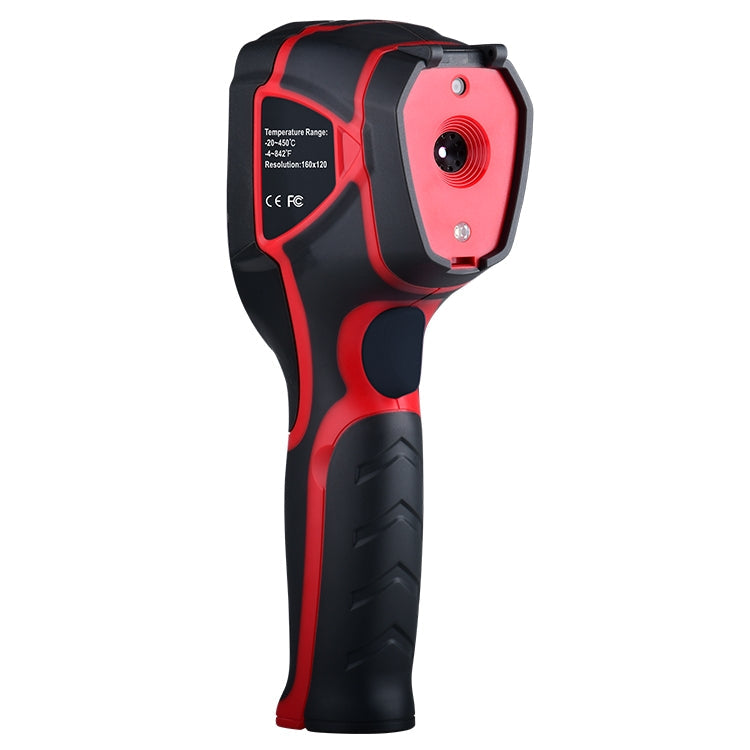

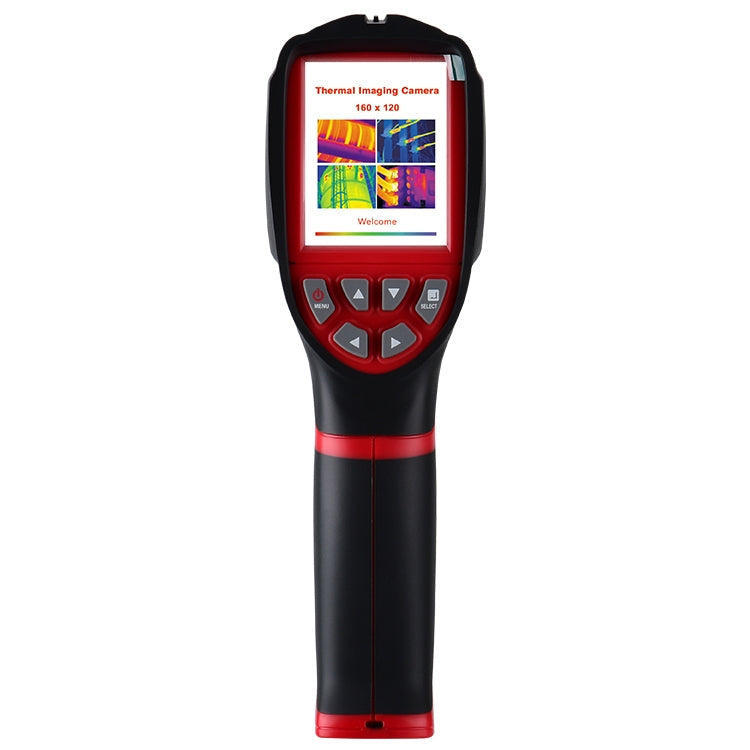

Wintact WT3160 Infrared Thermal Imager Camera, WT3160

1. This product is an infrared thermal imager that integrates surface temperature measurement and real-time thermal imaging
2. The traditional infrared thermometer needs to measure each part one by one, but the infrared thermal imager does not need it, thus saving time

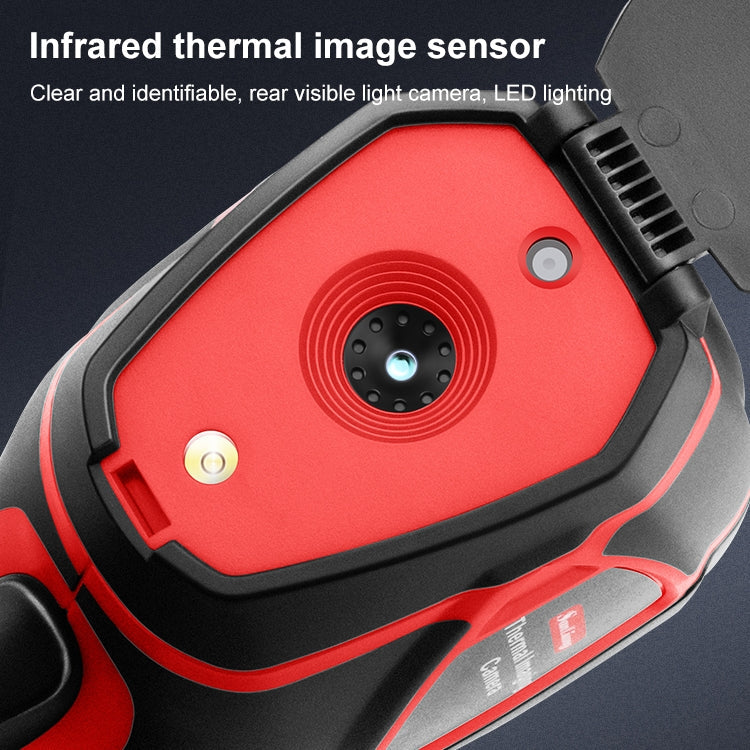

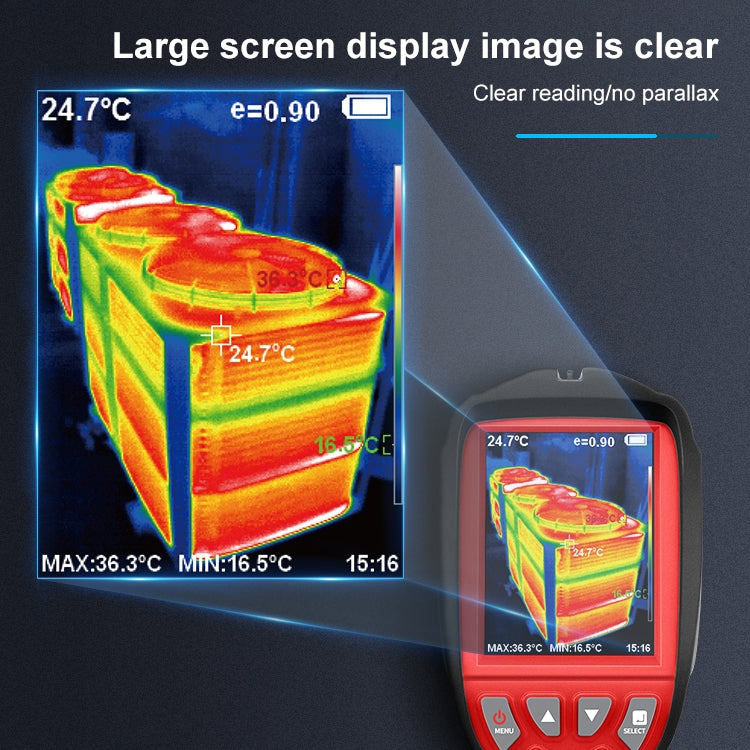

3. Potential problems may be clearly displayed on the color display. And use the center point measurement cursor to quickly and accurately locate and measure the temperature of the target object. In order to increase the degree of discrimination, the product is equipped with a visible light camera

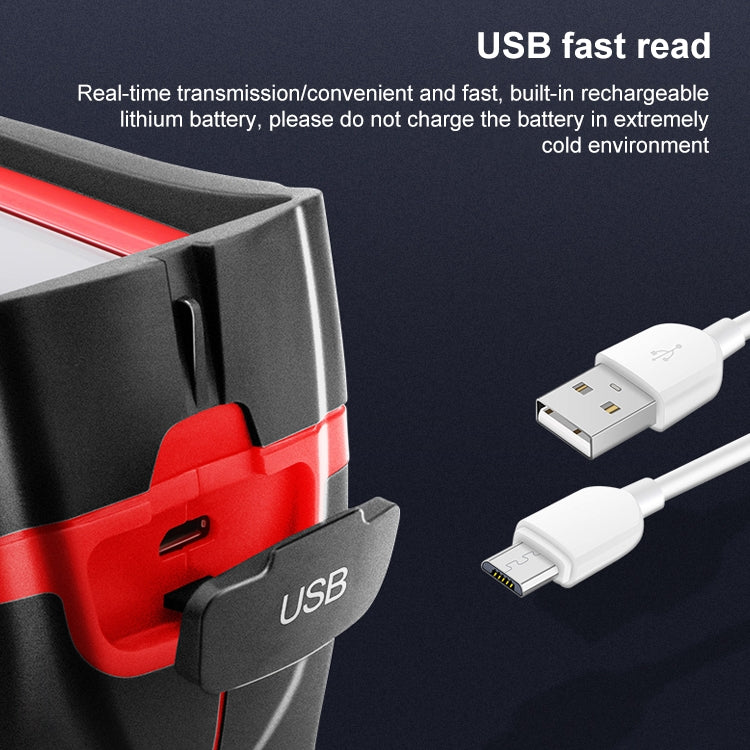

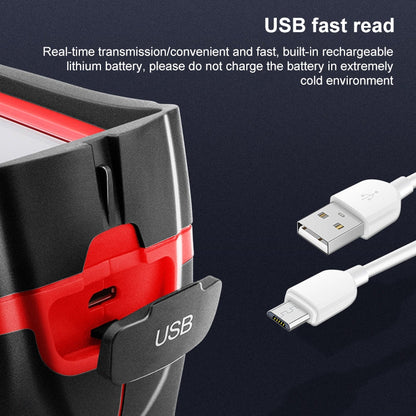

4. The thermal image and visible light image are stored in the device and can be read via USB or stored in the computer to generate reports or print
5. The product is small in size, easy to operate, and powerful. It is an ideal choice for electric power, electronic manufacturing, industrial testing and other fields
6. The emissivity can be adjusted to improve the measurement accuracy of semi-reflective objects
7. The upper and lower temperature cursors can guide the user to the upper and lower temperature areas of the thermal image
8. Optional palette
9. Application areas include electric power, metallurgy, petrochemicals, machinery, coal, transportation, fire protection, national defense, etc. It can not only perform real-time detection under high-voltage, high-current, and high-speed operation, but also realize real-time detection
10. There is no need to cut off power, stop or stop production to detect potential problems and prevent failures
11. Display: 2.8-inch full-angle TFT display
12. Infrared image resolution: 220x160
13. Field of view: 35x26 degrees
14. Temperature measurement range: -20 to 450 degrees Celsius
15. Measurement accuracy: +/-2 degrees Celsius/+/-2% (more than 300 degrees Celsius, the accuracy is +/-5%)
16. Visible image resolution: 300,000 pixels
17. LCD resolution: 320??240
18. Focus distance: 0.5-70 meters
19. Emissivity: adjustable from 0.01 to 1.00
20. Thermal image frame rate: 9 Hz
21. Wavelength coverage: 8-14um
22. Focus mode: fixed
23. Palette: rainbow, iron oxide red, cool color, black and white, white and black
24. Storage capacity: built-in 3G (store more than 20,000 images)
25. Dimensions: 69.4x225x93.4mm
26. Weight: 329.1g
