Z54A HDMI Output + 2 x HDMI Input + Mic + Audio to Type-C Video Capture Switcher with Loop, Z54A

1. The product complies with USB video UVC specification and USB audio UAC specification
2. Support operating systems such as Windows, Android, Linux and MacOS
3. Support most acquisition software, such as VLC, OBS, Amcap, etc.
4. Support HD local loop out
5. Support microphone input, audio jack supports integrated headset (Note: when the microphone and headset integrated headset are used at the same time, the integrated headset has no microphone function.)
6. Support free switching of two HD signal sources
7. Support microphone audio and HD audio overlay collection
8. Input terminal: HD/F input can support 4K, 8/10/12 bit color depth input format
9. Output: USB-C/M supports 1080P; MJPEG output mode
10. HD capture, strong compatibility, smooth picture
11. No need for external power supply, portable
12. Operating environment: -20 degrees Celsius -65 degrees Celsius, relative humidity is 5%-95%

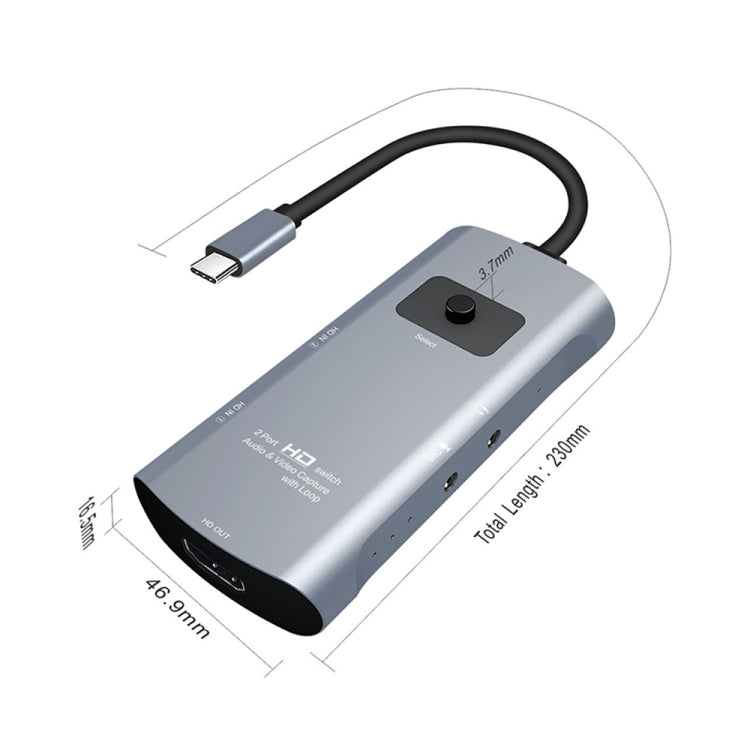

13. Product size: 230 x 46.9 x 20.2mm
14. Product color: gray
